TP-Link M8550 AXE3600 5G Mobile Hotspot User Manual

परिचय

The TP-Link M8550 AXE3600 5G Mobile Hotspot provides ultra-fast internet connectivity wherever you go. This portable Wi-Fi router is designed for travel, business trips, and can even serve as a reliable home network replacement. Featuring advanced 5G technology, it delivers download speeds up to 3.4 Gbps and supports up to 32 devices simultaneously. With tri-band Wi-Fi 6E, a nano SIM card slot, and a powerful 4680 mAh battery offering up to 14 hours of use, the M8550 ensures seamless connectivity. Its intuitive touchscreen interface and TP-Link Tether App make setup and management effortless.

काय समाविष्ट आहे

पॅकेजमध्ये खालील आयटम आहेत:

• 1 x 5G AXE3600 Mobile Router M8550
• 1 x पॉवर अडॅप्टर
• 1 x USB-C केबल
• 1 x 4680mAh बॅटरी
• 1 x द्रुत स्थापना मार्गदर्शक

उत्पादन संपलेview

आकृती 1: The TP-Link M8550 5G Mobile Hotspot showcasing its cutting-edge 5G speeds, powerful tri-band Wi-Fi 6E, and unlocked compatibility with major carriers. It also highlights the external antenna interface, touchscreen, wired device connectivity, long battery life, and VPN security.

आकृती 2: The M8550's informative touchscreen interface, displaying options for Home, Device Info, Power Saving, VPN, Wi-Fi Band, Network Mode, Data Roaming, and App Download.

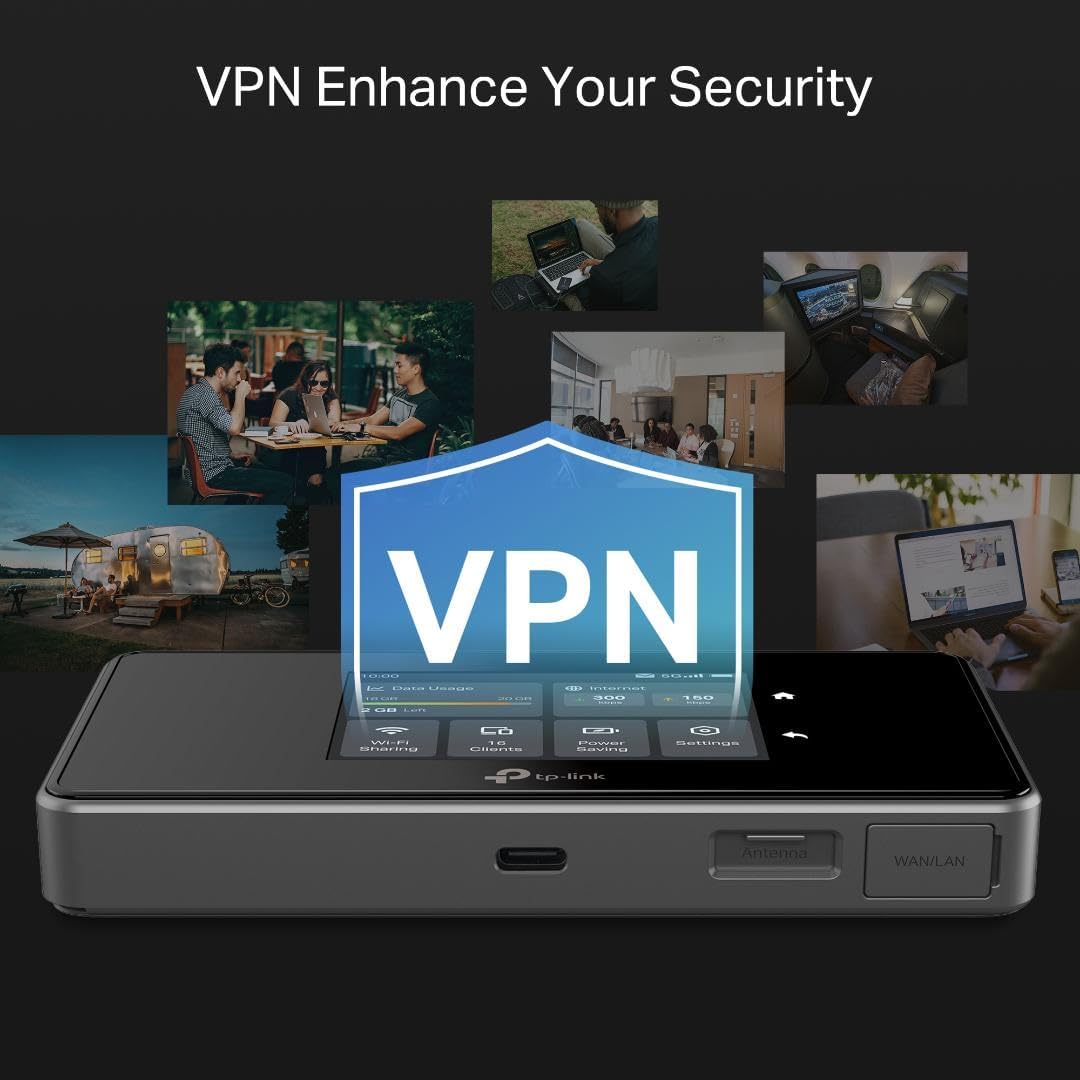

आकृती 3: The M8550 emphasizing its VPN capabilities for enhanced security, showing various usage scenarios in different environments.

प्रमुख वैशिष्ट्ये

• Ultra-Fast 5G Wi-Fi: Enjoy download speeds up to 3.4 Gbps and upload speeds up to 900 Mbps on 5G networks.
• Tri-Band AXE3600 Wi-Fi 6E: Delivers up to 2,880 Mbps (6 GHz), 2,880 Mbps (5 GHz), and 688 Mbps (2.4 GHz) for optimal performance.
• Unlocked & Certified: Supports AT&T, T-Mobile, and Verizon, with international roaming capabilities.
• Two Internet Access Modes: Cellular Mode for 5G hotspot use with a SIM card and Ethernet Mode for Wi-Fi router use with a wired connection.
• दीर्घकाळ चालणारी बॅटरी: 4680mAh rechargeable battery provides up to 14 hours of uninterrupted use.
• एकाधिक डिव्हाइस कनेक्ट करा: एकाच वेळी ४५ उपकरणांना समर्थन देते.
• Informative Touchscreen: Intuitive interface for easy setup and management.
• VPN समर्थन: Built-in WireGuard VPN for secure remote access.
• यूएसबी-सी पोर्ट: For rapid charging and data transfer.
• External Antenna Support: Dual TS-9 connectors for optional external antennas (sold separately) to boost signal.

सेटअप

५.१. सिम कार्ड आणि बॅटरी घाला

1. M8550 डिव्हाइसचे मागील कव्हर काढा.
2. Insert your activated Nano SIM card into the designated slot. Ensure the SIM card is without a PIN lock.
3. Align the 4680mAh battery with the connectors and gently press it into place.
4. मागचे कव्हर सुरक्षितपणे दाबले जाईल याची खात्री करून ते बदला.

१. डिव्हाइस चालू करा

• Press and hold the power button located on the device until the screen illuminates.
• भाषा निवडीसह, सुरुवातीच्या सेटअपसाठी स्क्रीनवरील सूचनांचे अनुसरण करा.

3. Download the TP-Link Tether App

• For easy management and customization, download the TP-Link Tether App from your device's app store (iOS or Android).
• Open the app and follow the instructions to connect to your M8550 hotspot.

डिव्हाइस ऑपरेट करत आहे

टचस्क्रीन इंटरफेस

The M8550 features an intuitive touchscreen display for direct control:

• घर: View current status and data usage.
• डिव्हाइस माहिती: Access device details and network information.
• वीज बचत: Adjust settings to optimize battery life.
• VPN: Manage VPN connections for secure browsing.
• वाय-फाय बँड: Select or manage Wi-Fi frequency bands (2.4 GHz, 5 GHz, 6 GHz).
• नेटवर्क मोड: Switch between Cellular Mode (5G/4G) and Ethernet Mode.
• डेटा रोमिंग: Enable or disable data roaming for international use.
• अ‍ॅप डाउनलोड: Access QR code to download the Tether App.

टीपी-लिंक टिथर अॅप

The Tether App provides comprehensive control over your M8550 from your smartphone:

• View network status, connected clients, and data usage in real-time.
• Customize Wi-Fi settings, including network name (SSID) and password.
• Manage performance modes (Boost, Balance, Eco) to balance speed and battery life.
• Set connection priority for different internet sources (Ethernet, Hotspot, USB Internet).
• Configure parental controls, block websites, and set bedtime schedules for internet access.
• Access VPN client settings and manage USB drive file शेअरिंग
• Update device firmware for best performance.

कनेक्टिव्हिटी

वाय-फाय कनेक्शन

The M8550 supports tri-band Wi-Fi 6E, allowing connection of up to 32 devices across 2.4 GHz, 5 GHz, and 6 GHz bands. Devices supporting Wi-Fi 7 can utilize Multi-Link Operation (MLO) for combined band speeds.

वायर्ड कनेक्शन

The device includes a Gigabit WAN/LAN port for wired internet access or connecting wired devices. A USB-C port is available for rapid charging and data transfer, and a microSD card slot allows for wireless file शेअरिंग

बाह्य अँटेना सपोर्ट

Two TS-9 connectors are available for attaching external antennas (sold separately). These can boost reception and improve 5G signal strength in areas with low coverage.

सुरक्षा आणि गोपनीयता

The TP-Link M8550 is designed with advanced security as a core requirement, adhering to the U.S. Cybersecurity and Infrastructure Security Agency’s (CISA) Secure-by-Design pledge.

• Built-in VPN: Utilize WireGuard VPN to encrypt all traffic, providing secure access to corporate networks without additional software.
• नेटवर्क संरक्षण: Access security features via the Tether App, including Security Scan, IoT Device Identification, Guest Network, and Wi-Fi Access Control.

तपशील

समस्यानिवारण

• इंटरनेट कनेक्शन नाही: Ensure your SIM card is active and has a valid data plan. Check signal strength on the device screen. Try restarting the device.
• मंद गती: Performance can vary due to network configuration, signal strength, distance from the device, and obstacles. Try adjusting the performance mode in the Tether App.
• डिव्हाइस कनेक्ट होत नाही: Verify Wi-Fi password. Ensure the device is within range. Check for firmware updates via the Tether App.
• SIM Card Locked: If your SIM card is locked, consult the quick installation guide for unlocking instructions.

सपोर्ट

For further assistance, please contact TP-Link Customer Support:

• फोन: 1-866-255-8139 (24/7 free support)
• Webसाइट: support.tp-link.com/us
• ईमेल: support.usa@tp-link.com

कायदेशीर अस्वीकरण

The actual mobile broadband speeds vary due to network configuration, signal strength, subscription terms, etc. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and connected devices vary due to network conditions, client limits, environment, etc. Actual battery time may vary due to different user environments. SIM card & SD card sold separately. This device requires an activated SIM card without a PIN lock. If the SIM card is locked, please consult the quick installation guide for unlocking instructions. Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E and its features require clients to also support the corresponding features. External antenna sold separately.
