SMALLRIG AD-14-5441 Carbon Fiber Video Tripod Instruction Manual

परिचय

The SMALLRIG AD-14-5441 Carbon Fiber Video Tripod is engineered for videographers requiring a balance of stability, portability, and robust performance. This manual provides essential information to ensure proper assembly, operation, and care of your equipment.

प्रमुख वैशिष्ट्ये

• Carbon Fiber Construction: Built with carbon fiber legs in a 2-2-1 layout, supporting up to 10kg (22lbs) while weighing only 2.7kg (6lbs), ideal for quick shooting and travel.
• Professional Fluid Head: Features an aluminum hydraulic head with infinite tilt drag control for smooth pans and tilts (+85° to -78° Tilt Range). Compatible with 501PL for Manfrotto plates, supporting side-loading for quick setups and one-touch quick release.
• Horseshoe Head Design for Legs: Legs feature a horseshoe-shaped ball head with a built-in anti-drop feature. The horseshoe state can be adjusted by rotating the thread, providing stable support on various terrains.
• कॉम्पॅक्ट आणि पोर्टेबल: Collapses to 87cm (34") for easy transport and includes a carrying case. Fits in overhead compartments.
• उंची समायोज्य: Extends from 84cm (33") to 185cm (73") with a 65mm bowl mount for leveling. Includes 2x 1/4"-20 mounts for accessories.

बॉक्समध्ये काय आहे

• ट्रायपॉड x 1
• ऍलन रेंच x 1
• स्टोरेज बॅग x 1
• फोन Clamp x १
• गॅरंटी कार्ड x १

सेटअप

1. ट्रायपॉड उघडणे:

   Remove the tripod from its storage bag. Gently pull the legs outwards until they are fully extended. The horseshoe-shaped ball head at the base of the legs will help stabilize the setup.



   Image: The SMALLRIG AD-14-5441 tripod shown in its folded state with the carrying bag, and fully unfolded ready for use.

2. Adjusting Leg Height:

   Locate the leg locks on each leg. Release the locks and extend the leg sections to your desired height. Securely fasten the leg locks to ensure stability. The tripod can extend from a minimum height of 84cm (33") to a maximum height of 185cm (73").

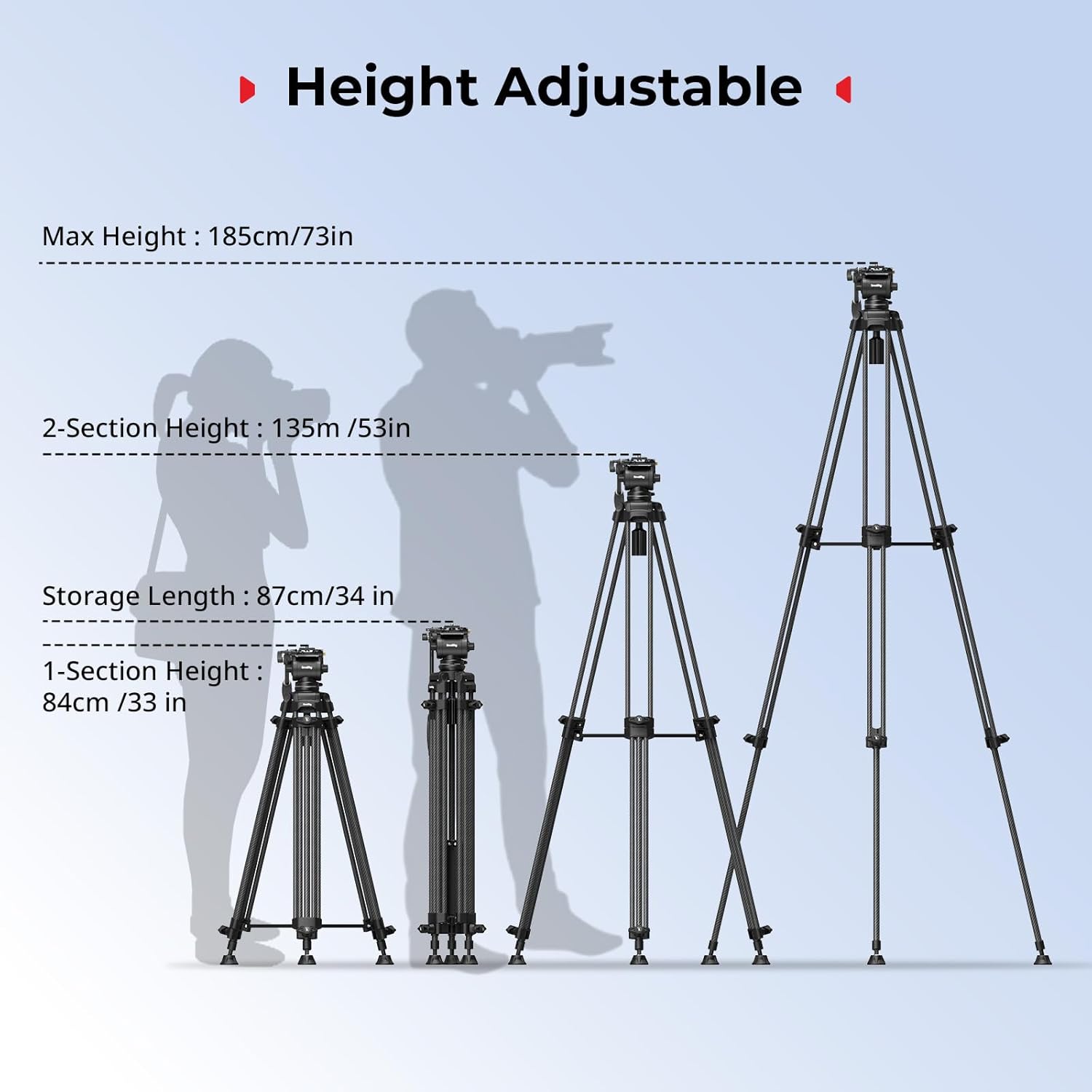

   Image: Visual representation of the tripod's adjustable height settings, from its lowest point of 84cm to its maximum extension of 185cm.

3. Attaching the Fluid Head:

   The tripod features a 65mm bowl mount for quick leveling. Ensure the fluid head is securely attached to the bowl mount. Use the integrated bubble level on the fluid head to achieve a perfectly horizontal setup.

4. तुमचा कॅमेरा माउंट करणे:

   The fluid head is equipped with a quick release plate compatible with 501PL for Manfrotto plates. Attach the quick release plate to the bottom of your camera using the appropriate 1/4"-20 or 3/8"-16 screw. Slide the camera with the attached plate into the fluid head until it clicks securely into place. Use the quick release plate locking knob to further secure the camera.



   प्रतिमा: क्लोज-अप view of the fluid head's quick release plate, demonstrating the side-loading and locking mechanism for camera attachment.

ऑपरेटिंग सूचना

1. Panning and Tilting:

   The fluid head allows for 360° horizontal panning and a tilt range of +85° to -78°. Use the pan locking knob and tilt locking knob to control movement. The tilt damping adjustment knob provides infinite drag control for smooth, precise camera movements.



   Image: Diagram illustrating the 360° panning capability and the +85° to -78° tilt range of the fluid head, highlighting the tilt damping adjustment knob.

2. Leg Angle Adjustment:

   The horseshoe head design allows for flexible leg angles. Adjust the leg angle by rotating the thread at the base of each leg. This feature is particularly useful for achieving stability on uneven surfaces or for low-angle shots.

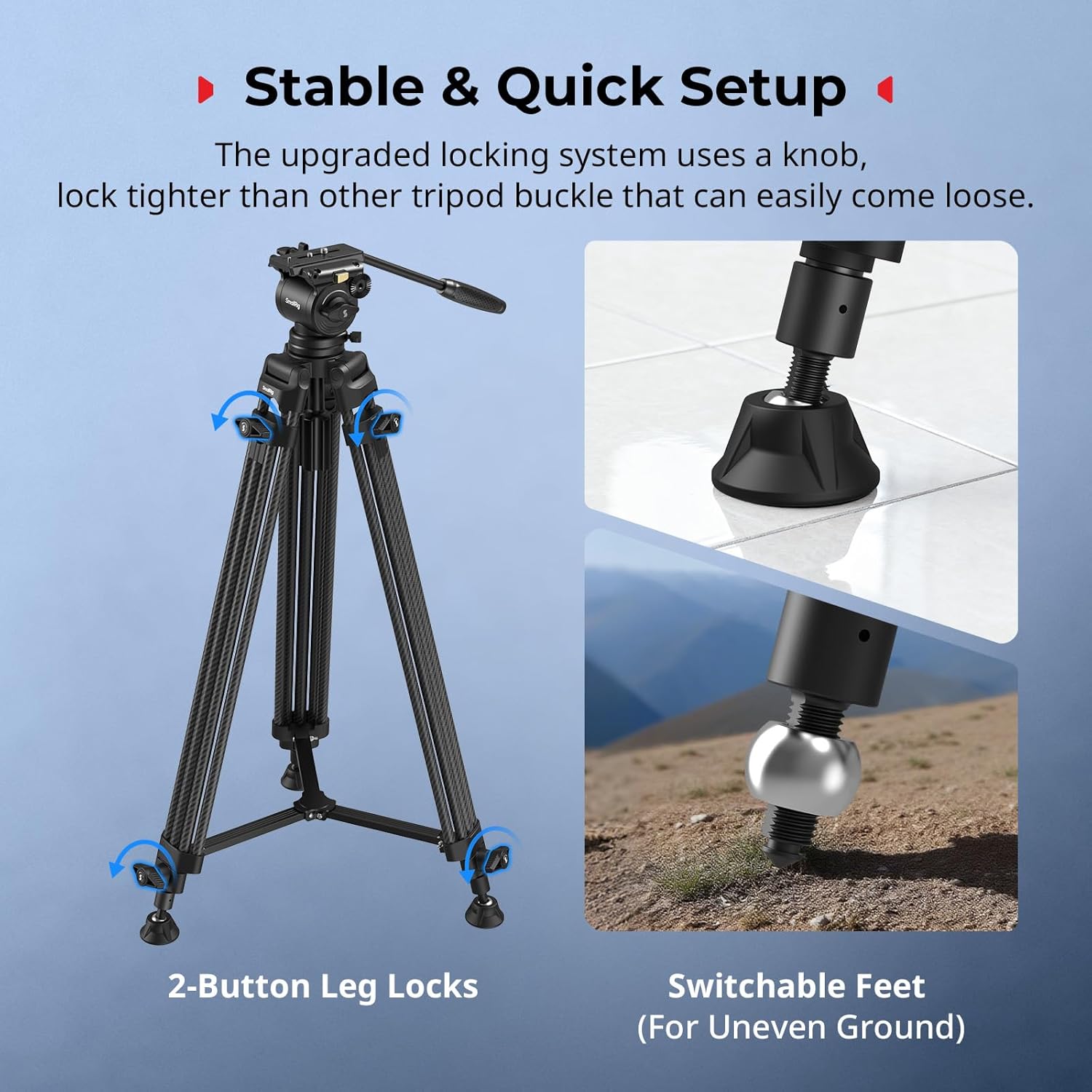

   Image: Close-up of the tripod legs demonstrating the 2-button leg locks and the switchable feet, which can be adapted for various terrains including soft ground (spikes) or hard surfaces (rubber pads).
3. Accessory Mounts:

   The tripod includes 2x 1/4"-20 mounts for attaching accessories such as external monitors, microphones, or LED lights. These mounts are located on the tripod's spider for convenient placement.



   प्रतिमा: तपशीलवार view of the fluid head, labeling various controls such as the QR plate release button, lock gear for the pan handle, tilt locking knob, pan locking knob, and the 1/4"-20 and 3/8"-16 screws on the quick release plate.

देखभाल

• स्वच्छता: Use a soft, dry cloth to wipe down the tripod after each use. For stubborn dirt, a slightly damp कापडाचा वापर करता येईल आणि त्यानंतर लगेच वाळवावे. कठोर रसायने किंवा अपघर्षक पदार्थ टाळा.
• स्नेहन: Periodically check the fluid head and leg locks for smooth operation. If any part feels stiff, apply a small amount of silicone-based lubricant as recommended by the manufacturer.
• स्टोरेज: Store the tripod in its provided carrying case in a cool, dry place away from direct sunlight and extreme temperatures. Ensure all locks are disengaged before storing to prevent unnecessary stress on components.
• तपासणी: Regularly inspect all screws, bolts, and moving parts for any signs of wear or damage. Tighten any loose fasteners using the provided Allen wrench.

समस्यानिवारण

• ट्रायपॉड अस्थिरता: Ensure all leg locks are fully engaged and the legs are spread evenly. Verify that the horseshoe head is adjusted correctly for the terrain.
• Stiff Panning/Tilting: Check if the pan and tilt locking knobs are fully disengaged. If movement remains stiff, a small amount of lubricant may be needed (refer to Maintenance section).
• Camera Not Secure: Confirm the quick release plate is properly attached to the camera and fully seated in the fluid head. Ensure the quick release plate locking knob is tightened.

तपशील

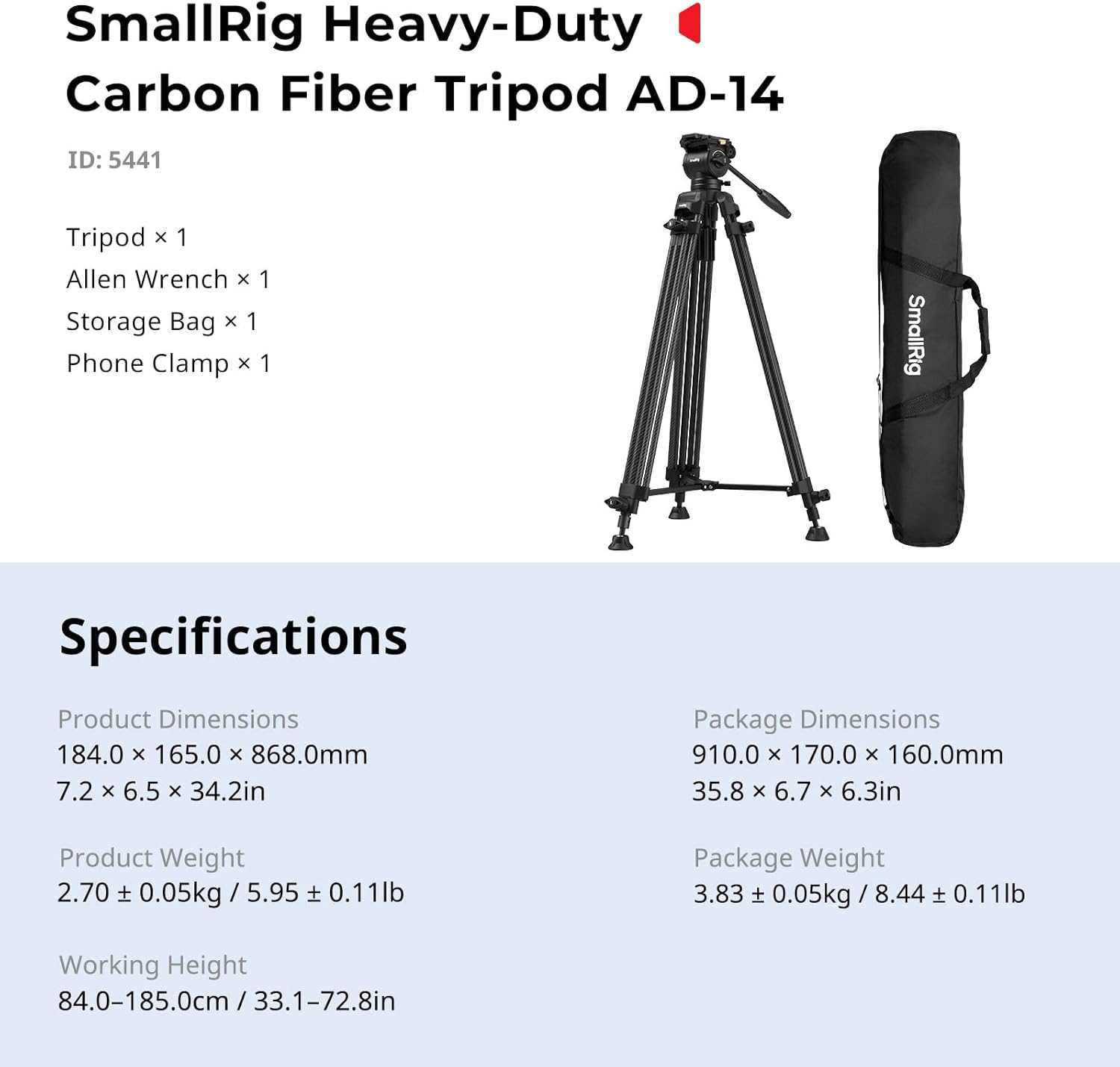

Image: A graphic summarizing the key specifications and included items for the SMALLRIG AD-14-5441 Carbon Fiber Tripod.

हमी आणि समर्थन

For warranty information, technical support, or service inquiries, please refer to the Guarantee Card included in your product package or visit the official SMALLRIG webजागा. वॉरंटी दाव्यांसाठी तुमची खरेदी पावती ठेवा.
