KYOCERA DuraXV Extreme+ E4811 User Manual

1. परिचय

This manual provides essential instructions for the proper setup, operation, and maintenance of your KYOCERA DuraXV Extreme+ E4811 ultra-rugged flip phone. Designed for durability, this device features IP68 dust and waterproof rating, MIL-STD-810G protection, 4G LTE connectivity, and a 5MP camera. Please read this manual thoroughly before using your device to ensure optimal performance and longevity.

2. पॅकेज सामग्री

तुमच्या पॅकेजमध्ये खालील आयटम असल्याचे सत्यापित करा:

• KYOCERA DuraXV Extreme+ E4811 Handset
• पॉवर अडॅप्टर
• यूएसबी केबल
• बॅटरी (पूर्व-स्थापित किंवा वेगळी)

3. डिव्हाइस लेआउट

Familiarize yourself with the physical components of your DuraXV Extreme+ E4811.

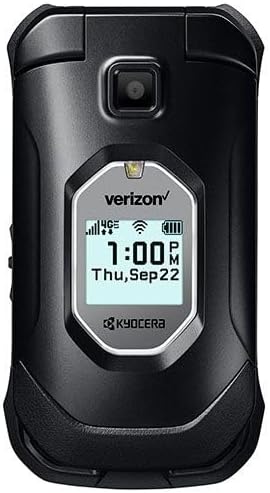

आकृती 3.1: समोर view of the KYOCERA DuraXV Extreme+ E4811 in its closed position, displaying the external screen with time and network status.

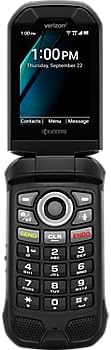

आकृती 3.2: समोर view of the KYOCERA DuraXV Extreme+ E4811 in its open position, revealing the main display and the physical keypad with navigation buttons.

आकृती 3.3: मागे view of the KYOCERA DuraXV Extreme+ E4811 in its open position, showing the rear casing and charging contacts.

आकृती 3.4: बाजू view of the KYOCERA DuraXV Extreme+ E4811, highlighting the USB charging port and other side buttons.

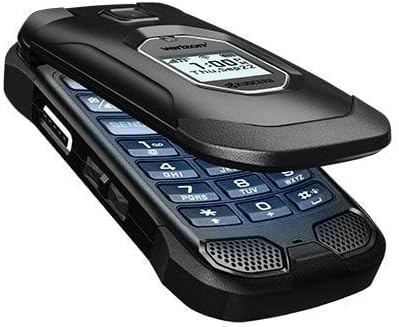

आकृती 3.5: टोकदार view of the KYOCERA DuraXV Extreme+ E4811 in its open state, providing a perspective of both the display and keypad.

4. सेटअप

२. बॅटरी बसवणे आणि चार्ज करणे

1. If the battery is not pre-installed, remove the back cover of the phone.
2. Align the battery (1770 mAh) contacts with the phone's terminals and gently press it into place.
3. Replace the back cover, ensuring it is securely latched to maintain water and dust resistance.
4. Connect the USB cable to the phone's charging port and the power adapter. Plug the adapter into a wall outlet.
5. Allow the phone to charge fully before initial use. The charging indicator will show progress.

२. सिम कार्ड इंस्टॉलेशन

Your DuraXV Extreme+ E4811 requires a Nano-SIM card for cellular service.

1. Power off the phone and remove the back cover.
2. सिम कार्ड स्लॉट शोधा.
3. Insert the Nano-SIM card with the gold contacts facing down and the notched corner aligned with the slot. Push until it clicks into place.
4. मागील कव्हर पुनर्स्थित करा.

4.3. पॉवर चालू/बंद

• चालू करण्यासाठी: Press and hold the Power/End Call button until the screen illuminates.
• पॉवर ऑफ करण्यासाठी: Press and hold the Power/End Call button, then select 'Power off' from the options on the screen.

5. ऑपरेटिंग सूचना

5.1. मूलभूत नेव्हिगेशन

Use the directional pad and center select button to navigate menus and select options. The 'Send' button initiates calls, and the 'End' button terminates calls or returns to the home screen.

5.2. कॉल करणे आणि प्राप्त करणे

• कॉल करण्यासाठी: Enter the phone number using the keypad and press the 'Send' button.
• कॉलला उत्तर देण्यासाठी: When the phone rings, press the 'Send' button.
• कॉल समाप्त करण्यासाठी: Press the 'End' button.

२. संदेश पाठवणे आणि प्राप्त करणे

• Navigate to the 'Messages' application from the main menu.
• Select 'New Message' to compose a text message. Enter the recipient's number and your message.
• Press the 'Send' option to transmit the message.
• Received messages will appear as notifications on the screen and can be accessed through the 'Messages' application.

5.4. कॅमेरा वापरणे

Your phone is equipped with a 5MP camera.

1. Open the 'Camera' application from the main menu.
2. Frame your subject using the display.
3. Press the center select button or a dedicated camera button (if available) to capture a photo.

5.5. Connectivity (Bluetooth, Wi-Fi, 4G LTE)

• ब्लूटूथ: Access Bluetooth settings from the main menu to pair with compatible devices like headsets or car kits.
• वाय-फाय: Connect to available Wi-Fi networks via the settings menu to access the internet without using cellular data.
• 4G LTE: The phone automatically connects to the 4G LTE network for high-speed data and calls, provided a valid SIM card and service plan are active.

6. देखभाल

• स्वच्छता: मऊ वापरा, डीamp फोनचा बाह्य भाग स्वच्छ करण्यासाठी कापड वापरा. ​​कठोर रसायने किंवा अपघर्षक पदार्थ टाळा.
• पाणी आणि धूळ प्रतिकार: The phone is IP68 rated. Ensure all port covers are securely closed to maintain water and dust resistance. Do not expose the phone to saltwater or other liquids. If exposed to water, rinse with fresh water and dry thoroughly.
• बॅटरी काळजी: Avoid extreme temperatures. Do not puncture or disassemble the battery. Use only approved chargers.
• पर्यावरण संरक्षण: The phone is MIL-STD-810G compliant, offering protection against drops, shock, vibration, and extreme weather conditions. However, avoid unnecessary harsh treatment.

7. समस्या निवारण

If you encounter issues with your phone, refer to the following common solutions:

• Phone Does Not Power On: Ensure the battery is charged. Connect the phone to the charger and attempt to power on after a few minutes.
• नेटवर्क सिग्नल नाही: Check that the SIM card is correctly inserted. Move to an area with better network coverage. Contact your service provider if the issue persists.
• कॉल करता येत नाहीत/मिळत नाहीत: Verify that you have active cellular service. Check call barring settings. Ensure the phone is not in Airplane Mode.
• Screen is Unresponsive: If the screen is frozen, try performing a soft reset by removing and reinserting the battery (if accessible) or holding the Power button for an extended period.
• खराब ऑडिओ गुणवत्ता: Check the volume settings. Ensure the speaker or earpiece is not obstructed.

8. तपशील

9. हमी आणि समर्थन

Your KYOCERA DuraXV Extreme+ E4811 is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official KYOCERA website. For technical support, product registration, or further assistance, please visit the KYOCERA support page or contact their customer service directly.

ऑनलाइन समर्थन: www.kyoceramobile.com/support/
