MOBAPAD Huben2 Wireless Switch Controller Pro Instruction Manual

1. परिचय

This manual provides detailed instructions for the setup, operation, and maintenance of your MOBAPAD Huben2 Wireless Switch Controller Pro. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. सुरक्षितता माहिती

• Keep the controller away from water and other liquids.
• कंट्रोलरला अति तापमानात उघड करू नका.
• कंट्रोलरला खाली पाडणे किंवा जोरदार आघातांना बळी पडणे टाळा.
• Do not attempt to disassemble or repair the controller yourself. Contact customer support for assistance.
• चार्जिंगसाठी फक्त दिलेली चार्जिंग केबल किंवा प्रमाणित USB-C केबल वापरा.

3. पॅकेज सामग्री

तुमच्या पॅकेजमध्ये सर्व वस्तू आहेत का ते तपासा:

• MOBAPAD Huben2 Wireless Controller Pro
• USB-C चार्जिंग केबल
• Wireless Dongle (2.4G)
• PU Travel Case
• Replaceable D-pad (Cross/Circle)
• सूचना पुस्तिका (हा दस्तऐवज)

३. कंट्रोलर लेआउट

Familiarize yourself with the buttons and features of your Huben2 controller.

आकृती 4.1: समोर view of the MOBAPAD Huben2 Wireless Controller Pro. Shows the joysticks, face buttons (A, B, X, Y), D-pad, and central function buttons.

• डाव्या/उजव्या अॅनालॉग स्टिक्स: Capacitive joysticks with 4,096-step precision.
• A/B/X/Y बटणे: Omron mechanical face buttons.
• डी-पॅड: Replaceable cross or circle D-pad.
• L1/R1 (Shoulder Buttons): Standard shoulder buttons.
• L2/R2 (Triggers): Dual-mode triggers (Hall Effect and Microswitch).
• M1/M2/M3/M4 Buttons: Four programmable back buttons.
• होम बटण: Powers on/off and returns to system home screen.
• स्क्रीनशॉट बटण: Captures screenshots.
• Plus/Minus Buttons: Standard system menu buttons.
• टर्बो बटण: Activates/deactivates turbo function.
• यूएसबी-सी पोर्ट: चार्जिंग आणि वायर्ड कनेक्शनसाठी.

आकृती 4.2: मागील view showing the four programmable M1, M2, M3, M4 back buttons.

5. सेटअप

5.1 कंट्रोलर चार्ज करणे

Before first use, fully charge the controller. Connect the provided USB-C cable to the controller's USB-C port and the other end to a USB power source (e.g., console, PC, or USB wall adapter). The charging indicator will show the charging status.

• A full charge provides approximately 15 hours of gameplay.

Figure 5.1: The controller features a 1000mAh battery for extended gameplay.

२.१ कनेक्शन मोड

The Huben2 controller supports three connection methods:

Figure 5.2: The controller supports 2.4G wireless, Bluetooth, and wired connections across various platforms.

1. 2.4G Wireless (via Dongle):
   • Compatible with Windows PC, Steam, and Android TV.
   • Insert the 2.4G wireless dongle into a USB port on your device.
   • Turn on the controller. It should automatically connect to the dongle.
2. ब्लूटूथ वायरलेस:
   • Compatible with Nintendo Switch, Nintendo Switch 2, Android, and iOS devices.
   • On your device, navigate to Bluetooth settings and enable Bluetooth.
   • On the controller, press and hold the Bluetooth pairing button (refer to controller layout for exact location) until the indicator lights flash rapidly.
   • Select "MOBAPAD Huben2" from the list of available devices on your system to pair.
   • For Nintendo Switch, the controller can wake the console from sleep mode after initial pairing and firmware update via the Mobapad app.
3. वायर्ड कनेक्शन:
   • Compatible with Windows PC and Android TV.
   • Connect the controller to your device using the USB-C cable. The controller will be recognized automatically.

6. ऑपरेटिंग सूचना

6.1 पॉवर चालू/बंद

• पॉवर चालू: होम बटण दाबा.
• वीज बंद: Press and hold the Home button for 3-5 seconds. The controller will also power off automatically after a period of inactivity.

6.2 Dual Trigger Modes

The L2 and R2 triggers feature dual modes for different gaming experiences:

Figure 6.1: Visual representation of the 2mm Microswitch Trigger and 10mm Hall Linear Trigger modes.

• Microswitch Trigger (2mm): Provides a short, tactile click for rapid input, ideal for FPS games.
• Hall Effect Linear Trigger (10mm): Offers analog input with a longer travel distance, suitable for racing or simulation games.
• स्विचिंग मोड: Use the physical switches located near the L2/R2 triggers to toggle between modes.

6.3 Customizable Features (Back Buttons, Macros, App Support)

The Huben2 controller offers extensive customization options:

• Programmable Back Buttons (M1-M4): Assign single button presses or complex macros to the four back buttons using the dedicated Mobapad PC/mobile application.
• Rapid-Fire Turbo Mode: Activate turbo functionality for any button. Refer to the Mobapad app or controller manual for specific button combinations to enable/disable.
• Mobapad App: Download the official Mobapad application for Windows or mobile devices to:
  • Adjust joystick dead zones and response curves.
  • Customize vibration intensity.
  • Create and manage macros.
  • कंट्रोलर फर्मवेअर अपडेट करा.

6.4 HD Rumble and ALPS Linear Motors

The controller features dual ALPS linear motors for precise HD Rumble feedback, reacting to in-game sound and motion with 0ms startup time.

6.5 6-Axis Motion Control

The integrated 6-axis motion sensor provides precise motion control for compatible games.

Figure 6.2: The controller's internal 6-axis sensing motors enable precise motion control.

6.6 Replaceable D-pad and Faceplate

The controller allows for customization of the D-pad and faceplate.

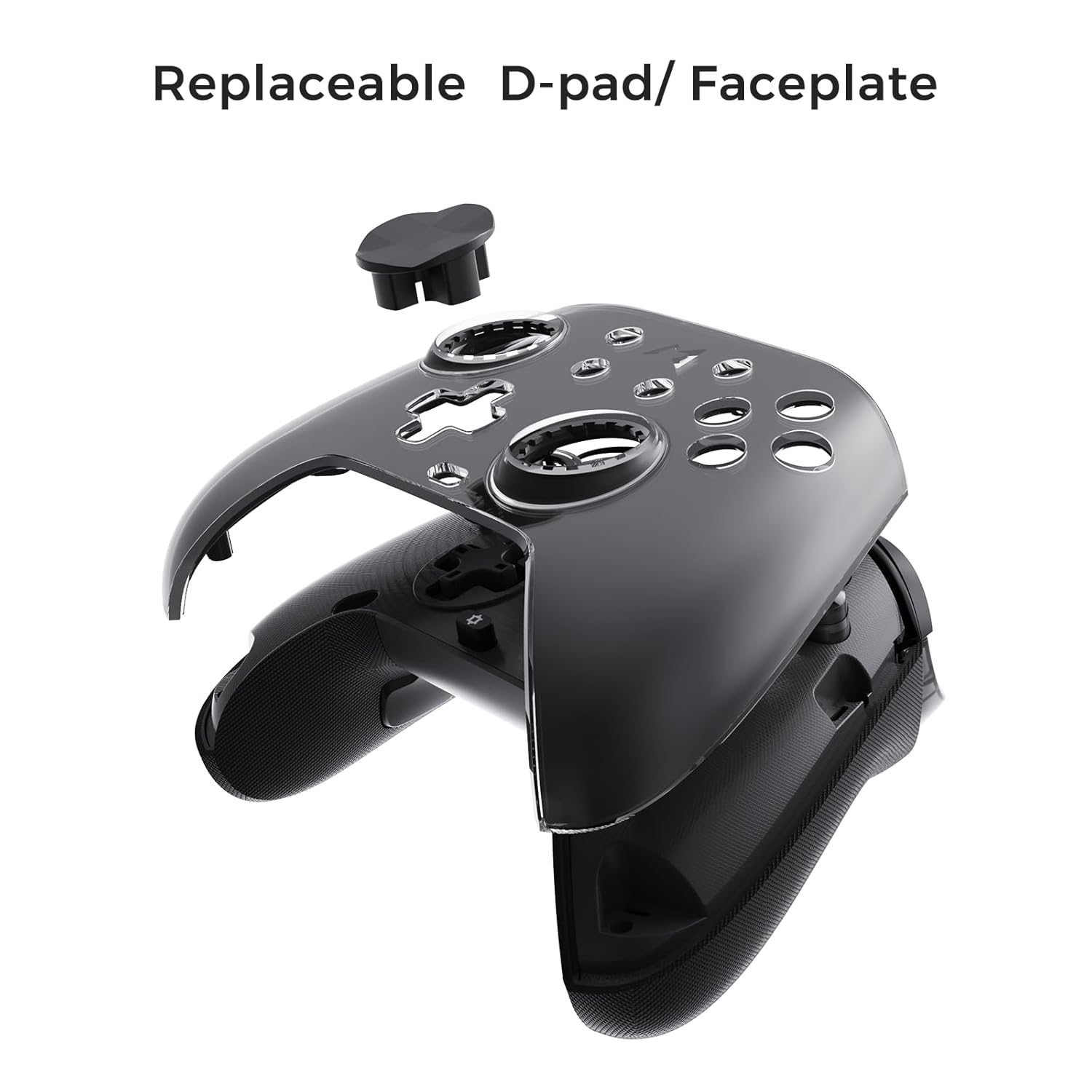

Figure 6.3: The D-pad and faceplate can be replaced for customization or preference.

• To replace the D-pad, gently remove the magnetic faceplate and then lift out the D-pad. Insert the desired D-pad (cross or circle) and reattach the faceplate.

7. देखभाल

• स्वच्छता: Use a soft, dry cloth to clean the controller. For stubborn dirt, slightly dampकपड्यावर पाणी घाला. कठोर रसायने किंवा अपघर्षक क्लीनर वापरू नका.
• स्टोरेज: Store the controller in a cool, dry place, away from direct sunlight and extreme temperatures. When not in use for extended periods, store it in the provided PU travel case.
• बॅटरी काळजी: To prolong battery life, avoid fully discharging the controller frequently. Charge it regularly, even if not in constant use.

8. समस्या निवारण

If you encounter issues not listed here, please refer to the official MOBAPAD support webसाइट किंवा ग्राहक सेवेशी संपर्क साधा.

9. तपशील

10. हमी आणि समर्थन

MOBAPAD products are designed and manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please visit the official MOBAPAD website or contact their authorized support channels. Please retain your proof of purchase for warranty claims.

Webसाइट: Visit the MOBAPAD Store on Amazon
