1. महत्वाची सुरक्षितता माहिती
Please read all instructions carefully before using your GarveeTech Portable Air Conditioner. Keep this manual for future reference.
- टिपिंग टाळण्यासाठी युनिट स्थिर, समतल पृष्ठभागावर ठेवल्याची खात्री करा.
- Do not operate the unit with a damaged cord or plug. If the power cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
- Do not block air inlets or outlets. Maintain at least 20 cm (8 inches) clearance from walls and other objects.
- साफसफाई करण्यापूर्वी किंवा देखभाल करण्यापूर्वी नेहमी युनिट अनप्लग करा.
- Do not use the unit in wet areas such as bathrooms or laundries.
- हे उपकरण कमी झालेल्या शारीरिक, संवेदनक्षम किंवा मानसिक क्षमता किंवा अनुभव आणि ज्ञानाचा अभाव असलेल्या व्यक्तींद्वारे (मुलांसह) वापरण्यासाठी हेतू नाही, जोपर्यंत त्यांना त्यांच्या सुरक्षिततेसाठी जबाबदार असलेल्या एखाद्या व्यक्तीद्वारे उपकरणाच्या वापराबाबत पर्यवेक्षण किंवा सूचना दिल्या जात नाहीत.
- मुले उपकरणाशी खेळत नाहीत याची खात्री करण्यासाठी त्यांचे पर्यवेक्षण केले पाहिजे.
- The unit contains R32 refrigerant. Servicing should only be performed by authorized personnel.
2. उत्पादन संपलेview
The GarveeTech 14,000 BTU Portable Air Conditioner is a versatile 3-in-1 unit designed for cooling, dehumidifying, and fan-only operation in spaces up to 750 sq.ft.
प्रमुख वैशिष्ट्ये:
- शक्तिशाली शीतकरण: 14,000 BTU (ASHRAE) for rapid cooling of 550-750 sq.ft. areas (61°F-88°F) with 400m³/h airflow.
- 3-इन-1 कार्यक्षमता: Air Conditioner, 3-Speed Fan, and Dehumidifier (removes 90 pt/day moisture).
- अल्ट्रा-शांत ऑपरेशन: Normal mode: 53 dB; Sleep mode: <50 dB.
- Flexible Drainage & Mobility: Manual/continuous drainage options. Equipped with heavy-duty 360° wheels and side handles for easy relocation.
- Intuitive Control System: Top LED touch panel and a 26 ft remote control. Features a 24-hour timer.
- सुलभ देखभाल: Removable and washable filter.
- सर्वसमावेशक सुरक्षा: Includes frost protection, overflow alarm, auto defrost, and a 3-minute compressor delay.

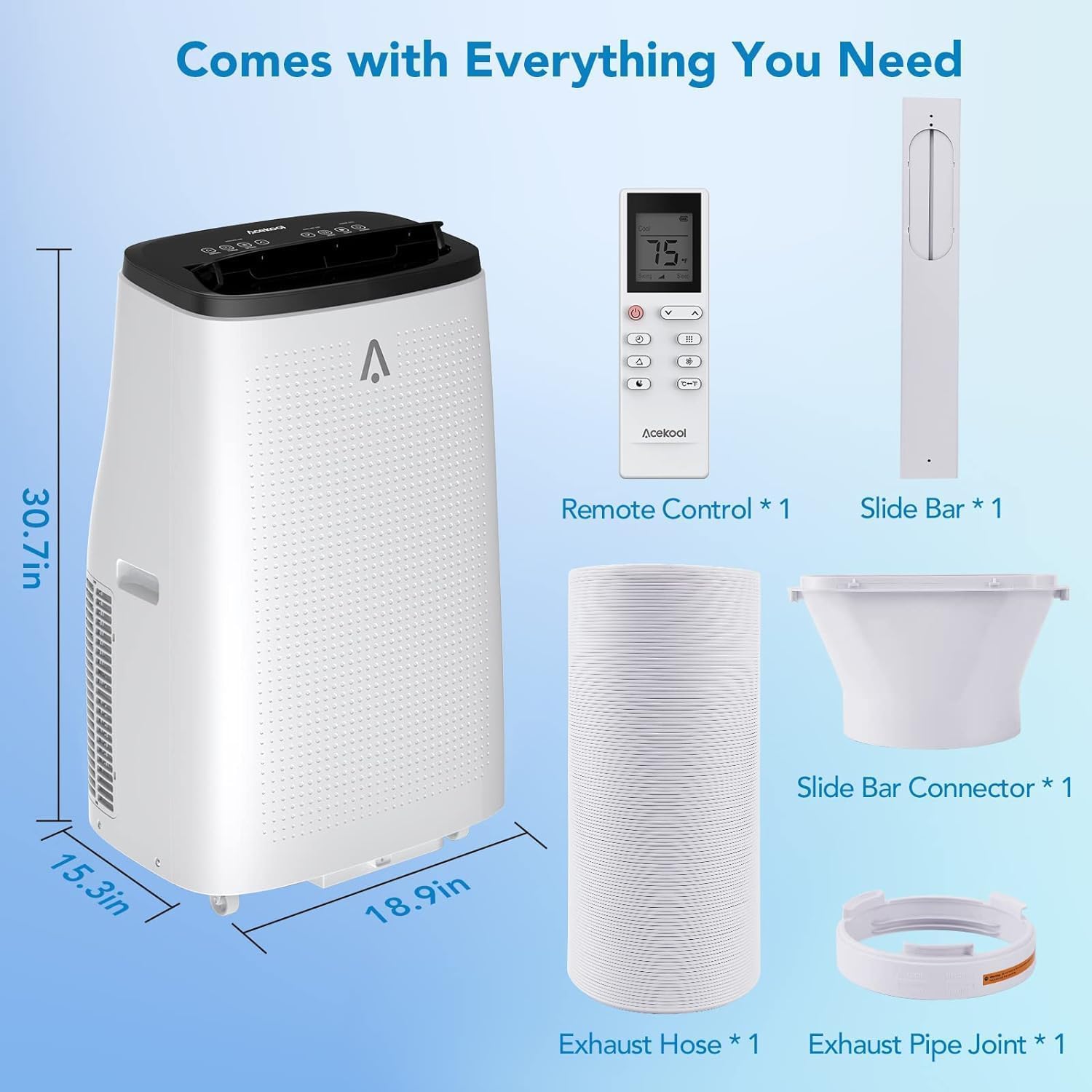

उत्पादन घटक:
The package includes the portable air conditioner unit, a remote control, a window kit (slide bar, slide bar connector, exhaust pipe joint), and an exhaust hose.

आकृती ११: समाविष्ट घटक
कूलिंग परफॉर्मन्स:

Figure 2.2: Cooling Coverage for Large Rooms
डेहूमिडिफिकेशन:

Figure 2.3: Automatic Dehumidify Technology
3. सेटअप आणि स्थापना
Proper installation is crucial for efficient operation. This unit includes a window kit for vertical or horizontal sliding windows.
विंडो किटची स्थापना:
- Assemble the window slide bar to fit your window opening.
- Stretch the exhaust hose (5.9 inches diameter) to its desired length.
- Connect the hose connector to one end of the exhaust hose by rotating it counter-clockwise.
- Attach the hose connector to the exhaust air outlet of the AC unit.
- Insert the exhaust hose adapter into the assembled window kit.
- Secure the window kit in your window frame, ensuring a tight seal to prevent air leakage.

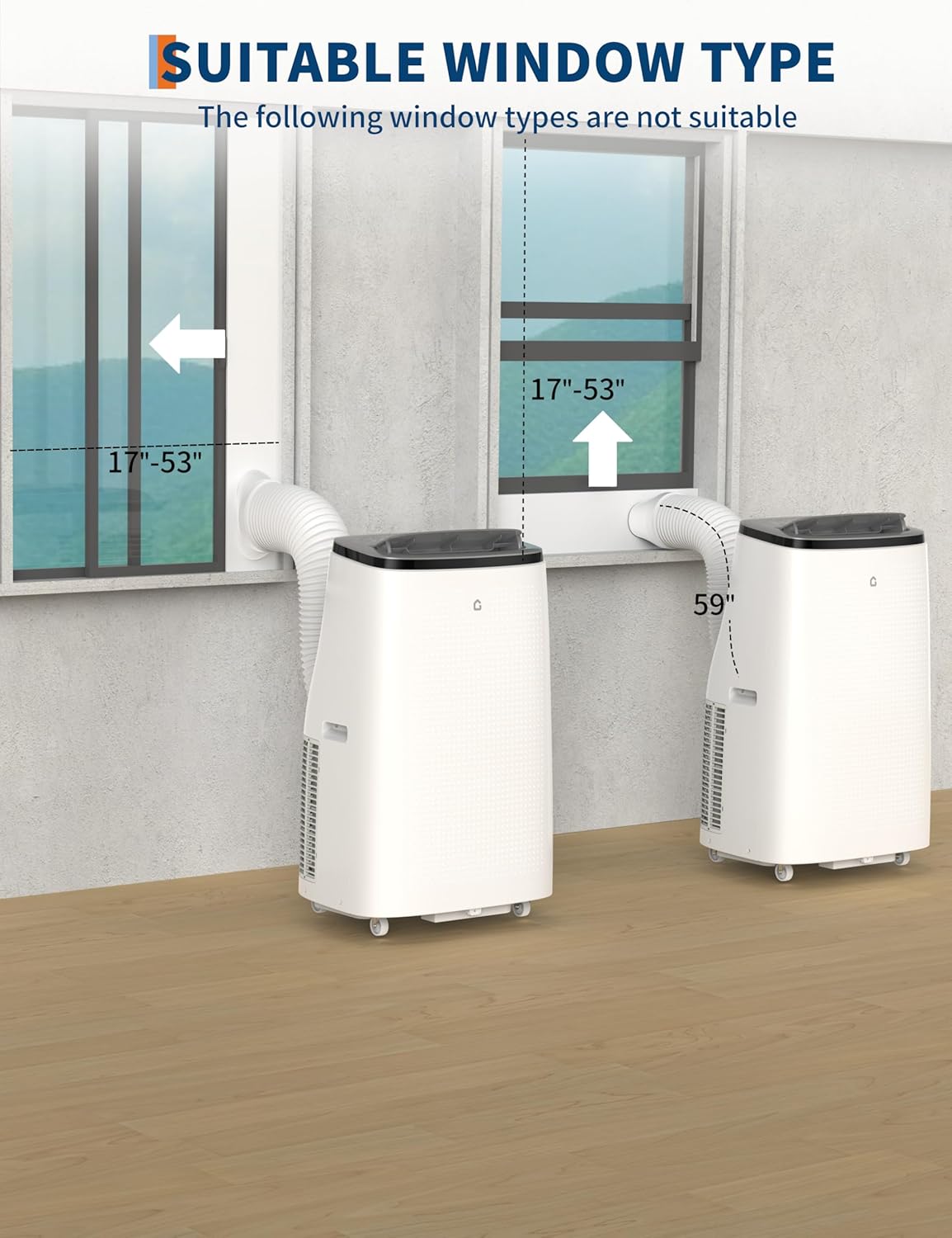

Figure 3.1: Suitable Window Types
Installation Video Tutorial:
Video 3.1: Installation Kit Tutorial for Portable Air Conditioners. This video demonstrates the step-by-step process of installing the window kit and exhaust hose for the portable air conditioner.
4. ऑपरेटिंग सूचना
Your GarveeTech Portable Air Conditioner can be controlled via the LED touch panel on the unit or the included remote control.
नियंत्रण पॅनेल आणि रिमोट:

Figure 4.1: LED Touch Panel and Remote Control
ऑपरेटिंग मोड:
- कूल मोड: Provides powerful cooling. Adjust temperature between 61°F and 88°F.
- फॅन मोड: Circulates air without cooling. Choose from 3 fan speeds (High, Medium, Low).
- डिह्युमिडिफायर मोड: हवेतील अतिरिक्त आर्द्रता काढून टाकते.
- स्लीप मोडः Operates quietly (below 50 dB) for comfortable nighttime use. The unit will automatically adjust temperature and fan speed to maintain a comfortable sleeping environment.
टाइमर कार्य:
Set the 24-hour timer to automatically turn the unit on or off at your desired time.
General Operation Video:
Video 4.1: 14,000 BTU Cooling Power for 750 sq.ft Rooms, Multi-function. This video demonstrates the unit's cooling capabilities, remote control usage, LED display, and features like sleep mode and filter cleaning.
5. देखभाल
नियमित देखभालीमुळे तुमच्या एअर कंडिशनरची कार्यक्षमता आणि दीर्घायुष्य सुनिश्चित होते.
फिल्टर साफ करणे:
The unit features a removable and washable air filter. It is recommended to clean the filter every two weeks to maintain air quality and cooling efficiency.
- एअर कंडिशनर बंद करा आणि अनप्लग करा.
- युनिटच्या मागील बाजूस एअर फिल्टर शोधा.
- फिल्टर हळूवारपणे बाहेर काढा.
- Wash the filter under running water with a mild detergent.
- युनिटमध्ये पुन्हा घालण्यापूर्वी फिल्टर पूर्णपणे हवेत कोरडे होऊ द्या.
निचरा:
The unit offers both manual and continuous drainage options for humid environments. Refer to the specific instructions in the full manual for connecting a drain hose for continuous drainage.
6. समस्या निवारण
जर तुम्हाला तुमच्या एअर कंडिशनरमध्ये समस्या येत असतील, तर खालील सामान्य समस्या आणि उपाय पहा:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| युनिट चालू होत नाही | वीज नाही, पॉवर कॉर्ड अनप्लग झाला, सर्किट ब्रेकर ट्रिप झाला. | वीज कनेक्शन तपासा, सर्किट ब्रेकर रीसेट करा. |
| युनिट प्रभावीपणे थंड होत नाही | Dirty air filter, blocked air vents, room too large, windows/doors open, exhaust hose not properly installed. | Clean air filter, clear vents, ensure room size is within capacity, close windows/doors, check exhaust hose installation. |
| पाण्याची गळती | Drain plug not properly sealed, internal water tank full (in dehumidifier mode). | Ensure drain plug is secure. If tank is full, empty it or connect continuous drainage. |
| युनिट गोंगाट आहे | युनिट सपाट पृष्ठभागावर नाही, अंतर्गत घटक कंपन करत आहेत. | युनिट एका सपाट, स्थिर पृष्ठभागावर ठेवा. जर आवाज येत राहिला तर ग्राहक समर्थनाशी संपर्क साधा. |
| एरर कोड प्रदर्शित केले | विशिष्ट अंतर्गत दोष. | Refer to the full manual for specific error code meanings and solutions. If unresolved, contact customer support. |
For more detailed troubleshooting or issues not listed here, please contact GarveeTech customer support.
7. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | 14K-6H5J-HY |
| कूलिंग पॉवर | १२,००० बीटीयू (आश्रय) |
| कव्हरेज क्षेत्र | ४५० चौ.फूट पर्यंत |
| कार्ये | थंड, डिह्युमिडिफायर, पंखा |
| डेहूमिडिफिकेशन क्षमता | 90 पिंट्स/दिवस |
| वायुप्रवाह | 400m³/ता |
| Noise Level (Normal) | ३० डेसिबल |
| आवाजाची पातळी (स्लीप मोड) | <50 Decibels |
| रेफ्रिजरंट | R32 |
| खंडtage | 115 व्होल्ट |
| उत्पादन परिमाणे | १६"उ x २६"प x ४७"उ |
| आयटम वजन | 81.8 पाउंड |
| उत्पादक | Dongguan JHS Electrical Co., Ltd. |
8. हमी आणि समर्थन
Your GarveeTech Portable Air Conditioner comes with a आजीवन हमी.
For any installation issues, operational questions, or warranty claims, please contact GarveeTech customer service. Our support team is available to assist you.
You can find contact information on the official GarveeTech webसाइटवर किंवा तुमच्या खरेदी प्लॅटफॉर्मद्वारे.
