1. परिचय
This manual provides comprehensive instructions for the safe and efficient operation of your SINGMOOD s63 Portable Karaoke Machine. Please read this manual thoroughly before using the product and retain it for future reference.

Figure 1: The SINGMOOD s63 Portable Karaoke Machine, featuring its integrated screen and two wireless microphones.
2. उत्पादन संपलेview
प्रमुख वैशिष्ट्ये:
- Integrated 14.1-inch Touch Screen: For lyrics display, video streaming, and settings adjustment.
- ड्युअल वायरलेस UHF मायक्रोफोन: Deliver crystal-clear sound with stable and fast connection.
- शक्तिशाली ऑडिओ आउटपुट: Up to 1000W peak power for immersive sound.
- बहुमुखी कनेक्टिव्हिटी: Supports Bluetooth, HDMI, USB, TF Card, Live 3.5mm, Headset, and Live OTG.
- Android OS: Access to YouTube, Spotify, Apple Music, Chrome, and Google Play Store for various applications.
- पोर्टेबल डिझाइन: Built-in handle and wheels for easy transport.
- 32-bit Digital Audio Decoder Chip: Ensures high-quality, clear, and full-bodied sound.
काय समाविष्ट आहे:
- SINGMOOD s63 Karaoke Machine
- 2x UHF वायरलेस मायक्रोफोन
- पॉवर अडॅप्टर
- वापरकर्ता मॅन्युअल
- 1x 12V Battery (pre-installed)

Figure 2: Package contents for the SINGMOOD s63 Karaoke Machine.
3. सेटअप
५.१ अनबॉक्सिंग आणि प्रारंभिक तपासणी
Carefully remove all components from the packaging. Inspect the karaoke machine and accessories for any signs of damage. Ensure all listed items in the 'What's Included' section are present.
3.2 प्रारंभिक चार्जिंग
Before first use, fully charge the karaoke machine using the provided power adapter. Connect the adapter to the DC 12V IN port on the control panel and plug it into a power outlet. The charging indicator will illuminate.
२.३ मायक्रोफोन सेटअप
The wireless UHF microphones come with rechargeable batteries. To activate a microphone, press and hold the power button on the microphone. The microphone will automatically pair with the karaoke machine. Ensure microphones are charged via their Type-C ports when low on battery.
४.३ नेटवर्क कनेक्टिव्हिटी
To access online content, connect the machine to a Wi-Fi network. Navigate to 'Settings' on the touch screen, then 'Network & Internet', and select your preferred Wi-Fi network. The device supports both 2.4GHz and 5GHz Wi-Fi for stable streaming.
4. ऑपरेटिंग सूचना
4.1 पॉवर चालू/बंद
To power on the machine, locate the red 'POWER' switch on the control panel and toggle it to the 'ON' position. To power off, toggle the switch to 'OFF'.
4.2 टच स्क्रीन वापरणे
The 14.1-inch full-touch display operates on an Android OS. You can navigate through applications like YouTube, Spotify, Apple Music, and Chrome directly from the home screen. Use the 'Play Store' to download additional apps.

Figure 3: The intuitive touch screen interface of the SINGMOOD s63.
4.3 Microphone Functions
The control panel features dedicated knobs for microphone volume, bass, treble, echo, and delay. Adjust these to customize your vocal output. The 'Magic' button allows for voice effects (e.g., chipmunk, monster voice).

आकृती 4: तपशीलवार view of the control panel with microphone and music adjustment knobs.
३.३ मीडिया प्लेबॅक
Utilize the pre-installed apps like YouTube and Spotify for streaming karaoke songs and music. Local media files can be played via the 'MediaPlayer' app, supporting USB drives or TF cards inserted into the respective ports.

Figure 5: Accessing endless karaoke songs through YouTube on the integrated screen.

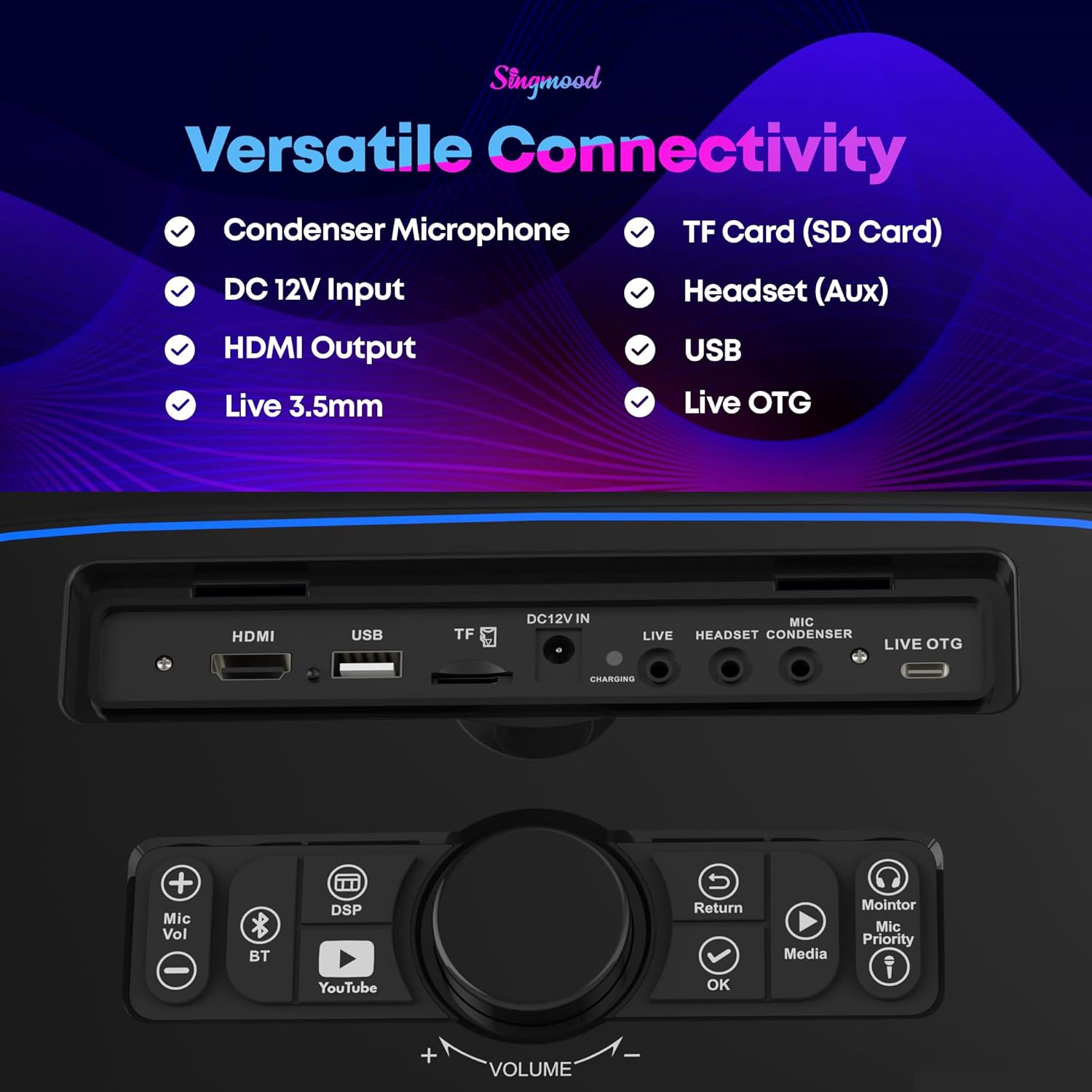

4.5 बाह्य कनेक्शन
The machine supports HDMI output for screen projection to an external TV or monitor. Connect external devices like guitars via the GT.IN port or headphones via the HEADSET port for private monitoring.

Figure 6: Screen projection to an external display via HDMI.
Video 1: Demonstration of playing songs from YouTube on the karaoke machine.
5. देखभाल
5.1 स्वच्छता
Wipe the exterior of the machine and screen with a soft, dry cloth. Avoid using abrasive cleaners or solvents. For the microphone grilles, use a soft brush to gently remove any debris.
5.2 बॅटरी काळजी
To prolong battery life, avoid fully discharging the machine frequently. Store the machine in a cool, dry place when not in use for extended periods. Recharge the battery periodically if stored for a long time.
6. समस्या निवारण
८.२ ध्वनी आउटपुट नाही
- Check if the master volume is turned up.
- मायक्रोफोन चालू आणि जोडलेले असल्याची खात्री करा.
- Verify external audio sources are correctly connected and playing.
6.2 Microphone Feedback
- Lower the microphone volume.
- Adjust the mic treble, echo, and delay settings on the control panel.
- Ensure microphones are not too close to the speaker.
६.२ वाय-फाय कनेक्टिव्हिटी समस्या
- Check if the Wi-Fi is enabled in the settings.
- Ensure the machine is within range of your Wi-Fi router.
- Restart the machine and your Wi-Fi router.
7. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | s63 |
| आयटम वजन | 23 पाउंड |
| उत्पादन परिमाणे | 12 x 7 x 16 इंच |
| स्क्रीन आकार | 14.1 इंच |
| पीक पॉवर | 1000W |
| रॅम | 4GB |
| रॉम | 64GB |
| प्रोसेसर चिप | RK3566 |
| ब्लूटूथ आवृत्ती | 5.3 |
| वाय-फाय सपोर्ट | 2.4G/5G |
| बॅटरीज | १ ९ व्होल्ट बॅटरी (समाविष्ट) |
| सुसंगत साधने | Headphones, Microphones, Smartphone/Tablet, Television |
| कनेक्टर प्रकार | HDMI |
8. हमी आणि समर्थन
For warranty information and customer support, please refer to the documentation provided with your purchase or contact SINGMOOD customer service directly. Protection plans are available for purchase separately.
