VATOS BB6609B

व्हॅटोस रिचार्जेबल लेसर Tag Set - Instruction Manual

Model: BB6609B

1. परिचय

This manual provides detailed instructions for the safe and effective use of your VATOS Rechargeable Laser Tag Set. Please read this manual thoroughly before operating the product and retain it for future reference. This set is designed for interactive laser tag games, featuring 2 guns and 2 vests with 2.4GHz data synchronization for real-time score tracking.

व्हॅटोस रिचार्जेबल लेसर Tag Set with two guns and two vests, one red and one blue, emitting laser beams.

Image 1.1: The VATOS Rechargeable Laser Tag Set, including two laser guns and two target vests, ready for gameplay.

२. बॉक्समध्ये काय आहे?

तुमच्या पॅकेजमध्ये सर्व घटक आहेत का ते तपासा:

Contents of the VATOS Rechargeable Laser Tag Set box, showing two guns, two vests, a 4-in-1 USB charging cable, a screwdriver, and a user manual.

Image 2.1: All items included in the VATOS Rechargeable Laser Tag Set package.

3. उत्पादनाची वैशिष्ट्ये

4. घटक संपलेview

4.1 लेझर गन

Diagram of the laser tag gun with labels for its components: Shooting Indicator Light, Team Indicator Light, Health Point Display, Charging Indicator Light, Infrared Emission, Infrared Receiver, Bullet Clip Speaker, Speaker, Power Switch, Gun Type Switch Button, Mute/Revive Button, Trigger.

Image 4.1: Detailed diagram of the laser gun components.

4.2 बनियान

Diagram of the laser tag vest with labels for its components: Team Selection Button, Power Switch, Health Point Display, Team Indicator Light, Charging Indicator Light, adjustable straps, and charging port.

Image 4.2: Detailed diagram of the vest components.

४. सेटअप सूचना

३.१ उपकरणे चार्ज करणे

Before first use, fully charge both the laser guns and vests. Each device has a built-in rechargeable battery.

  1. Connect the 4-in-1 USB charging cable to a compatible USB power adapter (DC 5V-2A/3A, not included).
  2. Plug the individual charging connectors into the charging ports on each gun and vest.
  3. The charging indicator light on each device will illuminate during charging. It will turn off when fully charged.
  4. A full charge supports approximately 8 games.

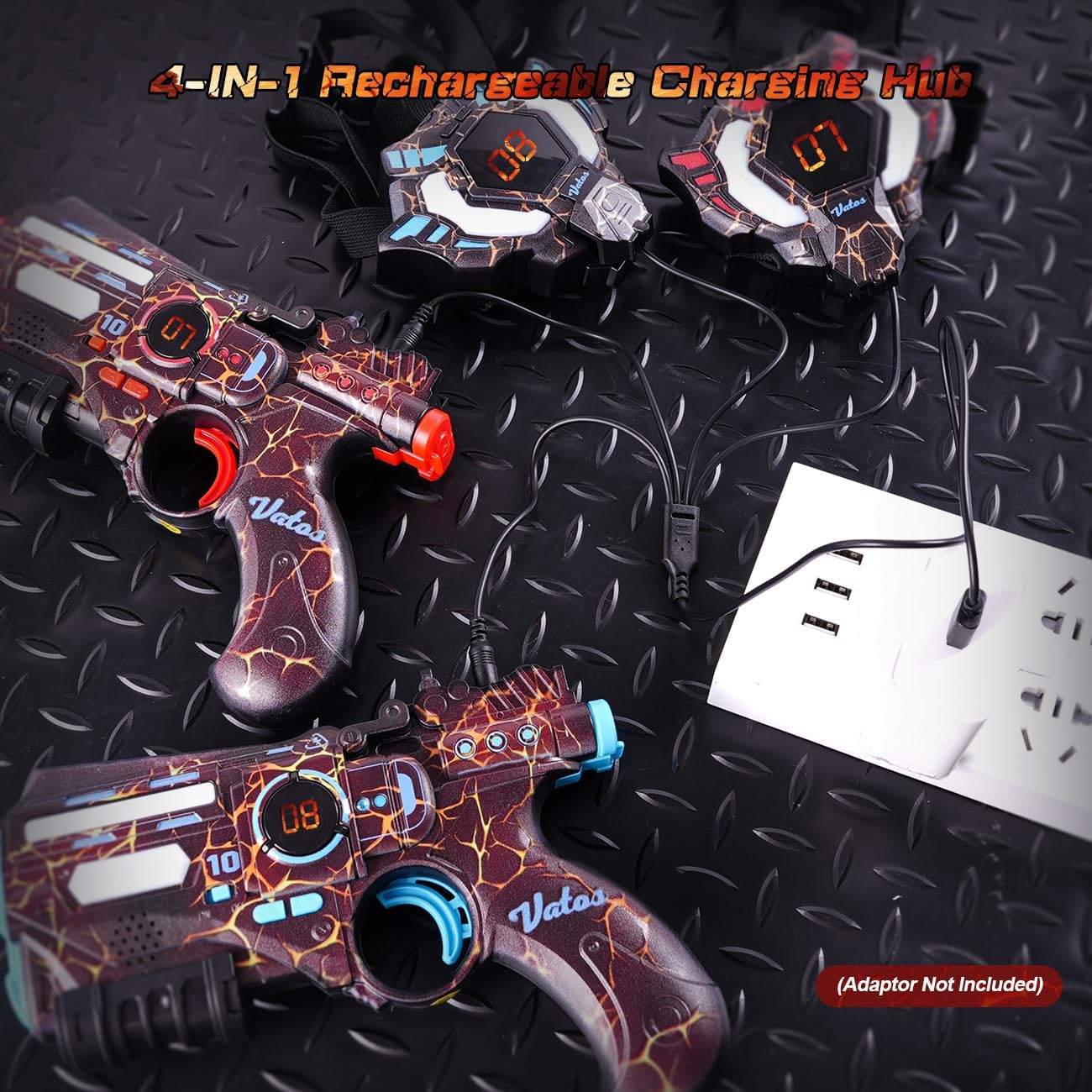

Four laser tag devices (two guns and two vests) connected to a 4-in-1 USB charging cable, plugged into a wall adapter.

Image 5.1: Charging the laser tag guns and vests using the provided 4-in-1 USB cable.

६.१ पॉवर चालू करणे आणि जोडणे

  1. Turn on both the laser gun and the vest using their respective power switches.
  2. The gun and vest will automatically attempt to pair. When successfully paired, the health point displays on both devices will synchronize and show '15'.
  3. If pairing is unsuccessful, ensure both devices are powered on and in close proximity, then try again.
A red laser tag gun and a red vest, both displaying '15' health points, indicating successful pairing and synchronization.

Image 5.2: Successfully paired laser gun and vest displaying synchronized health points.

6. ऑपरेटिंग सूचना

6.1 Team Selection

Press the 'Team Selection Button' on the vest to cycle through available team colors (e.g., Red, Blue, Green, White). The team indicator light on both the gun and vest will change to reflect the selected team.

6.2 Weapon Modes

Press the 'Gun Type Switch Button' on the laser gun to select from four different weapon modes:

To reload, push the bullet clip speaker back into the gun.

३.३ गेमप्ले

Aim and fire at opponents' guns or vests. Each hit reduces the opponent's health points. The health point display on both the gun and vest will update in real-time. When health points reach zero, the player is eliminated.

Video 6.1: Demonstration of the 2.4GHz data synchronization and various weapon modes in the VATOS Laser Tag set. This video highlights real-time score updates and different firing effects.

6.4 Reset and Revive

If a player is eliminated (health points reach 00), they can be revived by pressing the 'Mute/Revive Button' on their gun. This will restore their health points to 15, allowing them to re-enter the game.

6.5 Mute Mode (Stealth Attack)

To activate mute mode for a stealth attack, press and hold the 'Mute/Revive Button' on the gun. This will silence the gun's sound effects, allowing for quieter movement and surprise attacks. The gun will still emit infrared signals.

Video 6.2: A short demonstration of the VATOS Rechargeable Laser Tag set in action, showcasing gameplay and features like mute mode and target zones.

7. देखभाल

8. समस्या निवारण

समस्यासंभाव्य कारणउपाय
Devices not turning onकमी बॅटरीCharge the devices fully.
Gun and vest not pairingOut of range; interference; not powered onEnsure devices are close together and powered on. Try restarting both.
बंदूक चालत नाही.Low battery; weapon mode selected with no ammo; trigger malfunctionCharge the gun. Reload the gun by pushing the bullet clip speaker. If issue persists, contact customer support.
बनियान हिट होत नाहीयेOut of range; obstruction; vest malfunctionEnsure clear line of sight and proper range. Check for obstructions. If issue persists, contact customer support.

9. तपशील

10. सुरक्षितता माहिती

चेतावणी: Toy inside, not suitable for children under 3 years old due to small parts. Choking hazard. This product uses infrared technology and is safe for children. Do not aim at eyes or face. Adult supervision is recommended during play.

11. हमी आणि समर्थन

For warranty information or customer support, please refer to the contact details provided on the product packaging or visit the official VATOS webजागा. वॉरंटी दाव्यांसाठी तुमची खरेदी पावती ठेवा.
