Anpviz UltraHD 4K 8MP PTZ POE IP Camera Instruction Manual

1. परिचय

This manual provides detailed instructions for the installation, operation, and maintenance of your Anpviz UltraHD 4K 8MP PTZ POE IP Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety. This camera is designed for both indoor and outdoor surveillance, offering advanced features for comprehensive security monitoring.

२. बॉक्समध्ये काय आहे?

पॅकेजमध्ये सर्व घटक आहेत का ते तपासा:

• Anpviz UltraHD 4K 8MP PTZ POE IP Camera (Model: PTZIP3182WD-SU-5X)
• सूचना पुस्तिका
• माउंटिंग प्लेट आणि माउंटिंग ब्रॅकेट
• माउंटिंग स्क्रू बॅग
• Warning Sign Sticker
• वॉरंटी कार्ड

Image: All items included in the Anpviz PTZ POE IP Camera package, showing the camera, mounting hardware, and documentation.

3. उत्पादन संपलेview

The Anpviz UltraHD 4K 8MP PTZ POE IP Camera is a high-performance surveillance device designed for robust monitoring. Key features include:

• 4K अल्ट्रा एचडी रिझोल्यूशन: 3840x2160 @ 20fps for clear, detailed video.
• ५X ऑप्टिकल झूम: 2.7-13.5mm motorized lens for detailed viewing without compromising image quality.
• पॅन आणि टिल्ट: 0-350° pan and 0-90° tilt for wide area coverage.
• Human/Vehicle Detection: Advanced motion detection to distinguish between humans and vehicles, reducing false alarms.
• द्वि-मार्ग ऑडिओ: Built-in microphone and speaker for real-time communication (compatible with Anpviz U-Series NVRs).
• १०० फूट आयआर नाईट व्हिजन: Eight infrared LED lights provide clear black and white video in low-light conditions up to 100 feet.
• 512GB SD Card Slot: Supports local storage of video footage.
• IP66 Waterproof & IK10 Explosion-Proof: Durable metal housing suitable for harsh outdoor environments.
• POE (Power Over Ethernet): Simplifies installation by providing power and data through a single Ethernet cable.

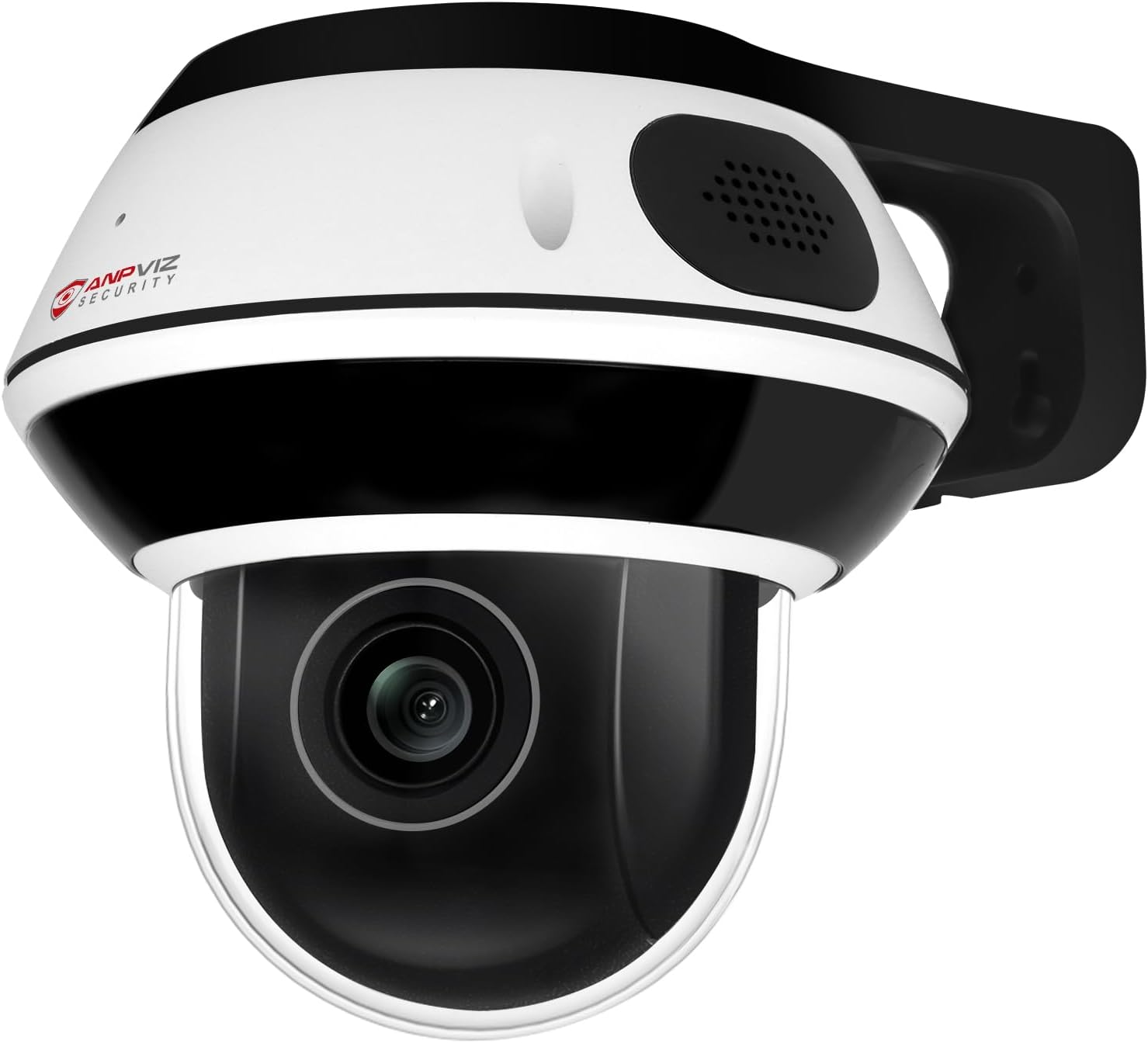

प्रतिमा: समोर view of the Anpviz 4K 8MP PTZ POE IP Camera, highlighting its dome design and lens.

Image: Illustrates the 5X optical zoom capability of the Anpviz PTZ camera, showing a zoomed-in view गाडीच्या नंबर प्लेटचा.

Image: Comparison showing the superior image quality of the Sony IMX415 CMOS Sensor in the Anpviz camera versus an ordinary sensor, with better noise reduction and color reproduction.

4. सेटअप

4.1. भौतिक स्थापना

The camera can be mounted on a wall or ceiling using the provided mounting bracket. Ensure the mounting surface is strong enough to support the camera's weight.

1. Use the drilling sticker to mark the screw holes on the desired mounting surface.
2. आवश्यक असल्यास छिद्रे ड्रिल करा आणि भिंतीवरील अँकर घाला.
3. Attach the mounting bracket securely using the provided screws.
4. Connect the necessary cables (Ethernet for PoE, or power adapter and Ethernet for non-PoE setup).
5. कॅमेरा माउंटिंग ब्रॅकेटला सुरक्षित करा.

Image: Demonstrates wall and ceiling mounting options for the Anpviz PTZ POE IP Camera, showing the camera attached to a bracket.

4.2. कनेक्शन पद्धती

The Anpviz PTZ POE IP Camera offers flexible connection options:

• PoE NVR: Plug and play with Anpviz U-Series NVRs. Connect the camera directly to a PoE port on the NVR using an Ethernet cable.
• PoE स्विच: Connect the camera to a PoE switch using an Ethernet cable. The switch will provide both power and data.
• पॉवर अडॅप्टर: If not using PoE, connect a DC 12V power adapter (not included) to the camera and an Ethernet cable to a router or switch for data.

Image: Diagram illustrating three ways to connect the Anpviz PTZ POE IP Camera: directly to an Anpviz NVR, via a PoE switch, or using a power adapter with a router.

5. ऑपरेटिंग सूचना

5.1. Remote Access & Control

Access your camera remotely using the VideoLink mobile app (available on Google Play and App Store) or the LMS/VideoLink PC client. This allows you to view लाइव्ह फूtage, capture snapshots, and control PTZ functions from anywhere.

Image: Shows the multi-platform remote access capabilities of the Anpviz camera via mobile app and PC client, displaying live surveillance footage on various devices.

5.2. Pan, Tilt, and Zoom (PTZ)

Control the camera's movement and zoom directly from the mobile app or PC client. The camera supports 0-350° pan and 0-90° tilt, along with 5X optical zoom.

Image: Illustrates the pan (0-350°) and tilt (0-90°) range of the Anpviz PTZ camera, showing its ability to cover a wide area.

5.3. Human/Vehicle Detection

Configure the camera to detect human and vehicle motion. When motion is detected, the camera can send instant email alerts or push notifications to your device.

Image: Shows the smart human/vehicle detection feature of the Anpviz camera, with alerts sent via email or push notifications when a person or vehicle is detected.

३. टू-वे ऑडिओ

Utilize the built-in microphone and speaker for two-way communication. This feature allows you to speak with visitors or deter intruders directly through the camera. Note: Two-way audio is only works with Anpviz U-Series NVRs.

Image: Illustrates the two-way audio functionality of the Anpviz camera, showing a user communicating with a delivery person.

5.5. रात्रीची दृष्टी

The camera automatically switches to IR night vision mode in low-light conditions, providing clear black and white footage up to 100 feet. The 1/2.8" Sony IMX415 CMOS Sensor ensures ultra-low night sensitivity and exceptional noise reduction.

Image: Side-by-side comparison of daytime and night vision footage from the Anpviz camera, demonstrating clear black and white imaging in low light.

6. देखभाल

• स्पष्ट प्रतिमा गुणवत्ता सुनिश्चित करण्यासाठी कॅमेरा लेन्स नियमितपणे मऊ, कोरड्या कापडाने स्वच्छ करा.
• Check cable connections periodically to ensure they are secure and free from damage.
• Ensure the camera's firmware is up to date for optimal performance and security.
• For outdoor installations, periodically inspect the housing for any signs of wear or damage that could compromise its IP66 rating.

7. समस्या निवारण

7.1. No Video Feed

• Ensure the camera is properly powered (PoE or DC 12V adapter).
• Check the Ethernet cable connection to the camera, NVR/switch, and router.
• Verify network settings (IP address, gateway) are correct.

7.2. PTZ Control Not Responding

• Ensure the camera has a stable network connection.
• Restart the camera and the controlling device (NVR, PC client, or mobile app).
• Check for any firmware updates for the camera.

7.3. पासवर्ड रीसेट

8. तपशील

9. हमी आणि समर्थन

Anpviz provides a 1-year warranty and lifetime technical support for this product. For any questions or issues, please contact our professional tech staff.

• Amazon Seller: Contact the seller directly through Amazon.
• ईमेल समर्थन: support@anpvizsecurity.com
• कामकाजाचे तास: Monday-Friday, 9:00 AM - 6:00 PM (Time Zone not specified, assume local business hours).

Image: Anpviz customer support details, including email and operating hours, emphasizing 1-year warranty and lifetime technical support.
