VILCORN R46S Retro Handheld Game Console User Manual

1. परिचय

This manual provides essential instructions for the setup, operation, and maintenance of your VILCORN R46S Retro Handheld Game Console. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your gaming experience.

आकृती 1.1: समोर view of the VILCORN R46S console. The screen displays key features such as HD output, battery capacity, dual joysticks, and HD color screen.

2. सुरक्षितता माहिती

• Keep the device away from water and fire to prevent damage and ensure user safety.
• डिव्हाइस वेगळे करण्याचा किंवा बदलण्याचा प्रयत्न करू नका. यामुळे वॉरंटी रद्द होऊ शकते आणि नुकसान होऊ शकते.
• डिव्हाइस चार्ज करण्यासाठी फक्त प्रदान केलेली चार्जिंग केबल आणि अडॅप्टर वापरा.
• थेट सूर्यप्रकाश किंवा अति तापमानात दीर्घकाळ राहणे टाळा.
• हे उत्पादन ६ वर्षे आणि त्यावरील वयोगटातील मुलांसाठी शिफारसित आहे.

3. उत्पादनाची वैशिष्ट्ये

• डिस्प्ले: 4.0-inch IPS OCA display with 720x720 resolution and 1:1 aspect ratio.
• प्रोसेसर: High-performance RK3566 quad-core CPU.
• बॅटरी: Built-in 3500mAh 3.8V LiPo battery, providing approximately 3-5 hours of gameplay.
• स्टोरेज: Dual TF card slots for independent system and game storage.
• कनेक्टिव्हिटी: Supports 2.4GHz WiFi and Bluetooth.
• ऑपरेटिंग सिस्टम: Open Source Linux System, allowing for system upgrades and compatibility with mainstream 64-bit 3D simulators.
• परिधीय: Supports Bluetooth handles, speakers, and headsets.
• प्रवाहित: Supports WiFi Moonlight streaming function.

आकृती 3.1: The 4-inch IPS OCA fully laminated 2.5D HD MIPL screen with 720*720 high resolution provides clear picture quality and soft colors, designed to reduce eye strain during extended play.

आकृती 3.2: The console features high-definition large-screen synchronous output via an HDMI interface, enhancing the visual experience with greater depth and vivid colors.

३. डिव्हाइस लेआउट आणि नियंत्रणे

Familiarize yourself with the buttons and ports on your R46S console:

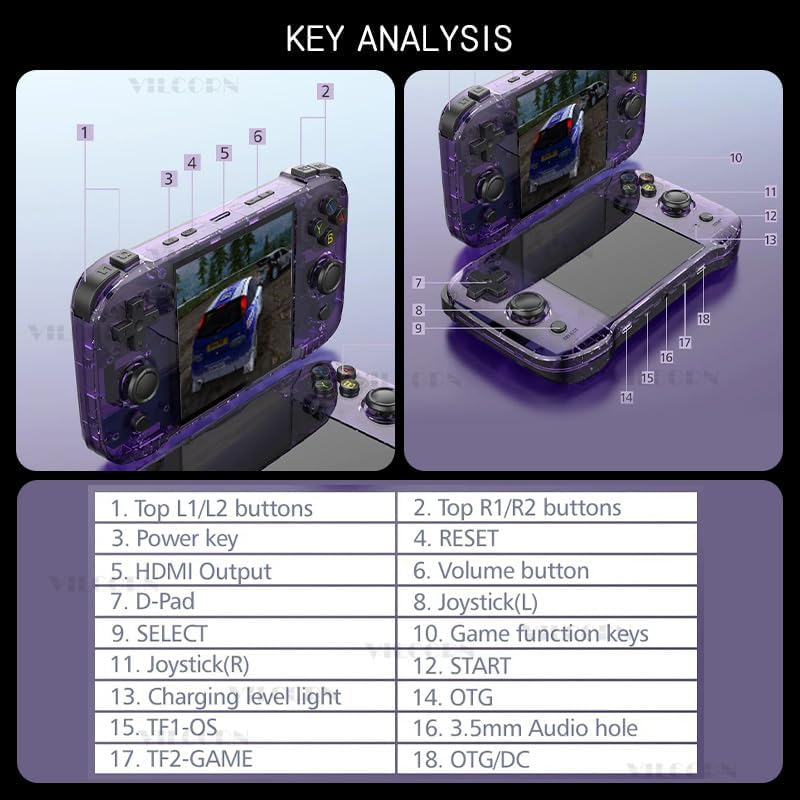

आकृती 4.1: Key Analysis of the VILCORN R46S console.

आकृती 4.2: The console features dual joysticks with an ergonomic design, allowing for precise game operation and adaptability to various game types.

४. सेटअप सूचना

1. प्रारंभिक शुल्कः Before first use, fully charge the console using the provided USB-C cable and a compatible power adapter. The charging level light (13) will indicate charging status.
2. मायक्रोएसडी कार्ड घाला:
   • Insert the MicroSD card containing the operating system into the TF1-OS slot (15).
   • Insert the MicroSD card containing your games into the TF2-GAME slot (17).
3. पॉवर चालू: Press and hold the Power key (3) until the screen illuminates.
4. Language Selection (if applicable): Follow on-screen prompts to select your preferred language.
5. नेटवर्क कनेक्शन (पर्यायी): To enable WiFi Moonlight streaming or system updates, navigate to the system settings and connect to a 2.4GHz WiFi network.
6. ब्लूटूथ पेअरिंग (पर्यायी): To connect Bluetooth peripherals (controller, speaker, headset), go to system settings and initiate pairing.

6. ऑपरेटिंग सूचना

1. मेनू नेव्हिगेट करणे: Use the D-Pad (7) or Joysticks (8, 11) to navigate through the game system menus. The Game function keys (10) (A, B, X, Y) and SELECT (9) / START (12) buttons are used for selection and confirmation.
2. Selecting a Game System: From the main menu, scroll to select your desired game system (e.g., Super Nintendo, Game Boy Advance, PSP). Press the 'A' button (part of 10) to enter.
3. Launching a Game: Within a game system, use the D-Pad or Joysticks to browse the list of available games. Select a game and press the 'A' button to launch it.
4. गेममधील नियंत्रणे: Controls will vary by game. The console features L1/L2 (1), R1/R2 (2) shoulder buttons, a D-Pad (7), dual joysticks (8, 11), and A, B, X, Y function keys (10).
5. व्हॉल्यूम समायोजित करणे: Use the Volume button (6) to increase or decrease the audio output.
6. Exiting a Game / System: Specific button combinations (often SELECT + START or a dedicated menu button) are typically used to exit a game or return to the main system menu. Refer to the system's on-screen instructions if available.
7. वीज बंद: Press and hold the Power key (3) until the power-off options appear, then select to shut down the device. A quick press may put the device into sleep mode.

7. देखभाल

• स्वच्छता: Use a soft, dry cloth to clean the console's exterior. Do not use liquid cleaners or aerosols.
• स्टोरेज: थेट सूर्यप्रकाश आणि अति तापमानापासून दूर थंड, कोरड्या जागी डिव्हाइस साठवा.
• बॅटरी काळजी: बॅटरीचे आयुष्य वाढवण्यासाठी, बॅटरी वारंवार पूर्णपणे डिस्चार्ज करणे टाळा. डिव्हाइस नियमितपणे चार्ज करा, जरी ते जास्त काळ वापरात नसले तरीही.
• सॉफ्टवेअर अपडेट्स: Periodically check for system updates through the device's settings menu to ensure optimal performance and access to new features.

8. समस्या निवारण

• डिव्हाइस चालू होणार नाही:
  • बॅटरी चार्ज झाली आहे याची खात्री करा. चार्जर कनेक्ट करा आणि पुन्हा चालू करण्याचा प्रयत्न करण्यापूर्वी काही मिनिटे वाट पहा.
  • If the device is unresponsive, press the RESET button (4) with a thin object (e.g., a paperclip) and then try to power on.
• Games are not loading or performing poorly:
  • Verify that the game MicroSD card is correctly inserted into the TF2-GAME slot (17).
  • खेळाची खात्री करा file format is compatible with the installed system emulator.
  • For performance issues, try restarting the device.
• आवाज नाही:
  • Check the volume level using the Volume button (6).
  • If headphones are connected, ensure they are fully plugged into the 3.5mm Audio hole (16).
• Cannot connect to WiFi/Bluetooth:
  • Ensure you are within range of a 2.4GHz WiFi network. The device does not support 5GHz networks.
  • Verify correct password entry for WiFi.
  • For Bluetooth, ensure the peripheral is in pairing mode and within close proximity to the console.

9. तपशील

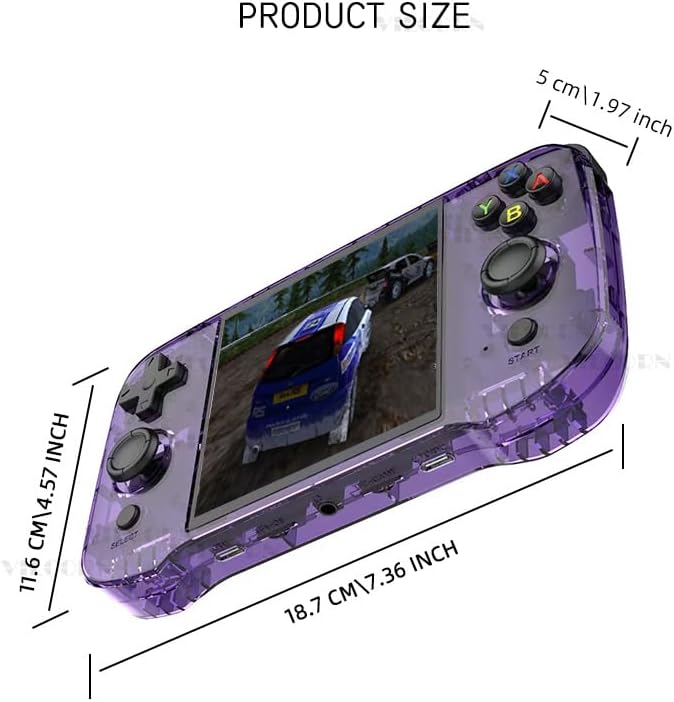

आकृती 9.1: Product dimensions of the VILCORN R46S console: 18.7 cm (7.36 inches) length, 11.6 cm (4.57 inches) width, and 5 cm (1.97 inches) thickness.

आकृती 9.2: The console is equipped with a built-in 3500mAh polymer battery (note: image shows 4000mAh, but product text specifies 3500mAh), featuring two-way protection for charge and discharge, allowing for several hours of play on a single full charge.

२. बॉक्समध्ये काय आहे?

• 1 x VILCORN R46S Handheld Game Console
• 1 एक्स यूएसबी-सी चार्जिंग केबल
• १ x वापरकर्ता मॅन्युअल (हे दस्तऐवज)

11. हमी आणि समर्थन

For warranty information and technical support, please refer to the contact details provided by your retailer or visit the official VILCORN webसाइट. वॉरंटी दाव्यांसाठी खरेदीचा पुरावा म्हणून तुमची खरेदी पावती ठेवा.
