1. उत्पादन संपलेview
The FOBO TIRE LITE TPMS Sensor is a state-of-the-art wireless tire pressure monitoring system designed to provide real-time tire pressure and temperature data directly to your smartphone via Bluetooth 5.0. This system helps drivers maintain optimal tire conditions, leading to improved fuel efficiency, extended tire lifespan, and enhanced road safety. Its user-friendly design allows for easy do-it-yourself installation without the need for professional tools.
Image: FOBO TIRE LITE TPMS sensors and the accompanying smartphone application interface.
2. पॅकेज सामग्री
Upon opening your FOBO TIRE LITE package, please verify that all the following items are included:
- 4 pcs FOBO TIRE LITE sensors
- 6 pcs FOBO Locking Nuts
- 2 pcs FOBO Locking Nut Wrench
- 1 pc Keychain ring
Image: Visual representation of the FOBO TIRE LITE package contents.
3. प्रमुख वैशिष्ट्ये
The FOBO TIRE LITE system offers several advanced features to ensure comprehensive tire monitoring:
- Real-Time Tire Pressure Updates: Provides instant alerts for under-inflation or over-inflation, reducing risks and improving fuel efficiency.
- स्मार्टफोन एकत्रीकरण: Pairs with Bluetooth-enabled smartphones for convenient tire management without extra devices.
- Lightweight & Sleek Design: Compact and lightweight sensors (only 7.6g) that do not require tire re-balancing.
- टिकाऊ आणि हवामानरोधक: Robust, IP57-rated design withstands rain, snow, extreme heat, road salts, and automotive chemicals.
- सोपी DIY स्थापना: Quick and simple setup with step-by-step guidance from the app.
- 6-Level Smart Alerts: Informs users about tire pressure deviations while driving or within Bluetooth range.
- 24x7 Monitoring: Continuously monitors tire pressure in real-time.
प्रतिमा: ओव्हरview of key features including ease of installation, smart alerts, and continuous monitoring.
Image: Additional key features highlighting Bluetooth 5.0 technology, universal compatibility, and robust design.
Image: Illustration demonstrating the lightweight nature of the FOBO TIRE LITE sensor.
4. सेटअप आणि स्थापना
Follow these steps for a quick and easy installation of your FOBO TIRE LITE system:
4.1. Download the FOBO TPMS App
साठी शोधा "FOBO TPMS" on the Google Play Store (for Android) or Apple App Store (for iOS) and download the application.
Image: FOBO TPMS app download and login screens.
4.2. App Setup and Profile निर्मिती
- Open the FOBO TPMS app and log in using your preferred option (e.g., email, Google, Apple ID).
- Click on the "Add +" button to add a new profile.
- Select "FOBO Tire" as the product type.
- Choose "FOBO TIRE LITE" from the installation type options.
- Scan the QR code located on the product packaging for installation. Ensure you scan the correct QR code for installation, not the quick start user guide.
Image: FOBO TIRE LITE packaging with QR codes for app installation and quick start guide.
4.3. Sensor Preparation and Installation
Before installing, select an individual sensor, remove the battery tab to activate it, and then install the sensor on the tire position specified on the tab (e.g., FR for Front Right).

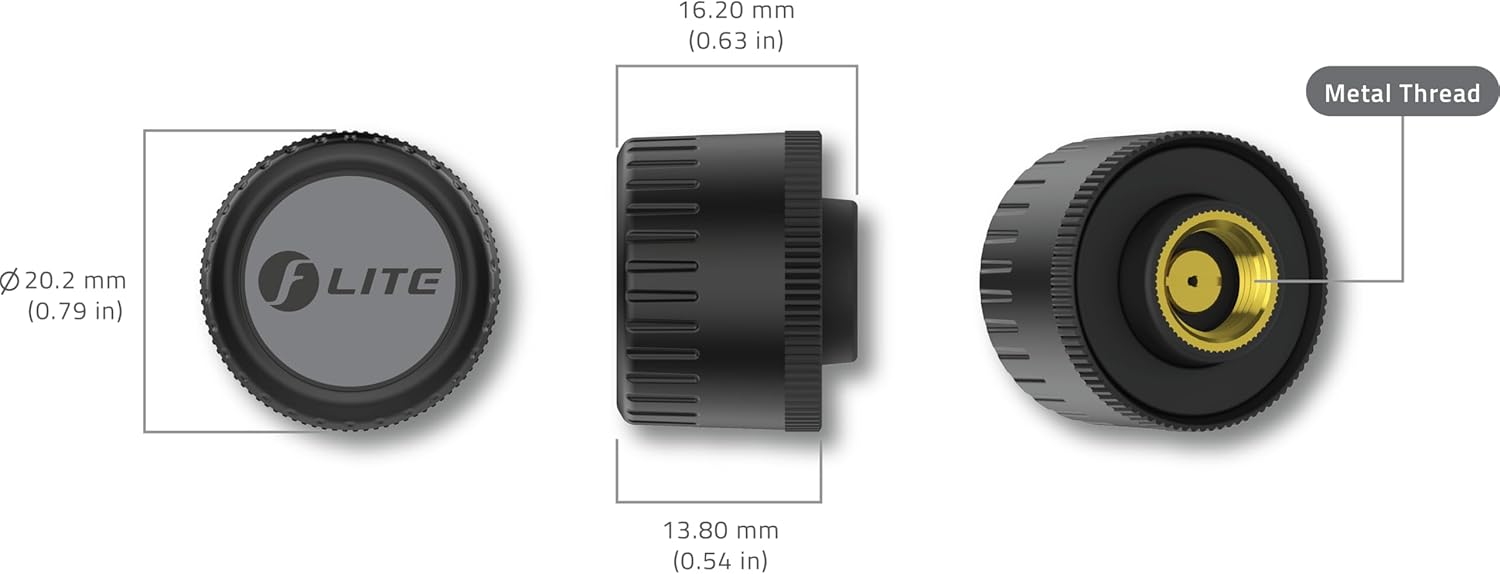

Image: Detailed dimensions of the FOBO TIRE LITE sensor.
Screw the sensors onto the tire valve stems. For added security, use the provided locking nuts and wrench to deter theft. Ensure the sensors are tightened securely to prevent air leaks.
Image: A hand installing a FOBO TIRE LITE sensor onto a tire valve.
३.२. स्थापना व्हिडिओ मार्गदर्शक
For a visual step-by-step guide, please watch the official FOBO TIRE LITE Installation video:
Video: Official FOBO TIRE LITE Installation Guide. This video demonstrates the process of setting up the app, activating sensors, and installing them on your vehicle's tires.
After installing all sensors on the tire valves, you are ready to monitor your tire pressure and temperature through the FOBO TPMS app.
5. ऑपरेटिंग सूचना
Once installed, the FOBO TIRE LITE system continuously monitors your tire pressure and temperature. The data is transmitted to your smartphone via Bluetooth.
१०. रिअल-टाइम मॉनिटरिंग
Open the FOBO TPMS app on your smartphone to view the current pressure and temperature for each tire. The app displays individual tire readings, allowing for precise monitoring.
5.2. सूचना आणि सूचना
The system provides 6-level smart alerts for various tire conditions, including:
- कमी दाब
- उच्च दाब
- Fast leak
- उच्च तापमान
- सेन्सर बॅटरी कमी
- Sensor not found
Alerts are delivered directly to your smartphone, ensuring you are promptly informed of any deviations from optimal tire conditions.
5.3. Apple CarPlay Integration
The FOBO TIRE LITE app seamlessly integrates with Apple CarPlay, allowing you to view tire pressure information directly on your vehicle's infotainment screen. This feature provides hands-free control and reduces distractions while driving.
Image: FOBO TIRE LITE app displayed on an Apple CarPlay screen in a vehicle.
6. देखभाल
To ensure the longevity and accurate performance of your FOBO TIRE LITE sensors, consider the following maintenance tips:
- बॅटरी बदलणे: The sensors use replaceable coin cell batteries. The app will notify you when a sensor's battery is low. To replace, unscrew the sensor cap, carefully remove the old battery, and insert a new one (e.g., Panasonic CR1632).
- स्वच्छता: Periodically clean the exterior of the sensors to remove dirt, dust, or road grime that may accumulate. Use a soft, damp कापड कठोर रसायने टाळा.
- स्टोरेज: If storing your vehicle for an extended period, ensure the sensors are kept within Bluetooth range of your smartphone or remove them and store them in a cool, dry place.
7. समस्या निवारण
If you encounter issues with your FOBO TIRE LITE system, try the following troubleshooting steps:
| इश्यू | संभाव्य कारण | उपाय |
|---|---|---|
| Slow Data Refresh / No Readings | Bluetooth interference, app not running in background, sensor out of range, low sensor battery. | Ensure app is open or running in background. Check Bluetooth connection. Move phone closer to sensors. Replace sensor battery if low. |
| App Requires Excessive Permissions | Necessary for full functionality (e.g., location for accurate vehicle tracking). | Grant required permissions for optimal performance. Some features, like location-based alerts, depend on these. |
| लहान बॅटरी आयुष्य | Frequent alerts, extreme temperatures, old batteries. | Ensure tire pressures are within optimal range to reduce alerts. Use high-quality replacement batteries. |
| Sensor Not Found / Disconnected | Sensor out of Bluetooth range, sensor fault, battery dead. | Bring phone closer to the vehicle. Check sensor battery. Re-pair the sensor in the app if necessary. |
| चुकीचे वाचन | Improper installation, sensor damage, extreme temperature changes. | Ensure sensors are screwed on tightly. Compare with a reliable manual gauge. Allow time for readings to stabilize after temperature changes. |
8. तपशील
| विशेषता | तपशील |
|---|---|
| उत्पादक | Salutica Allied Solutions Sdn. Bhd. |
| ब्रँड | FOBO |
| मॉडेलचे नाव | FOBO TIRE LITE TPMS |
| आयटम वजन | 3.2 औंस |
| पॅकेजचे परिमाण | 6.22 x 2.13 x 1.26 इंच |
| आयटम मॉडेल क्रमांक | TM1802 |
| उत्पादक भाग क्रमांक | 21F-SAS-19-FM2960-CP |
| ASIN | B0DPZVJS6G |
| तारीख प्रथम उपलब्ध | ९ डिसेंबर २०२३ |
9. हमी आणि समर्थन
For detailed warranty information and customer support, please visit the official FOBO webसाइट किंवा त्यांच्या ग्राहक सेवा संघाशी संपर्क साधा.
Official FOBO Webसाइट: http://www.my-fobo.com
You can also find more information and support on the FOBO Brand Store on Amazon: FOBO Brand Store
