GarveeHome Single Tap Kegerator Instruction Manual

परिचय

Thank you for choosing the GarveeHome Single Tap Kegerator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before installation and use, and keep it for future reference.

The GarveeHome Kegerator is designed to keep your beverages fresh and chilled, offering a temperature range of 32°F to 50°F. Its spacious 4.5 CU.FT interior can accommodate various keg sizes, including a US-standard full-size keg or multiple smaller kegs. It also includes additional shelves, allowing it to function as a standard refrigerator when not dispensing kegged beverages. Key features include an auto-defrosting design, an extended 9.8 ft beer hose for optimal foam, and a user-friendly control panel.

महत्वाची सुरक्षितता माहिती

इशारा: आग, विजेचा धक्का किंवा दुखापत होण्याचा धोका कमी करण्यासाठी, या मूलभूत खबरदारींचे पालन करा:

• उपकरण वापरण्यापूर्वी सर्व सूचना वाचा.
• Do not touch cold surfaces immediately after turning off the unit.
• Ensure proper grounding. Connect only to properly grounded outlets.
• एक्स्टेंशन कॉर्ड वापरू नका.
• Unplug the appliance before cleaning or making repairs.
• वेंटिलेशन ओपनिंग्स अडथळापासून दूर ठेवा.
• या उपकरणामध्ये ज्वालाग्राही प्रणोदकासह एरोसोल कॅनसारखे स्फोटक पदार्थ ठेवू नका.
• CO2 cylinders must be stored in a well-ventilated area and secured to prevent falling.
• Always ensure proper connections for CO2 lines to prevent leaks.

पॅकेज सामग्री

Your GarveeHome Kegerator package includes the following items:

• GarveeHome Beer Kegerator Unit
• Single Tap Beer Tower
• Beer Line (9.8 ft)
• CO2 Tank (empty)
• CO2 Tank Bracket
• Installation Kit (couplers, regulator, air lines, etc.)
• ठिबक ट्रे
• Stainless Steel Guard Rail
• Two Additional Shelves
• Four Wheels (two lockable)

सेटअप सूचना

Follow these steps to set up your GarveeHome Kegerator:

1. Install the Stainless Steel Guard Rail: Attach the guard rail to the top surface of the kegerator. This provides extra safety and helps prevent items from sliding off.
2. Install the Beer Tower and Tap: Secure the single tap beer tower into the designated opening on the top of the kegerator. Ensure it is firmly in place.
3. Install the Drip Tray: Place the removable drip tray directly below the beer tap. This catches any spills and keeps the area clean.
4. Mount CO2 Bracket for CO2 Tank: Attach the CO2 tank bracket to the rear of the kegerator unit. This keeps the CO2 tank securely in place.
5. Assemble the Regulator: Connect the CO2 regulator to the CO2 tank. Ensure all connections are tight to prevent gas leaks.
6. Connect the Air Line: Connect the air line from the CO2 regulator to the keg coupler.
7. Connect the Beer Line to the Couplers: Connect the beer line from the beer tower to the keg coupler. Ensure all lines are securely attached to prevent leaks and maintain proper pressure.

ऑपरेटिंग सूचना

तापमान नियंत्रण

The kegerator features a knob for easy temperature adjustment, ranging from 32°F to 50°F. Adjust the knob to your desired chilling temperature. In case of a power outage, the refrigerator will automatically restore the previously set temperature once power is restored.

Keg Installation and Dispensing

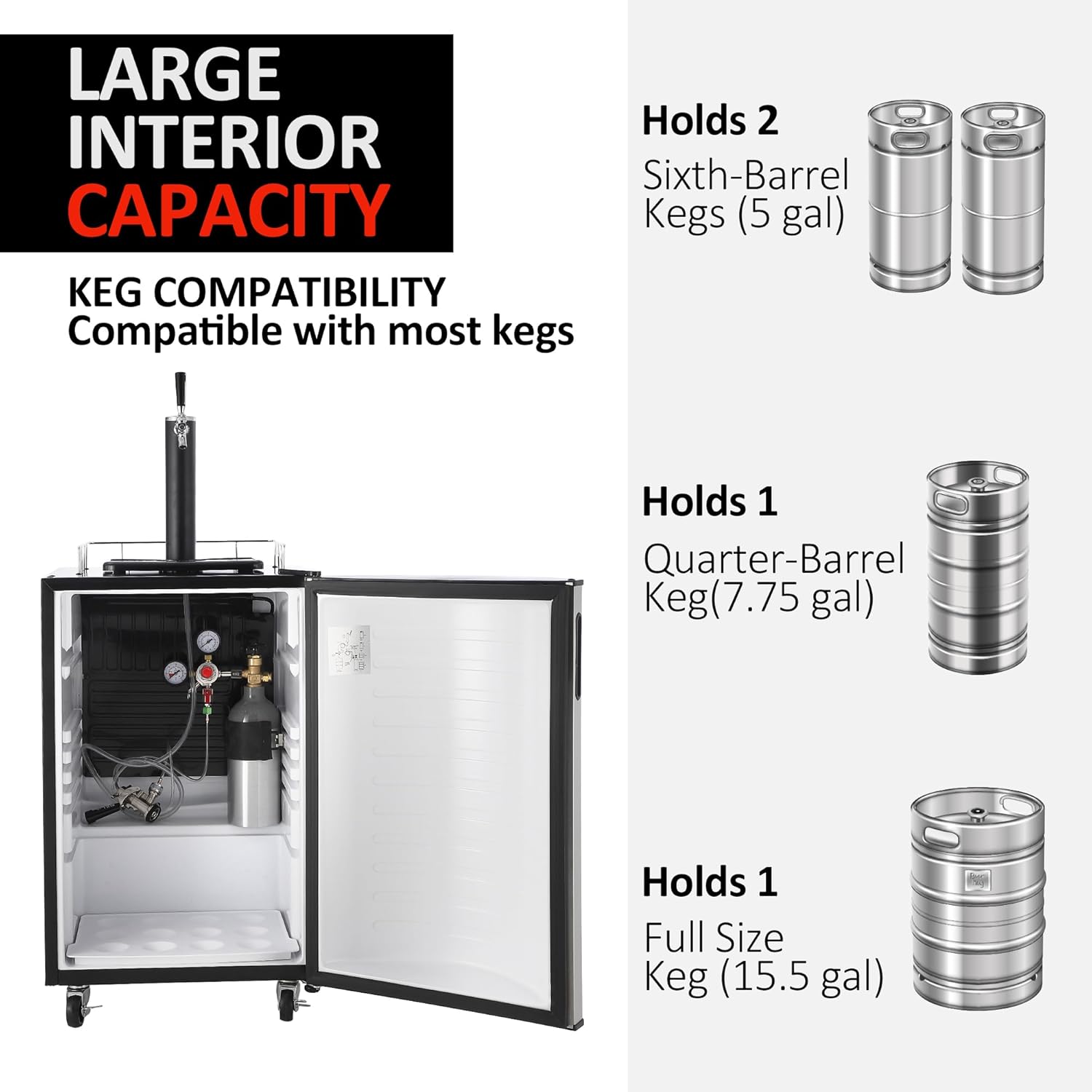

The spacious interior can hold one US-standard full-size keg or multiple smaller kegs. Once the keg is connected to the beer and air lines, ensure the CO2 pressure is set correctly (refer to your beverage's specific requirements). To dispense, place your glass under the tap and pull the tap handle forward. Push the handle back to stop the flow.

Using as a Refrigerator

When not using kegs, you can utilize the two additional shelves to convert the unit into a standard beverage refrigerator. This allows for versatile storage of cans and bottles.

स्वच्छता आणि देखभाल

Regular cleaning ensures optimal performance and hygiene of your kegerator.

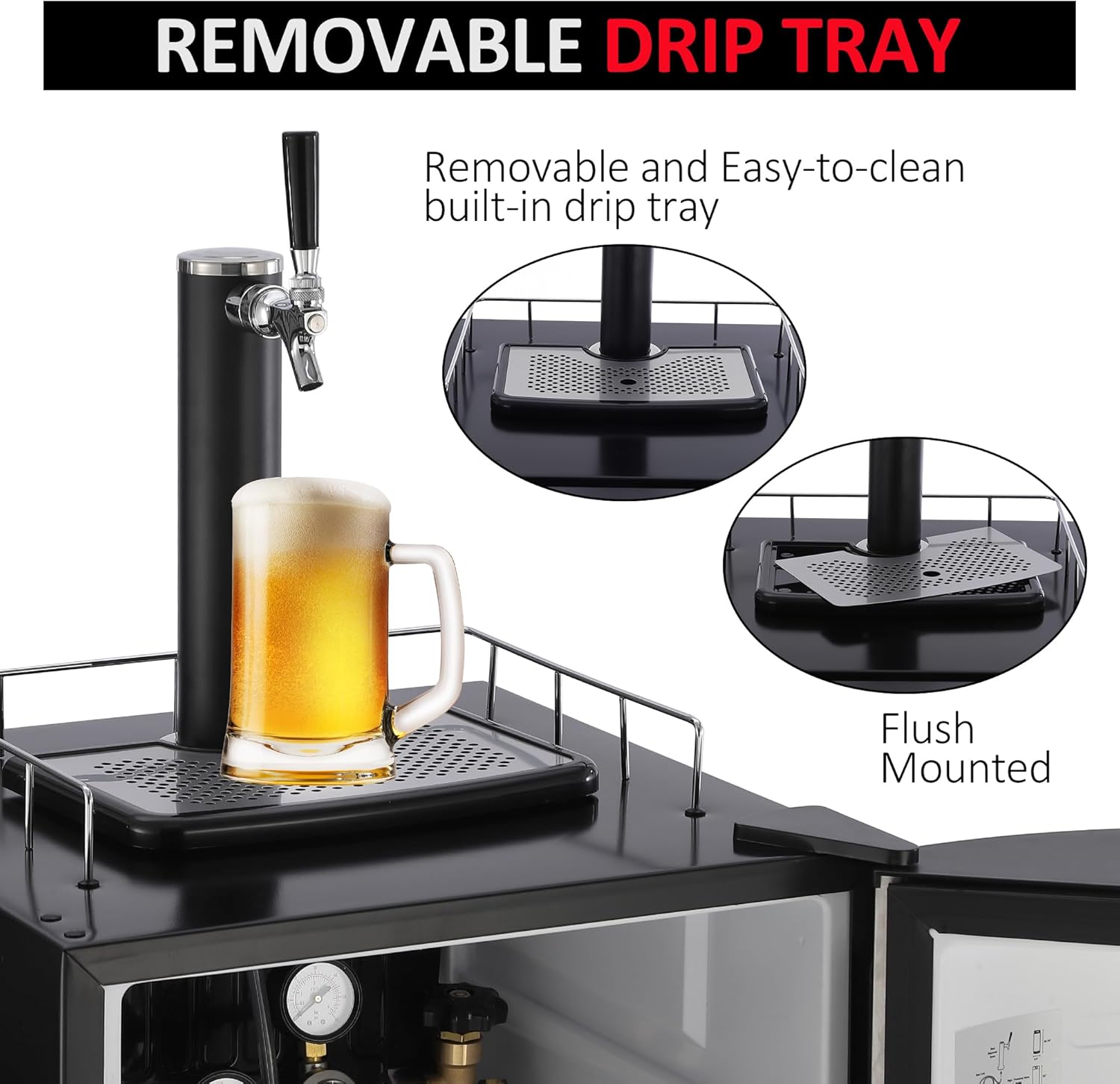

• ड्रिप ट्रे: The drip tray is removable for easy cleaning. Regularly empty and wash it with warm, soapy water to prevent buildup and odors.
• अंतर्गत: Wipe down the interior with a mild detergent and water. Ensure the unit is unplugged before cleaning.
• Beer Lines: Periodically clean the beer lines to prevent bacterial growth and maintain beverage quality. Use a specialized beer line cleaning solution.
• बाह्य: Clean the stainless steel exterior with a soft cloth and a stainless steel cleaner. The guard rail can also be removed for thorough cleaning.

समस्यानिवारण

If you encounter issues with your kegerator, refer to the following common problems and solutions:

• शक्ती नाही: Check if the unit is properly plugged into a working outlet. Verify the circuit breaker.
• अपुरा कूलिंग: Ensure the temperature setting is appropriate. Check for proper ventilation around the unit. Avoid placing hot items inside.
• Beer Not Dispensing: Verify the CO2 tank has gas and the regulator is set to the correct pressure. Check all beer and air line connections for leaks or kinks. Ensure the keg coupler is properly engaged.
• जास्त फेस: Check the beer line length (9.8 ft is recommended for proper balance). Ensure the beer is adequately chilled. Verify CO2 pressure is not too high.
• गळती: Inspect all connections (coupler, regulator, lines) for tightness. Replace any worn gaskets or O-rings.

तपशील

हमी आणि समर्थन

For warranty information and customer support, please refer to the documentation included with your purchase or contact GarveeHome customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
