नियमावली+

Emerson EPB-3003-BL

इमर्सन पोर्टेबल सीडी प्लेयर बूमबॉक्स EPB-3003-BL वापरकर्ता मॅन्युअल

Model: EPB-3003-BL

1. परिचय

This manual provides instructions for the safe and efficient operation of your Emerson Portable CD Player Boombox, Model EPB-3003-BL. This unit features a top-loading CD player, cassette player, tape recorder, and AM/FM radio. Please read this manual thoroughly before use and retain it for future reference.

2. सुरक्षितता माहिती

3. उत्पादन संपलेview

The Emerson Portable CD Player Boombox is a versatile audio system designed for home, indoor, and outdoor use. It includes a convenient carrying handle for portability.

Emerson Portable CD Player Boombox, blue color, front view with controls and speakers visible.

आकृती 3.1: समोर view of the Emerson Portable CD Player Boombox, showing the main controls, display, and dual speakers.

घटक आणि नियंत्रणे:

4. सेटअप

५.१ युनिटला वीजपुरवठा करणे

The boombox can be powered by either AC power or batteries.

एसी पॉवर ऑपरेशन:

  1. युनिट बंद असल्याचे सुनिश्चित करा.
  2. Connect the included AC/DC power adapter cord to the DC IN jack on the unit.
  3. Plug the other end of the adapter into a standard AC wall outlet.

बॅटरी ऑपरेशन:

  1. युनिट बंद केले आहे आणि AC पॉवरपासून डिस्कनेक्ट केले आहे याची खात्री करा.
  2. युनिटच्या तळाशी असलेले बॅटरी कंपार्टमेंट कव्हर उघडा.
  3. Insert the required number of C-size batteries (not included), observing the correct polarity (+/-).
  4. बॅटरी कंपार्टमेंट कव्हर सुरक्षितपणे बंद करा.

4.2 अँटेना सेटअप

For optimal FM radio reception, fully extend the telescopic antenna. For AM reception, rotate the unit for the best signal.

Emerson Portable CD Player Boombox with its telescopic antenna extended.

Figure 4.1: The boombox with its telescopic antenna extended for improved radio reception.

5. ऑपरेटिंग सूचना

३.३ सीडी प्लेयर ऑपरेशन

  1. दाबा FUNC. डिस्प्लेवर 'सीडी' येईपर्यंत बटण वारंवार दाबा.
  2. Open the top-loading CD compartment cover.
  3. Place a CD (CD, CD-R, or CD-RW compatible) onto the spindle with the label side facing up.
  4. सीडी कंपार्टमेंट कव्हर बंद करा.
  5. दाबा खेळा प्लेबॅक सुरू करण्यासाठी बटण.
  6. वापरा वगळा buttons (◀◀ / ►►) to navigate between tracks.
  7. दाबा थांबवा/ईजे. प्लेबॅक थांबविण्यासाठी बटण.

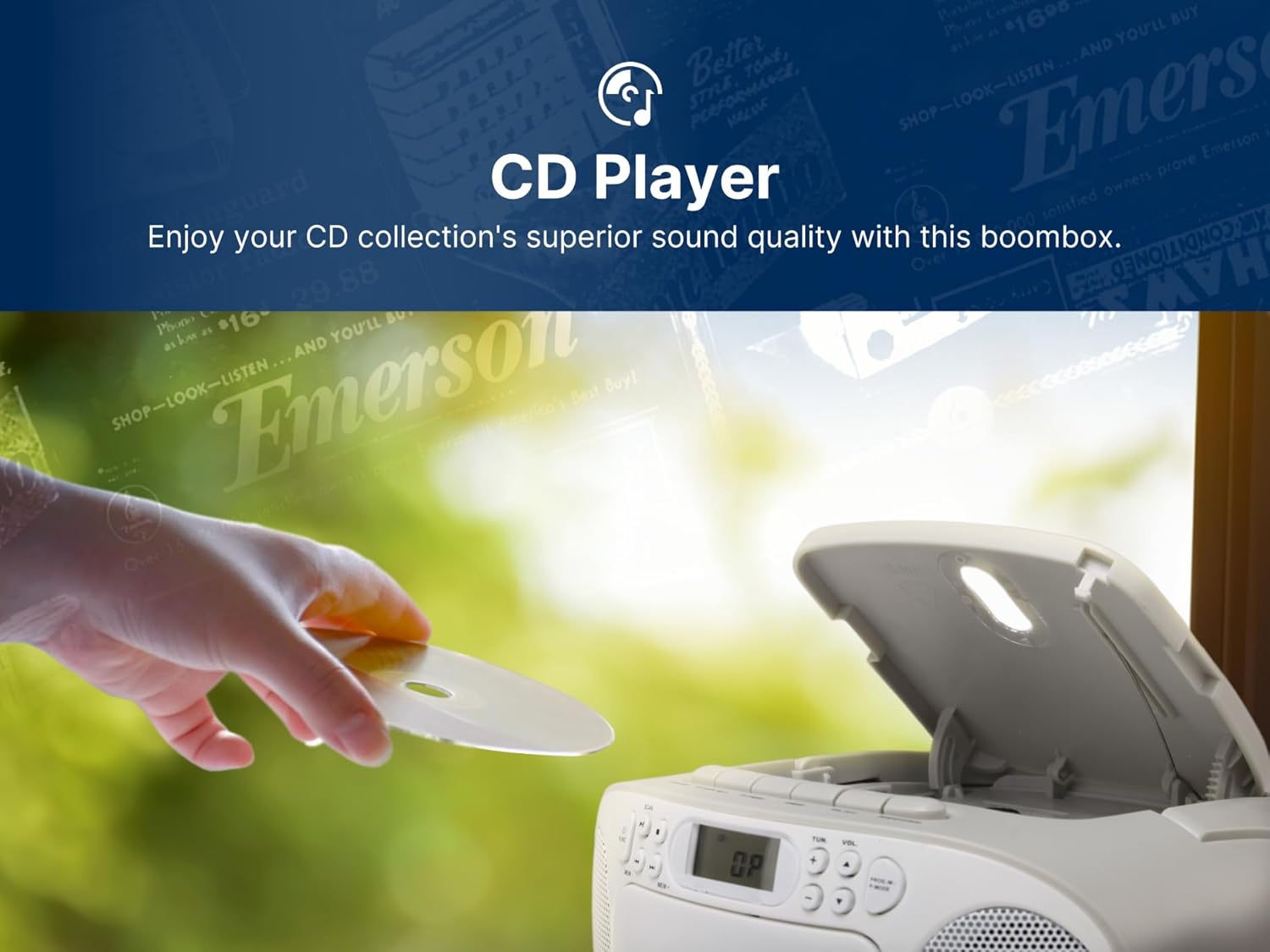

A hand placing a CD into the top-loading compartment of a white Emerson boombox.

Figure 5.1: A user inserting a compact disc into the top-loading CD player of the boombox.

5.2 Cassette Player and Recorder Operation

Playing a Cassette:

  1. दाबा FUNC. button repeatedly until 'TAPE' appears on the display.
  2. दाबा थांबवा/ईजे. कॅसेट कंपार्टमेंट उघडण्यासाठी बटण.
  3. एक कॅसेट टेप घाला.
  4. कॅसेटचा डबा बंद करा.
  5. दाबा खेळा प्लेबॅक सुरू करण्यासाठी बटण.
  6. वापरा F.FWD (Fast Forward) and REW (Rewind) buttons to quickly move through the tape.
  7. दाबा थांबवा/ईजे. प्लेबॅक थांबविण्यासाठी बटण.
A hand inserting a cassette tape into the cassette deck of a black Emerson boombox.

Figure 5.2: A user inserting a cassette tape into the boombox's cassette player.

Recording to Cassette:

  1. Insert a blank cassette tape into the cassette compartment.
  2. Select the desired audio source (CD, Radio, or AUX) using the FUNC. बटण
  3. Start playback of the audio source.
  4. दाबा रेकॉर्ड करा button on the boombox. The खेळा button will also engage.
  5. रेकॉर्डिंग थांबवण्यासाठी, दाबा थांबवा/ईजे. बटण

५.५ एएम/एफएम रेडिओ ऑपरेशन

  1. दाबा FUNC. button repeatedly until 'AM' or 'FM' appears on the display.
  2. Extend the telescopic antenna for FM reception.
  3. वापरा TUN. + or TUN. - buttons to tune to your desired radio station.
  4. दाबा आणि धरून ठेवा स्कॅन करा button to automatically scan for available stations.
  5. To save a station as a preset, tune to the station, then press the PROG./P-MODE button, use MEM. + or MEM. - to select a preset number, and press PROG./P-MODE पुष्टी करण्यासाठी पुन्हा.

5.4 AUX इनपुट

  1. दाबा FUNC. डिस्प्लेवर 'AUX' दिसेपर्यंत बटण वारंवार दाबा.
  2. Connect an external audio device (e.g., smartphone, MP3 player) to the 3.5mm AUX IN jack using an audio cable (not included).
  3. Start playback on your external device. The audio will play through the boombox speakers.

६.४ हेडफोनचा वापर

  1. Locate the headphone jack on the unit.
  2. Plug in a standard 3.5mm stereo headphone (not included).
  3. Audio will automatically switch from the speakers to the headphones.
  4. वापरून आवाज समायोजित करा VOL. + or VOL. - बटणे
A blue Emerson boombox with headphones plugged into its side, indicating private listening.

Figure 5.3: The boombox with headphones connected for personal audio enjoyment.

6. काळजी आणि देखभाल

युनिट साफ करणे:

बॅटरी बदलणे:

When the unit's performance degrades during battery operation, replace all batteries with new ones, ensuring correct polarity.

7. समस्या निवारण

समस्यासंभाव्य कारणउपाय
शक्ती नाहीAC adapter not connected; Batteries depleted or incorrectly inserted.Check AC connection; Replace batteries, ensuring correct polarity.
स्पीकर्समधून आवाज येत नाहीआवाज खूप कमी आहे; हेडफोन कनेक्ट केलेले आहेत; चुकीचे फंक्शन निवडले आहे.Increase volume; Disconnect headphones; Select correct function (CD, TAPE, AM/FM, AUX).
CD skips or does not playCD dirty or scratched; CD inserted incorrectly; CD compartment open.Clean or replace CD; Insert CD with label side up; Close compartment securely.
खराब रेडिओ रिसेप्शनअँटेना वाढवलेला नाही; युनिटची स्थिती.Extend FM antenna; Rotate unit for AM reception.
कॅसेट टेप वाजत नाही किंवा रेकॉर्ड होत नाही.Tape damaged; Incorrect function selected; Record tab removed (for recording).Try another tape; Ensure 'TAPE' function is selected; Check record tab on cassette.

8. तपशील

A white Emerson boombox with its dimensions labeled: 9.1 inches length, 8.5 inches width, 4.5 inches height, and weight 2.86 lbs.

Figure 8.1: Dimensions and weight of the Emerson Portable CD Player Boombox.

9. हमी आणि समर्थन

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Emerson webसाइट. वॉरंटी दाव्यांसाठी खरेदीचा पुरावा म्हणून तुमची खरेदी पावती ठेवा.

निर्माता: नक्सा इलेक्ट्रॉनिक्स, इंक.
