परिचय
Thank you for choosing Herdio 5.25" Passive Outdoor Speakers. These speakers are designed to deliver superior sound quality in various environments, both indoors and outdoors. Featuring an IP44 waterproof rating and durable construction, they are built to withstand diverse weather conditions. This manual provides detailed instructions for proper installation, operation, and maintenance to ensure optimal performance and longevity of your speakers.
Image: Herdio 5.25" Passive Outdoor Speakers (Pair)
बॉक्समध्ये काय आहे
कृपया स्थापना सुरू करण्यापूर्वी सर्व घटक उपस्थित आहेत का ते तपासा.
- 2 x Passive Outdoor Speakers
- 2 x Speaker Cables (16.4 Feet / 5 meters each)
- 2 x माउंट कंस
- १ x मालकाचे मॅन्युअल (हे दस्तऐवज)
Image: Included components: speakers, cables, and manual.
तपशील
| वैशिष्ट्य | वर्णन |
|---|---|
| मॉडेलचे नाव | HE-502B-US |
| स्पीकरचा प्रकार | आउटडोअर पॅसिव्ह स्पीकर |
| स्पीकरचा आकार | 5.25 इंच |
| वूफर | 5.25-inch Injection-Molded PP Cone |
| ट्वीटर | 1-inch PET Dome |
| कमाल आउटपुट पॉवर | 300 वॅट्स (प्रति जोडी) |
| प्रतिबाधा | 4 ओम |
| सिग्नल टू नॉईस रेश्यो | 89 dB |
| पाणी प्रतिकार पातळी | IP44 जलरोधक रेटिंग |
| उत्पादनाची परिमाणे (L x W x H) | 7.4" (18.8cm) x 5.98" (15.2cm) x 9.76" (24.8cm) |
| आयटम वजन | 9.63 पौंड (4.38 किलो) |
| माउंटिंग प्रकार | Wall Mount (with swivel brackets) |
| शिफारस केलेले वापर | इनडोअर/आउटडोअर |

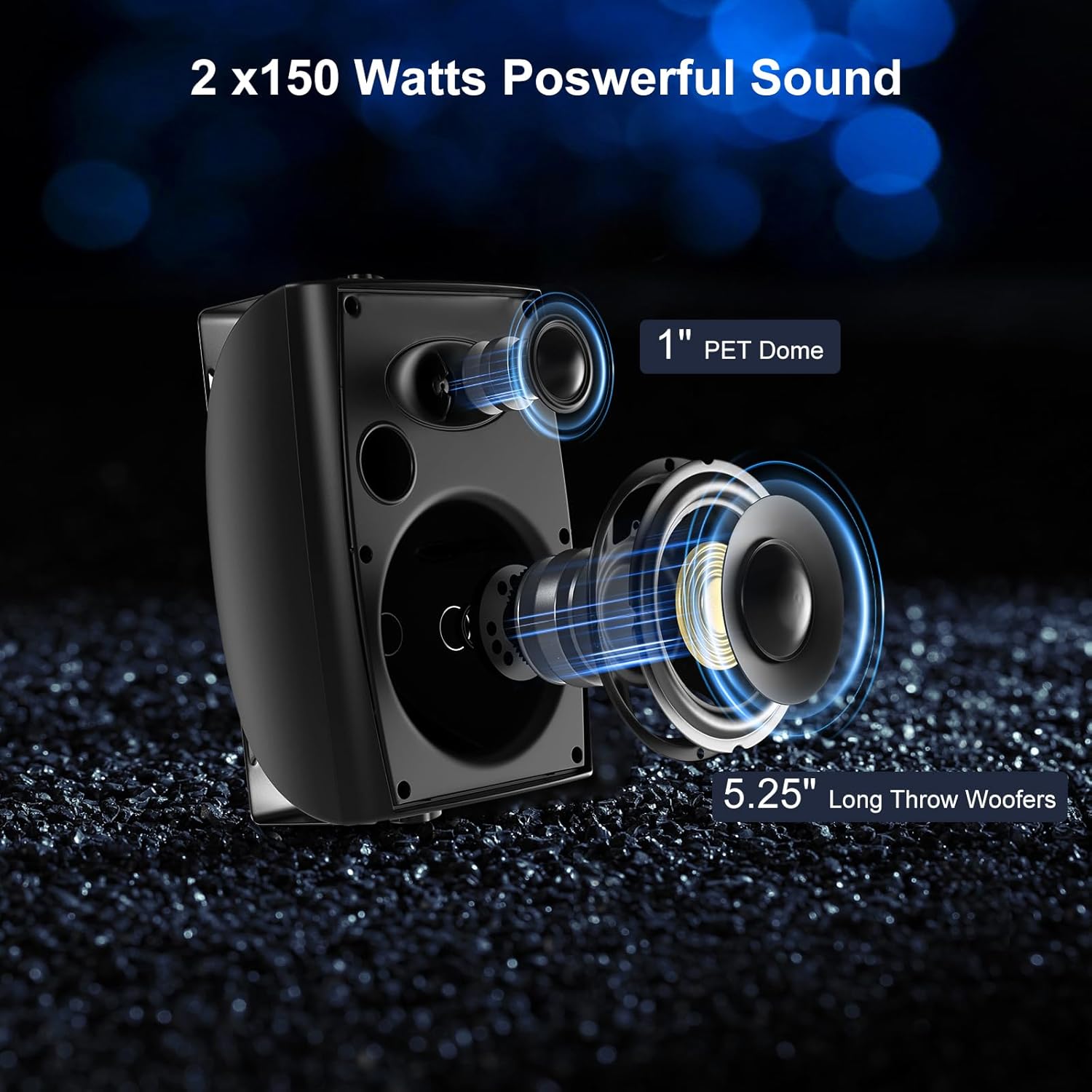

Image: Speaker internal components and power rating.
Image: Speaker dimensions.
सेटअप आणि स्थापना
These are passive speakers and require an external amplifier or Bluetooth receiver to function. An amplifier is not included with this product.
1. स्पीकर प्लेसमेंट
Consider the acoustics of your chosen location. For optimal sound dispersion, place speakers at an appropriate height and distance from each other. The versatile swivel brackets allow for flexible positioning.
प्रतिमा: उदाamples of suitable speaker placement in various indoor and outdoor settings.
४. स्पीकर्स बसवणे
The speakers come with adjustable U-shape mounting brackets for easy installation on walls or ceilings. Ensure the mounting surface is sturdy enough to support the weight of the speakers.
- Attach the U-shape bracket to the desired mounting surface using appropriate screws (not included).
- Align the speaker with the bracket and secure it using the provided knobs on the sides of the speaker.
- Adjust the angle of the speaker for optimal sound direction and tighten the knobs to fix its position. The brackets allow for 180-degree swivel adjustment.
Image: Easy installation with 180-degree versatile swivel brackets.
Image: Flexible installation options with U-shape bracket.
२. स्पीकर्सना वायरिंग करणे
तुमच्याशी स्पीकर कनेक्ट करा amplifier or receiver using the provided speaker cables. Ensure correct polarity for optimal sound performance.
- Identify the positive (+) and negative (-) terminals on both the speaker and your amplifier/receiver. The speaker terminals are color-coded: red for positive (+) and black for negative (-).
- Connect the red wire from the speaker cable to the red (positive) terminal on the speaker and the red (positive) terminal on your ampलाइफायर
- Connect the black wire from the speaker cable to the black (negative) terminal on the speaker and the black (negative) terminal on your ampलाइफायर
- Repeat for the second speaker.
Image: Daisy-chaining connection diagram for passive speakers.
Image: Speaker wiring diagram, emphasizing the need for an external ampलाइफायर
Video: Unboxing and basic setup guide for Herdio 5.25 Inch Outdoor Speakers, demonstrating connection points and mounting.
ऑपरेटिंग सूचना
Once properly installed and connected to an amplifier, operate your Herdio speakers as follows:
- पॉवर चालू: आपली खात्री करा amplifier/receiver is powered on.
- स्रोत निवड: Select the desired audio source on your amplifier (e.g., Bluetooth, AUX, CD).
- आवाज नियंत्रण: Start with a low volume level on your amplifier and gradually increase it to your preferred listening level. Avoid excessively high volumes to prevent speaker damage.
- ध्वनी समायोजन: Use the tone controls (bass, treble) on your amplifier to adjust the sound to your preference.
These speakers are designed for both indoor and outdoor use, providing clear and powerful audio for various activities.
देखभाल
तुमच्या हर्डिओ आउटडोअर स्पीकर्सचे दीर्घायुष्य आणि इष्टतम कार्यप्रदर्शन सुनिश्चित करण्यासाठी, या देखभाल मार्गदर्शक तत्त्वांचे पालन करा:
- स्वच्छता: Regularly wipe down the speaker enclosures with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they can damage the finish or waterproof sealing.
- पाणी एक्सपोजर: While the speakers have an IP44 waterproof rating, meaning they are protected against splashing water from any direction, they are not designed for submersion. Avoid direct high-pressure water jets.
- पर्यावरण संरक्षण: For prolonged periods of extreme weather (e.g., heavy snow, prolonged freezing temperatures, or intense heat), consider covering the speakers or temporarily relocating them to a sheltered area to maximize their lifespan.
- केबल तपासणी: Periodically check speaker cables for any signs of wear, fraying, or damage. Replace damaged cables immediately to prevent short circuits or poor sound quality.
- Bracket Check: Ensure mounting brackets remain securely fastened to the surface and the speakers are tightly attached to the brackets.
Image: Speaker's waterproof design for outdoor use.
समस्यानिवारण
If you experience issues with your Herdio speakers, refer to the following common problems and solutions:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| आवाज नाही |
|
|
| विकृत आवाज |
|
|
| एक स्पीकर काम करत नाही |
|
|
हमी आणि समर्थन
Herdio products are designed for reliability and performance. For warranty information or technical support, please visit the official Herdio webसाइट किंवा त्यांच्या ग्राहक सेवेशी संपर्क साधा.
अधिकृत Webसाइट: www.herdiotech.com
For further assistance, please refer to the contact information provided on the product packaging or the official webसाइट
