GarveeTech 24-inch Electric Convection Single Wall Oven User Manual

परिचय

This manual provides essential information for the safe and efficient operation of your GarveeTech 24-inch Electric Convection Single Wall Oven. Please read all instructions carefully before installation and use. Keep this manual for future reference.

सेटअप आणि स्थापना

Proper installation is crucial for the safe and optimal performance of your oven. This appliance is designed for built-in installation. Consult a qualified electrician and installer for proper wiring and cabinet integration.

1. अनपॅक करणे

• ओव्हनमधून सर्व पॅकेजिंग साहित्य काळजीपूर्वक काढा.
• Inspect the oven for any shipping damage. Do not install if damaged.
• ओव्हनच्या पोकळीतून सर्व सामान आणि अंतर्गत पॅकेजिंग काढा.

2. विद्युत आवश्यकता

• The oven requires a 240V, 3000W electrical supply.
• Ensure the electrical circuit meets local codes and the oven's specifications.
• समर्पित सर्किटची शिफारस केली जाते.

3. Cabinet Preparation

Ensure the cabinet opening dimensions are appropriate for the oven. Refer to the diagram below for recommended cutout sizes.

प्रतिमा: GarveeTech 24-inch Single Wall Oven with installation dimensions. The image displays the oven unit alongside a diagram indicating required cabinet cutout dimensions: 22.8 inches width, 23.22 inches height, and 21.8 inches depth.

• The cabinet material must be able to withstand temperatures up to 194°F (90°C).
• Ensure adequate ventilation around the oven.

4. Oven Installation

• तयार केलेल्या कॅबिनेट ओपनिंगमध्ये ओव्हन सरकवा.
• Secure the oven to the cabinet using the provided screws and mounting brackets.
• Ensure the oven is level before final tightening.

ऑपरेटिंग सूचना

Your GarveeTech oven features a user-friendly touch control panel and multiple cooking functions for versatile meal preparation.

1. नियंत्रण पॅनेल ओव्हरview

The oven is equipped with a sleek black tempered glass touch display for easy operation.

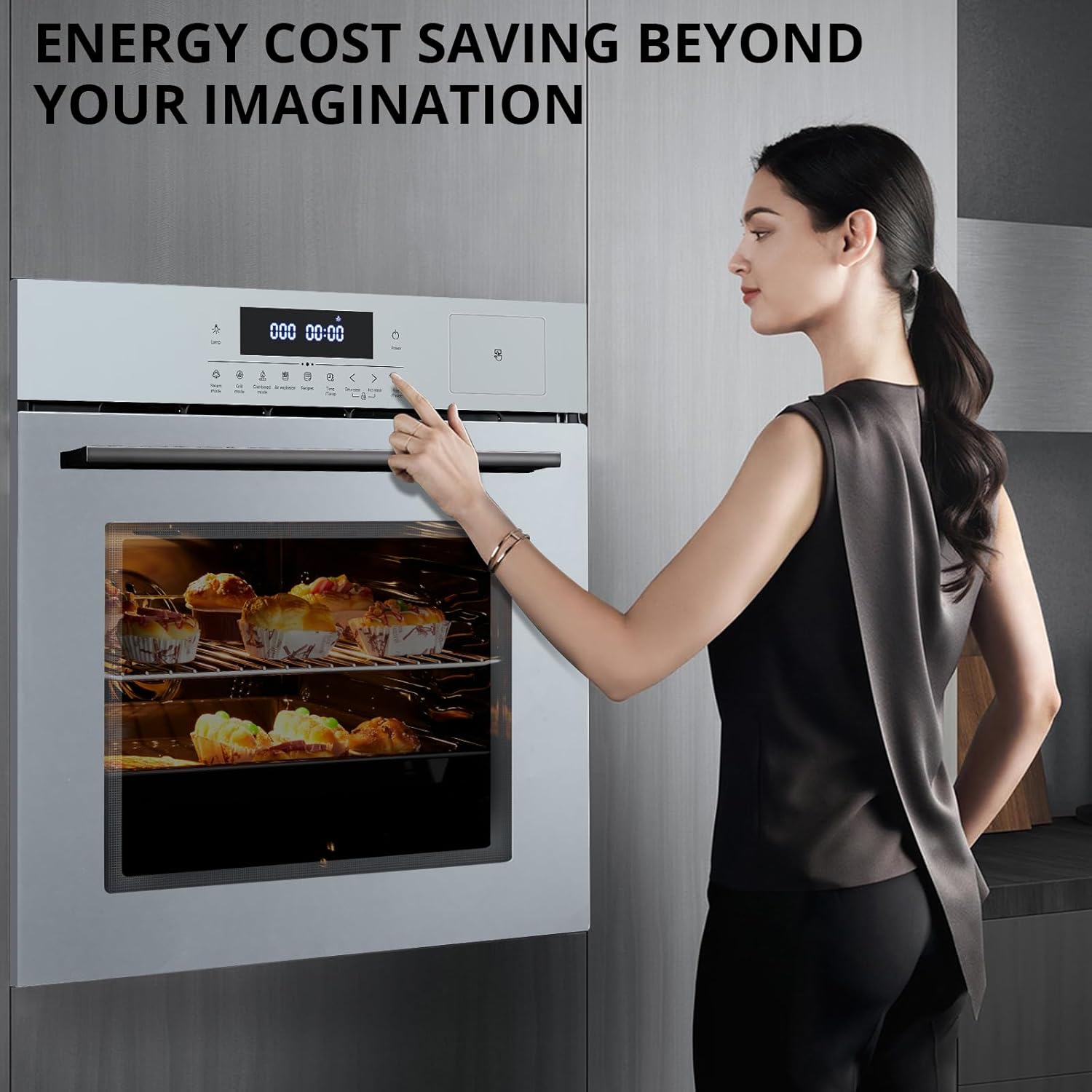

प्रतिमा: A woman interacting with the GarveeTech oven's touch control panel. The digital display shows '000 00:00' and various function icons are visible.

• पॉवर बटण: ओव्हन चालू/बंद करते.
• कार्य निवड: Icons for various cooking modes (e.g., Roast, Bake, Grill, Convection).
• तापमान/वेळ समायोजन: Use '+' and '-' buttons to set desired temperature and cooking duration.
• प्रारंभ / विराम द्या: Initiates or pauses a cooking program.
• टाइमर: Sets cooking time or acts as a kitchen timer.

2. पाककला कार्ये

The oven offers a range of cooking functions to suit various recipes.

प्रतिमा: GarveeTech oven displaying various cooking functions and food examples. Icons for Air Fryer, Convection Oven, Yogurt Maker, Bread Maker, Dehydrator, and Grill are shown, along with images of dried fruit, fermented dough, cake, baked goods, air-fried items, and broiled meat.

• संवहन बेक: Circulates heated air for even cooking and faster preheating.
• भाजणे: Ideal for meats and poultry, providing thorough cooking.
• बेक करा: Standard baking for cakes, cookies, and casseroles.
• Double Grill/Broil: Uses intense heat from the top element for browning and grilling.
• 360° Rotisserie: Rotates food for even browning and cooking, particularly effective for whole chickens or roasts.

प्रतिमा: GarveeTech oven with a rotisserie chicken inside, illustrating 360-degree hot air circulation. The image highlights strong airflow, even heating with 4 heating tubes, and a professional heat dissipation system.

• Rapid Defrost: A function for quickly thawing frozen foods.

3. Using the Timer and Safety Lock

• Multi-function Timer: Set a cooking duration, and the oven will automatically turn off when the time expires. It can also function as a simple kitchen timer.
• सेफ्टी लॉक (चाइल्ड लॉक): Activate the safety lock feature to prevent accidental operation, enhancing home safety, especially with children present. Refer to the control panel section of the full manual for specific activation steps.

काळजी आणि देखभाल

नियमित स्वच्छता आणि देखभाल तुमच्या ओव्हनचे दीर्घायुष्य आणि इष्टतम कामगिरी सुनिश्चित करेल.

1. Cleaning the Oven Cavity

• The oven features an easy-to-clean enamel tank, resistant to stains and heat discoloration.
• After each use, allow the oven to cool completely.
• जाहिरातीसह आतील भाग पुसून टाकाamp कापड आणि सौम्य डिटर्जंट. अपघर्षक क्लिनर टाळा.
• For stubborn stains, use an oven cleaner specifically designed for enamel surfaces, following the product instructions.
• ओव्हन रॅक काढा आणि त्यांना कोमट, साबणयुक्त पाण्यात वेगळे स्वच्छ करा.

2. Cleaning the Exterior and Glass Door

• मऊ सह बाह्य पृष्ठभाग पुसणे, डीamp कापड
• The triple-layer tempered glass door can be cleaned with a glass cleaner. Avoid spraying cleaner directly onto the control panel.
• The oven door is designed to stay cool to the touch on the outside, but always exercise caution.

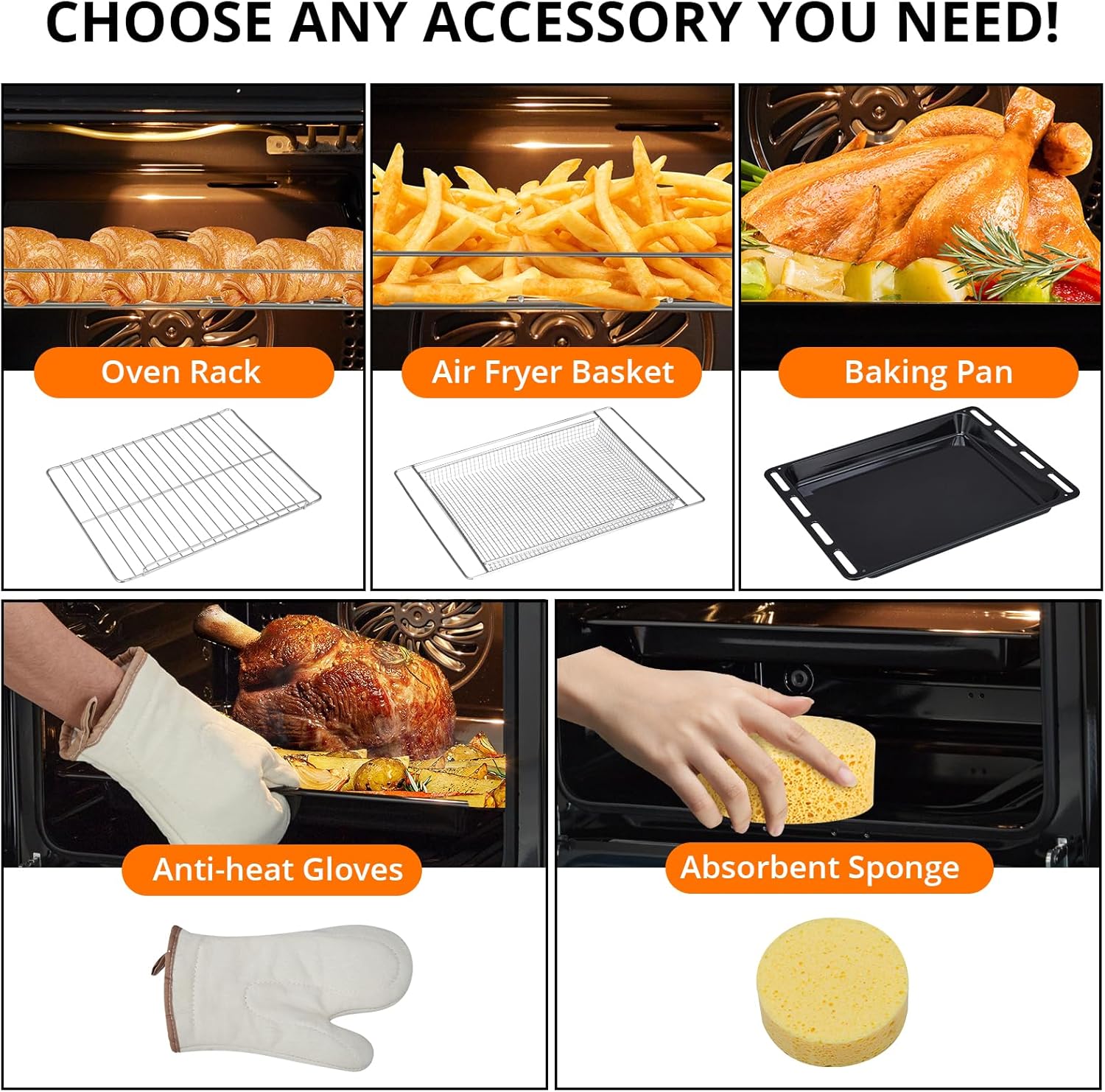

प्रतिमा: GarveeTech oven accessories. This image displays an oven rack, an air fryer basket, a baking pan, anti-heat gloves, and an absorbent sponge, illustrating potential tools for cooking and cleaning.

समस्यानिवारण

ग्राहक सेवेशी संपर्क साधण्यापूर्वी, कृपया खालील सामान्य समस्या आणि उपाय पहा.

तांत्रिक तपशील

हमी माहिती

For detailed warranty information, please refer to the warranty card included with your product or contact GarveeTech customer support directly. Keep your proof of purchase for warranty claims.

ग्राहक समर्थन

If you have any questions, require technical assistance, or need to report an issue with your GarveeTech oven, please contact our customer support team. Refer to the contact information provided in your product packaging or on the official GarveeTech webसाइट
