1. परिचय
Thank you for choosing the GarveeTech Smart Toilet Basic Model. This advanced toilet system is designed to enhance your bathroom experience with innovative features such as a heated seat, automatic flushing, foot sensor operation, and integrated night lighting. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your smart toilet.
2. सुरक्षितता माहिती
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, injury, or property damage.
- Ensure the power supply is disconnected before any installation or maintenance.
- हे उपकरण योग्यरित्या ग्राउंड केलेले असणे आवश्यक आहे.
- Do not install in locations where water may freeze, as this can damage the unit.
- Do not spray water directly onto the product or electrical components.
- Keep children and individuals with reduced physical, sensory, or mental capabilities under supervision when operating the toilet.
- Use only authorized replacement parts for repairs.
3. पॅकेज सामग्री
स्थापनेला पुढे जाण्यापूर्वी सर्व घटक उपस्थित आहेत आणि त्यांना नुकसान झालेले नाही याची खात्री करा.
- GarveeTech Smart Toilet Unit
- Toilet Seat (pre-installed)
- Installation Hardware (bolts, washers, floor flange)
- वापरकर्ता मॅन्युअल
Image 3.1: GarveeTech Smart Toilet Basic Model. This image shows the complete smart toilet unit from the front, highlighting its sleek, modern design.
4. सेटअप आणि स्थापना
Proper installation is crucial for the functionality and safety of your smart toilet. It is recommended to have a qualified plumber perform the installation.
4.1 इंस्टॉलेशनचे टप्पे संपलेview
- स्थापना क्षेत्र तयार करा: Ensure the water supply is turned off and the old toilet is removed. Clean the floor flange area.
- Install Floor Bolts: Secure the floor bolts into the floor flange.
- शौचालयाची जागा निश्चित करा: Carefully align the toilet over the floor bolts and press down firmly to create a seal with the wax ring.
- शौचालय सुरक्षित करा: Tighten the nuts onto the floor bolts, ensuring the toilet is stable. Do not overtighten.
- पाणी पुरवठा कनेक्ट करा: Connect the water supply line to the toilet's inlet valve.
- वीज कनेक्ट करा: शौचालयाला ग्राउंड केलेल्या इलेक्ट्रिकल आउटलेटमध्ये प्लग करा.
- चाचणी कार्यक्षमता: Turn on the water supply and check for leaks. Test all smart features.
४.३ स्थापना व्हिडिओ मार्गदर्शक
Video 4.1: Smart Toilet Installation Guide. This video provides a visual step-by-step guide for installing the GarveeTech Smart Toilet, demonstrating the process from preparing the floor flange to securing the unit and connecting utilities.
Image 4.2: GarveeTech Smart Toilet Dimensions. This image displays the key measurements of the smart toilet, including depth, width, and height, essential for planning installation space.
5. ऑपरेटिंग सूचना
Your GarveeTech Smart Toilet offers several intelligent features for enhanced comfort and hygiene.
5.1 Off-Seat Auto Flush
The toilet automatically flushes after the user stands up and moves away from the seat. This feature ensures hygiene and convenience.
Image 5.1: Off-Seat Auto Flush. This image illustrates the automatic flushing function that activates when a user leaves the toilet seat, ensuring a hands-free operation.
४.२ फूट सेन्सर ऑपरेशन
A gentle touch on the foot sensor icon located at the base of the toilet initiates the flushing system. This is particularly convenient for hands-free operation.
Image 5.2: Foot Sensor Flush. This image shows a user activating the foot sensor at the base of the toilet for hands-free flushing.
५.५ गरम आसन
The heated seat provides comfort, especially in colder environments. It features three adjustable temperature settings. Low-temperature burn protection activates if the seat is occupied for over 10 minutes.
Image 5.3: Ergonomic Heated Seat. This image highlights the heated seat feature with its adjustable temperature levels, providing comfort during use.
5.4 रात्रीचा प्रकाश
An integrated LED night light provides a soft glow, guiding you in the dark without the need for bright overhead lights.

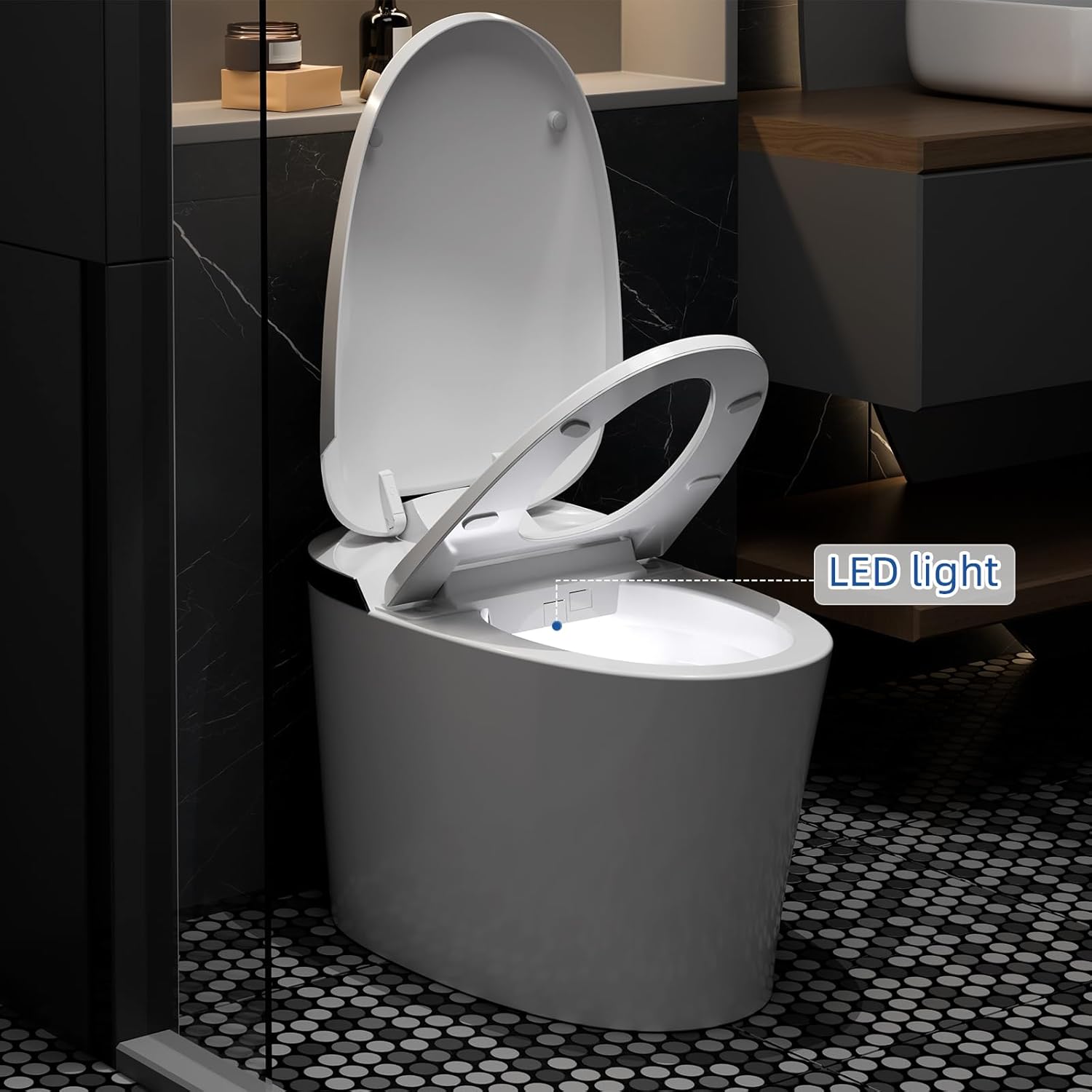

Image 5.4: Night Light and LED Digital Display. This image shows the toilet's built-in night light illuminating the bowl and the LED display indicating temperature settings.
5.5 Efficient Flushing System (Superspin)
The Superspin system automatically adjusts flush volume: a half flush (1.08 GPF) for uses under 30 seconds and a full flush (1.45 GPF) for longer uses. A booster pump assists in resolving low water pressure issues.
Image 5.5: Dual Siphon Jet Cleaning. This image visually represents the powerful 360-degree flush action of the dual siphon jet system, ensuring thorough cleaning.
5.6 Side Button Control
Manual controls are located on the side of the toilet for functions such as flushing, adjusting seat temperature, and controlling the night light. The lid also features a soft-close mechanism.

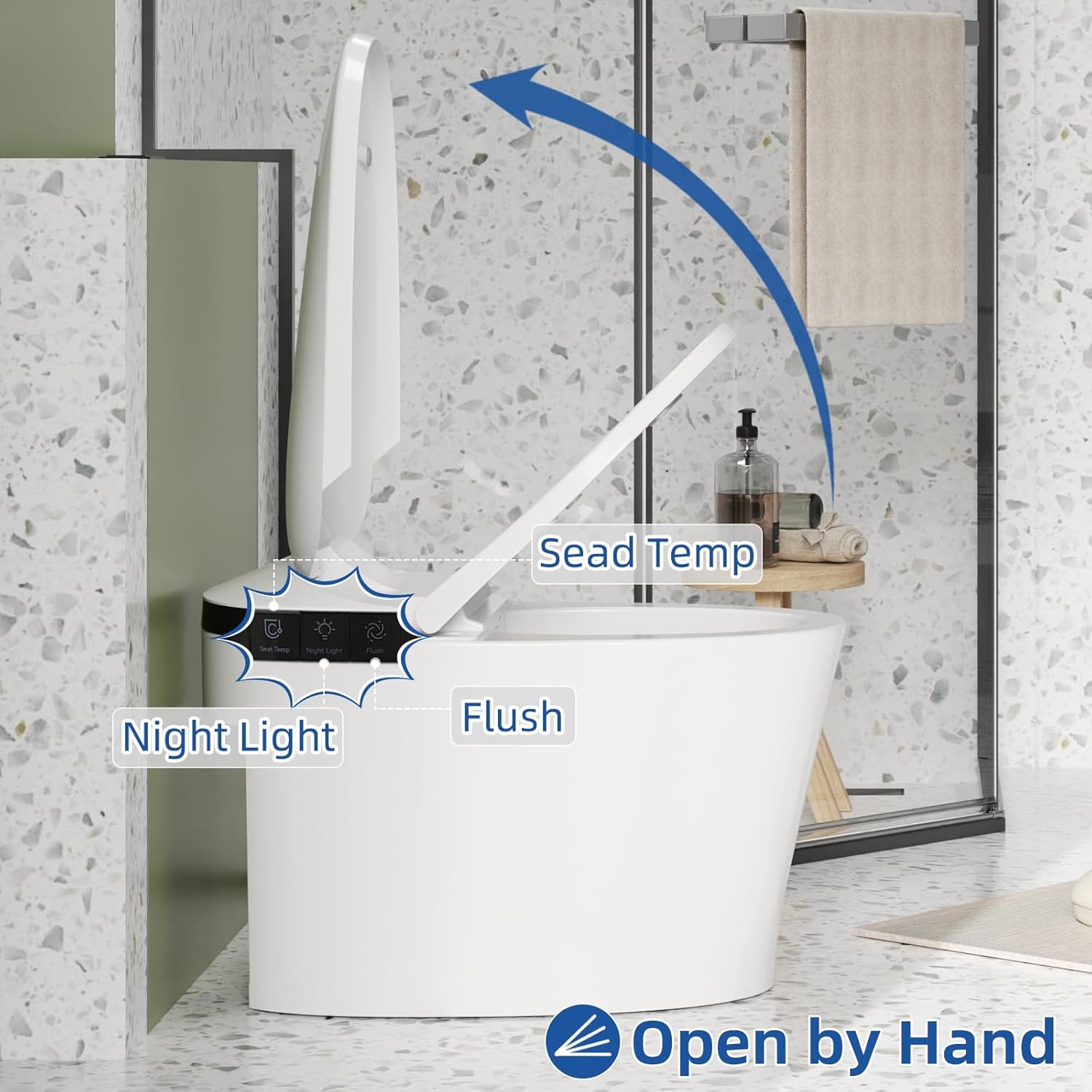

Image 5.6: Side Button Control. This image shows the control panel on the side of the toilet, indicating buttons for flush, seat temperature, and night light, along with the soft-close lid feature.
6. देखभाल
नियमित स्वच्छता आणि देखभाल तुमच्या स्मार्ट टॉयलेटचे दीर्घायुष्य आणि स्वच्छतापूर्ण ऑपरेशन सुनिश्चित करेल.
- बाह्य स्वच्छता: मऊ सह बाह्य पृष्ठभाग पुसणे, डीamp कापड आणि सौम्य, अपघर्षक नसलेला क्लिनर वापरा. कठोर रसायने किंवा अपघर्षक पॅड टाळा.
- सीट साफ करणे: Clean the toilet seat with a mild soap solution. Do not use strong detergents or disinfectants that may damage the material.
- नोजल साफ करणे: Periodically clean the flush nozzle to prevent mineral buildup. Refer to the detailed cleaning instructions in the full manual (if available) for specific steps.
- फिल्टर देखभाल: Check and clean the water inlet filter periodically to ensure proper water flow.
- पॉवर Outage Flush: शक्ती ou बाबतीतtage, the toilet is designed to allow for manual flushing.
7. समस्या निवारण
If you encounter issues with your GarveeTech Smart Toilet, refer to the following common troubleshooting steps:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| शौचालय आपोआप फ्लश होत नाही. | सेन्सरमध्ये अडथळा किंवा घाण; वीज समस्या. | Clean the sensor area. Check power connection. |
| गरम सीट काम करत नाही. | Power issue; temperature setting too low. | Check power. Adjust temperature settings using side controls. |
| Weak flush. | Low water pressure; clogged nozzle/filter. | Ensure adequate water pressure. Clean flush nozzle and water inlet filter. |
| रात्रीचा प्रकाश प्रकाशित होत नाही. | Light sensor obstructed; night light feature turned off. | Ensure light sensor is clear. Activate night light via side controls. |
For issues not listed here or if solutions do not resolve the problem, please contact GarveeTech customer support.
8. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | WXv_XL9K70ER2WmaCDYTvwdezXl7v |
| ब्रँड | GarveeTech |
| रंग | पांढरा |
| उत्पादनाचे परिमाण (D x W x H) | ८५.४" x ६२.२" x ३९" |
| साहित्य | एबीएस, सिरेमिक |
| आयटम वजन | 100.2 पाउंड |
| स्थापना प्रकार | मजला माउंट |
| आकार | गोलाकार |
| आसन साहित्य प्रकार | ऍक्रिलोनिट्रिल बुटाडीन स्टायरीन (एबीएस) |
| Flush Volume (Half/Full) | 1.08 GPF / 1.45 GPF |
| गरम आसन | Yes, 3 adjustable temperature settings |
| रात्रीचा प्रकाश | होय |
| UPC | 198723842257 |
9. हमी आणि समर्थन
GarveeTech stands behind the quality of its products. This smart toilet comes with a standard manufacturer's warranty covering defects in materials and workmanship. For specific warranty terms, duration, and to register your product, please refer to the warranty card included in your packaging or visit the official GarveeTech webसाइट
For technical assistance, troubleshooting guidance beyond this manual, or to inquire about replacement parts, please contact GarveeTech customer support. Our dedicated team is available to assist you.
- ग्राहक समर्थन: Refer to your product packaging or the GarveeTech webसंपर्क माहितीसाठी साइट.
- ऑनलाइन संसाधने: Visit the GarveeTech store on Amazon for additional product information and FAQs: GarveeTech Store
