1. परिचय
Thank you for choosing the LAXIHUB 2K/3MP Outdoor Battery Security Camera. This manual provides essential information for setting up, operating, and maintaining your security camera system. This cutting-edge surveillance solution is designed to provide unparalleled security and peace of mind with its 2K/3MP resolution, colour night vision, and wireless operation.
Please read this manual thoroughly before installation and use to ensure proper functionality and safety. Keep this manual for future reference.

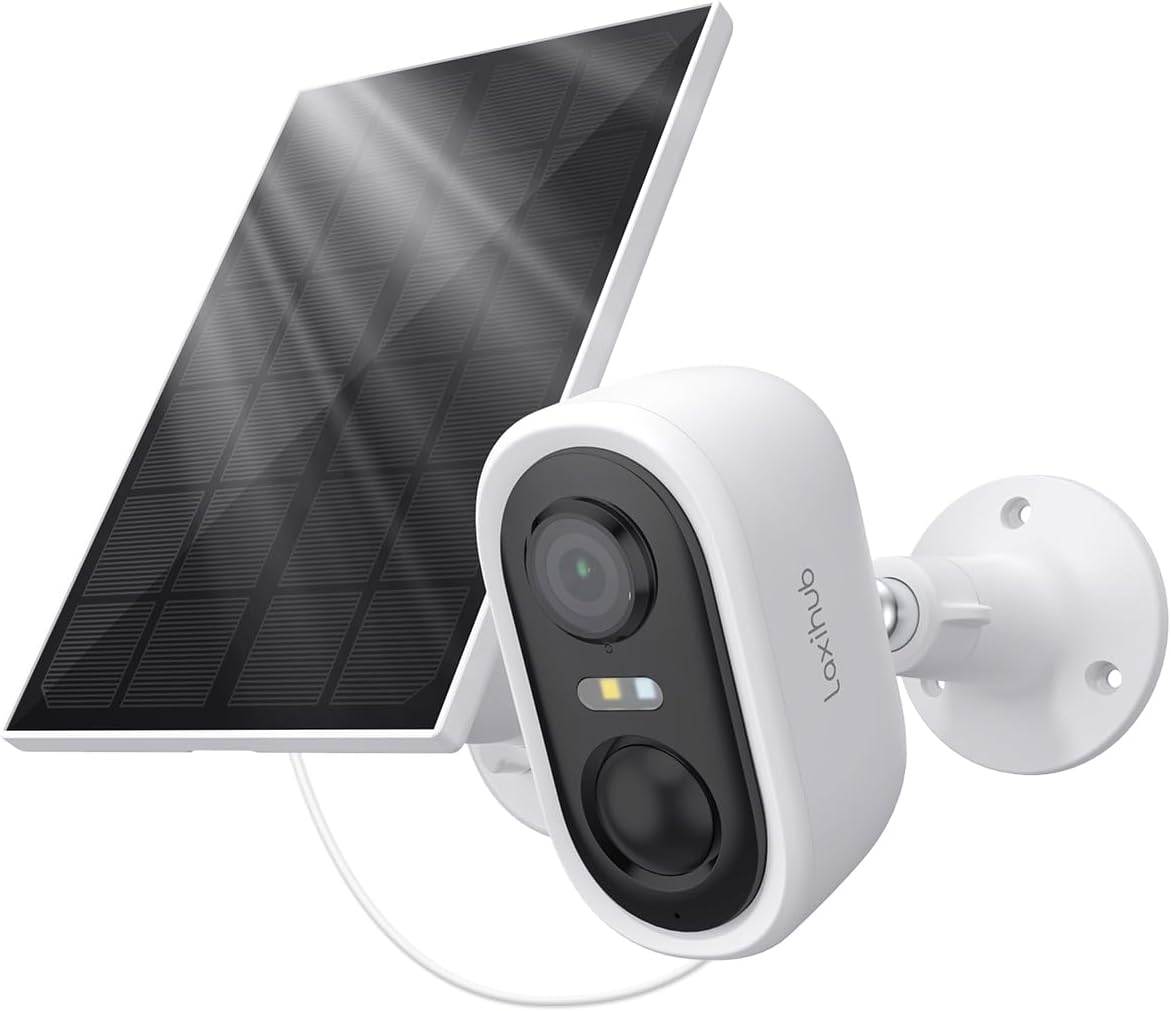

Image: The LAXIHUB 2K/3MP Outdoor Battery Security Camera shown with its accompanying solar panel, ready for outdoor installation.
२. बॉक्समध्ये काय आहे?
पॅकेज उघडताना सर्व घटक उपस्थित आहेत आणि चांगल्या स्थितीत आहेत याची खात्री करा:
- LAXIHUB 2K/3MP Outdoor Battery Security Camera
- सौर पॅनेल
- कंस
- Screw package (Screws, Wall anchors)
- पॉवर केबल
- बेस
- जलद मार्गदर्शक
- 1 C battery (pre-installed or included)
3. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेलचे नाव | Snap 18T+Solar 3 |
| ठराव | 2K/3MP (3MP Video Capture Resolution) |
| उर्जा स्त्रोत | Battery Powered (Rechargeable, 5200mAh) with Solar Panel charging |
| कनेक्टिव्हिटी | वाय-फाय (फक्त २.४GHz) |
| नाईट व्हिजन | कलर नाईट व्हिजन |
| वेदरप्रूफ रेटिंग | IP65 (Dust and water jet resistant) |
| मोशन डिटेक्शन | Zone Detection, Motion Only Alert Type |
| ऑडिओ | २-वे ऑडिओ |
| माउंटिंग प्रकार | वॉल माउंट |
| परिमाण (L x W x H) | 3.78 x 2.08 x 2.4 इंच |
| आयटम वजन | 10.9 औंस |
| साहित्य | प्लास्टिक |
Image: Visual representation of key features including 3MP resolution, Wi-Fi connectivity, AI motion detection, solar power, cloud storage, and 5200mAh battery capacity.
4. सेटअप मार्गदर्शक
4.1 प्रारंभिक चार्जिंग
Before first use, fully charge the camera's internal battery using the provided power cable. Connect the cable to the camera's charging port and a standard USB power adapter (not included). A full charge may take several hours.
२.२ अॅप डाउनलोड आणि खाते नोंदणी
Download the official LAXIHUB app from your smartphone's app store (iOS App Store or Google Play Store). Follow the on-screen instructions to register a new account or log in if you already have one.
4.3 Camera Pairing
- Open the LAXIHUB app and tap "Add Device" or the "+" icon.
- सूचीमधून तुमचा कॅमेरा मॉडेल निवडा.
- Follow the app's instructions to power on the camera and put it into pairing mode (usually indicated by a flashing LED).
- कॅमेरा तुमच्या २.४GHz वाय-फाय नेटवर्कशी कनेक्ट करा. Note: This camera does not support 5GHz Wi-Fi.
- Scan the QR code displayed on your phone screen with the camera lens.
- Wait for the camera to connect to the network and register with your account.
३.२ कॅमेरा आणि सोलर पॅनेल बसवणे
स्पष्ट प्रदान करणारे माउंटिंग स्थान निवडा view तुम्हाला ज्या क्षेत्राचे निरीक्षण करायचे आहे आणि ते तुम्हाला मिळते त्या क्षेत्राचे ample direct sunlight for the solar panel. Ensure the Wi-Fi signal is strong at the chosen location.
- मार्क ड्रिलिंग पॉइंट्स: Use the mounting bracket as a template to mark the screw holes on the wall or surface.
- छिद्रे ड्रिल: Drill pilot holes at the marked points. Insert wall anchors if mounting on masonry or drywall.
- कंस संलग्न करा: Securely fasten the camera and solar panel brackets to the wall using the provided screws.
- Mount Camera and Solar Panel: Attach the camera and solar panel to their respective brackets. Adjust the angle of both for optimal coverage and sunlight exposure.
- सौर पॅनेल कनेक्ट करा: सोलर पॅनलची पॉवर केबल कॅमेऱ्याच्या चार्जिंग पोर्टशी जोडा.
Image: The camera and solar panel installed on an exterior wall, demonstrating the wireless setup and continuous power supply from the solar panel.

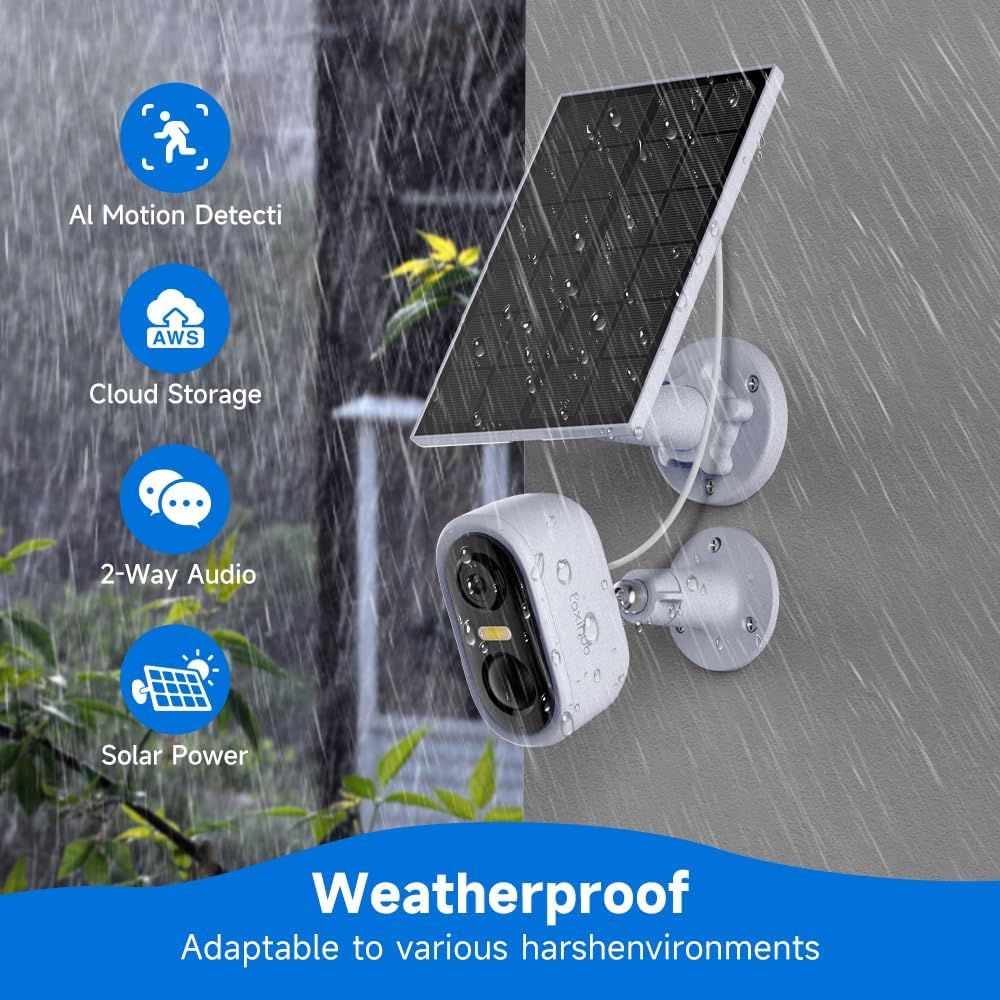

Image: The camera and solar panel shown in a rainy outdoor setting, highlighting its IP65 weatherproof rating and adaptability to various environments.
5. ऑपरेटिंग सूचना
5.1 थेट View
Open the LAXIHUB app and select your camera from the device list to access the live video feed. You can view रिअल-टाइम footage, take screenshots, and record manually.
5.2 Motion Detection and Zone Setup
The camera features intelligent zone detection to minimize false alerts. Navigate to the camera settings in the app to:
- Enable/Disable Motion Detection: Turn motion alerts on or off.
- संवेदनशीलता समायोजित करा: Set the detection sensitivity level (Low, Medium, High).
- Define Detection Zones: Draw specific areas on the camera's field of view where you want motion to be detected. This helps ignore irrelevant movements outside critical areas.
प्रतिमा: कॅमेऱ्याच्या १५०-अंश वाइड-अँगलचे चित्रण view, demonstrating its ability to clearly capture surroundings both during the day and with full-color night vision.
Image: The camera actively monitoring an area, with a smartphone displaying a "Message Alarm" notification, indicating a detected anomaly. This image also highlights the long standby time of the rechargeable batteries.
5.3 Colour Night Vision
The camera automatically switches to colour night vision in low-light conditions, providing clear and detailed footage even after dark. Ensure the area is within the camera's illumination range for optimal performance.

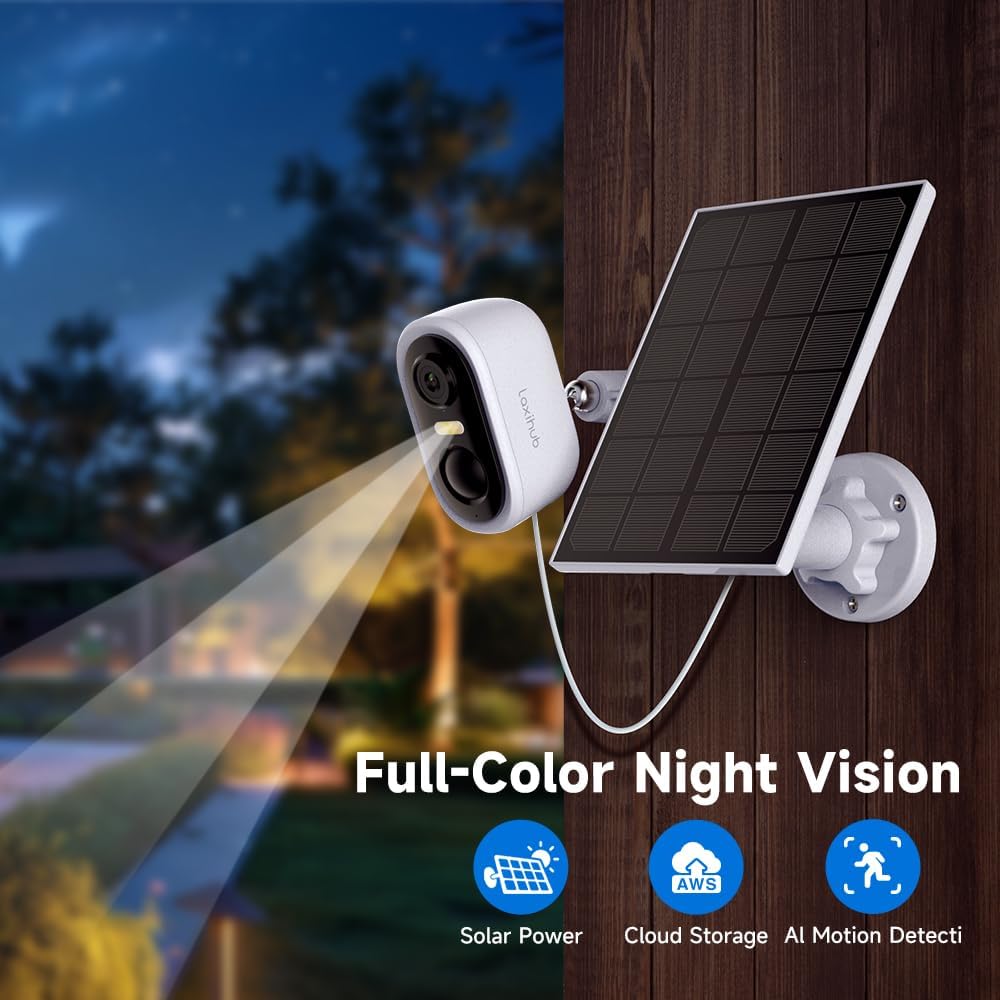

Image: The camera and solar panel setup at night, demonstrating its full-color night vision feature, which allows for clear visibility in dark conditions.
४.४ टू-वे ऑडिओ
Use the two-way audio feature to communicate with visitors or deter intruders. Tap the microphone icon in the live view to speak through the camera's speaker, and listen through your phone's speaker.
5.5 रेकॉर्डिंग आणि प्लेबॅक
Motion-triggered events are automatically recorded. You can access recorded footage through the "Playback" or "Event History" section in the app. Recordings are stored either on a local SD card (if installed, not included) or in the cloud (subscription may be required).
6. देखभाल
6.1 स्वच्छता
Regularly clean the camera lens and solar panel surface with a soft, damp चांगल्या कामगिरीची खात्री करण्यासाठी कापड. पृष्ठभागावर स्क्रॅच होऊ शकणारे कठोर रसायने किंवा अपघर्षक पदार्थ वापरणे टाळा.
6.2 बॅटरी काळजी
The camera's rechargeable battery is designed for long-term use. To maximize battery life:
- Ensure the solar panel receives adequate direct sunlight daily.
- Avoid placing the camera in extreme temperatures.
- Reduce unnecessary motion alerts if battery drain is a concern.
6.3 Solar Panel Efficiency
Periodically check the solar panel for any obstructions (e.g., leaves, dirt, snow) that might block sunlight. A clean panel ensures maximum charging efficiency for the camera's battery.
7. समस्या निवारण
| समस्या | संभाव्य उपाय |
|---|---|
| कॅमेरा चालू होणार नाही. | Ensure the battery is fully charged. Connect to power adapter and check LED indicator. |
| Wi-Fi शी कनेक्ट करू शकत नाही. |
|
| खराब व्हिडिओ गुणवत्ता. |
|
| वारंवार खोट्या हालचाली सूचना. |
|
| बॅटरी लवकर संपते. |
|
8. हमी आणि समर्थन
LAXIHUB products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official LAXIHUB website. You may also contact LAXIHUB customer support directly through the contact information provided on their website or within the app.
Webसाइट: Visit the LAXIHUB Store on Amazon
