HEIMAN Smoke Detector Model 2SA User Manual

1. परिचय

This user manual provides essential information for the proper installation, operation, and maintenance of your HEIMAN Smoke Detector Model 2SA. Please read this manual thoroughly before installation and keep it for future reference. This device is designed to detect smoke and alert occupants to potential fire hazards, contributing to the safety of your home.

प्रमुख वैशिष्ट्ये:

• कनेक्टिव्हिटी: This smoke detector can be connected to other compatible HEIMAN devices, ensuring all detectors sound an alarm when smoke is detected by any unit.
• सुलभ स्थापना: Designed for quick and tool-free ceiling mounting.
• Reliable Sensor: Features a highly sensitive photoelectric sensor capable of detecting even small smoke particles.
• दीर्घकाळ चालणारी बॅटरी: Equipped with a 10-year battery, minimizing maintenance.
• निःशब्द कार्य: Allows temporary silencing of the alarm, useful for non-emergency situations like cooking.

2. सुरक्षितता माहिती

सामान्य सुरक्षा मार्गदर्शक तत्त्वे

• चेतावणी: The battery in this device is not replaceable. The unit is designed for a 10-year lifespan, after which it should be replaced.
• चेतावणी: Constant exposure to high or low temperatures may reduce battery life and affect device performance.
• Do not paint the smoke detector. Paint can clog the smoke sensing chambers and prevent the unit from operating correctly.
• युनिट स्वतः वेगळे करण्याचा किंवा दुरुस्त करण्याचा प्रयत्न करू नका. सर्व सर्व्हिसिंग पात्र कर्मचाऱ्यांकडे पाठवा.
• Test the smoke detector regularly as described in the 'Operating' section.

शिफारस केलेले प्लेसमेंट

For maximum safety, it is recommended to place a networked smoke detector in every room, hallway, and on every floor of your home. Specific locations include:

• प्रत्येक बेडरूमच्या आत.
• प्रत्येक झोपण्याच्या जागेच्या बाहेर.
• On every level of a home, including the basement.
• In living rooms, dining rooms, and other common areas.

Avoid placing detectors near cooking appliances, bathrooms with showers, heating vents, or in areas with high humidity or dust, which can cause false alarms.

3. पॅकेज सामग्री

पॅकेजमध्ये सर्व वस्तू आहेत का ते तपासा:

• HEIMAN Smoke Detector (quantity as purchased)
• Adhesive mounting pad
• Screw kits (screws and wall plugs)
• वापरकर्ता मॅन्युअल

Image: HEIMAN Smoke Detector packaging with one detector, screws, and user manual.

4. उत्पादन संपलेview

घटक ओळख

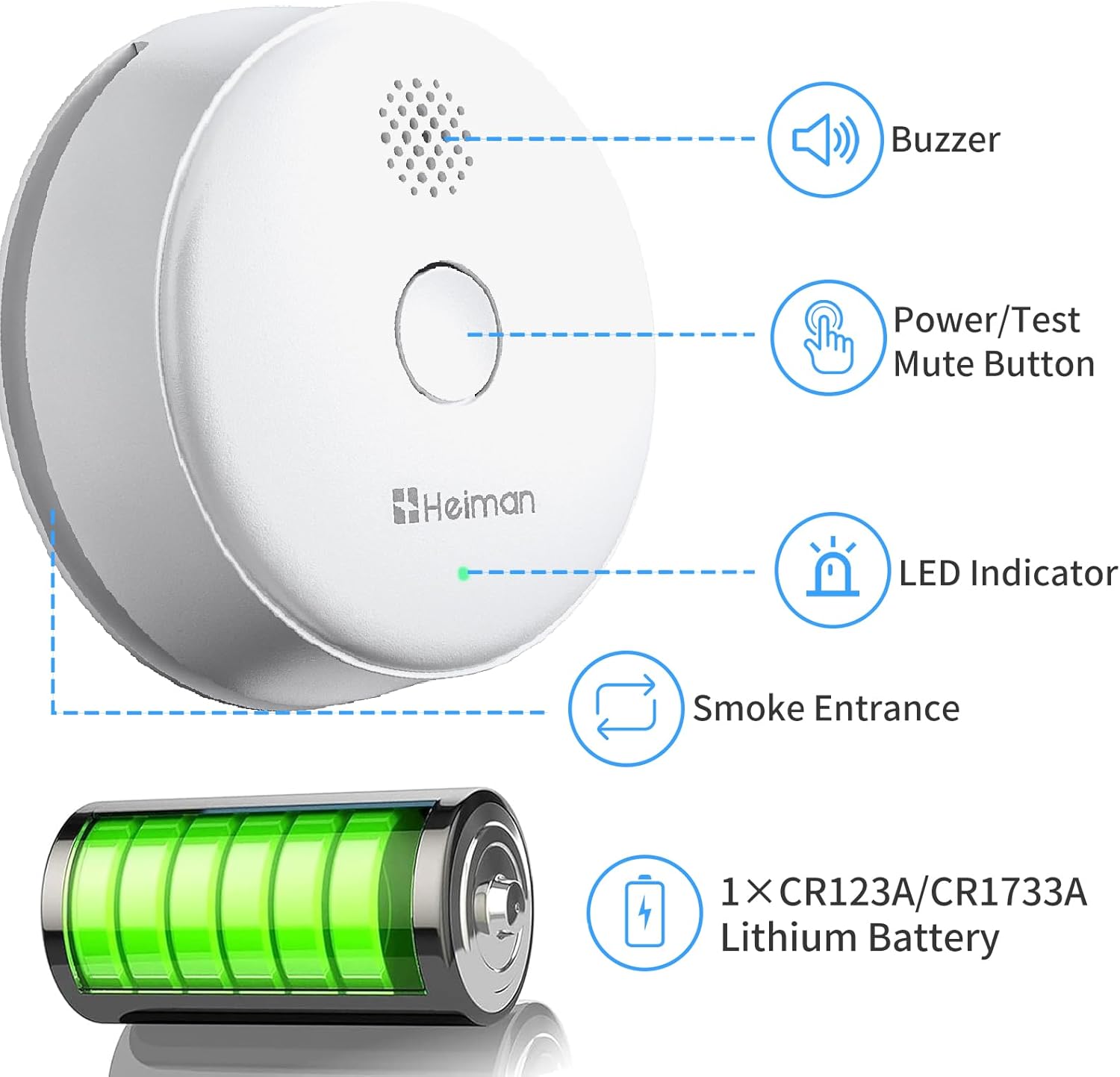

Image: Diagram of HEIMAN Smoke Detector components: Buzzer, Power/Test/Mute Button, LED Indicator, Smoke Entrance, and 10-year Lithium Battery.

• बझर: Emits the alarm sound.
• Power/Test/Mute Button: Used to test the alarm and temporarily silence it.
• एलईडी निर्देशक: Provides visual status of the detector.
• Smoke Entrance: Area where smoke enters the sensing chamber.
• बॅटरी: Internal 1x CR123A/CR1733A Lithium Battery with a 10-year lifespan.

परिमाण

The HEIMAN Smoke Detector has compact dimensions for discreet placement.

Image: Dimensions of the HEIMAN Smoke Detector: 86mm (3.385 inches) diameter and 26mm (1.024 inches) height.

• व्यास: 86 मिमी (3.385 इंच)
• उंची: 26 मिमी (1.024 इंच)

5. सेटअप

स्थापना

The smoke detector is designed for easy ceiling mounting. Choose a location according to the 'Recommended Placement' guidelines in the Safety Information section.

1. Select a suitable mounting location on the ceiling, away from corners and obstructions.
2. Use the provided adhesive pad for quick installation on a clean, dry, flat surface. Alternatively, use the screw kit for a more permanent fixture by drilling holes, inserting wall plugs, and screwing the mounting bracket into place.
3. Attach the smoke detector to the mounting bracket or adhesive pad by twisting it clockwise until it clicks into place.
4. Once installed, the detector will automatically power on. The LED indicator will flash to confirm activation.

Interconnection (Network Setup)

The HEIMAN Smoke Detector Model 2SA supports wireless interconnection with up to 40 compatible alarms. When one detector senses smoke, all interconnected detectors will sound an alarm, providing early warning throughout your property.

Image: HEIMAN Smoke Detectors interconnected, showing wireless communication.

Image: Illustration of multiple HEIMAN Smoke Detectors wirelessly interconnected within a house layout, indicating comprehensive coverage.

Image: Graphic showing three HEIMAN Smoke Detectors interconnected, highlighting the ability to link up to 40 wireless alarms.

To interconnect multiple detectors, follow the specific pairing instructions provided with your HEIMAN interconnected system. Generally, this involves activating a pairing mode on one detector (master) and then on subsequent detectors (slaves) within a specified timeframe. Refer to the detailed interconnection guide if available with your multi-pack purchase.

6. ऑपरेटिंग

पॉवर चालू आहे

The detector automatically powers on once correctly installed on its mounting base. The internal 10-year lithium battery is pre-installed and designed to last the lifetime of the unit.

डिटेक्टरची चाचणी करत आहे

Test your smoke detector weekly to ensure it is functioning correctly.

1. Press and hold the Power/Test/Mute button on the detector for a few seconds.
2. The detector will emit a loud alarm sound and the LED indicator will flash rapidly.
3. बटण सोडा. अलार्म थांबला पाहिजे.
4. If the alarm does not sound, refer to the 'Troubleshooting' section.

निःशब्द कार्य

The mute function allows you to temporarily silence the alarm for approximately 10 minutes in non-emergency situations, such as cooking fumes. To activate the mute function:

1. When the alarm is sounding due to a non-fire source, press the Power/Test/Mute button.
2. The alarm will silence, and the LED indicator will flash periodically to indicate it is in mute mode.
3. After approximately 10 minutes, the detector will automatically reset to normal operation. If smoke is still present, the alarm will sound again.

अलार्म संकेत

• सामान्य ऑपरेशन: The LED indicator flashes briefly every 40-60 seconds.
• अलार्म स्थिती: The buzzer emits a loud, continuous alarm sound (85 dB) and the LED indicator flashes rapidly.
• कमी बॅटरी चेतावणी: The detector will chirp periodically (e.g., every 40-60 seconds) and the LED will flash, indicating the end of its 10-year lifespan. The entire unit must be replaced.

7. देखभाल

नियमित तपासणी

• मासिक चाचणी: Test your smoke detector at least once a month using the test button.
• व्हिज्युअल तपासणी: Periodically check the detector for any visible damage or obstructions.

साफसफाई

Clean your smoke detector at least once a year to remove dust and debris that could interfere with its operation.

1. मऊ ब्रश अटॅचमेंट वापरून डिटेक्टरच्या बाहेरील भागाला हळूवारपणे व्हॅक्यूम करा.
2. Wipe the cover with a slightly damp cloth. Do not use cleaning solvents or harsh chemicals.
3. Ensure no moisture enters the smoke sensing chamber.

बॅटरी बदलणे

The HEIMAN Smoke Detector Model 2SA features a sealed, non-replaceable 10-year lithium battery. When the low battery warning sounds (periodic chirping), the entire unit has reached the end of its operational life and must be replaced immediately.

8. समस्या निवारण

If you encounter issues with your smoke detector, refer to the following common problems and solutions:

• खोटे अलार्म:
  • कारण: Steam from a shower, cooking fumes, excessive dust, or insects.
  • उपाय: Use the mute function. Relocate the detector if it's consistently exposed to non-smoke sources. Clean the detector as per the 'Maintenance' section.
• No Alarm During Test:
  • कारण: Detector not properly activated or at the end of its life.
  • उपाय: Ensure the detector is correctly twisted onto its mounting base. If the unit is older than 10 years or giving a low battery chirp, replace the entire unit.
• Interconnection Issues:
  • कारण: Detectors are out of range or not properly paired.
  • उपाय: Ensure all interconnected detectors are within the specified wireless range. Refer to the specific pairing instructions for your HEIMAN interconnected system to re-pair units if necessary.
• Periodic Chirping (not during alarm):
  • कारण: Low battery warning, indicating the end of the unit's 10-year lifespan.
  • उपाय: Replace the entire smoke detector unit immediately.

9. तपशील

Technical details for the HEIMAN Smoke Detector Model 2SA:

Image: Back of HEIMAN Smoke Detector showing model number, power, frequency, maximum interconnectable quantity, and certifications.

10. हमी आणि समर्थन

हमी माहिती

The HEIMAN Smoke Detector Model 2SA is designed with a 10-year sealed battery, indicating the expected operational lifespan of the unit. This design ensures reliable performance for a decade without battery replacement. Please retain your proof of purchase for any warranty claims.

ग्राहक समर्थन

For further assistance, technical support, or inquiries regarding your HEIMAN Smoke Detector, please contact HEIMAN customer service through their official website or the retailer where the product was purchased. Provide your model number (2SA-633 or HM2SA-2W-T) and any relevant details when seeking support.
