परिचय
Welcome to your new THOMSON 55-inch QLED Plus Google Smart TV. This manual provides essential information for setting up, operating, and maintaining your television. Enjoy stunning 4K Ultra HD resolution, vibrant QLED colors, immersive Dolby Vision and Dolby Atmos audio, and the smart features of Google TV.
उत्पादन संपलेview
प्रमुख वैशिष्ट्ये
- QLED तंत्रज्ञान: Quantum Dot nanocrystals deliver vibrant, realistic colors and balanced brightness.
- 4K UHD रिझोल्यूशन: Experience crystal-clear images with four times the detail of Full HD (3840 x 2160).
- गुगल टीव्ही: Access over 400,000 movies and shows from various apps, personalized content recommendations, Google Assistant voice control, and built-in Chromecast for wireless streaming.
- डॉल्बी व्हिजन आणि डॉल्बी ॲटमॉस: Enhanced brightness and contrast with Dolby Vision, and immersive, room-filling sound with Dolby Atmos.
- Integrated Front Speaker: Designed for clear and dynamic audio output.
- तिहेरी ट्यूनर: Supports reception via satellite (DVB-S2), terrestrial antenna (DVB-T2), or cable (DVB-C).
- कनेक्टिव्हिटी: Built-in Wi-Fi and Bluetooth 5.1 for seamless wireless connections.
- 3-वर्ष निर्मात्याची वॉरंटी: Provides extended assurance of product reliability.
डिझाइन हायलाइट्स
- Sleek, frameless design on three sides for an immersive viewअनुभव.
- Swivel stand allows for flexible viewing angles to suit your room layout.

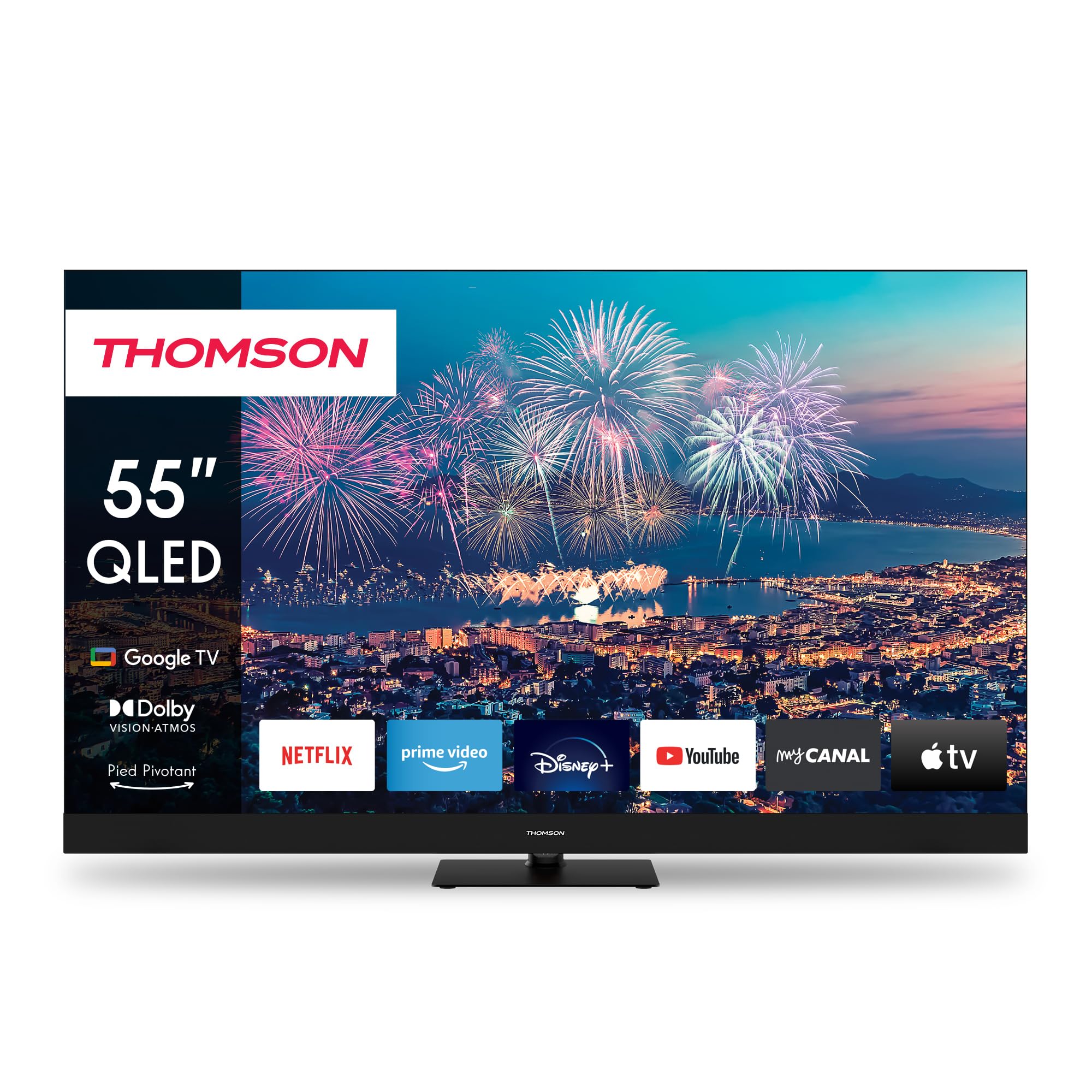

आकृती 1: समोर view of the THOMSON 55-inch QLED Google TV, showcasing its vibrant display and integrated smart features.

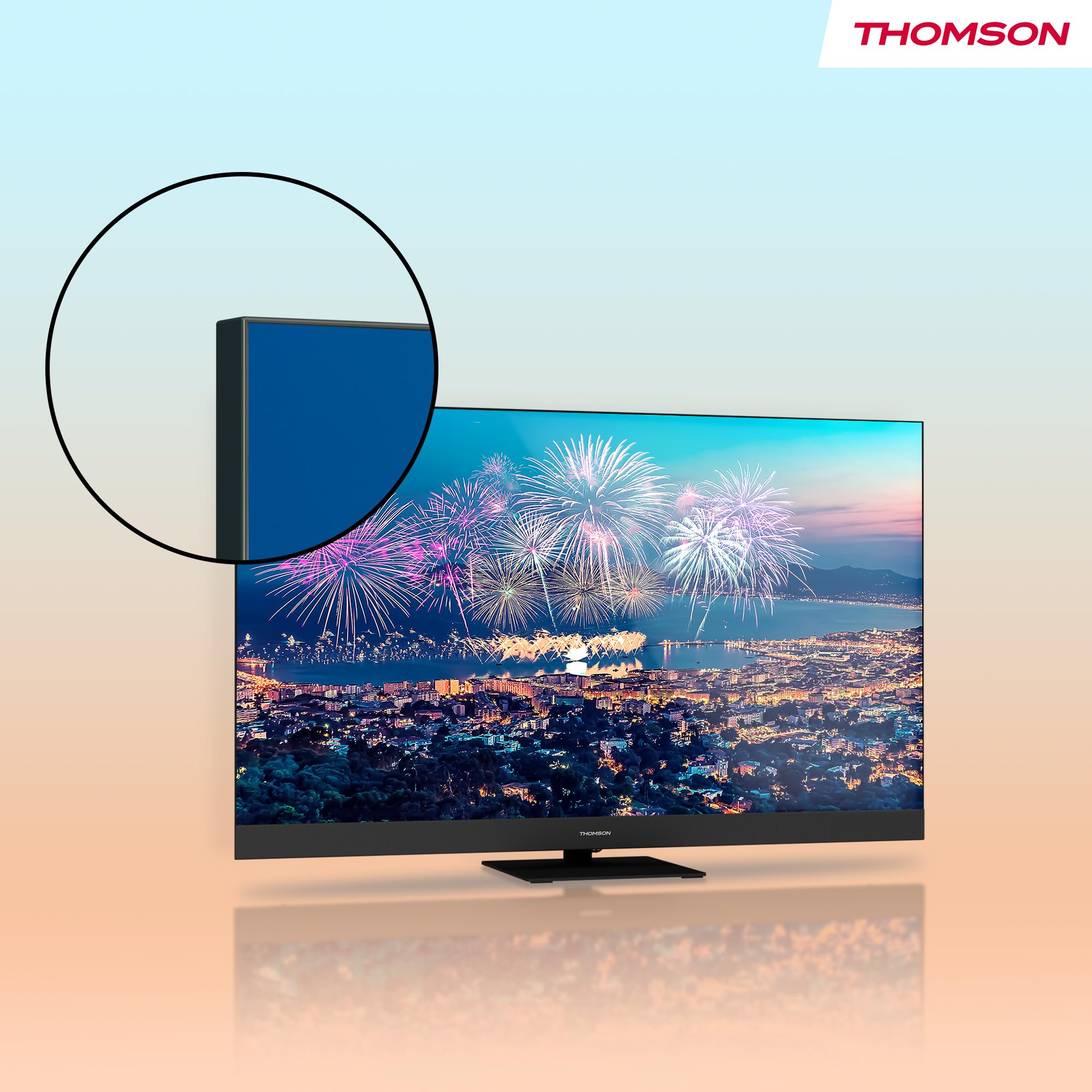

आकृती ३.१: जवळून पाहिलेले छायाचित्र view highlighting the TV's ultra-thin bezel, providing a more expansive screen area.

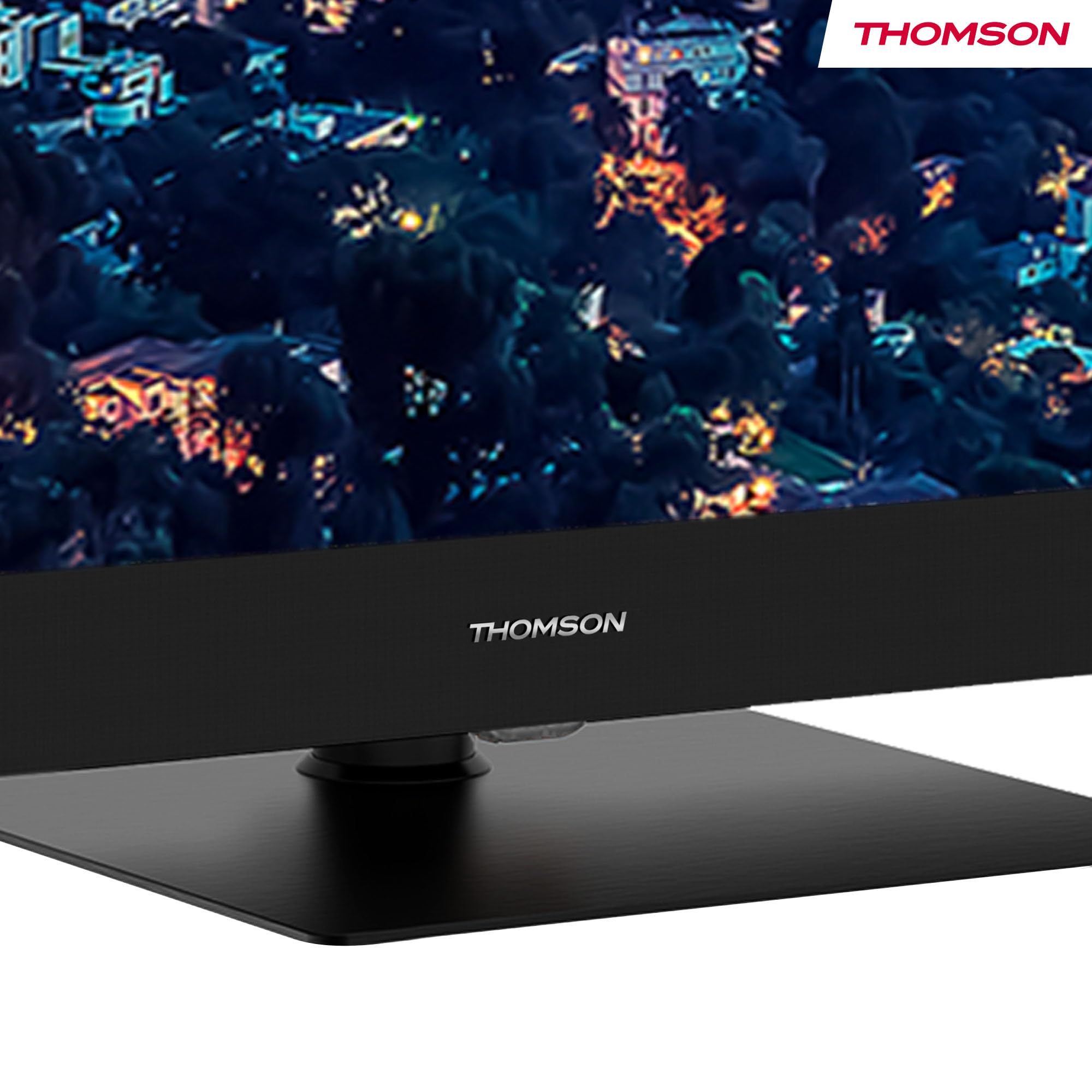

Figure 3: The elegant stand featuring the THOMSON brand logo, ensuring stable support for the television.

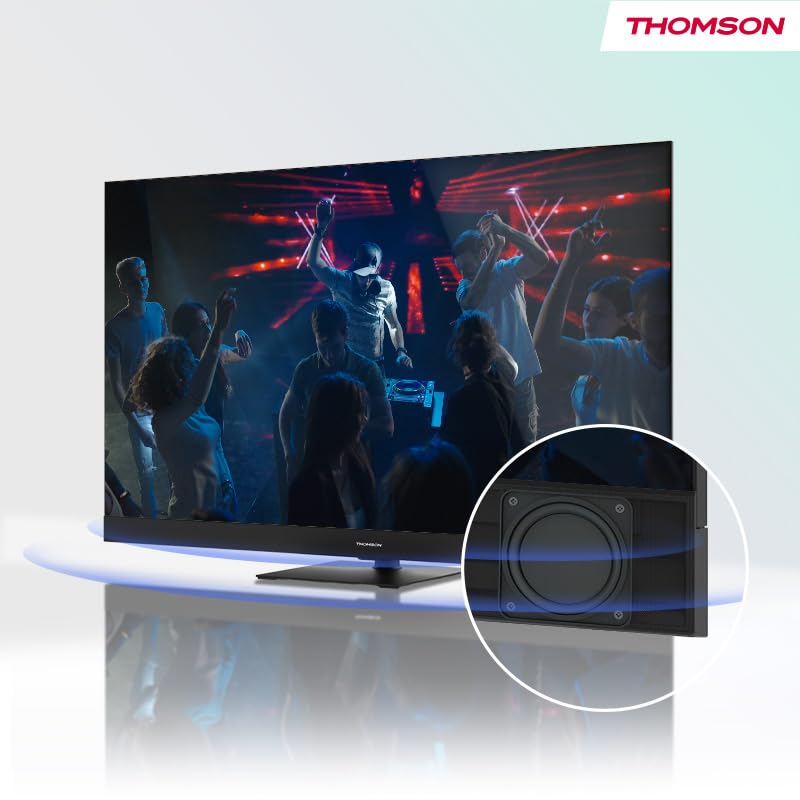

Figure 4: Illustration of the TV's integrated front speaker, designed to deliver clear and direct audio.
Figure 5: A diagram demonstrating the swivel functionality of the TV stand, allowing for flexible screen positioning.
सेटअप मार्गदर्शक
1. अनपॅक करणे
Carefully remove the TV from its packaging. It is recommended to have two people for this process due to the size and weight of the unit. Retain all packaging materials for future transport or service needs.
2. स्टँड स्थापना
Attach the table stand to the bottom of the TV using the provided screws. Ensure the stand is securely fastened before placing the TV on a stable, flat surface. Refer to the included quick start guide for detailed visual instructions on stand assembly.
3. कनेक्टिंग डिव्हाइसेस
Before connecting any cables, ensure the TV and all external devices are powered off.
- शक्ती: पॉवर कॉर्ड टीव्हीच्या पॉवर इनपुटशी आणि नंतर भिंतीवरील आउटलेटशी जोडा.
- अँटेना/केबल: Connect your terrestrial antenna, cable, or satellite dish to the appropriate input ports (DVB-T2/C/S2) on the back of the TV.
- HDMI उपकरणे: Connect Blu-ray players, game consoles, or other HDMI devices to the HDMI ports. This model features 2x HDMI 2.1 (including eARC) and 2x HDMI 2.0 ports.
- USB उपकरणे: Connect USB drives for media playback or software updates to the USB ports (2x USB 2.0, 1x USB 3.0).
- लॅनः For a stable internet connection, connect an Ethernet cable from your router to the LAN port.
- डिजिटल ऑप्टिकल ऑडिओ आउट: वर्धित आवाजासाठी साउंडबार किंवा ऑडिओ रिसीव्हरशी कनेक्ट करा.
- AV IN: संमिश्र व्हिडिओ आणि स्टीरिओ ऑडिओ वापरणाऱ्या जुन्या उपकरणांसाठी.
- CI+ स्लॉट: Insert your CI+ module for encrypted digital channels.

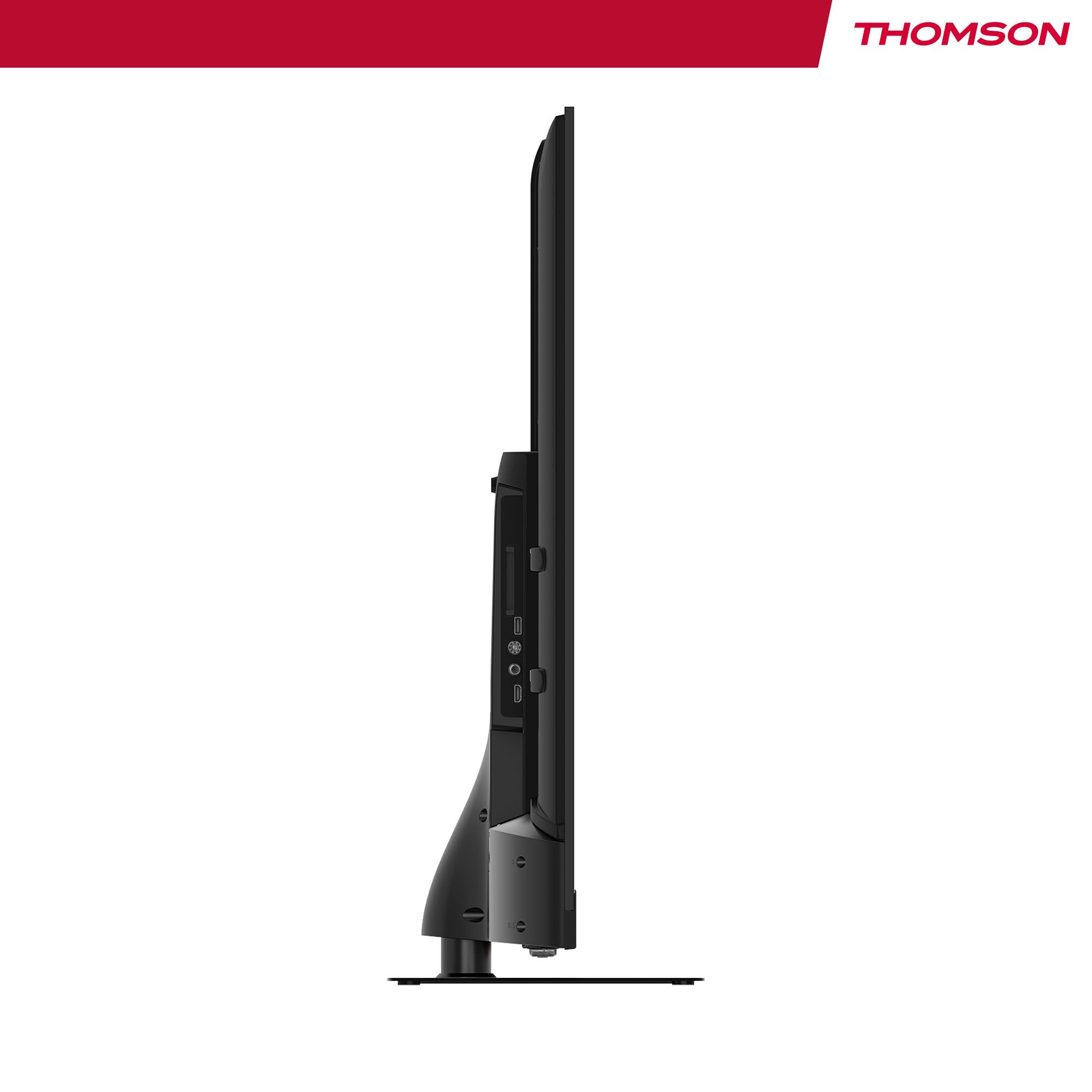

आकृती २: साइड प्रोfile of the television, illustrating its slim design and the depth required for connections.

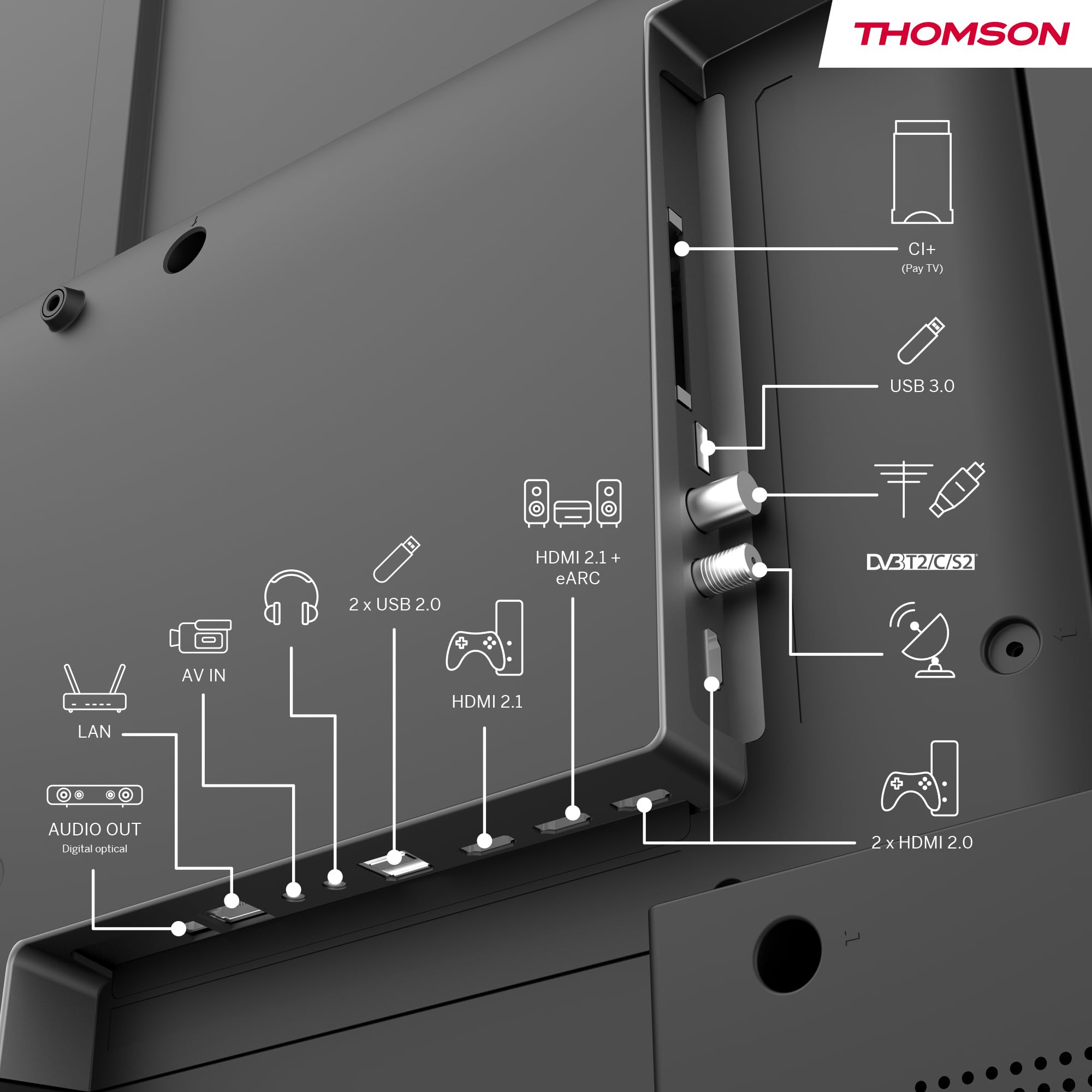

Figure 7: Detailed rear view of the TV, clearly labeling all input and output ports for easy connection of external devices.
ऑपरेटिंग सूचना
1. Initial Power On & Google TV Setup
After connecting all necessary cables, plug in the TV and press the power button on the remote control. Follow the on-screen instructions to complete the initial setup, which includes selecting your language, connecting to your Wi-Fi network, and logging into your Google account. This process will personalize your Google TV experience.
2. Navigating Google TV
Google TV organizes content from your apps and subscriptions. Use the directional buttons on your remote to navigate through the home screen, discover new content, and access your favorite streaming services such as Netflix, Prime Video, YouTube, Disney+, and Canal+.
Figure 8: The intuitive Google TV home screen, showcasing a wide array of available streaming applications.
६.३. गुगल असिस्टंटसह व्हॉइस कंट्रोल
Your TV comes with Google Assistant built-in. Press the Google Assistant button on your remote and speak into the microphone to control your TV, search for content, get recommendations, and even control compatible smart home devices.
Figure 9: A user demonstrating the voice control feature using the TV remote, powered by Google Assistant.
३. Chromecast बिल्ट-इन
Easily cast movies, music, and videos from your compatible smartphone, tablet, or computer directly to your TV using the built-in Chromecast feature. Ensure your device and TV are connected to the same Wi-Fi network.
5. Triple Tuner Usage
To switch between different input sources (Antenna, Cable, Satellite), use the 'Source' button on your remote control. The TV will automatically scan for available channels during the initial setup. You can also manually scan for channels in the TV settings menu.
6. Audio & Video Settings
Access the TV's settings menu to adjust picture modes (e.g., Standard, Vivid, Movie), sound profiles (e.g., Standard, Music, Movie), and enable or disable Dolby Vision and Dolby Atmos for an optimized viewing आणि ऐकण्याचा अनुभव.
Figure 10: Visual representation of the immersive Dolby Atmos sound experience, surrounding viewers with dynamic audio.
देखभाल
३. स्क्रीन साफ करणे
मऊ, कोरड्या मायक्रोफायबर कापडाने स्क्रीन हळूवारपणे पुसून टाका. हट्टी डागांसाठी, हलकेचampकापडावर पाणी किंवा स्क्रीन-विशिष्ट साफसफाईचे द्रावण घाला. कधीही थेट स्क्रीनवर द्रव फवारू नका.
२. कॅबिनेट साफ करणे
Wipe the TV cabinet and stand with a soft, damp cloth. Avoid using abrasive cleaners, waxes, or solvents as they can damage the finish.
3. सामान्य काळजी
- वीज कोसळत असताना किंवा बराच काळ लक्ष न देता पडल्यास टीव्ही पॉवर आउटलेटमधून अनप्लग करा.
- टीव्हीला थेट सूर्यप्रकाश, अति तापमान किंवा उच्च आर्द्रतेच्या संपर्कात आणणे टाळा.
- टीव्हीच्या मागील बाजूस असलेल्या वायुवीजन छिद्रांना अडथळा आणू नका.
समस्यानिवारण
If you encounter any issues with your TV, please refer to the following common problems and solutions before contacting customer support.
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| शक्ती नाही | पॉवर कॉर्ड डिस्कनेक्ट झाला; पॉवर आउटलेटमध्ये समस्या. | पॉवर कॉर्ड सुरक्षितपणे जोडलेला आहे याची खात्री करा. दुसऱ्या उपकरणाने आउटलेटची चाचणी घ्या. |
| चित्र नाही / खराब चित्र | Incorrect input source; Loose cable connection; Resolution settings. | Select correct input source. Check HDMI/antenna cable connections. Adjust picture settings. |
| आवाज नाही / कमी आवाज | Volume too low or muted; External audio system issues. | Increase volume, check mute status. Verify external audio connections and settings. |
| रिमोट प्रतिसाद देत नाही | बॅटरी संपल्या; रिमोट आणि टीव्हीमध्ये अडथळा. | Replace batteries. Ensure clear line of sight to the TV's IR receiver. |
| नेटवर्क कनेक्शन समस्या | Incorrect Wi-Fi password; Router issues. | Re-enter Wi-Fi password. Restart your router. Try a wired LAN connection if possible. |
तपशील
Below are the detailed technical specifications for the THOMSON 55QG6C14 QLED Plus Google Smart TV.
| वैशिष्ट्य | तपशील |
|---|---|
| ब्रँड | थॉमसन |
| मॉडेल क्रमांक | 55QG6C14 |
| स्क्रीन आकार | १२.४ इंच (३१.१ सेंटीमीटर) |
| प्रदर्शन तंत्रज्ञान | QLED |
| ठराव | ३८४० x २१६० (४के अल्ट्रा एचडी) |
| रीफ्रेश दर | 60 Hz |
| ऑडिओ कॉन्फिगरेशन | 5.1 Surround (Dolby Audio, Dolby Atmos) |
| कनेक्टिव्हिटी | Wi-Fi, Bluetooth 5.1, HDMI (2x 2.1, 2x 2.0), USB (2x 2.0, 1x 3.0), LAN, Digital Optical Out, AV In, CI+ |
| परिमाण (L x W x H) | 8 x 123 x 78 सेमी |
| वजन | 15 किलोग्रॅम |
| स्थापना प्रकार | टेबल माउंट |
| गुणोत्तर | १६:१० |
| ऊर्जा कार्यक्षमता वर्ग | F |
Figure 11: Official product data sheet providing detailed technical specifications and compliance information.

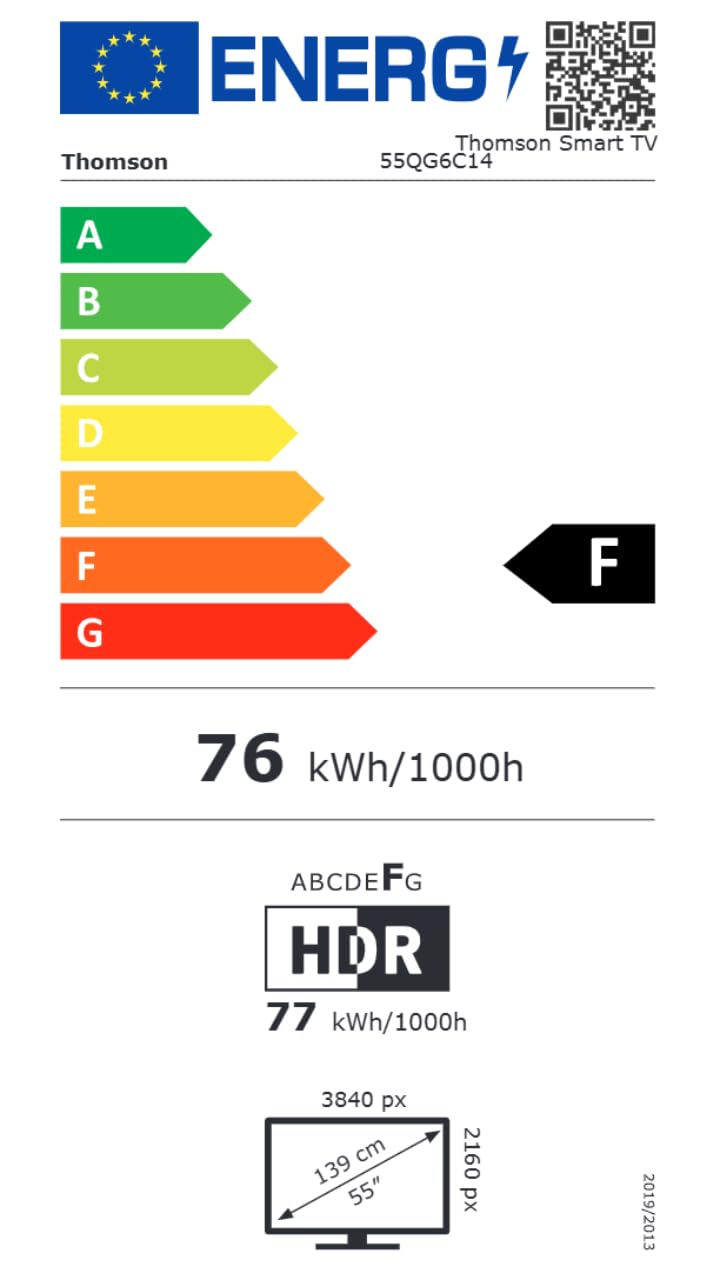

Figure 12: The energy efficiency label for the THOMSON 55QG6C14, indicating its energy consumption rating.
अधिक तपशीलवार उत्पादन माहितीसाठी, कृपया अधिकृत EPREL डेटाबेसला भेट द्या: EPREL उत्पादन माहिती
हमी आणि समर्थन
हमी माहिती
Your THOMSON 55-inch QLED Plus Google Smart TV is covered by a comprehensive 3-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
ग्राहक समर्थन
If you require further assistance, have questions not covered in this manual, or need to make a warranty claim, please contact THOMSON customer support. Refer to the contact information provided with your product packaging or visit the official THOMSON webसमर्थन तपशीलांसाठी साइट.
