OMTech 150W CO2 लेसर एनग्रेव्हर वापरकर्ता मॅन्युअल

1. परिचय

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your OMTech 150W CO2 Laser Engraver. Please read this manual thoroughly before operating the machine.

प्रमुख वैशिष्ट्ये:

• 150W CO2 Laser Tube for powerful cutting and engraving.
• 40x63 Inch Work Area with honeycomb and aluminum blade beds.
• Autofocus and Autolift for precise material height adjustment.
• 3-Way Pass-Through Doors for handling larger materials.
• Integrated Air Assist to clear debris and protect optics.
• Compatible with LightBurn software.
• Includes a dedicated Water Chiller for laser tube cooling.

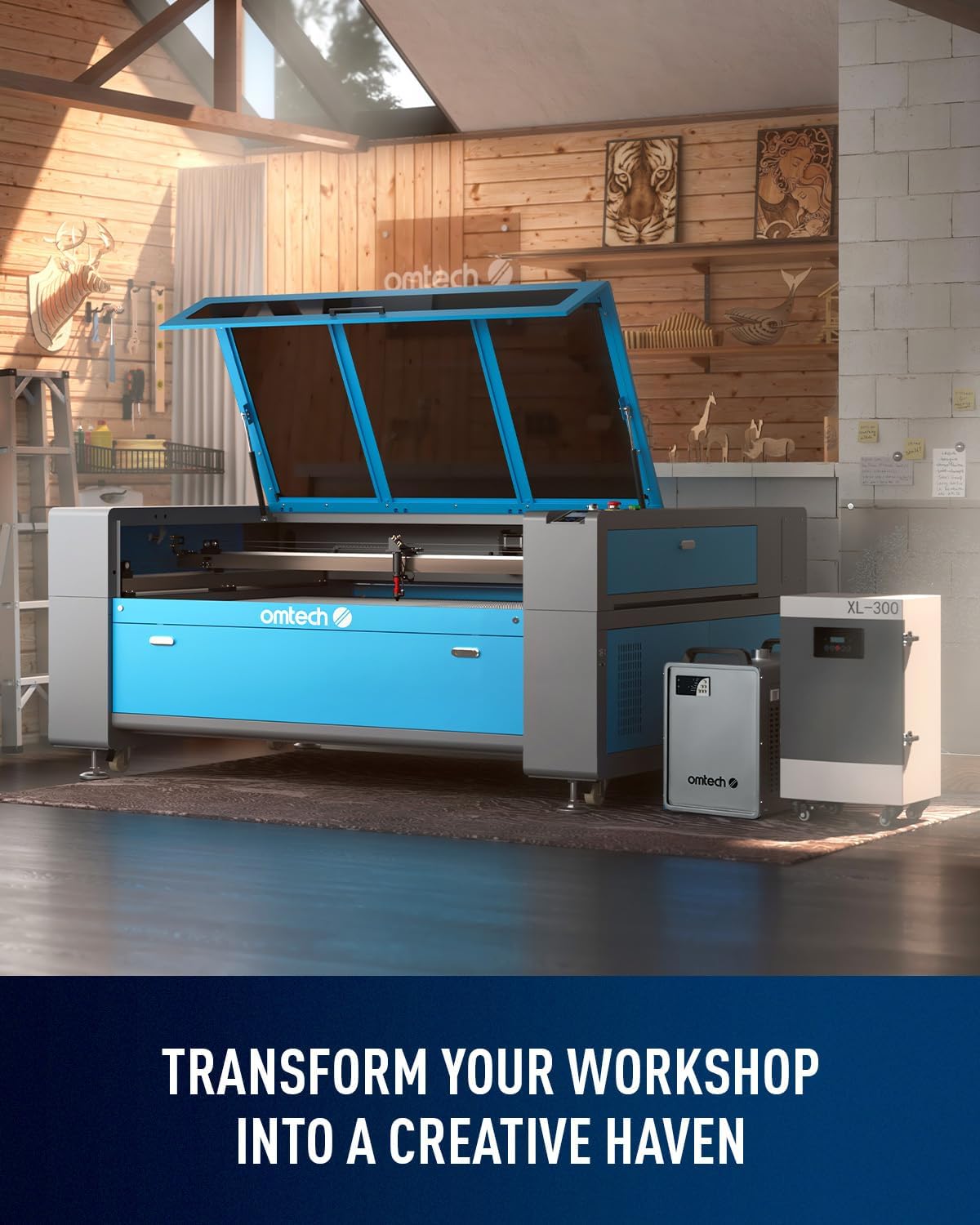

Figure 1: OMTech 150W CO2 Laser Engraver with included water chiller and LightBurn software logo.

2. सुरक्षितता माहिती

Operating a CO2 laser engraver requires strict adherence to safety protocols to prevent injury and equipment damage. Always prioritize safety.

• डोळ्यांचे संरक्षण: Never look directly into the laser beam. The widened viewing window is made from flame retardant material for safe observation, but direct exposure to the laser beam can cause severe eye damage.
• वायुवीजन: Ensure proper ventilation to remove smoke and fumes generated during operation. The built-in air assist helps, but an external exhaust system is highly recommended.
• अग्निसुरक्षा: Keep a fire extinguisher nearby. Certain materials can ignite during laser processing. Never leave the machine unattended while operating.
• साहित्य सुसंगतता: Only engrave or cut materials approved for CO2 lasers. Avoid materials containing chlorine (e.g., PVC) as they produce corrosive and toxic fumes.
• विद्युत सुरक्षा: मशीन योग्यरित्या ग्राउंड केलेले आहे याची खात्री करा. ओल्या हातांनी किंवा डब्यात चालवू नका.amp वातावरण
• आपत्कालीन थांबा: आपत्कालीन स्टॉप बटणाचे स्थान आणि ऑपरेशन जाणून घ्या.
• लेसर वर्ग: This is a Laser Class 2 device with 0.827 mW output power.

3. सेटअप

3.1 अनपॅकिंग आणि प्लेसमेंट

Carefully unpack the laser engraver and all accessories. Place the machine on a stable, level surface in a well-ventilated area, away from flammable materials.

3.2 Water Chiller Setup

The included water chiller is crucial for cooling the laser tube and ensuring its longevity. Connect the chiller to the laser engraver according to the provided diagrams in the separate chiller manual.

Figure 2: The CW-5200 Industrial Water Chiller, essential for maintaining optimal laser tube temperature.

Fill the chiller with distilled water to the recommended level. Ensure proper water flow before operating the laser.

3.3 Software Installation (LightBurn)

The OMTech 150W laser engraver is compatible with LightBurn software. Install LightBurn on your computer following the instructions provided with the software. Connect the laser engraver to your computer via USB or Ethernet.

Figure 3: LightBurn software interface, showing design capabilities and compatibility with Windows, Linux, and MacOS.

एका जनरल ओव्हरसाठीview of OMTech laser engravers, including setup considerations, please watch the video below:

4. ऑपरेटिंग सूचना

4.1 Material Loading

Place your material onto the honeycomb or aluminum blade bed. Ensure the material is flat and secured to prevent movement during engraving or cutting. The 40"x63" work area accommodates large projects.

Figure 4: The three-way pass-through doors allow for processing of larger and longer materials than the workbed itself.

For a demonstration of laser engraving and cutting on acrylic mirror, including material loading, refer to the video below:

५.३ ऑटोफोकस वैशिष्ट्य

This model features an autofocus system. Simply press the autofocus button, and the laser head will automatically adjust to the correct focal distance for your material, eliminating manual guesswork.

Figure 5: The automatic focusing system ensures precise focal distance at the push of a button for flawless results.

४.३ खोदकाम आणि कटिंग

Once your design is loaded into LightBurn and material is in place, set your desired power and speed settings based on the material type and thickness. The machine supports engraving speeds up to 600 mm/s for increased productivity.

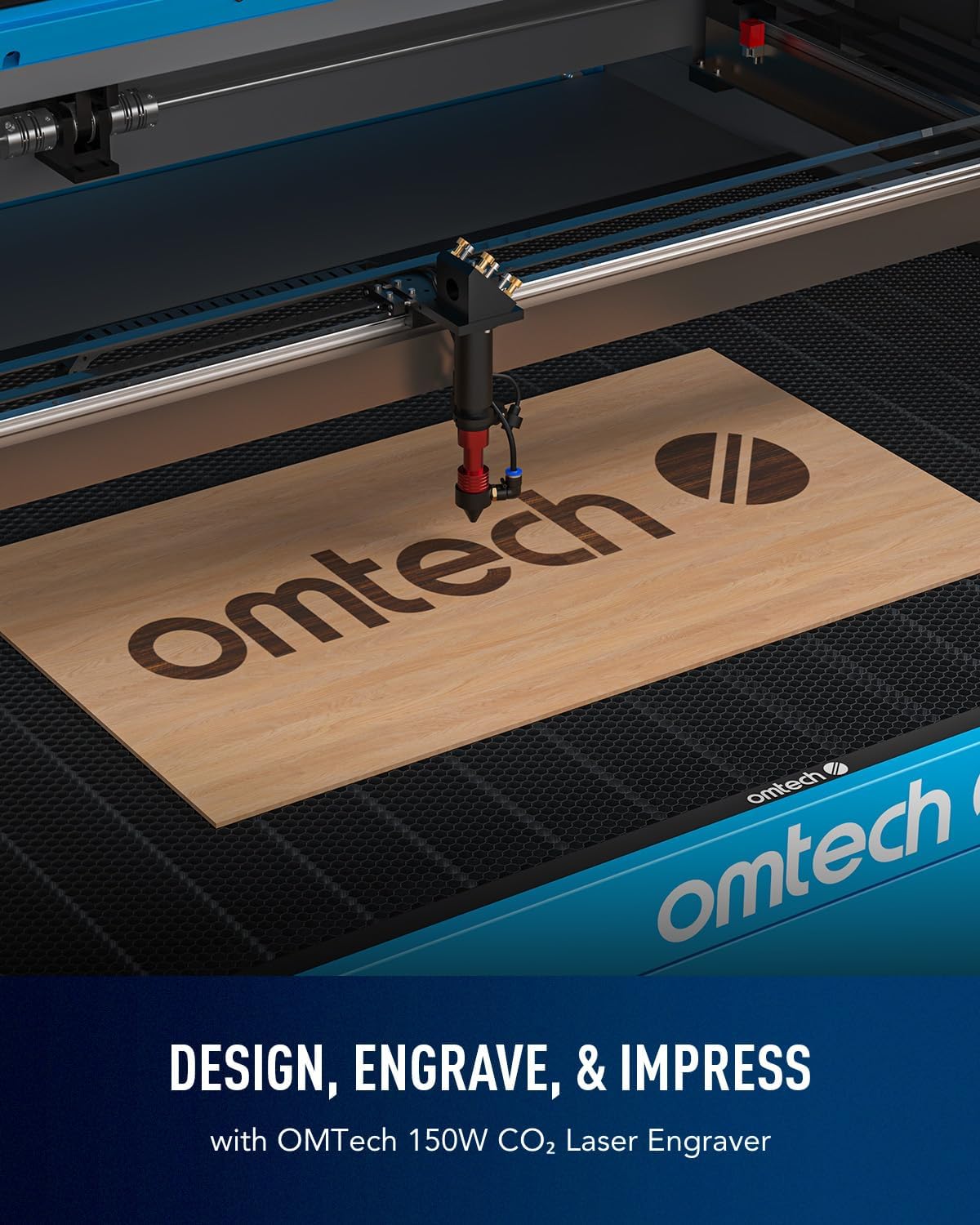

Figure 6: High-speed engraving at 600 mm/s significantly boosts productivity for batch work.

For detailed instructions on how to laser engrave a photo, watch the video below:

5. देखभाल

नियमित देखभालीमुळे तुमच्या लेसर एनग्रेव्हरचे दीर्घायुष्य आणि इष्टतम कामगिरी सुनिश्चित होते.

5.1 Laser Tube Care

The Yongli A8s tube has a lifespan of up to 7,000 hours. Ensure the water chiller is always running and maintaining the correct temperature to prevent overheating. Regularly check the water level and quality.

5.2 Optics Cleaning

Clean the laser lenses and reflective mirrors regularly using appropriate cleaning solutions and lint-free wipes. Dust and debris can degrade laser performance. The built-in air assist helps minimize debris accumulation.

६.३ कामाच्या जागी आणि आतील स्वच्छता

Periodically clean the honeycomb and blade beds to remove accumulated residue. Keep the interior of the machine free from dust and material scraps.

6. समस्या निवारण

हा विभाग ऑपरेशन दरम्यान तुम्हाला येऊ शकणाऱ्या सामान्य समस्यांचे निराकरण करतो.

• लेसर आउटपुट नाही: Check the laser tube connection, water chiller operation, and power settings in LightBurn. Ensure the emergency stop button is not engaged.
• खराब खोदकाम/कटिंग गुणवत्ता: Verify focal distance (use autofocus), check lens and mirror cleanliness, and adjust power/speed settings for your material. Ensure the material is flat.
• Machine Not Connecting to Computer: Check USB/Ethernet cable connections, ensure LightBurn is configured for the correct machine, and verify driver installation.
• Overheating Chiller: Ensure the chiller has adequate ventilation and is filled to the correct water level. Check for blockages in the water lines.

For further assistance, refer to the comprehensive troubleshooting guide available on the OMTech support webसाइट किंवा ग्राहक सेवेशी संपर्क साधा.

7. तपशील

8. हमी आणि समर्थन

This product comes with a return policy allowing for refund/replacement within 30 days of purchase. For specific warranty details and technical support, please refer to the documentation included with your product or visit the official OMTech webसाइट

आपण देखील भेट देऊ शकता OMTech Store on Amazon अधिक माहिती आणि उत्पादनांसाठी.
