Wanbo X2 Pro प्रोजेक्टर वापरकर्ता मॅन्युअल

1. परिचय

खरेदी केल्याबद्दल धन्यवाद.asing the Wanbo X2 Pro Projector. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

The Wanbo X2 Pro is a high-definition projector designed for home entertainment, offering 450 ANSI lumens brightness and 1280 x 720 pixel resolution, with integrated Wi-Fi connectivity for versatile media playback.

2. सुरक्षितता माहिती

• जेव्हा lamp चालू आहे.
• जास्त गरम होण्यापासून रोखण्यासाठी प्रोजेक्टरभोवती योग्य वायुवीजन सुनिश्चित करा. वायुवीजन उघडण्या बंद करू नका.
• प्रोजेक्टरसोबत दिलेला पॉवर अॅडॉप्टरच वापरा.
• Keep the projector away from water, moisture, and flammable materials.
• अस्थिर पृष्ठभागांवर प्रोजेक्टर ठेवण्याचे टाळा.
• Do not attempt to disassemble or repair the projector yourself. Contact qualified service personnel for assistance.
• Unplug the projector during lightning storms or when unused for extended periods.

3. पॅकेज सामग्री

कृपया पॅकेजमध्ये सर्व वस्तू आहेत का ते तपासा:

• Wanbo X2 Pro Projector
• पॉवर अडॅप्टर
• रिमोट कंट्रोल
• वापरकर्ता मॅन्युअल (हा दस्तऐवज)

4. उत्पादन संपलेview

4.1 समोर View

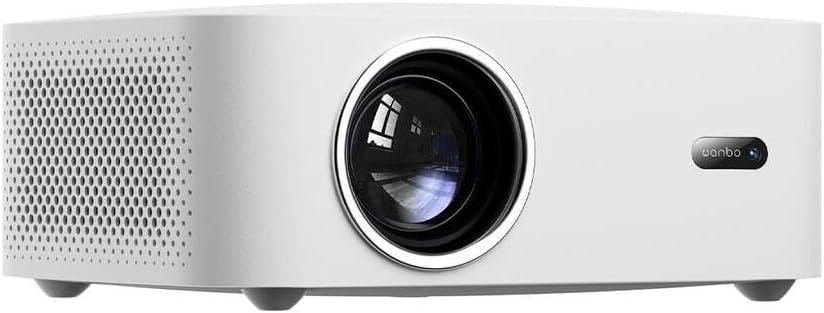

आकृती 1: समोर view of the Wanbo X2 Pro Projector. The large circular lens is prominently featured on the left, with the 'wanbo' brand logo and an indicator light on the right side of the front panel.

The front of the projector features the main projection lens and the Wanbo brand logo. An infrared receiver for the remote control may also be located here.

4.2 बाजू View (हवेशीरीकरण)

आकृती 2: बाजू view of the Wanbo X2 Pro Projector. This image shows the left side of the projector, featuring a large area of ventilation grilles designed to dissipate heat, ensuring stable operation.

The sides of the projector are equipped with ventilation grilles to ensure adequate airflow and prevent overheating during operation. Do not obstruct these vents.

4.3 मागील View (बंदर)

आकृती 3: मागील view of the Wanbo X2 Pro Projector. This panel includes multiple connectivity options: USB ports, HDMI ports, an AV input, a 3.5mm audio output, and the power input socket. An infrared receiver for the remote control is also visible.

The rear panel provides various connectivity options:

• यूएसबी पोर्ट: For connecting USB storage devices (e.g., flash drives) to play media files.
• HDMI पोर्ट: For connecting external devices such as laptops, gaming consoles, or Blu-ray players.
• AV इनपुट: For connecting older devices using a composite video and stereo audio cable.
• Audio Output (3.5mm): बाह्य स्पीकर्स किंवा हेडफोन्स कनेक्ट करण्यासाठी.
• पॉवर इनपुट: पॉवर अ‍ॅडॉप्टर कनेक्ट करण्यासाठी.
• आयआर प्राप्तकर्ता: For receiving signals from the remote control.

5. सेटअप

5.1 प्लेसमेंट

Place the projector on a stable, flat surface. Ensure there is sufficient space around the projector for proper ventilation (at least 30 cm from walls or other objects). The ideal projection distance depends on the desired screen size.

5.2 वीज जोडणी

1. Connect the power adapter to the Power Input port on the rear of the projector.
2. पॉवर अॅडॉप्टरचे दुसरे टोक योग्य इलेक्ट्रिकल आउटलेटमध्ये प्लग करा.
3. प्रोजेक्टरवरील पॉवर इंडिकेटर लाईट प्रकाशित होईल.

5.3 बाह्य उपकरणे जोडणे

• एचडीएमआयः Connect an HDMI cable from your source device (e.g., laptop, game console) to one of the HDMI ports on the projector.
• USB: Insert a USB flash drive into a USB port to access media files थेट.
• एव्ही: Use an AV cable to connect older devices.
• ऑडिओ आउट: Connect external speakers or headphones to the 3.5mm audio output jack if desired.

5.4 Initial Power-On and Focus Adjustment

1. डिव्हाइस चालू करण्यासाठी प्रोजेक्टर किंवा रिमोट कंट्रोलवरील पॉवर बटण दाबा.
2. Once the projector starts, a startup screen will appear.
3. Adjust the focus ring around the lens (if manual) or use the remote control (if auto-focus) until the projected image is clear and sharp.

5.5 कीस्टोन सुधारणा

If the projected image appears trapezoidal (wider at the top or bottom), use the keystone correction function. This can usually be found in the projector's settings menu or via a dedicated button on the remote control. Adjust until the image is rectangular.

6. ऑपरेटिंग

6.1 रिमोट कंट्रोल

The remote control allows you to navigate the projector's interface, select input sources, adjust volume, and access settings. Ensure batteries are correctly inserted.

५.२ इनपुट स्रोत निवड

Press the "Source" or "Input" button on the remote control to cycle through available input sources (e.g., HDMI 1, HDMI 2, AV, USB, Wi-Fi/Smart features). Select the desired source.

२.३ चित्र आणि ऑडिओ सेटिंग्ज

Access the projector's main menu to adjust picture settings (brightness, contrast, color, aspect ratio) and audio settings (volume, sound mode).

6.4 वाय-फाय कनेक्शन

1. Navigate to the "Settings" menu.
2. "नेटवर्क" किंवा "वाय-फाय सेटिंग्ज" निवडा.
3. Enable Wi-Fi and select your desired network from the list.
4. सूचित केल्यास Wi-Fi संकेतशब्द प्रविष्ट करा.
5. Once connected, you can access online content or screen mirroring features.

6.5 Screen Mirroring / Casting

The Wanbo X2 Pro supports screen mirroring from compatible smartphones or tablets. Refer to the projector's on-screen instructions or your device's casting features (e.g., Miracast, AirPlay) for detailed steps.

7. देखभाल

४.१ लेन्स साफ करणे

Use a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the lens surface. Do not use abrasive cleaners or excessive force, as this can scratch the lens.

६.२ प्रोजेक्टर बॉडी साफ करणे

प्रोजेक्टरचा बाहेरील भाग मऊ, कोरड्या कापडाने पुसून टाका. हट्टी खुणा असल्यास, थोडासा डीamp कापडाचा वापर करता येतो आणि त्यानंतर कोरडे कापड वापरता येते. कठोर रसायने वापरणे टाळा.

7.3 वायुवीजन

Regularly check and clean the ventilation grilles to ensure they are free from dust and debris. Blocked vents can lead to overheating and reduced projector lifespan.

५.८.१ स्टोरेज

When not in use for extended periods, store the projector in a cool, dry, dust-free environment. Consider using a protective cover to prevent dust accumulation.

8. समस्या निवारण

9. तपशील

10. हमी आणि समर्थन

The Wanbo X2 Pro Projector comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Wanbo customer service. Contact information can typically be found on the official Wanbo webसाइटवर किंवा तुमच्या उत्पादन पॅकेजिंगवर.

Please have your model number (WANBOX2PRO) and purchase information ready when contacting support.
