SINGMOOD S100 कराओके मशीन वापरकर्ता मॅन्युअल

1. परिचय

Welcome to the SINGMOOD S100 Karaoke Machine user manual. This professional, all-in-one karaoke system is designed to provide an immersive and enjoyable singing experience for adults, families, and friends. Featuring a smart portable design, a large lyrics display, powerful Bluetooth speaker, and two wireless microphones, the S100 is engineered for superior audio quality and ease of use. Please read this manual thoroughly to ensure proper setup, operation, and maintenance of your new karaoke machine.

Figure 1: The SINGMOOD S100 Karaoke Machine with its integrated display and two wireless microphones.

२. काय समाविष्ट आहे

कृपया पॅकेजमधील सामग्री काळजीपूर्वक तपासा. जर काही वस्तू गहाळ किंवा खराब झाल्या असतील तर ताबडतोब ग्राहक समर्थनाशी संपर्क साधा.

• 1 x SINGMOOD S100 Karaoke Machine
• २ x UHF वायरलेस मायक्रोफोन्स
• 2 x Microphone Batteries (9V)
• 1 x पॉवर अडॅप्टर
• 1 x वापरकर्ता मॅन्युअल

3. प्रमुख वैशिष्ट्ये

• सर्व-इन-वन डिझाइन: Integrates a 10.1-inch tablet, two wireless microphones, and a powerful Bluetooth party speaker (1000W peak power) for a compact and convenient setup.
• Powerful Configuration: Equipped with a high-performance RK3566 chip, 4GB RAM, and 64GB ROM, ensuring smooth performance for singing and video streaming.


  Figure 2: High-performance RK3566 chip and memory configuration for seamless operation.

• Immersive Large Touch Screen: A vibrant 10.1-inch full-touch display allows for effortless song browsing, playback control, and settings adjustment.


  Figure 3: The 10.1-inch touch screen provides access to various applications for endless entertainment.
• True UHF Microphones: Two UHF microphones deliver crystal-clear sound with stable and faster connection due to UHF communication technology. Microphones are rechargeable via Type-C ports.


  Figure 4: The included UHF wireless microphones offer high-fidelity sound and enhanced stability.

• उच्च-गुणवत्तेचे ऑडिओ आउटपुट: Features a 32-bit digital audio decoder chip for unparalleled clarity, depth, and full-bodied sound.


  Figure 5: Advanced audio processing ensures superior sound quality.

• बहुमुखी कनेक्टिव्हिटी: Supports HDMI, AUX, USB, and Wi-Fi connections for various audio and video sources.

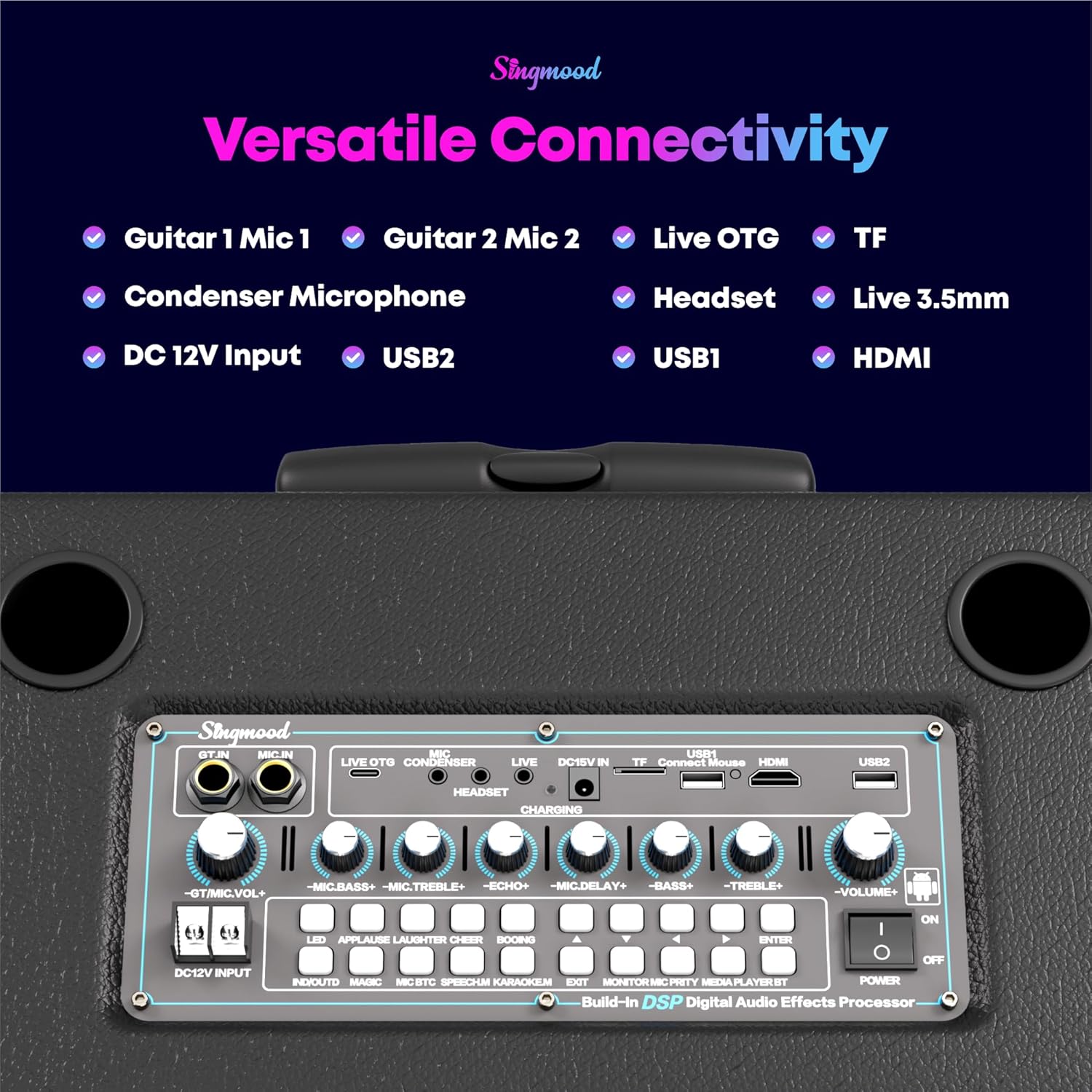

  Figure 6: The control panel offers multiple connectivity options for diverse media sources.
• पोर्टेबल डिझाइन: Equipped with a hand-carry handle and 4 transport wheels, making it easy to move and set up anywhere.


  Figure 7: The S100's portable design with a retractable handle and wheels for easy transport.

• RGB Lighting Show: Dynamic RGB lighting on the speaker creates a vibrant party atmosphere.

4. सेटअप मार्गदर्शक

1. अनपॅक करणे: पॅकेजिंगमधील सर्व घटक काळजीपूर्वक काढा. भविष्यातील साठवणूक किंवा वाहतुकीसाठी पॅकेजिंग जपून ठेवा.
2. वीज कनेक्शन: Connect the provided power adapter to the DC 12V input port on the karaoke machine and plug it into a standard electrical outlet.
3. प्रारंभिक शुल्कः For optimal performance, fully charge the karaoke machine and microphones before first use. The microphones have Type-C charging ports.
4. पॉवर चालू: Locate the POWER ON/OFF switch on the control panel and switch it to the "ON" position. The display screen will light up.
5. मायक्रोफोन पेअरिंग: The UHF wireless microphones are typically pre-paired. If not, refer to the microphone's specific instructions for pairing with the main unit. Ensure microphone batteries are inserted correctly.
6. वाय-फाय कनेक्शन: On the 10.1-inch touch screen, navigate to "Settings" and connect to your local Wi-Fi network to access online content and apps.

5. ऑपरेटिंग सूचना

5.1. Using the Touch Screen Interface

The S100 features an intuitive 10.1-inch touch screen. The main interface provides quick access to various applications and settings:

• YouTube: Tap the YouTube icon to access a vast library of karaoke songs with lyrics.
• Spotify/Apple Music: Download and log in to your preferred music streaming apps from the Play Store to play music.
• ब्लूटूथ: Connect your smartphone or other Bluetooth devices to stream audio wirelessly.
• Chrome: Browse the internet directly from the device.
• प्ले स्टोअर: Download additional applications to expand the machine's functionality.
• सेटिंग्ज: Adjust system settings, Wi-Fi, display, and audio preferences.

5.2. Karaoke Mode and Vocal Lowering

To activate karaoke mode and lower the original vocals of a song, press the dedicated "KARAOKEM" button on the control panel. This feature allows you to sing along to almost any song as if it were an instrumental track.

Figure 8: The "KARAOKEM" button for vocal reduction in songs.

5.3. Microphone Adjustments and Sound Effects

The control panel provides knobs and buttons for fine-tuning your audio experience:

• मायक्रोफोन व्हॉल्यूम: Adjust the volume of the wireless microphones using the dedicated knobs.
• बास/ट्रेबल: Fine-tune the bass and treble levels for both music and microphone output.
• Echo/Delay: Add echo and delay effects to your vocals for a professional sound.
• ध्वनी प्रभाव: Utilize built-in sound effects such as applause, laughter, and cheer to enhance the party atmosphere. Press the corresponding buttons on the control panel.

Note: If you experience feedback noise, lower the microphone treble, echo, and delay settings on the control panel.

5.4. Screen Projection

You can sync the S100's screen to a larger TV or display via HDMI for a more expansive viewing experience. Connect an HDMI cable from the S100's HDMI output port to your TV's HDMI input port. Alternatively, some applications may support screen mirroring via Wi-Fi.

Figure 9: Project the S100's display to an external screen for a larger view.

6. देखभाल

• स्वच्छता: Use a soft, dry cloth to clean the exterior of the machine and microphones. For the screen, use a microfiber cloth specifically designed for electronics. Avoid using abrasive cleaners or solvents.
• स्टोरेज: When not in use, store the karaoke machine in a cool, dry place away from direct sunlight and extreme temperatures.
• बॅटरी काळजी: To prolong battery life, avoid fully discharging the unit and microphones frequently. Recharge them regularly, even if not in constant use.
• वायुवीजन: जास्त गरम होण्यापासून रोखण्यासाठी युनिटवरील वायुवीजन छिद्रे बंद केलेली नाहीत याची खात्री करा.

7. समस्या निवारण

8. तपशील

9. हमी आणि समर्थन

The SINGMOOD S100 Karaoke Machine comes with a 10 वर्षांची वॉरंटी, demonstrating our commitment to quality and durability. Additionally, a 180-Day Free Trial period is offered for your peace of mind.

For any questions, technical assistance, or warranty claims, please contact SINGMOOD Customer Support. Contact information can typically be found on the product packaging or the official SINGMOOD webसाइट

We are dedicated to providing excellent customer service and ensuring your satisfaction with the SINGMOOD S100 Karaoke Machine.
