1. परिचय
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your OMTech 90W CO2 Laser Engraver, Model SH-G570. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.

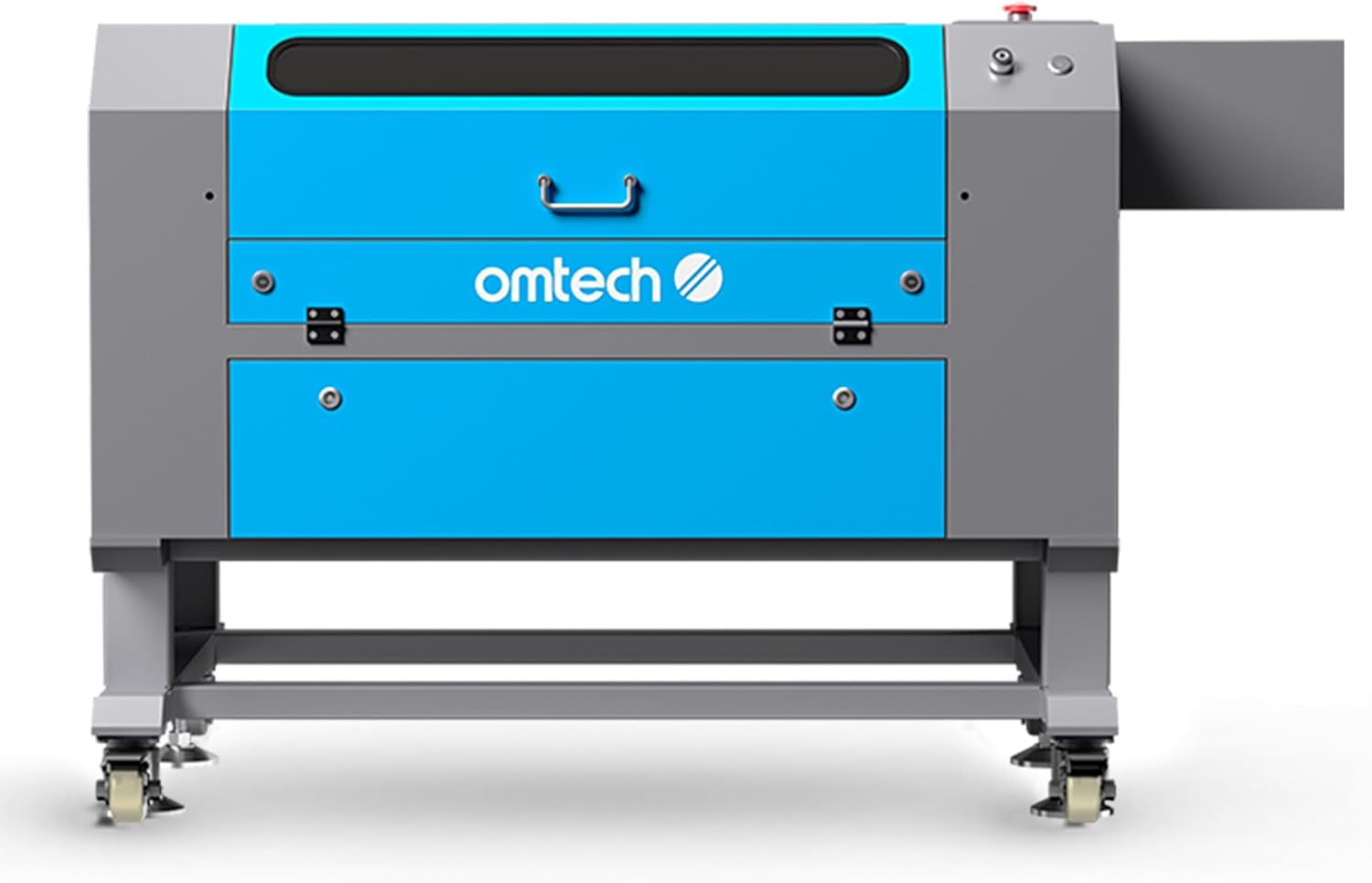

आकृती 1: समोर view of the OMTech 90W CO2 Laser Engraver. This image shows the overall design of the machine, including the blue and gray casing, control panel area, and the base with wheels.
2. सुरक्षितता माहिती
Operating a laser engraver involves inherent risks. Adherence to safety protocols is paramount to prevent injury and ensure safe operation. This machine is a Laser Class 2 device with 0.874 mW output power.
- डोळ्यांचे संरक्षण: कधीही थेट लेसर बीममध्ये पाहू नका. नेहमी योग्य लेसर सेफ्टी ग्लासेस वापरा.
- वायुवीजन: Ensure adequate ventilation to remove smoke and fumes generated during engraving and cutting. The built-in air assist helps clear the workspace.
- अग्निसुरक्षा: Keep a fire extinguisher nearby. Do not leave the machine unattended during operation, especially when processing flammable materials.
- स्वयंचलित सुरक्षा वैशिष्ट्ये: The flame-retardant viewing window allows for safe observation. The automatic cover interlock system halts laser operation if the lid is opened during a job.
- साहित्य सुसंगतता: CO2 लेसरसाठी मंजूर असलेलेच खोदकाम किंवा कट साहित्य वापरा. विषारी धूर निर्माण करणारे किंवा जास्त परावर्तित करणारे साहित्य टाळा.
- विद्युत सुरक्षा: Ensure the machine is properly grounded and connected to a suitable power supply. Do not operate with damaged cables or components.
3. उत्पादन संपलेview आणि वैशिष्ट्ये
The OMTech 90W CO2 Laser Engraver (SH-G570) is designed for precise cutting and engraving across a variety of materials. Key features include:
- लेझर पॉवर: 90W CO2 laser tube, offering up to 1,000 hours of reliable use.
- कार्य क्षेत्र: Spacious 28" x 20" (711 x 508 mm) workbed.
- कटिंग खोली: Capable of cutting up to 0.4" (10 mm) deep in wood in a single pass.
- खोदकाम गती: Maximum engraving speed of 600 mm/s.
- ऑटोफोकस: Built-in autofocus feature for automatic setting of optimal focal distance.
- पार: Four-way pass-through doors for processing larger materials.
- Workbeds: Includes both honeycomb and blade workbeds for versatile material support.
- एअर असिस्ट: Integrated air assist system to reduce flare-ups and clear debris.
- सॉफ्टवेअर सहत्वता: Compatible with RDWorks, LightBurn, CorelDRAW, and AutoCAD.
Figure 2: Infographic summarizing the key features and capabilities of the OMTech 90W CO2 Laser Engraver.
आकृती 3: क्लोज-अप view illustrating the laser head cutting through 0.4 inches of basswood in a single pass, highlighting the machine's cutting capability.
Figure 4: Visual comparison of the OMTech engraver's 20x28 inch work area against a smaller standard size, demonstrating its larger processing capacity.

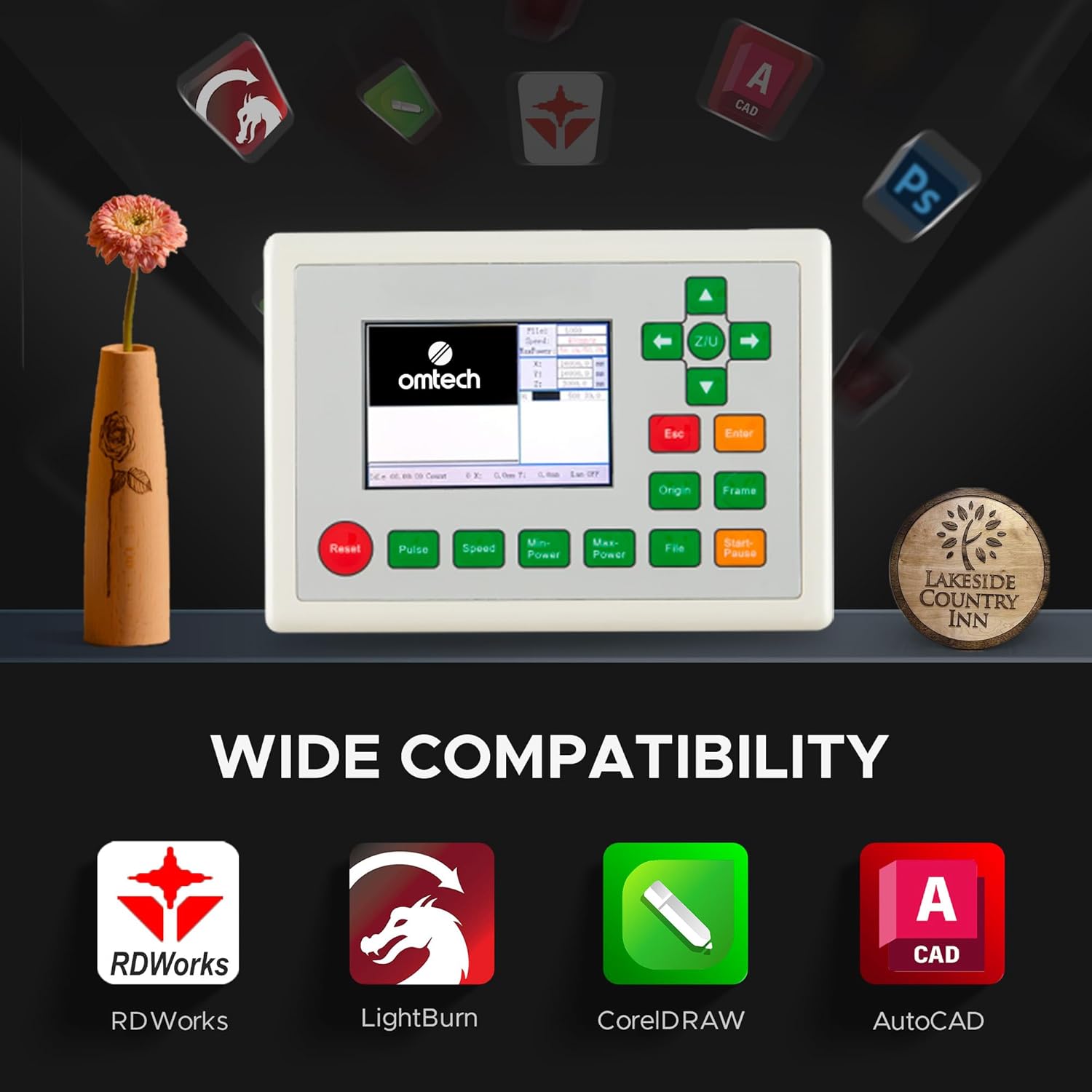

Figure 5: The digital control panel of the laser engraver, showcasing its compatibility with various design software including RDWorks, LightBurn, CorelDRAW, and AutoCAD.

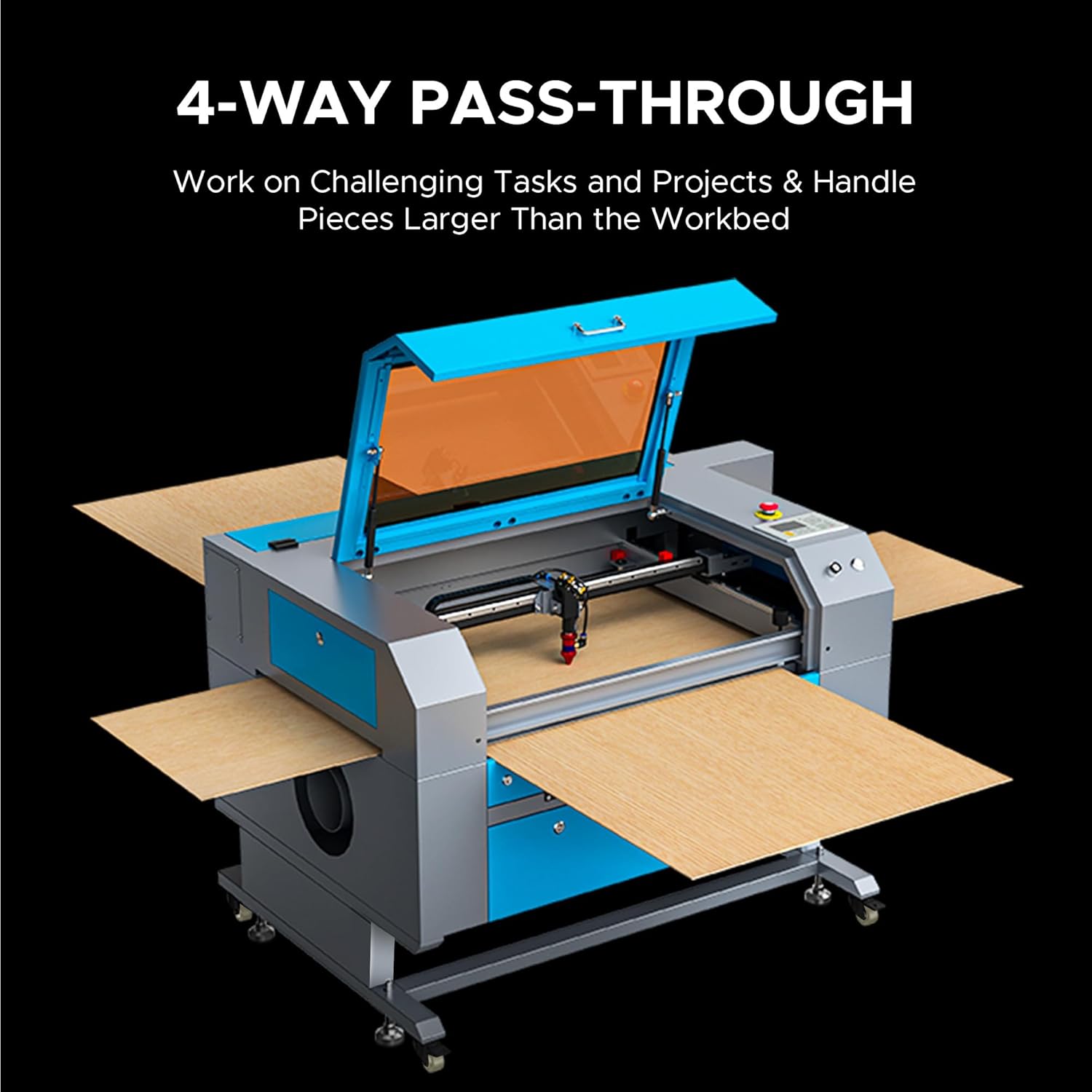

Figure 6: The machine configured with its four-way pass-through doors open, illustrating how larger materials can be fed through the work area.
Figure 7: An animated illustration depicting the functionality of the built-in autofocus and air assist systems, showing how they optimize laser performance and clear debris.
४. सेटअप सूचना
Proper setup is crucial for the safe and effective operation of your laser engraver. Follow these general steps:
- अनपॅक करणे: Carefully remove the machine and all accessories from the packaging. Inspect for any shipping damage.
- प्लेसमेंट: Place the engraver on a stable, level surface in a well-ventilated area, away from flammable materials. Ensure sufficient space around the machine for access and ventilation.
- पाणी थंड करण्याची व्यवस्था: Connect the provided water pump or chiller to the laser tube's inlet and outlet ports. Fill the reservoir with distilled water. Ensure water flows freely through the system before powering on the laser.
- एक्झॉस्ट सिस्टम: Connect the exhaust fan and ducting to the machine's exhaust port. Route the ducting to an outdoor vent or a suitable air filtration system to safely remove smoke and fumes.
- वीज कनेक्शन: Connect the power cable to the machine and then to a grounded electrical outlet. Ensure the power supply matches the machine's requirements.
- सॉफ्टवेअर इन्स्टॉलेशन: Install the recommended laser control software (e.g., LightBurn, RDWorks) on your computer. Connect the engraver to your computer via USB or Ethernet.
- Initial Alignment (if necessary): Refer to the detailed software manual for initial laser path alignment procedures if required.
5. ऑपरेटिंग सूचना
Once the machine is set up, follow these steps for typical operation:
- पॉवर चालू: Turn on the main power switch on the machine. Ensure the water cooling system is running.
- मटेरियल प्लेसमेंट: Place your material on the workbed. Use the appropriate workbed (honeycomb for cutting, blade for engraving) for your task.
- ऑटोफोकस: Utilize the built-in autofocus function to set the correct focal distance for your material. This is typically done by pressing a dedicated button on the control panel or through the software.
- सॉफ्टवेअर तयारी: Open your design software, import or create your design. Set laser parameters (power, speed, frequency) according to the material type and desired effect.
- Job Transfer: नोकरीत बदली करा file to the laser engraver via the software.
- Frame Test: Use the 'Frame' function on the control panel to preview the job area on your material. Adjust material position if necessary.
- ऑपरेशन सुरू करा: Close the lid and press 'Start' on the control panel or in the software. Monitor the process closely.
- आपत्कालीन थांबा: In case of any malfunction or emergency, press the red emergency stop button immediately.
- वीज बंद: After the job is complete, power off the laser engraver and the water cooling system.
6. देखभाल
नियमित देखभालीमुळे इष्टतम कामगिरी सुनिश्चित होते आणि तुमच्या लेसर एनग्रेव्हरचे आयुष्य वाढते.
- लेन्स आणि आरसे साफ करणे: Regularly clean the laser lens and mirrors with specialized lens cleaning solution and wipes to maintain laser beam quality.
- पाणी थंड करण्याची व्यवस्था: Change the distilled water in the cooling system every 1-3 months, or more frequently with heavy use. Ensure the water chiller (if used) is functioning correctly.
- कामाच्या जागी स्वच्छता: Clean the honeycomb and blade workbeds to remove debris and residue that can affect material placement and laser performance.
- एक्झॉस्ट सिस्टम: Inspect and clean the exhaust fan and ducting to ensure efficient removal of smoke and fumes.
- Rail and Belt Lubrication: Periodically lubricate the guide rails and check the tension of the drive belts to ensure smooth movement of the laser head.
- सामान्य स्वच्छता: मशीनचा आतील आणि बाहेरील भाग स्वच्छ आणि धूळ आणि कचऱ्यापासून मुक्त ठेवा.
7. समस्या निवारण
हा विभाग तुम्हाला येऊ शकणाऱ्या सामान्य समस्यांबद्दल चर्चा करतो:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| लेझर फायरिंग नाही | Lid open, water flow error, power supply issue, laser tube failure | Ensure lid is closed, check water pump/chiller, verify power connections, contact support if tube is suspected faulty. |
| खराब खोदकाम/कटिंग गुणवत्ता | चुकीचे फोकस, घाणेरडे लेन्स/आरसे, चुकीचे पॉवर/स्पीड सेटिंग्ज, मटेरियल समस्या | Perform autofocus, clean optics, adjust laser parameters, ensure material is flat and suitable. |
| मशीन संगणकाशी कनेक्ट होत नाही | Loose cable, driver issue, incorrect software settings | Check USB/Ethernet cable, reinstall drivers, verify software communication settings. |
| जास्त धूर/धूर | Ineffective exhaust, material type | Check exhaust fan and ducting for blockages, ensure proper ventilation, use appropriate materials. |
8. तपशील
Detailed technical specifications for the OMTech 90W CO2 Laser Engraver (SH-G570):
Figure 8: The OMTech 90W CO2 Laser Engraver shown in a workshop environment, with an overlay of its primary specifications.
- ब्रँड: OMTech
- मॉडेल क्रमांक: SH-G570
- रेटेड पॉवर: 90W
- कार्यक्षेत्र: १५.८" x १६.१" (४०० x ४१० मिमी)
- Max. Engraving Speed: 600 मिमी/से
- Max. Cutting Depth (Basswood, single pass): 0.4 इंच (10 मिमी)
- मशीनचे परिमाण: 59.1 x 34.3 x 35.4 इंच (150.1 x 87.1 x 89.9 सेमी)
- आयटम वजन: 258 पौंड (117 किलो)
- साहित्य: Galvanized steel, Aluminium, Acrylic
- लेसर वर्ग: 2
- आउटपुट पॉवर: 0.874 मेगावॅट
- Pass-Through Doors: 4-मार्ग
- Workbeds Included: Honeycomb and Blade
- पहिली उपलब्धता तारीख: ३ जून २०२४
Material Application Chart
The following table outlines common materials and their compatibility with the engraver for both engraving and cutting:
Figure 9: A comprehensive table detailing the engraving and cutting compatibility of various materials with the OMTech laser engraver.
9. हमी आणि समर्थन
For warranty information, technical support, or service inquiries, please refer to the official OMTech website or contact their customer service department. Keep your purchase receipt and model number (SH-G570) readily available when contacting support.
ऑनलाइन संसाधने: ला भेट द्या OMTech Store on Amazon अतिरिक्त उत्पादन माहिती आणि समर्थनासाठी.
