मार्क एडलर लीडर ७.० इलेक्ट्रिक हाईट-अ‍ॅडजस्टेबल डेस्क वापरकर्ता मॅन्युअल

1. सुरक्षितता माहिती

सावधान!

• The device may only be used with the supplied power adapter.
• The device is powered by electricity. Caution is advised. Improper use carries the risk of fire, electric shock, and even death.
• Failure to follow instructions can lead to incorrect installation, damaging the device or endangering the user's life.
• The desk frame must not be modified or rebuilt in any way.
• Disconnect the desk from the power supply before performing maintenance.
• Do not use the product before assembly is complete.
• सामान उघडताना चाकू किंवा कात्रीसारख्या तीक्ष्ण वस्तू वापरू नका.
• Assembly should be performed at a safe distance from furniture and other obstacles.
• Assembly should be performed out of reach of children, as some parts have sharp edges or may pose a choking hazard.
• उत्पादकाने मूळतः निर्दिष्ट केलेल्या कारणांव्यतिरिक्त इतर कारणांसाठी डेस्क वापरू नका.
• हे उत्पादन सपाट आणि स्थिर पृष्ठभागावर वापरण्यासाठी आहे.
• To prevent damage to the product and risk of injury, check the maximum load capacity of the product (70 kg) and do not exceed it.
• Do not place your entire body weight on the tabletop. The product is intended for use by one person.
• Do not place flammable materials near the device, as there is a risk of fire.
• To prevent damage, keep the product away from direct sunlight.
• It is recommended that the user retighten screws if they become loose.
• Do not disassemble any parts beyond the original installation procedures.
• For general cleaning and maintenance of the desk, use a soft cloth with a mild cleaning agent.

१. सेटअप आणि असेंब्ली

The MARK ADLER Leader 7.0 desk is designed for straightforward assembly. Please follow the detailed instructions provided in the separate assembly guide included with your product packaging.

2.1 अनपॅक करणे

• Carefully remove all components from the packaging. Avoid using sharp objects like knives or scissors directly on the packaging to prevent scratching or damaging the desk parts.
• असेंब्ली गाईडमध्ये सूचीबद्ध केलेले सर्व भाग उपस्थित आहेत आणि त्यांना नुकसान झालेले नाही याची पडताळणी करा.

2.2 प्लेसमेंट

• Choose a flat, stable, and level surface for the desk. Uneven surfaces can affect the desk's stability and electric mechanism.
• Ensure there is sufficient space around the desk for safe operation, especially when adjusting height, to avoid collisions with walls or other furniture.
• Keep the desk away from direct sunlight and sources of heat or moisture to prevent material damage.

2.3 असेंब्ली टप्पे

1. Refer to the dedicated assembly manual for step-by-step instructions.
2. Ensure all connections are secure and screws are tightened appropriately.
3. Do not connect the desk to power until assembly is fully completed and verified.

Figure 1: Desk Dimensions and Height Range

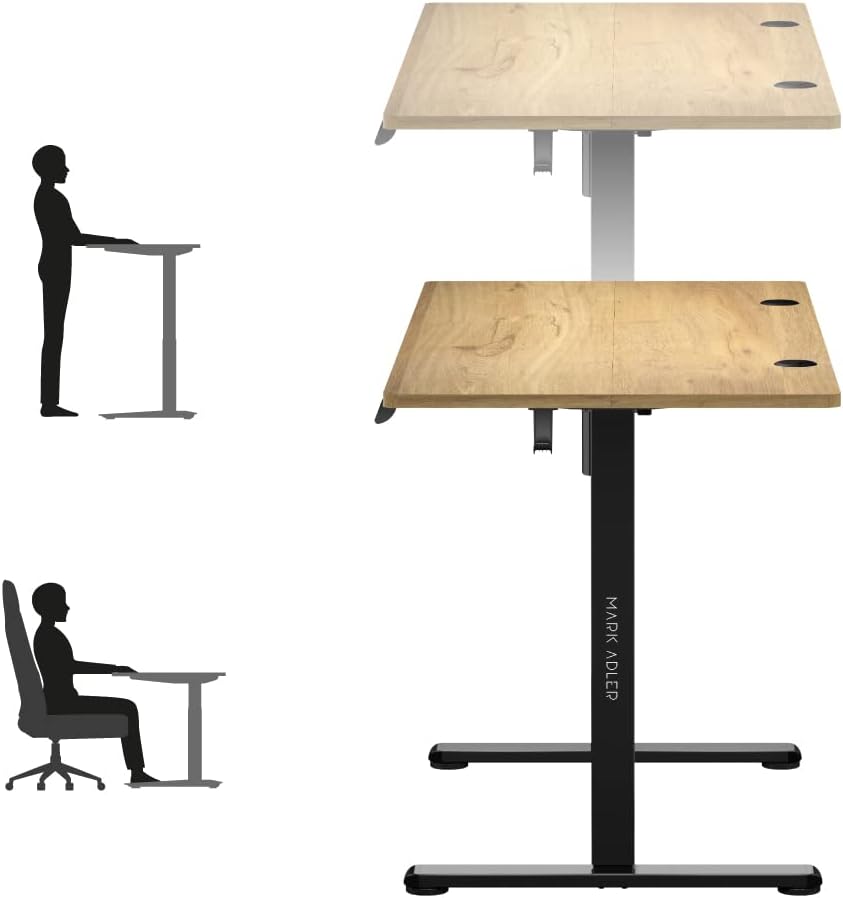

Figure 2: Desk in Sitting and Standing Positions

3. ऑपरेटिंग सूचना

The MARK ADLER Leader 7.0 desk features an intuitive control panel for easy height adjustment and memory functions.

3.1 नियंत्रण पॅनेल ओव्हरview

आकृती 3: नियंत्रण पॅनेल

नियंत्रण पॅनेलमध्ये सामान्यतः हे समाविष्ट असते:

• डिजिटल प्रदर्शनः सध्याची डेस्क उंची सेंटीमीटरमध्ये दाखवते.
• Up (A) and Down (V) Buttons: Used to manually adjust the desk height.
• Memory Buttons (1, 2, 3): पसंतीच्या उंची सेटिंग्ज साठवा आणि परत मागवा.
• Set (S) Button: Used to save a height setting to a memory button.

3.2 उंची समायोजन

• दाबा आणि धरून ठेवा Up (A) डेस्क वर करण्यासाठी बटण.
• दाबा आणि धरून ठेवा Down (V) डेस्क खाली करण्यासाठी बटण.
• Release the button when the desired height is reached. The desk will move smoothly and quietly.

४.३ मेमरी प्रीसेट सेट करणे

To save a specific height setting:

1. Adjust the desk to your desired height using the Up (A) or Down (V) buttons.
2. दाबा संच (एस) button. The display may flash or show 'S'.
3. Within a few seconds, press one of the memory buttons (1, 2, किंवा 3) to save the current height to that position. The display may confirm the setting.

५.२ मेमरी प्रीसेट वापरणे

To recall a saved height setting:

• Simply press the desired memory button (1, 2, किंवा 3). डेस्क आपोआप जतन केलेल्या उंचीवर जाईल.

Figure 4: Ergonomic Use - Sitting and Standing

3.5 केबल व्यवस्थापन

The desk includes integrated cable entries to help organize your workspace.

Figure 5: Cable Grommet

3.6 Headphone Hook

A convenient hook is provided for hanging headphones or other accessories.

Figure 6: Headphone Hook

4. देखभाल

Proper maintenance ensures the longevity and safe operation of your MARK ADLER Leader 7.0 desk.

• स्वच्छता: सामान्य स्वच्छतेसाठी, मऊ कापड वापरा dampened with a mild cleaning agent. Avoid abrasive cleaners or harsh chemicals that could damage the surface.
• वीज खंडित होणे: Always disconnect the desk from the power supply before performing any cleaning or maintenance tasks.
• स्क्रू घट्ट करणे: Periodically check all screws and connections. If any feel loose, gently retighten them to ensure stability.
• पर्यावरणाची काळजी: Keep the desk away from direct sunlight, extreme temperatures, and high humidity to prevent material degradation.
• कोणतेही बदल नाहीत: Do not attempt to modify or disassemble any parts of the desk frame or electric mechanism beyond the original installation procedures. Unauthorized modifications can void your warranty and pose safety risks.

5. समस्या निवारण

If you encounter any issues with your MARK ADLER Leader 7.0 desk, please refer to the following common troubleshooting steps:

5.1 Desk Not Moving

• पॉवर कनेक्शन तपासा: Ensure the power cable is securely plugged into both the desk and a working wall outlet.
• Check Power Adapter: Verify that the power adapter is the one supplied with the desk and is functioning correctly.
• यंत्रणा रीसेट करा: Some electric desks have a reset function. Consult your assembly guide or contact support for specific reset procedures if available.

४.२ असमान हालचाल किंवा आवाज

• अडथळे तपासा: Ensure there are no objects obstructing the desk's movement path, either above or below the tabletop.
• वजन वितरण: Make sure the weight on the desk is evenly distributed and does not exceed the maximum load capacity of 70 kg.
• सैल स्क्रू: Check and tighten any loose screws on the frame or tabletop connections.

5.3 Control Panel Not Responding

• पॉवर सायकल: Disconnect the power for 30 seconds, then reconnect it.
• केबल कनेक्शन: Ensure the control panel cable is securely connected to the desk's motor unit.

जर या चरणांनी समस्येचे निराकरण झाले नाही, तर कृपया अधिक मदतीसाठी ग्राहक समर्थनाशी संपर्क साधा.

6. तपशील

7. हमी आणि समर्थन

7.1 हमी माहिती

For detailed information regarding the product warranty, please refer to the warranty card included with your purchase or contact the retailer/manufacturer directly. Warranty terms typically cover manufacturing defects under normal use.

7.2 ग्राहक समर्थन

If you have any questions, require technical assistance, or need to report an issue that cannot be resolved using the troubleshooting guide, please contact MARK ADLER customer service or your point of purchase. Have your product model number (Leader 7.0) and purchase date ready when contacting support.
