KYOCERA ECOSYS MA5500ifx 110C0Z3NL0 Multifunction Printer User Manual

1. परिचय

This manual provides essential instructions for the safe and efficient use of your KYOCERA ECOSYS MA5500ifx multifunction printer. Please read this manual thoroughly before operating the device and keep it for future reference. The KYOCERA ECOSYS MA5500ifx is an A4 monochrome multifunction system designed for printing, copying, scanning, and faxing.

2. सुरक्षितता माहिती

उपकरणाला दुखापत किंवा नुकसान टाळण्यासाठी नेहमी खालील सुरक्षा खबरदारी पाळा:

• डिव्हाइसला स्थिर, समतल पृष्ठभागावर ठेवा.
• डिव्हाइसभोवती योग्य वायुवीजन सुनिश्चित करा.
• वायुवीजन उघडण्यास अडथळा आणू नका.
• फक्त निर्दिष्ट वीज पुरवठा आणि व्हॉल्यूम वापराtage.
• यंत्रापासून द्रव दूर ठेवा.
• स्वतः डिव्हाइसची सेवा करण्याचा प्रयत्न करू नका. सर्व सेवांचा संदर्भ पात्र कर्मचाऱ्यांना द्या.

3. सेटअप

3.1 अनपॅकिंग आणि प्लेसमेंट

Carefully remove the printer from its packaging. Ensure all packing materials and protective tapes are removed. Place the printer in a location with adequate space for operation and maintenance.

प्रतिमा १: समोर view of the KYOCERA ECOSYS MA5500ifx multifunction printer, showing its compact design and paper trays.

3.2 वीज जोडणी

Connect the power cord securely to the printer and then to a grounded electrical outlet.

3.3 Network and USB Connection

The printer supports both USB and Gigabit network interfaces. For network connectivity, connect an Ethernet cable to the printer's network port and to your network router or switch. For direct connection, use a USB cable to connect the printer to your computer.

प्रतिमा १: क्लोज-अप view of the USB port on the side of the KYOCERA ECOSYS MA5500ifx, used for direct connection to a computer or for USB drive functionality.

3.4 ड्राइव्हर स्थापना

Upon connecting the printer to a computer via USB or network, drivers are often automatically detected and installed by the operating system. If not, download the latest drivers from the official KYOCERA support webसाइट

3.5 प्रारंभिक कॉन्फिगरेशन

Turn on the printer. Use the 17.8 cm (7-inch) touchscreen control panel to configure initial settings such as language, date, time, and network parameters. The touchscreen has a 3-step tilt for ergonomic viewing

प्रतिमा १: तपशीलवार view of the KYOCERA ECOSYS MA5500ifx's touchscreen control panel, displaying various function icons like Copy, Send, Fax, and Job Box.

4. ऑपरेटिंग सूचना

4.1 कागद लोड करत आहे

The printer features a 500-sheet paper cassette and a 100-sheet universal feeder, both supporting up to A4 size. Open the desired paper tray, load the paper, and adjust the guides. Ensure the paper type and size settings on the control panel match the loaded paper. The printer can also handle labels as print media.

३.१ मूलभूत छपाई

From your computer, select the KYOCERA ECOSYS MA5500ifx as your printer. Adjust print settings as needed (e.g., single-sided or duplex). The printer offers monochrome printing at up to 55 pages per minute (ppm) with a resolution of up to 1200 x 1200 dpi.

३.२ कागदपत्रे कॉपी करणे

Place your document on the scanner glass or in the automatic document feeder (ADF). The ADF supports up to 75 sheets (A4) with automatic duplex scanning. Select 'Copy' from the touchscreen, adjust settings like quantity, zoom, and duplex options, then press 'Start'. Maximum copy resolution is 600 dpi for black and white, and 1200 x 1200 dpi for color.

प्रतिमा १: क्लोज-अप view of the automatic document feeder (ADF) input tray on the KYOCERA ECOSYS MA5500ifx, showing a document being loaded for scanning or copying.

३.३ कागदपत्रे स्कॅन करणे

Place your document as described for copying. Select 'Send' or 'Scan' from the touchscreen. Choose your scan destination (e.g., email, network folder, USB drive). Configure scan settings such as resolution and file format, then press 'Start'. The scanner is a sheetfed type with duplex capability.

४.५ फॅक्सिंग

Place your document in the ADF. Select 'Fax' from the touchscreen. Enter the recipient's fax number using the numeric keypad or select from the address book. Adjust any necessary fax settings and press 'Start'.

4.6 Using the Touch Panel

The touch panel provides intuitive access to all printer functions. Navigate through menus by tapping icons and swiping. Common functions include Copy, Send, Fax, Job Box, and USB Drive access. The panel also features physical buttons for Status/Job Cancel, Copy, Send, Fax, Reset, Stop, and Start.

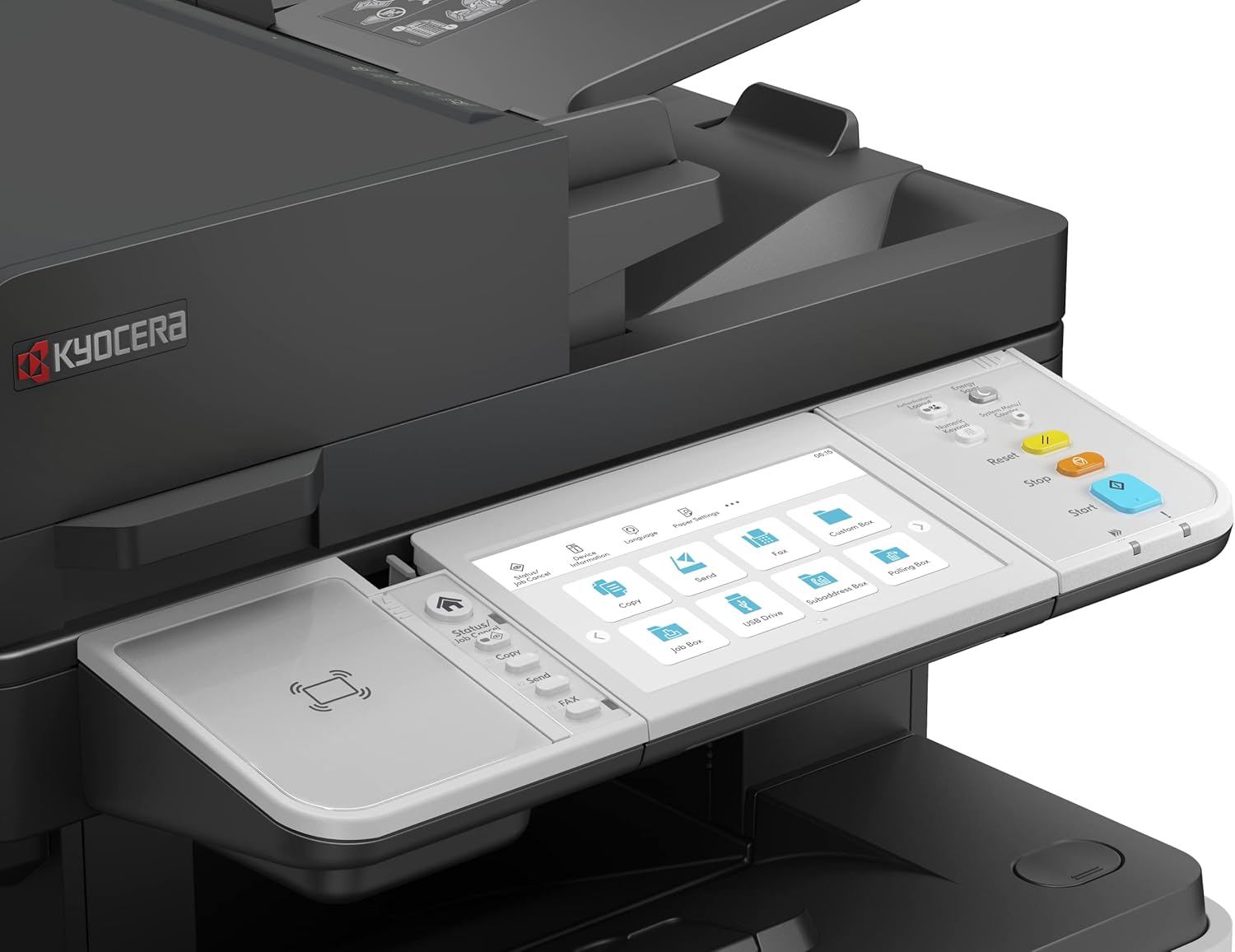

प्रतिमा १: A wider view of the KYOCERA ECOSYS MA5500ifx control panel, highlighting the touchscreen interface with various function icons and the adjacent physical control buttons.

5. देखभाल

5.1 डिव्हाइस साफ करणे

Regularly clean the exterior of the printer with a soft, dry, lint-free cloth. For the scanner glass, use a mild glass cleaner applied to a cloth, not directly to the glass. Ensure the device is powered off before cleaning.

5.2 Toner Replacement

When the black ink (toner) cartridge is low or empty, a message will appear on the control panel. Follow the on-screen instructions or refer to the quick guide for safe replacement of the toner cartridge.

४.४ कागदी मार्गाची स्वच्छता

If paper jams occur frequently or print quality degrades, the paper path may need cleaning. Consult the full service manual for detailed instructions on cleaning specific components within the paper path.

6. समस्या निवारण

This section addresses common issues you might encounter. For more complex problems, contact KYOCERA support.

6.1 पेपर जाम

If a paper jam occurs, the control panel will display an error message and indicate the location of the jam. Carefully open the designated covers and remove the jammed paper, ensuring no torn pieces remain inside. Close all covers securely.

५.२ प्रिंट गुणवत्तेच्या समस्या

If prints are faded, streaky, or have spots, check the toner level. Ensure the correct paper type is selected in the print settings. Perform a print head cleaning or calibration from the maintenance menu on the control panel if available.

५.३ कनेक्टिव्हिटी समस्या

If the printer is not responding, verify that the power cable and network/USB cables are securely connected. Restart the printer and your computer. Check network settings on the printer's control panel and ensure your computer is connected to the same network.

7. तपशील

8. हमी आणि समर्थन

For warranty information and technical support, please refer to the documentation included with your product or visit the official KYOCERA website. You can also find more information and support resources on the KYOCERA Store on Amazon.
