परिचय
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Prechen 27 Inch FHD 1080P Computer Monitor. Designed for both business and gaming, this monitor features a 3-sided frameless IPS panel, Full HD 1920x1080P resolution, 75Hz refresh rate, and eye care technology. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.
प्रतिमा: समोर view of the Prechen 27 Inch FHD 1080P Computer Monitor, showcasing त्याची फ्रेमलेस डिझाइन आणि दोलायमान डिस्प्ले.
सेटअप
1. अनपॅकिंग आणि असेंब्ली
Carefully remove all components from the packaging. Ensure all parts are present: monitor panel, stand base, stand neck, power adapter, HDMI cable, and user manual. Assemble the stand by attaching the neck to the base, then secure the assembled stand to the back of the monitor panel.
2. केबल्स कनेक्ट करणे
The monitor supports both HDMI and VGA inputs. Connect the appropriate video cable from your computer or device to the corresponding port on the monitor. Then, connect the power adapter to the monitor's DC input and plug it into a power outlet.
प्रतिमा: मागचा भाग view of the monitor showing the HDMI, VGA, and DC power input ports, highlighting the rich connectivity options.
Image: Diagram illustrating multiple connection possibilities for the monitor, including PC, notebook, Xbox, and TV box, demonstrating its versatility.
3. VESA Mounting (Optional)
This monitor is VESA compatible (100mm x 100mm). If you wish to wall-mount or use a different monitor arm, remove the stand and attach the monitor to your VESA-compatible mount using appropriate screws (not included).
Image: Infographic summarizing key features of the monitor, such as FHD 1080p resolution, IPS panel, Eye Care technology, 178° viewing angle, 99% sRGB, 75Hz refresh rate, VESA 100x100mm compatibility, and 5ms response time.
ऑपरेटिंग सूचना
1. पॉवर चालू/बंद
Press the power button, usually located on the back or bottom right of the monitor, to turn the monitor on or off. The power indicator light will illuminate when the monitor is active.
2. इनपुट निवड
If you have multiple devices connected, use the input/source button on the monitor to cycle through available inputs (HDMI, VGA) until your desired source is displayed.
3. ऑन-स्क्रीन डिस्प्ले (OSD) मेनू
Access the OSD menu by pressing the Menu button. Use the navigation buttons (up/down/left/right or joystick) to browse through options such as Brightness, Contrast, Color Settings, Input Source, and other display adjustments. Press the Menu button again or an 'Exit' option to close the OSD.
Image: The monitor displaying a vibrant business dashboard with various charts and graphs, illustrating its brilliant visual performance for professional use.
५.४. डोळ्यांची काळजी घेण्याची वैशिष्ट्ये
The monitor incorporates low blue light and flicker-free technology to reduce eye strain during prolonged use. These features are designed to protect your eyes and enhance viewसांत्वन.
Image: The monitor displaying a wide mountain landscape, emphasizing its IPS panel with a 178° viewing angle and integrated eye care features for comfortable viewविविध पदांवरून.
Image: A side-by-side comparison demonstrating the difference between 60Hz and 75Hz refresh rates in a racing game, illustrating the smoother motion provided by the 75Hz refresh rate.
देखभाल
३. स्क्रीन साफ करणे
स्क्रीन स्वच्छ करण्यासाठी, मऊ, लिंट-फ्री कापडाने हळूवारपणे पुसून टाका. हट्टी खुणा असल्यास, dampen the cloth slightly with water or a non-abrasive screen cleaner. Avoid using alcohol, ammonia, or abrasive cleaners, as they can damage the screen surface.
2. सामान्य काळजी
Keep the monitor away from direct sunlight, excessive heat, and moisture. Ensure proper ventilation around the monitor to prevent overheating. Do not place heavy objects on the monitor or its cables.
समस्यानिवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| स्क्रीनवर कोणतीही प्रतिमा नाही | पॉवर केबल डिस्कनेक्ट झाली; व्हिडिओ केबल डिस्कनेक्ट झाली; चुकीचा इनपुट स्रोत निवडला. | Check power and video cable connections. Ensure the monitor is powered on. Select the correct input source using the monitor's OSD menu. |
| प्रतिमा चमकत आहे किंवा अस्थिर आहे | Loose video cable; Incorrect refresh rate setting; Interference from other devices. | Securely connect the video cable. Adjust the refresh rate to 75Hz in your computer's display settings. Move interfering electronic devices away from the monitor. |
| रंग चुकीचे दिसतात | Color settings in OSD are misconfigured; Faulty video cable. | Reset color settings to default in the OSD menu. Try a different video cable. |
जर तुम्हाला येथे सूचीबद्ध नसलेल्या समस्या येत असतील किंवा सुचवलेल्या उपायांमुळे समस्या सुटत नसेल, तर कृपया ग्राहक समर्थनाशी संपर्क साधा.
तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| स्क्रीन आकार | 27 इंच |
| डिस्प्ले प्रकार | आयपीएस एलईडी |
| ठराव | १९२०x१०८० (FHD १०८०p) |
| रीफ्रेश दर | 75 Hz |
| प्रतिसाद वेळ | 5 मिलीसेकंद |
| कॉन्ट्रास्ट रेशो | १६:१० |
| Viewकोन | 178 Degrees (Horizontal/Vertical) |
| रंग सरगम | 99% sRGB, 16.7 Million Colors |
| कनेक्टिव्हिटी | एचडीएमआय, व्हीजीए |
| VESA सुसंगतता | 100 मिमी x 100 मिमी |
| टिल्ट समायोजन | -5 degrees forward, 15 degrees backward |
| परिमाण (W x H x D) | Approx. 617mm x 368mm x 250mm (with stand) |
| वजन | अंदाजे 4.54 किलो |

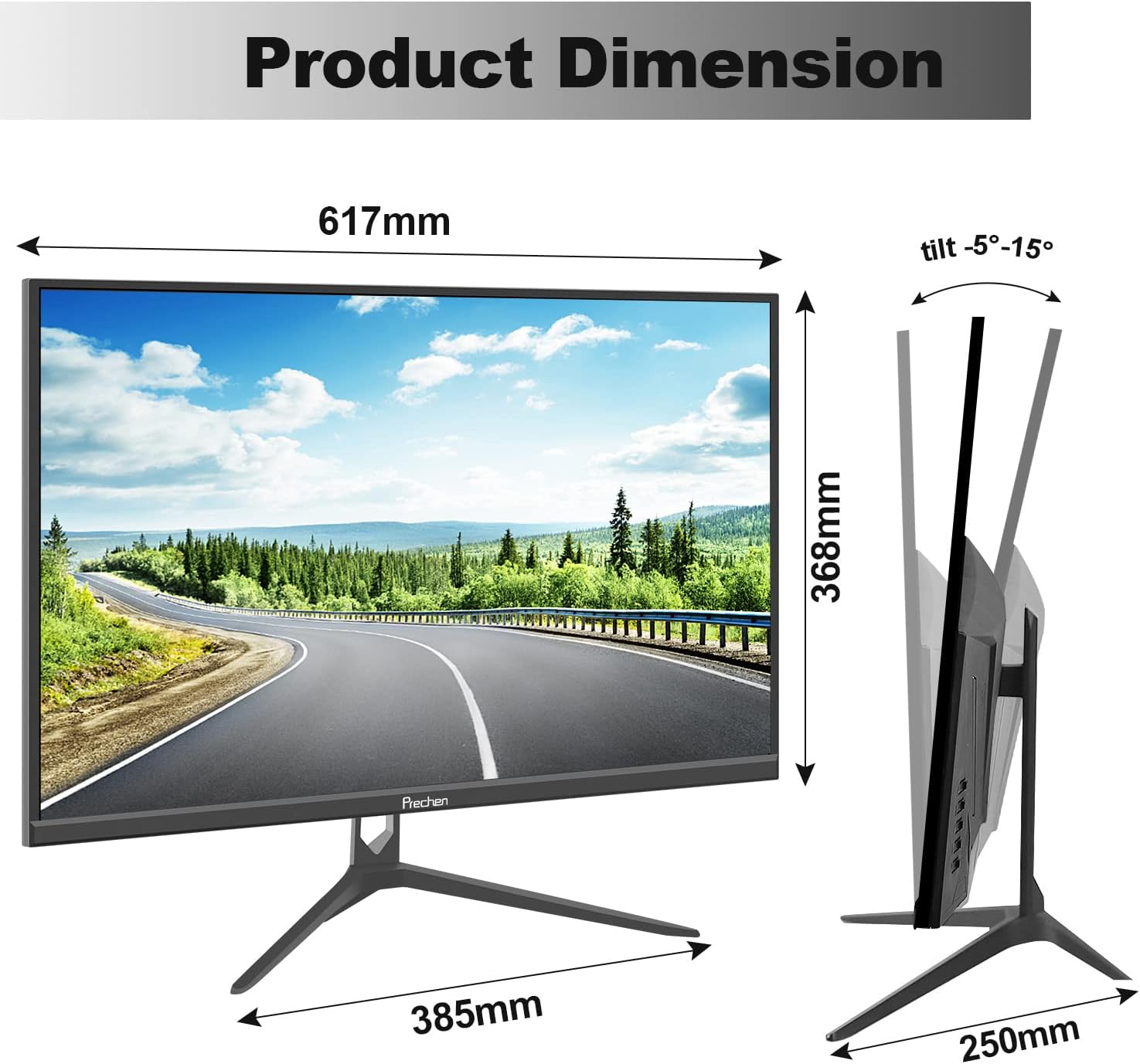

Image: Diagram illustrating the physical dimensions of the Prechen 27 inch monitor, including its width (617mm), height (368mm), and stand depth (385mm), as well as the tilt adjustment range (-5° to 15°).
हमी आणि समर्थन
1. वॉरंटी माहिती
Prechen products are covered by a limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details. Keep your purchase receipt as proof of purchase for warranty claims.
2. ग्राहक समर्थन
For technical assistance, troubleshooting, or warranty inquiries, please contact Prechen customer support. Contact information can typically be found on the official Prechen website or on the warranty card provided with your product. When contacting support, please have your product model and purchase details ready.
