1. परिचय
This user manual provides comprehensive instructions for the installation, operation, and maintenance of the Axis Communications AXIS Q6225-LE PTZ Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety. This camera is designed for robust outdoor surveillance in challenging conditions.
2. सुरक्षितता माहिती
Observe the following safety precautions to prevent damage to the product or injury to personnel:
- स्थापना: Installation must be performed by qualified personnel in accordance with all local and national electrical and building codes.
- वीज पुरवठा: Use only the specified power supply (60 watts) for this device. Ensure the power source is stable and meets the camera's requirements.
- पर्यावरण: The camera is designed for outdoor use. However, avoid exposing it to extreme conditions beyond its specified operating range.
- स्वच्छता: साफसफाई करण्यापूर्वी वीज खंडित करा. मऊ, कोरडे कापड वापरा. द्रव किंवा एरोसोल क्लीनर वापरू नका.
- सुधारणा: Do not attempt to modify or disassemble the camera. This may void the warranty and pose safety risks.
3. पॅकेज सामग्री
पॅकेजमध्ये सर्व वस्तू आहेत का ते तपासा:
- AXIS Q6225-LE PTZ कॅमेरा
- स्थापना मार्गदर्शक
- माउंटिंग ब्रॅकेट आणि हार्डवेअर
- Network Cable Connector
- Documentation and Software CD (if applicable)

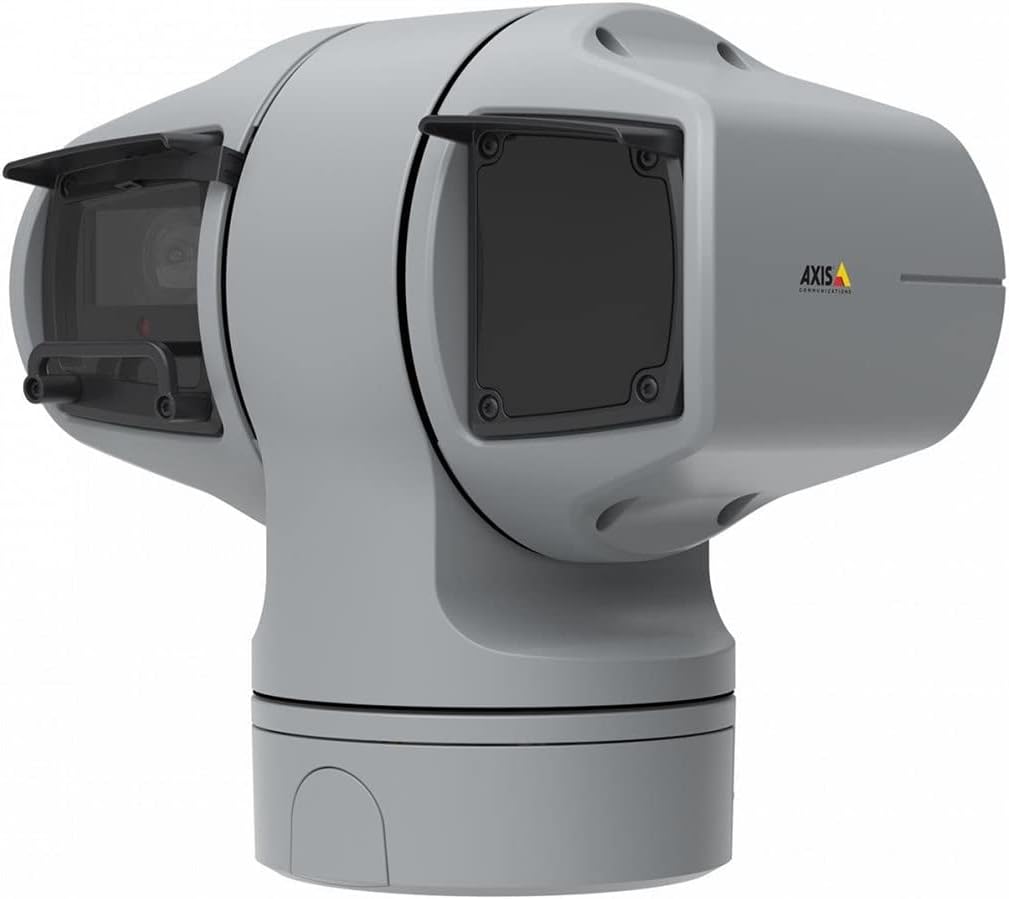

आकृती 1: AXIS Q6225-LE PTZ Camera. This image displays the grey-colored PTZ camera unit, highlighting its robust housing and integrated lens system, designed for outdoor surveillance.
4. सेटअप आणि स्थापना
4.1 कॅमेरा माउंट करणे
The AXIS Q6225-LE is designed for wall mount installation. Ensure the mounting surface is strong enough to support the camera's weight and withstand environmental conditions.
- इच्छित फील्ड प्रदान करणारे योग्य माउंटिंग स्थान निवडा view आणि वीज आणि नेटवर्क कनेक्शनच्या पोहोचण्याच्या आत आहे.
- Use the provided mounting template to mark drill holes on the wall.
- Drill pilot holes and secure the mounting bracket using appropriate screws and anchors.
- Attach the camera to the mounting bracket, ensuring it is firmly locked in place.
४.२ पॉवर आणि नेटवर्क कनेक्शन
Connect the camera to power and network as follows:
- शक्ती: Connect the power cable to a 60-watt power source. Ensure the connection is secure and weatherproof.
- नेटवर्क: Connect an Ethernet cable from your network switch or router to the camera's network port. The camera supports Wi-Fi for wireless communication. Refer to the network configuration section for wireless setup.
4.3 प्रारंभिक कॉन्फिगरेशन
After physical installation and connection, access the camera's web interface for initial configuration:
- उघडा ए web कॅमेरा ज्या नेटवर्कशी कनेक्ट केलेला आहे त्याच नेटवर्कशी कनेक्ट केलेल्या संगणकावरील ब्राउझर.
- Enter the camera's IP address in the browser's address bar. If the IP address is unknown, use the AXIS IP Utility tool to discover it.
- Follow the on-screen prompts to set up a new password for the administrator account.
- Configure basic network settings, date/time, and video stream settings.
5. कॅमेरा चालवणे
५.१ पॅन, टिल्ट आणि झूम (PTZ) नियंत्रण
The AXIS Q6225-LE camera features full PTZ capabilities, allowing remote adjustment of its viewing angle and zoom level. Control is typically performed via the camera's web इंटरफेस किंवा सुसंगत व्हिडिओ व्यवस्थापन सॉफ्टवेअर (VMS).
- पॅन: Rotate the camera horizontally to cover a wider area.
- टिल्ट: Adjust the camera vertically to view objects at different heights.
- ऑप्टिकल झूम: Use the optical zoom feature to magnify distant objects without loss of image quality.
३.३ हालचाल शोधणे आणि सूचना
The camera supports motion-only alerts. Configure motion detection zones and sensitivity settings in the web interface to trigger recordings or notifications when movement is detected.
5.3 Infrared (IR) Illumination
Equipped with infrared light sources, the camera provides clear video surveillance in low-light or complete darkness. IR illumination activates automatically or can be manually controlled.
6. देखभाल
6.1 स्वच्छता
Regular cleaning of the camera lens and housing is recommended to ensure optimal performance, especially in dusty or harsh environments.
- Gently wipe the lens with a soft, lint-free cloth. For stubborn dirt, use a lens cleaning solution specifically designed for optical surfaces.
- Clean the camera housing with a damp कापड. अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स टाळा.
6.2 फर्मवेअर अद्यतने
Periodically check the Axis Communications website for firmware updates. Keeping the camera's firmware up-to-date ensures access to the latest features, security enhancements, and bug fixes.
7. समस्या निवारण
This section addresses common issues you might encounter with your AXIS Q6225-LE camera.
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| व्हिडिओ फीड नाही | Power disconnected, network issue, incorrect IP address. | Check power connection. Verify network cable or Wi-Fi connection. Confirm camera's IP address. |
| खराब प्रतिमा गुणवत्ता | Dirty lens, improper focus, low light conditions. | Clean the lens. Adjust focus via web interface. Ensure adequate lighting or verify IR functionality. |
| PTZ controls unresponsive | Network latency, software glitch, motor issue. | Check network connection. Restart the camera. If problem persists, contact support. |
8. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | 02316-002 |
| ब्रँड | ॲक्सिस कम्युनिकेशन्स |
| माउंटिंग प्रकार | वॉल माउंट |
| रंग | पांढरा |
| साहित्य | धातू |
| वाटtage | 60 वॅट्स |
| कनेक्टिव्हिटी तंत्रज्ञान | वायरलेस, वाय-फाय |
| इनडोअर/आउटडोअर वापर | घराबाहेर |
| नियंत्रण पद्धत | रिमोट |
| फोटो सेन्सर तंत्रज्ञान | CMOS |
| व्हिडिओ कॅप्चर स्वरूप | MPEG-4 |
| प्रकाश स्रोत प्रकार | इन्फ्रारेड |
| सतर्कता प्रकार | फक्त गती |
| झूम प्रकार | ऑप्टिकल झूम |
| आयटम वजन | 0.01 किलोग्राम (0.352 औंस) |
| समाविष्ट घटक | कॅमेरा/अॅक्सेसरीज |
9. हमी आणि समर्थन
For warranty information and technical support, please refer to the official Axis Communications webसाइटवर जा किंवा तुमच्या अधिकृत डीलरशी संपर्क साधा. खरेदीचा पुरावा म्हणून तुमची खरेदी पावती ठेवा.
ऑनलाइन संसाधने: www.axis.com
