DYNAMIC SAUNAS Maxxus MX-K206-01 Elite 2-Person FAR Infrared Sauna Instruction Manual

1. परिचय

Thank you for choosing the DYNAMIC SAUNAS Maxxus MX-K206-01 Elite 2-Person Near Zero EMF FAR Infrared Sauna. This manual provides essential information for the proper setup, operation, and maintenance of your sauna. Please read all instructions carefully before use to ensure safety and optimal performance.

Image 1: The DYNAMIC SAUNAS Maxxus MX-K206-01 Elite 2-Person FAR Infrared Sauna in a modern living space. This image showcases the sauna's exterior design and its potential integration into a home environment.

2. सुरक्षितता माहिती

Your safety is paramount. Adhere to all warnings and instructions to prevent injury or damage. This sauna is designed with Near Zero EMF (Under 2 MG) technology for enhanced user well-being.

• फक्त अंतर्गत वापर: This sauna is designed exclusively for indoor use. Do not install or operate outdoors.
• विद्युत सुरक्षा: Ensure the sauna is connected to a dedicated 15 Amp, 120V electrical outlet. Consult a qualified electrician if unsure about your home's electrical capacity.
• आरोग्यविषयक बाबी: Individuals who are pregnant, elderly, or have pre-existing medical conditions should consult a physician before using the sauna. Discontinue use if you experience discomfort or adverse reactions.
• तापमान मर्यादा: While infrared saunas operate at lower temperatures than traditional saunas, avoid prolonged exposure to high heat. The maximum temperature is approximately 150°F.
• हायड्रेशन: Drink plenty of water before, during, and after sauna sessions to prevent dehydration.
• ज्वलनशील साहित्य: Keep all flammable materials away from the sauna. Do not place towels or clothing directly on heating elements.

Image 2: Electrical requirements for the sauna, illustrating a standard 15 Amp, 120V outlet and a corresponding circuit breaker. It emphasizes the need for a dedicated line.

१. सेटअप आणि असेंब्ली

The Maxxus MX-K206-01 sauna is designed for straightforward assembly. It consists of several pre-fabricated panels that connect easily. It is recommended to assemble the sauna in its final desired location due to its weight (approximately 325 pounds).

3.1 अनपॅकिंग आणि तपासणी

• Carefully unpack all components and inspect for any shipping damage. Report any issues immediately.
• पॅकिंग यादीत सूचीबद्ध केलेले सर्व भाग उपस्थित असल्याची खात्री करा.

3.2 असेंब्ली टप्पे

1. बेस प्लेसमेंट: Position the sauna base on a level, stable surface.
2. Wall Panel Connection: Connect the wall panels using the integrated clips or latches. Ensure a secure and flush fit for all panels.
3. छताची स्थापना: Carefully place the roof panel onto the assembled walls, ensuring all electrical connections for lighting and controls are properly aligned and secured.
4. दरवाजा बसवणे: Attach the tempered glass door. The door comes pre-hinged and requires minimal installation.
5. अंतर्गत घटक: Install the benches and any other interior accessories.
6. इलेक्ट्रिकल कनेक्शन: Plug the sauna into a dedicated 15 Amp, 120V electrical outlet. Avoid using extension cords.

Image 3: A detailed exterior view of the sauna, showcasing the quality of the Canadian Hemlock wood and the panel construction.

4. ऑपरेटिंग सूचना

Your Maxxus MX-K206-01 sauna features an intuitive control panel for easy operation.

4.1 नियंत्रण पॅनेल ओव्हरview

The control panel allows you to manage temperature, session duration, and lighting. It typically includes:

• पॉवर बटण: To turn the sauna on/off.
• Temperature Display/Controls: Adjust the desired temperature (up to 150°F).
• Timer Display/Controls: Set the duration of your sauna session.
• प्रकाश नियंत्रणे: Manage interior and exterior lighting, including chromotherapy options.
• ऑडिओ नियंत्रणे: For MP3 auxiliary input and speakers.

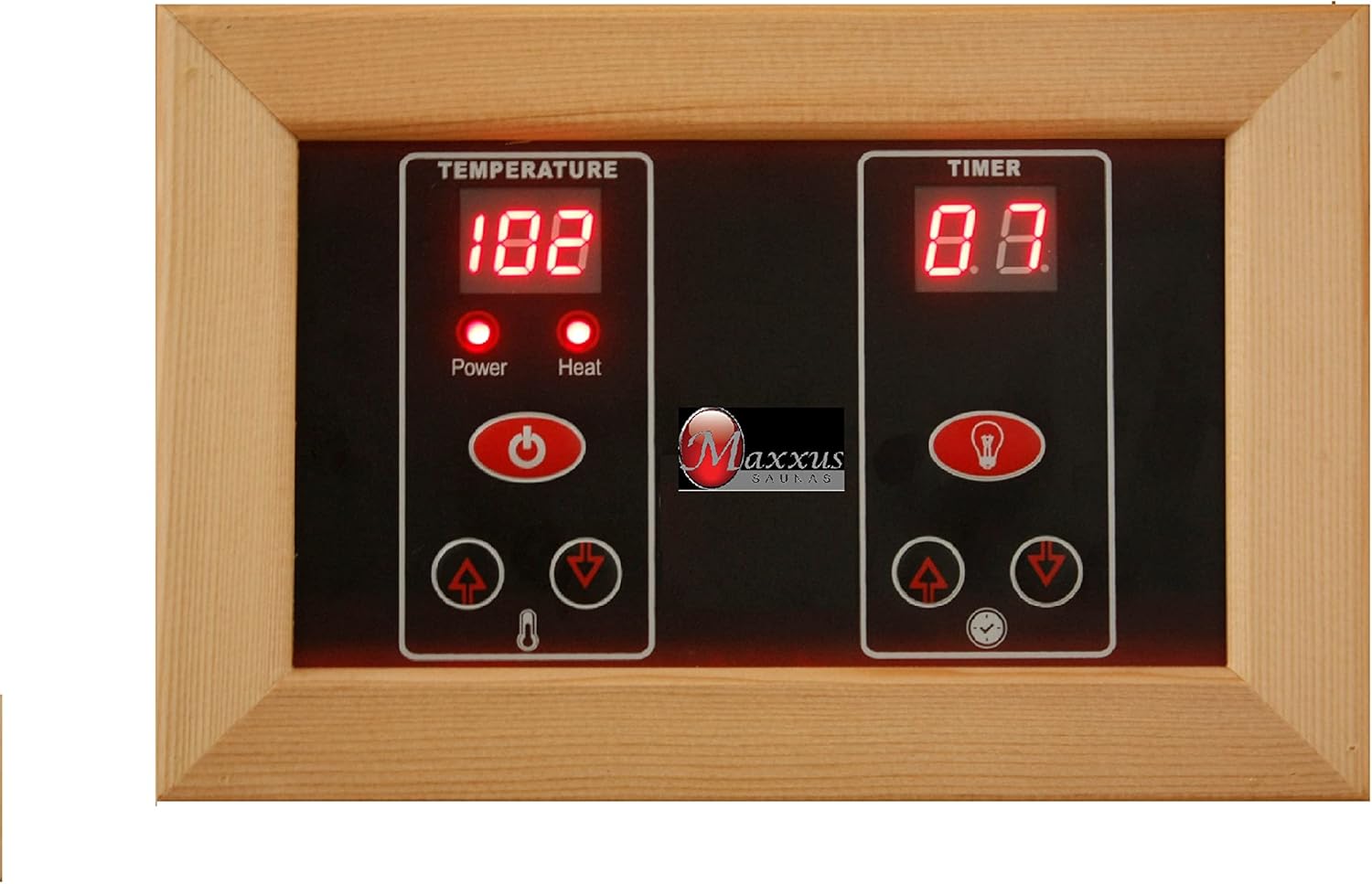

Image 4: The digital control panel, displaying temperature and timer settings. This panel allows users to easily adjust sauna parameters.

६.२ सत्र सुरू करणे

1. दाबा शक्ती button to turn on the sauna.
2. वापरा तापमान controls to set your desired heat level. Allow 15-20 minutes for the sauna to preheat.
3. Set your preferred session duration using the टाइमर नियंत्रणे.
4. समायोजित करा क्रोमोथेरपी लाइटिंग to your preference using the light controls.
5. Connect your device to the MP3 auxiliary input for music through the built-in speakers.
6. Enter the sauna and enjoy your session.

Image 5: The spacious interior of the sauna, featuring wooden benches and multiple infrared heating panels for comprehensive heat distribution.

5. देखभाल

Regular maintenance ensures the longevity and hygiene of your sauna.

• स्वच्छता: After each use, wipe down the interior surfaces with a hot, steamy towel. For deeper cleaning, use a mild, non-toxic wood cleaner. Avoid harsh chemicals or abrasive materials.
• लाकडाची काळजी: The Canadian Hemlock wood is naturally durable. Avoid excessive moisture or direct water contact to prevent warping or damage.
• वायुवीजन: Ensure proper ventilation around the sauna to prevent moisture buildup.
• Heater Panels: Do not touch the heater panels directly during operation. Keep them free from obstructions.

प्रतिमा ३.२: सविस्तर view of one of the infrared carbon heating panels, which are crucial for the sauna's therapeutic heat.

6. समस्या निवारण

If you encounter issues with your sauna, refer to the following common problems and solutions:

• Sauna Does Not Power On:
  • Check if the power cord is securely plugged into the dedicated 15 Amp, 120V outlet.
  • आउटलेटचा सर्किट ब्रेकर ट्रिप झाला नाही याची खात्री करा.
  • Ensure all internal wiring connections made during assembly are secure.
• Sauna Not Heating:
  • Confirm the temperature setting is above the current internal temperature.
  • Allow sufficient preheating time (15-20 minutes).
  • Check if any heating panels appear damaged or are not emitting heat.
• दिवे काम करत नाहीत:
  • Ensure the light controls on the panel are activated.
  • Check the connections for the interior and exterior lights.

या उपाययोजना करूनही समस्या कायम राहिल्यास, कृपया ग्राहक समर्थनाशी संपर्क साधा.

7. तपशील

8. हमी आणि समर्थन

8.1 हमी माहिती

Please refer to the manufacturer's official warranty documentation included with your purchase for detailed information regarding coverage, terms, and conditions. Keep your proof of purchase for warranty claims.

8.2 ग्राहक समर्थन

For any questions, technical assistance, or service requests, please contact DYNAMIC SAUNAS Customer Support. Contact details can typically be found in your product packaging or on the official DYNAMIC SAUNAS webसाइट
