1. परिचय
Thank you for choosing the OMTech 100W Laser Power Supply. This digital power supply is designed to provide stable and efficient power to your 80W, 90W, or 100W CO2 laser tube, ensuring optimal performance for your laser engraving and cutting machines. It features a real-time LCD display for convenient monitoring and incorporates dual fault protection for enhanced safety and extended lifespan.

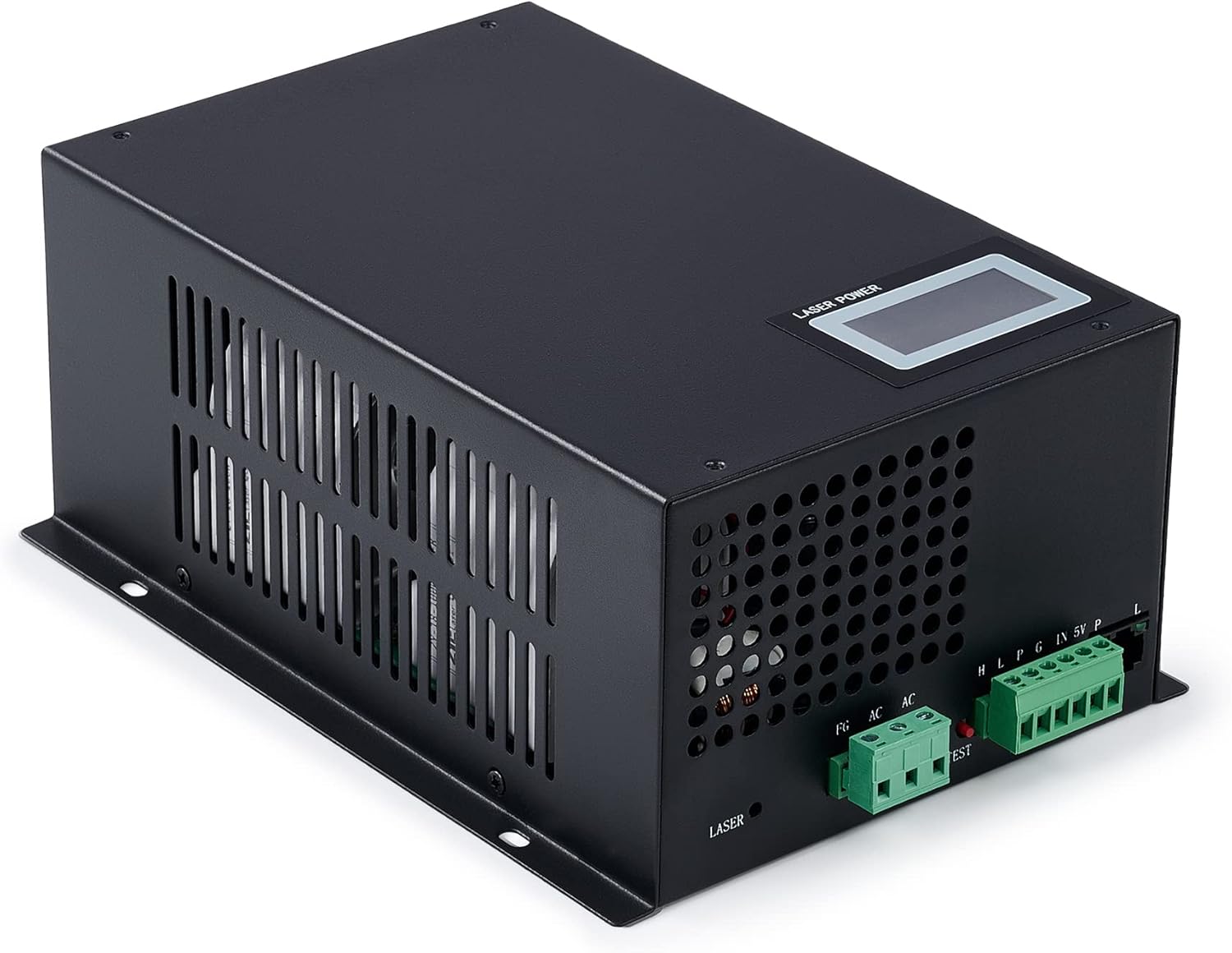

Figure 1: OMTech 100W Laser Power Supply
This manual provides detailed instructions for the safe and effective installation, operation, and maintenance of your new laser power supply. Please read it thoroughly before use and keep it for future reference.
2. सुरक्षितता खबरदारी
Always observe the following safety guidelines to prevent injury or damage to the equipment:
- विद्युत सुरक्षा: Ensure the power supply is properly grounded. Do not operate with wet hands or in damp environments. Disconnect power before performing any maintenance or installation.
- उच्च खंडtage: हे उपकरण उच्च व्हॉल्यूमसह कार्य करतेtage. Only qualified personnel should perform installation and troubleshooting. Never touch internal components when the unit is powered.
- वायुवीजन: Ensure adequate ventilation around the power supply to prevent overheating. Do not block ventilation openings.
- सुसंगतता: Use only with compatible CO2 laser tubes (80W-100W) as specified. Using an incompatible laser tube may cause damage.
- संरक्षण वैशिष्ट्ये: The unit includes overcurrent and short-circuit protection. Do not attempt to bypass or modify these safety features.
Figure 2: Dual Protection features, including short-time open-circuit protection and 130% overcurrent protection, designed to extend the service life of your CO2 laser engraver.
3. उत्पादनाची वैशिष्ट्ये
The OMTech 100W Laser Power Supply is engineered for reliability and performance:
- उच्च कार्यक्षमता: Delivers greater than 90% efficiency with fast sub-1ms response times. Designed for an average service life of 30,000 hours.
- Real-Time LCD Display: Provides immediate feedback on output current (amperage), laser status, and water protection system status for easy monitoring.
- Dual Fault Protection: Features a robust protection circuit and durable enclosure to handle overcurrents up to 130% and short-time open-circuit faults, extending the unit's lifespan.
- विस्तृत सुसंगतता: Seamlessly integrates with any 80W to 100W CO2 laser system, including those from OMTech and other manufacturers.
- Exceptional Endurance: Rigorously tested to withstand 12 hours of full load at 140°F, 2 hours of 3D motion testing, and 500 start/stop cycles in 7 seconds.
Figure 3: Performance metrics highlighting the 30,000+ hour service life, 2-hour anti-knock test, 140°F full load test, and 7-second start/stop test.
आकृती 4: क्लोज-अप view of the real-time LCD display, showing current output, water protection status, and laser signal status.
4. सेटअप आणि स्थापना
Follow these steps for proper installation of your laser power supply:
- माउंटिंग: Securely mount the power supply in a well-ventilated area, away from excessive heat or moisture. Ensure all mounting points are stable.
- वायरिंग कनेक्शन: Each connection port is clearly labeled for straightforward wiring. Refer to the diagram below for proper connections to your laser tube, control board, and power source. Ensure all connections are tight and secure.
- ग्राउंडिंग: Verify that the power supply and your laser machine are properly grounded to prevent electrical hazards.
- Water Protection System: Connect your laser machine's water protection system to the designated port on the power supply. This is crucial for preventing damage to the laser tube from overheating.
- पॉवर चालू: Once all connections are verified, connect the power supply to a suitable electrical outlet.

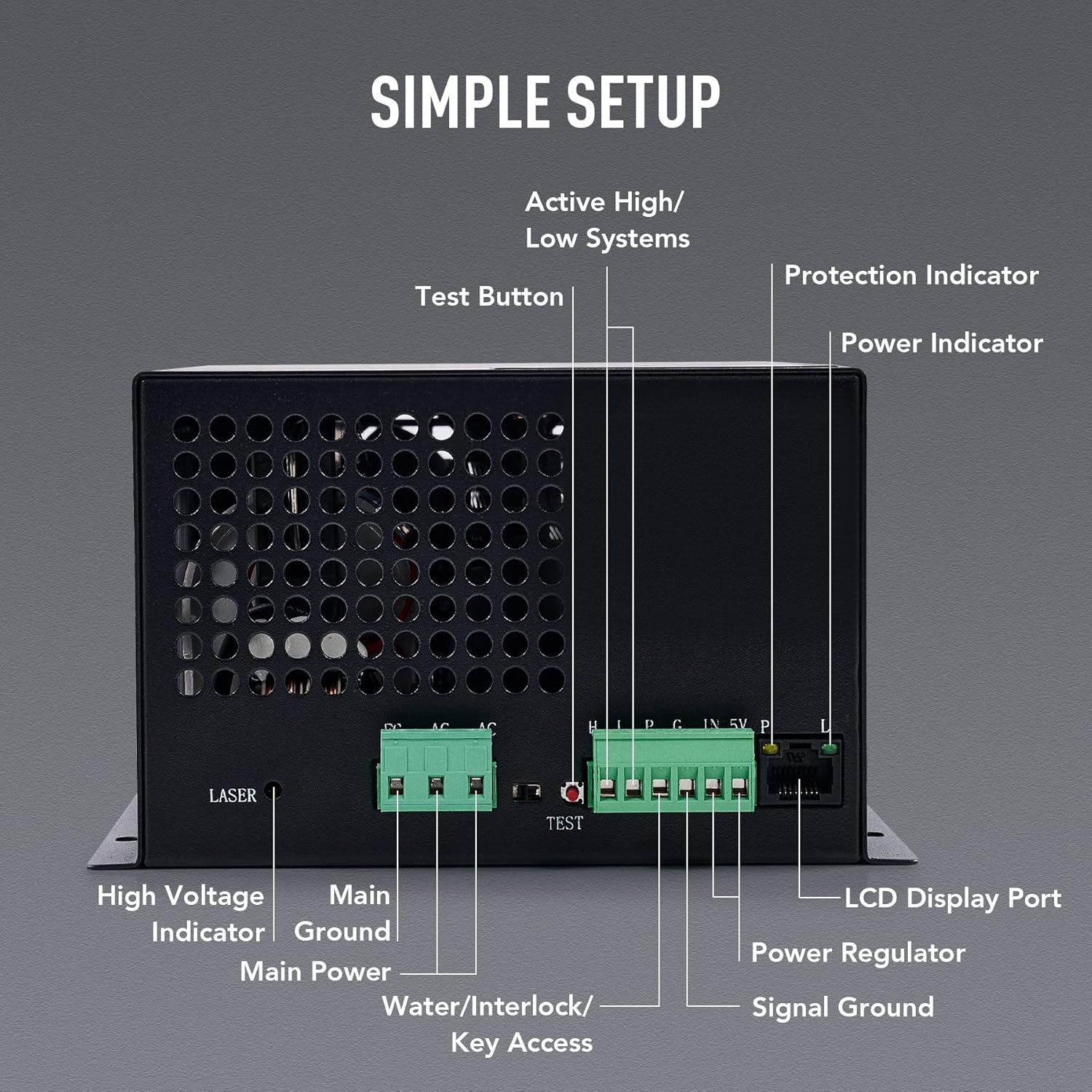

Figure 5: Detailed diagram showing clearly labeled connection ports for simple setup, including High Voltage Indicator, Main Ground, Main Power, Water/Interlock/Key Access, Test Button, Protection Indicator, Power Indicator, Power Regulator, Signal Ground, and LCD Display Port.
5. ऑपरेशन
Operating the OMTech 100W Laser Power Supply is intuitive:
- पॉवर चालू/बंद: Use the main power switch on your laser machine or the power supply (if equipped) to turn the unit on or off.
- Monitoring with LCD: The integrated LCD display will show the real-time output current (in mA), the status of the water protection system (ON/OFF), and the laser signal status (ON/OFF). Monitor these readings during operation to ensure proper functioning.
- शक्ती समायोजित करणे: Laser power is typically controlled via your laser machine's software or control panel, which sends a signal to the power supply. Refer to your laser machine's manual for specific power adjustment procedures.
- चाचणी बटण: A 'TEST' button is provided on the power supply for quick verification of laser output. Use this button cautiously and only when the laser path is clear and safe.
6. देखभाल
Regular maintenance ensures the longevity and optimal performance of your power supply:
- स्वच्छता: Periodically clean the exterior of the power supply with a dry, soft cloth. Ensure ventilation grilles are free from dust and debris to maintain proper airflow. साफसफाई करण्यापूर्वी नेहमी वीज खंडित करा.
- कनेक्शन तपासणी: Regularly inspect all electrical connections for tightness and signs of wear or corrosion. Re-tighten any loose connections.
- पर्यावरणीय परिस्थिती: Operate the power supply within its specified environmental conditions (temperature, humidity) to prevent premature failure.
- व्यावसायिक तपासणी: For any internal issues or complex repairs, consult a qualified technician. Do not attempt to open the unit or perform internal repairs yourself.
7. समस्या निवारण
If you encounter issues with your OMTech 100W Laser Power Supply, refer to the following common problems and solutions:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| पॉवर नाही/युनिट चालू होत नाही | Loose power connection, faulty power outlet, internal fuse blown. | Check power cable, test outlet, inspect fuse (if accessible and safe, otherwise contact support). |
| लेझर फायरिंग नाही | Water protection error, laser signal issue, faulty laser tube, loose connections. | Check LCD for water protection status. Verify laser signal from control board. Inspect laser tube. Ensure all wiring is secure. |
| Low laser output | Incorrect power settings, aging laser tube, power supply malfunction. | Adjust power settings in software. Consider laser tube replacement if old. Contact support if issue persists. |
| जास्त गरम होणे | Poor ventilation, excessive load, fan malfunction. | Ensure clear airflow around unit. Reduce load if possible. Check fan operation. |
If the problem persists after attempting these solutions, please contact OMTech customer support for further assistance.
8. तांत्रिक तपशील
Below are the detailed technical specifications for the OMTech 100W Laser Power Supply:
Figure 6: Visual representation of the technical specifications table.
| तपशील | मूल्य |
|---|---|
| रेटेड पॉवर | 100W |
| इनपुट पॉवर | 110V AC |
| इनपुट एसी वारंवारता | 47-440Hz |
| कमाल. आउटपुट व्हॉल्यूमtage | 28 kV DC |
| कमाल आउटपुट वर्तमान | 30 mA |
| Est. Service Life (MTTF) | 30,000 तास |
| कमाल प्रतिसाद वेळ | 1 मिलीसेकंद |
| Min. High-Level Voltage | 3.0V |
| Max. Low-Level Voltage | 0.8V |
| कमाल ओव्हरकरंट संरक्षण | 130% |
| ओपन-सर्किट संरक्षण | Short Time |
| कूलिंग सिस्टम | Forced-Air Cooling (FAC) |
| Start/Stop Testing | 500x in 7 sec. |
| परिमाण | 9.1 × 6.3 × 3.6 in. (23×16.1×9.1 cm) |
| निव्वळ वजन | 6.2 पौंड (2.8 किलो) |
9. हमी आणि समर्थन
OMTech products are backed by a comprehensive warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official OMTech website. Our dedicated customer support team is available to assist you with any questions or issues you may encounter.
संपर्क माहिती:
- Webसाइट: www.omtechlaser.com
- ईमेल: Refer to your product documentation for support email.
- फोन: Refer to your product documentation for support phone number.
When contacting support, please have your product model number (RYGEL-LPSD100) and purchase date ready.
