Champion Power Equipment 6875/5500-Watt Dual Fuel Portable Generator with CO Shield (Model 201085) User Manual

1. परिचय

This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your Champion Power Equipment 6875/5500-Watt Dual Fuel Portable Generator, Model 201085. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.

This generator is designed to provide reliable power using either gasoline or propane, featuring a 389cc Champion engine and CO Shield technology for enhanced safety.

Image 1.1: The Champion Power Equipment 6875/5500-Watt Dual Fuel Portable Generator.

2. सुरक्षितता माहिती

WARNING: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Using a generator indoors CAN KILL YOU IN MINUTES.

• फक्त बाहेरचा वापर: Always operate the generator outdoors in a well-ventilated area, far away from windows, doors, and vents of occupied buildings. Direct exhaust away from people and buildings.
• CO Shield Technology: This generator is equipped with CO Shield technology, which monitors carbon monoxide (CO) accumulation. If unsafe elevated levels of CO gas are detected, the engine will automatically shut off. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation.
• इंधन सुरक्षा: Gasoline is highly flammable. Store fuel in approved containers in a well-ventilated area. Do not refuel a hot or running engine. Propane tanks must be secured and stored outdoors.
• विद्युत सुरक्षा: Do not operate the generator in wet conditions. Ensure all electrical connections are secure and properly grounded. Use GFCI-protected outlets when available.
• Read All Warnings: Familiarize yourself with all safety decals on the generator and in this manual.

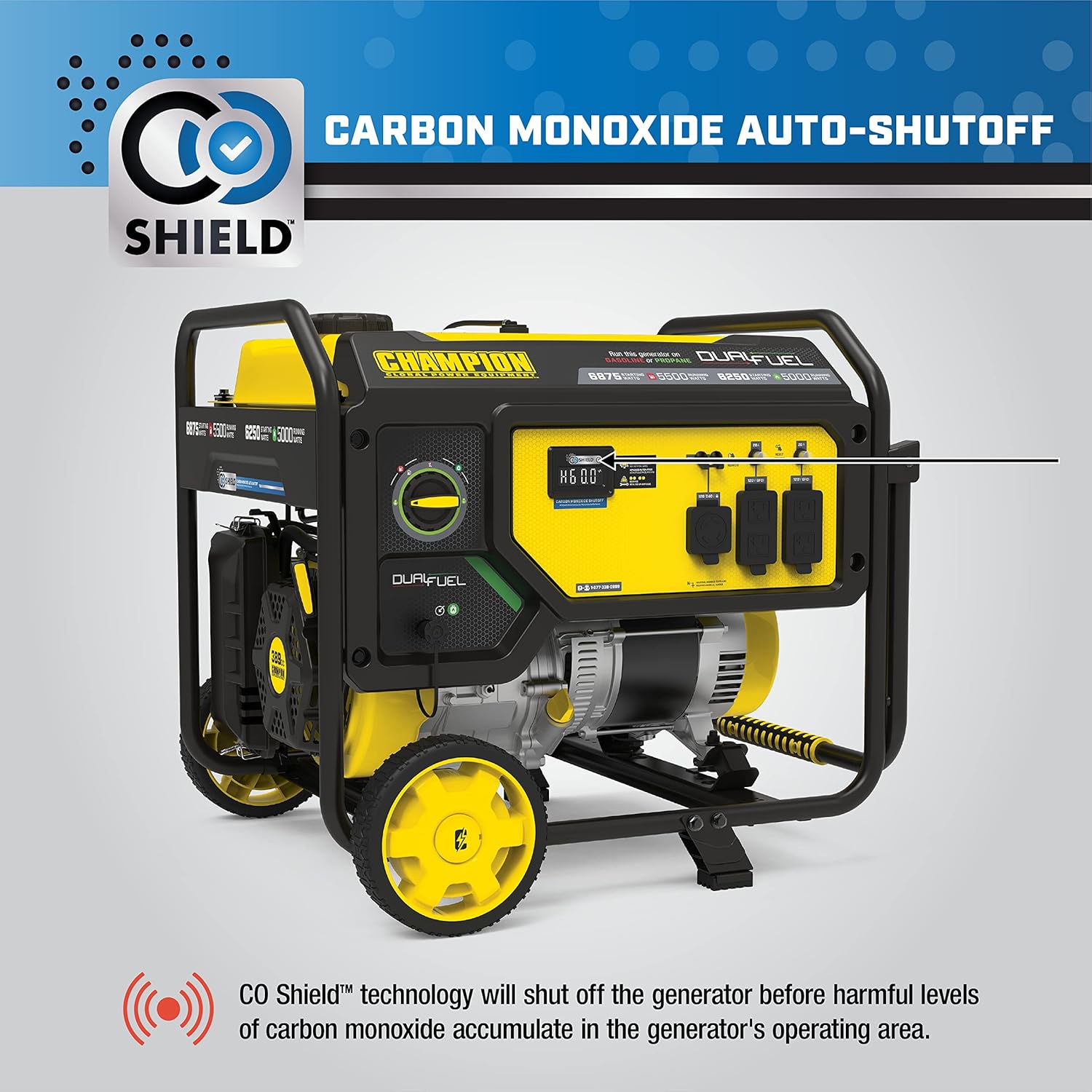

Image 2.1: The CO Shield feature provides automatic carbon monoxide auto-shutoff for safety.

3. पॅकेज सामग्री

आपले छampion Power Equipment generator package includes the following items:

• Champion 6875/5500-Watt Dual Fuel Portable Generator
• Engine Oil (1.2 quarts of 10W-30)
• Propane (LPG) Hose with Regulator (6.5 feet)
• Wheel Kit (for assembly)
• तेल फनेल
• Spark Plug Wrench (not explicitly listed but typically included)

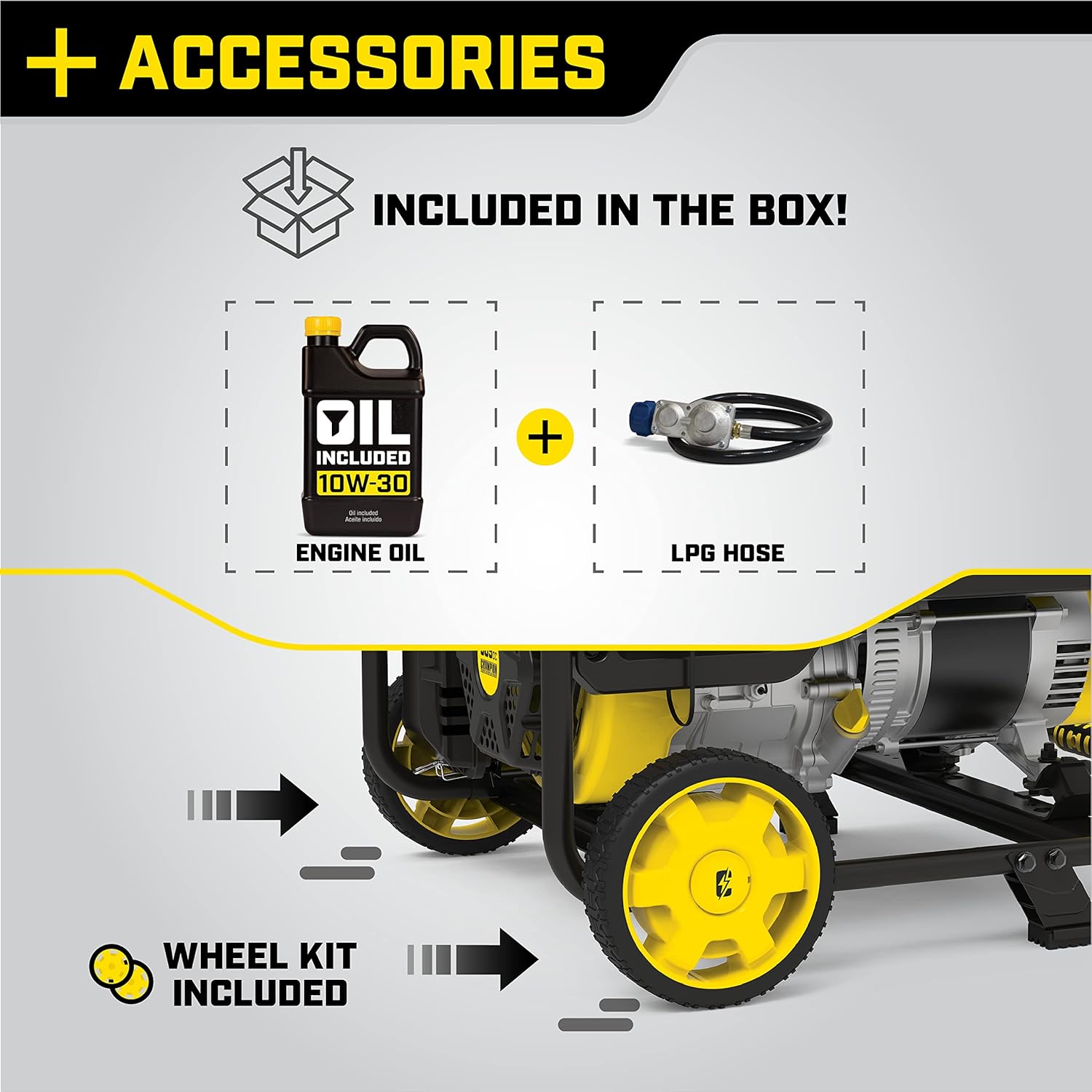

Image 3.1: Included accessories for your generator.

4. सेटअप

4.1 विधानसभा

1. चाके संलग्न करा: Securely attach the wheels to the generator frame using the provided hardware.
2. आधार देणारे पाय जोडा: Install the support legs to ensure stability.
3. हँडल संलग्न करा: Assemble the handle for easy portability.

4.2 Add Engine Oil

The generator is shipped without engine oil. It is crucial to add the correct amount and type of oil before first use.

1. जनरेटर एका सपाट पृष्ठभागावर ठेवा.
2. ऑइल फिल कॅप/डिपस्टिक काढा.
3. Using the included funnel, slowly pour the entire 1.2 quarts of 10W-30 engine oil into the crankcase.
4. ऑइल फिल कॅप/डिपस्टिक पुन्हा बसवा आणि सुरक्षितपणे घट्ट करा.

4.3 Fueling Options

This generator operates on either gasoline or propane.

• गॅसोलीन: Use unleaded gasoline with an octane rating of 87 or higher. Do not use E85 or mixed fuels. Fill the 7.7-gallon fuel tank carefully, avoiding overfilling.
• प्रोपेन (एलपीजी): Connect the provided propane hose to a standard 20-pound (or larger) propane tank and to the generator's propane inlet. Ensure all connections are tight.

Image 4.1: Key features including dual fuel selection and power outlets.

5. ऑपरेटिंग सूचना

5.1 नियंत्रण पॅनेल ओव्हरview

Image 5.1: The generator's control panel, showing the fuel select dial, Intelligauge display, CO Shield indicator, circuit breakers, and various outlets.

• Fuel Select Dial: Allows switching between gasoline and propane.
• बुद्धिमत्ता: व्हॉल्यूम प्रदर्शित करतेtage, frequency, and run-time hours.
• CO Shield Indicator: LED light indicates CO shutoff or fault.
• आउटलेट: Includes one 120/240V 30A locking outlet (L14-30R) and four 120V 20A GFCI protected household outlets (5-20R). All outlets have covers for protection.
• सर्किट ब्रेकर: Protect against overloads.

५.२ जनरेटर सुरू करणे

1. Ensure the generator is on a level surface and all electrical loads are disconnected.
2. इंधन निवडा: Turn the fuel select dial to either 'Gasoline' or 'Propane'.
3. चोक: Move the choke lever to the 'Choke' position (if the engine is cold).
4. प्रारंभ: Pull the recoil start handle firmly and steadily until the engine starts.
5. Choke (Warm-up): Once the engine starts, slowly move the choke lever to the 'Run' position.
6. Allow the engine to run for a few minutes to warm up before connecting electrical loads.

५.३ विद्युत भार जोडणे

Once the generator is running smoothly, you can connect your appliances or tools to the appropriate outlets. Do not exceed the generator's running wattage capacity (5500W on gasoline, 5000W on propane).

Image 5.2: The generator provides power for various applications, such as remote work sites.

6. देखभाल

Regular maintenance ensures the longevity and reliable performance of your generator.

6.1 देखभाल वेळापत्रक

• प्रत्येक वापरापूर्वी: Check engine oil level, inspect air filter, check fuel level, inspect for loose hardware.
• पहिले ५ तास: इंजिन तेल बदला.
• Every 50 Hours or Annually: Change engine oil, clean air filter, inspect spark plug, inspect fuel filter.
• Every 100 Hours or Annually: Clean spark arrestor, inspect valve clearance (recommended by qualified technician).

१७.३ इंजिन ऑइल बदलणे

1. Run the engine for a few minutes to warm the oil, then shut it off.
2. तेल काढून टाकण्याच्या प्लगखाली एक काढून टाकण्याचे पॅन ठेवा.
3. Remove the oil drain plug and oil fill cap/dipstick to allow oil to drain completely.
4. ऑइल ड्रेन प्लग पुन्हा स्थापित करा.
5. Add 1.2 quarts of fresh 10W-30 engine oil.
6. Reinstall the oil fill cap/dipstick.

५.१ एअर फिल्टर साफ करणे

A dirty air filter can reduce engine performance and lifespan.

1. एअर फिल्टर कव्हर काढा.
2. फोम फिल्टर घटक काढा.
3. Wash the foam element in warm, soapy water, then rinse thoroughly.
4. Squeeze out excess water and allow to air dry completely.
5. Lightly apply engine oil to the foam, then squeeze out excess oil.
6. Reinstall the foam element and air filter cover.

५.८.१ स्टोरेज

For extended storage, prepare the generator as follows:

• Drain the gasoline from the fuel tank and carburetor, or add a fuel stabilizer.
• Disconnect the propane tank.
• इंजिन तेल बदला.
• Remove the spark plug and pour a small amount of engine oil into the cylinder. Pull the recoil cord a few times to distribute the oil, then reinstall the spark plug.
• जनरेटरचा बाहेरील भाग स्वच्छ करा.
• स्वच्छ, कोरड्या, हवेशीर जागेत साठवा.

7. समस्या निवारण

हा विभाग तुमच्या जनरेटरमध्ये येणाऱ्या सामान्य समस्यांचे निराकरण करतो.

8. तपशील

Detailed technical specifications for the Champion Power Equipment Model 201085 generator:

• मॉडेल: 201085
• Starting Watts (Gasoline): 6875 वॅट्स
• Running Watts (Gasoline): 5500 वॅट्स
• Starting Watts (Propane): 6250 वॅट्स
• Running Watts (Propane): 5000 वॅट्स
• इंधन प्रकार: Gasoline, Propane (Dual Fuel)
• इंजिन विस्थापन: 389cc (4-Stroke)
• इंधन टाकी क्षमता: 7.7 गॅलन
• तेल क्षमता: 1.2 Quarts (10W-30)
• आउटलेट: 1x 120/240V 30A Locking (L14-30R), 4x 120V 20A GFCI (5-20R)
• विशेष वैशिष्ट्ये: CO Shield, Volt Guard, Intelligauge
• आयटम वजन: 165 पाउंड
• उत्पादन परिमाणे: ११"ले x ४"प x १३"ह
• UPC: 817198024950

Image 8.1: Physical dimensions and weight of the generator.

9. हमी आणि समर्थन

Champion Power Equipment stands behind its products with comprehensive support.

9.1 हमी माहिती

This generator comes with a 3 वर्षांची मर्यादित वॉरंटी. This warranty covers defects in material and workmanship under normal use and maintenance. Please refer to the warranty card included with your product for full terms and conditions.

Image 9.1: The generator is backed by a 3-year limited warranty.

9.2 तांत्रिक सहाय्य

Champion Power Equipment offers FREE lifetime technical support from dedicated experts. For assistance, please contact Champion Support through their official website or customer service line. Have your model number (201085) and serial number ready when contacting support.

For additional resources and product registration, visit the Champआयन पॉवर इक्विपमेंट स्टोअर.
