Symphony Ventus 50 Evaporative Air Cooler User Manual

1. परिचय

Thank you for choosing the Symphony Ventus 50 Evaporative Air Cooler. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new air cooler. Please read this manual thoroughly before using the appliance and keep it for future reference.

Image: The Symphony Ventus 50 Evaporative Air Cooler, demonstrating its cooling airflow.

2. सुरक्षितता सूचना

आग, विजेचा धक्का किंवा दुखापत होण्याचा धोका कमी करण्यासाठी, नेहमी या मूलभूत खबरदारींचे पालन करा:

• हे उपकरण वापरण्यापूर्वी सर्व सूचना वाचा.
• वीज पुरवठा व्हॉल्यूमशी जुळत असल्याची खात्री कराtage उपकरणाच्या रेटिंग लेबलवर निर्दिष्ट केले आहे.
• खराब झालेल्या कॉर्ड किंवा प्लगने कूलर चालवू नका.
• उपकरण, कॉर्ड किंवा प्लग पाण्यात किंवा इतर द्रवांमध्ये बुडवू नका.
• पाण्याची टाकी भरण्यापूर्वी किंवा रिकामी करण्यापूर्वी, साफसफाई करण्यापूर्वी किंवा कोणतीही देखभाल करण्यापूर्वी उपकरण नेहमी अनप्लग करा.
• उपकरणाला उष्णतेच्या स्त्रोतांपासून आणि थेट सूर्यप्रकाशापासून दूर ठेवा.
• एअर इनलेट किंवा आउटलेट ब्लॉक करू नका.
• हे उपकरण फक्त घरातील वापरासाठी आहे.
• मुले उपकरणाशी खेळत नाहीत याची खात्री करण्यासाठी त्यांचे निरीक्षण करा.

3. उत्पादनाची वैशिष्ट्ये

The Symphony Ventus 50 Evaporative Air Cooler is designed to provide efficient and comfortable cooling. Key features include:

• 3 फॅन स्पीड: Adjust airflow to your preference.
• High-Efficiency Filter: Ensures cleaner air output.
• Automatic Swing Oscillation: Distributes cool air evenly across the room.
• बर्फाचा डबा: वाढत्या कूलिंग कामगिरीसाठी.
• बहु-दिशात्मक चाके: For easy portability and movement.
• केबल स्टोरेज: Conveniently store the power cord.
• मोठ्या पाण्याच्या टाकीची क्षमता: 50 liters for extended operation.
• मॅन्युअल ऑपरेशन: Simple and intuitive controls.
• कमी उर्जा वापर: Operates at 105 Watts.

Image: The cooler's efficiency, consuming 105 Watts and covering up to 20 square meters.

Image: The cooler's design allows for personal cooling and easy portability with adjustable grilles.

4. सेटअप

Setting up your Symphony Ventus 50 is simple. Follow these four easy steps for optimal performance:

1. पाणी घाला: Fill the water tank with clean water. The tank has a 50-liter capacity. You can monitor the water level using the indicator.
2. वीज कनेक्ट करा: Plug the cooler into a standard 110V, 60Hz electrical outlet.
3. विंडोज उघडा: For best results, ensure a door or window is open to allow for cross-ventilation. This is crucial for evaporative coolers to work effectively.
4. Enjoy Fresh Air: Turn on the cooler and select your desired fan speed.

Image: Visual guide for the quick setup process of the air cooler.

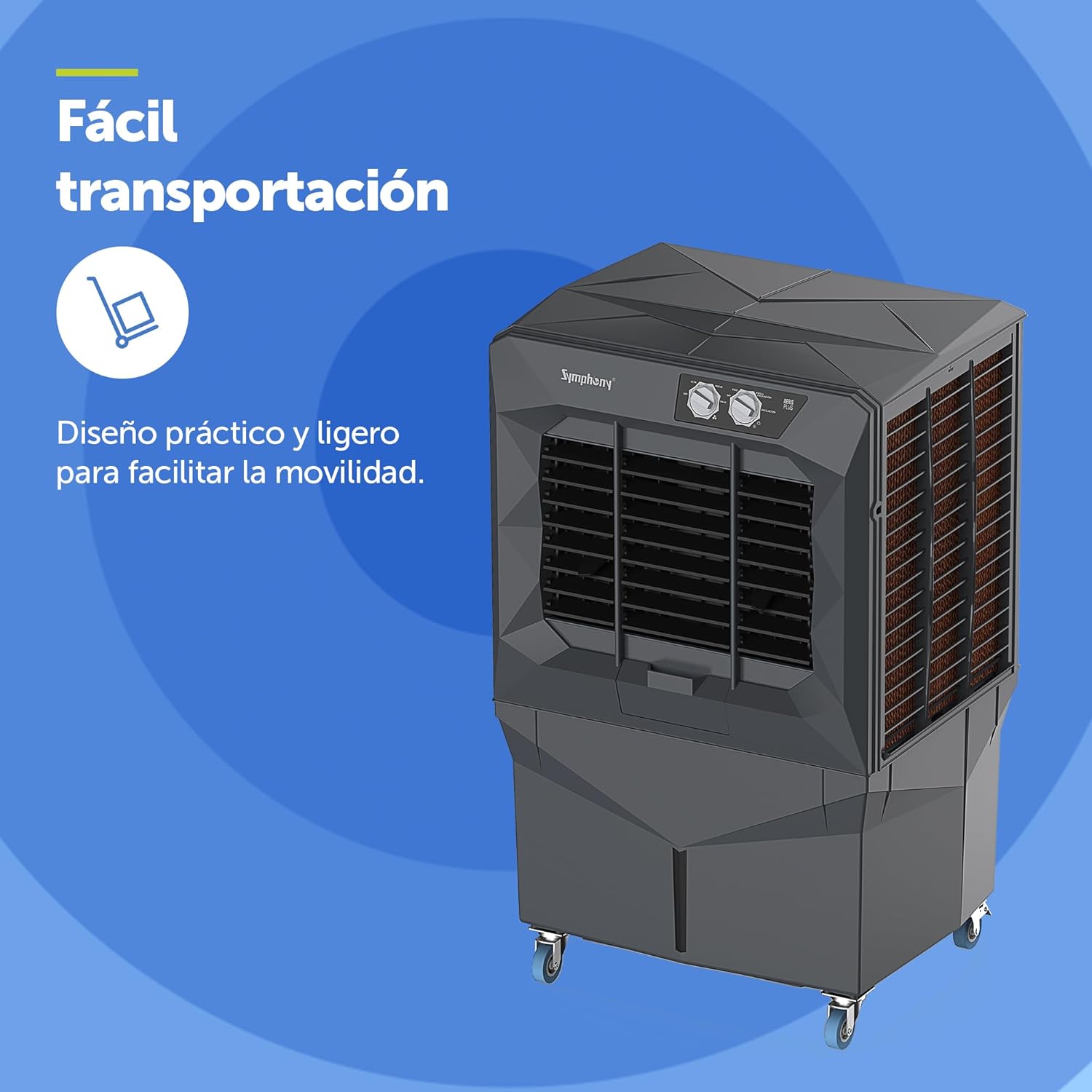

Image: The cooler features a practical and lightweight design with multi-directional wheels for easy mobility.

Image: Detail of the 50-liter water tank and its visible water level indicator.

5. ऑपरेशन

The Symphony Ventus 50 operates manually, providing straightforward control over your cooling experience.

• पॉवर चालू/बंद: Use the main power knob to turn the unit on or off.
• पंख्याचा वेग नियंत्रण: Select from 3 available fan speeds (Low, Medium, High) using the dedicated knob to adjust the airflow intensity.
• दोहन ​​कार्य: Activate the automatic swing oscillation feature to ensure cool air is distributed widely across your space.
• Ice Compartment Usage: For enhanced cooling, add ice cubes to the designated ice compartment. This will further lower the air temperature.

Image: Illustration of how the cooler transforms hot, dry air into a fresh breeze.

Image: The effective air flow through oscillation, covering a wide area of 20 square meters.

6. देखभाल

Regular maintenance ensures the longevity and efficient performance of your air cooler.

• पाण्याच्या टाकीची स्वच्छता: Regularly drain and clean the 50-liter water tank to prevent mold and mildew buildup. Use the drain plug for easy emptying.
• फिल्टर साफ करणे/बदलणे: The cooler is equipped with high-efficiency filters. Clean these filters periodically according to usage. Refer to the diagram for filter location.
• बाह्य स्वच्छता: मऊ सह बाह्य पृष्ठभाग पुसणे, डीamp कापड अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स वापरू नका.
• स्टोरेज: If storing the cooler for an extended period, ensure the water tank is empty and dry, and the filters are clean. Store in a cool, dry place.

Image: Key components of the evaporative air cooler, including filters, water tank, and drainage points.

7. समस्या निवारण

जर तुम्हाला तुमच्या एअर कूलरमध्ये समस्या येत असतील, तर खालील सामान्य समस्या आणि उपाय पहा:

8. तपशील

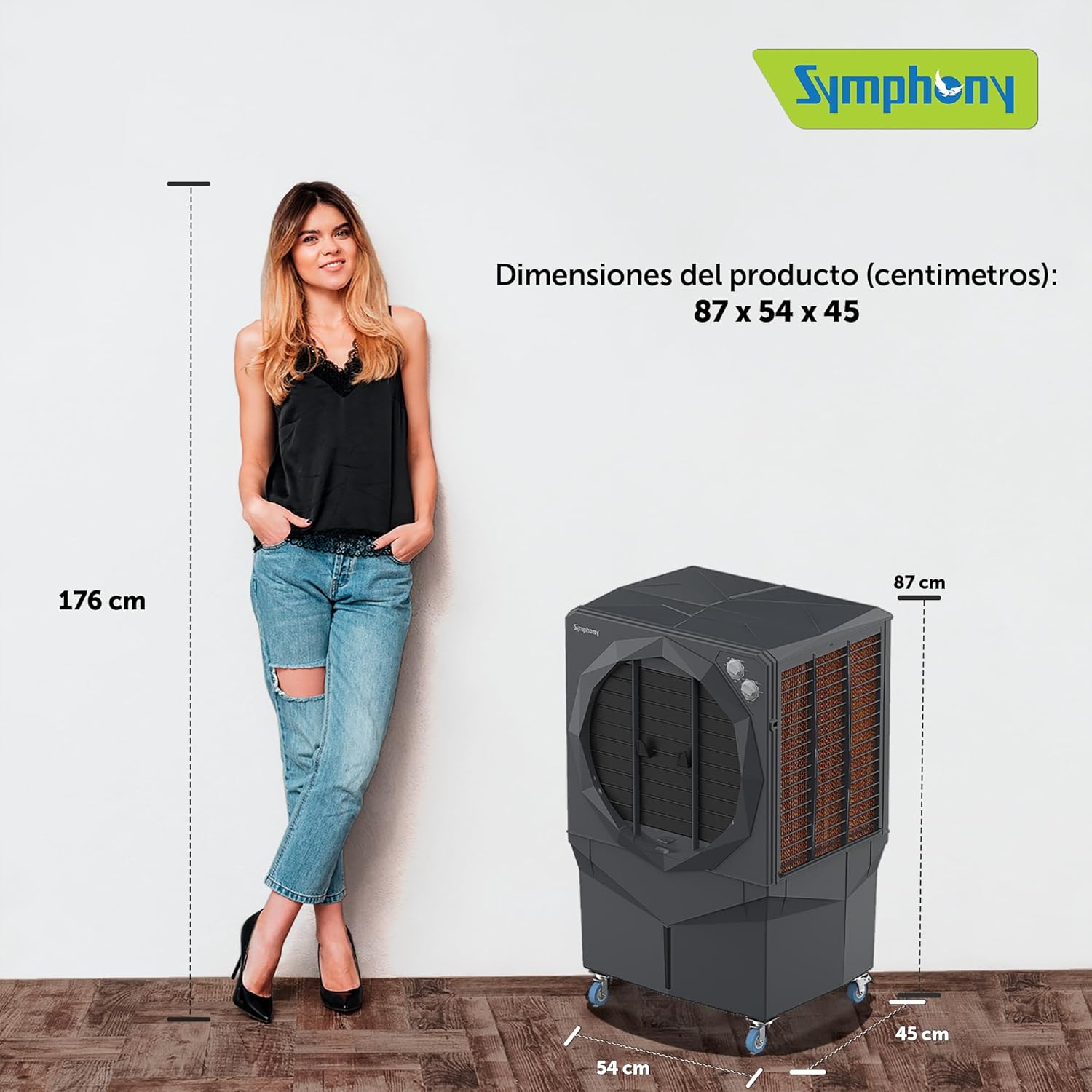

Image: Detailed product dimensions for the Symphony Ventus 50 air cooler.

9. हमी आणि समर्थन

For warranty information and customer support, please refer to the warranty card included with your product or visit the official SYMPHONY webसाइट. कोणत्याही वॉरंटी दाव्यांसाठी खरेदीचा पुरावा म्हणून तुमची खरेदी पावती ठेवा.

For further assistance, you may contact SYMPHONY customer service through their official channels.
