1. परिचय
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new Yard Force 20V 33cm Cordless Lawnmower LM C33. Please read this manual thoroughly before first use and keep it for future reference. Proper use and maintenance will ensure a long service life for your lawnmower.
Safety First: Always wear appropriate personal protective equipment (PPE) including safety glasses, sturdy footwear, and hearing protection when operating the lawnmower. Ensure the area is clear of debris and other persons before starting.
2. उत्पादन संपलेview
The Yard Force LM C33 is a lightweight and efficient cordless lawnmower designed for small to medium-sized lawns. It features a 20V Lithium-Ion battery system, a 33cm cutting width, and multiple cutting height adjustments for versatile lawn care.
Image: The Yard Force 20V 33cm Cordless Lawnmower, shown with its accompanying 4.0Ah Lithium-Ion battery and quick charger.
१. सेटअप आणि असेंब्ली
3.1 अनपॅक करणे
Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present and undamaged. Dispose of packaging materials responsibly.
3.2 विधानसभा हाताळा
- Unfold the lower handle section and secure it to the mower body using the provided bolts and knobs.
- Attach the upper handle section to the lower section, ensuring the cables are not pinched. Secure with the remaining bolts and knobs.
- Adjust the handle to a comfortable operating height if adjustable.
२.२ गवत पेटी असेंब्ली
Assemble the grass collection box according to the instructions provided in the separate grass box manual or by snapping the frame into the fabric bag. Once assembled, hook the grass box onto the rear of the mower.
3.4 Battery Charging and Insertion
- Connect the quick charger to a suitable power outlet.
- Insert the 4.0Ah Lithium-Ion battery into the charger. The charger indicator light will show the charging status. Allow the battery to fully charge before first use (approximately 60-90 minutes).
- Once charged, remove the battery from the charger. Open the battery compartment cover on the lawnmower.
- Slide the charged battery into the battery slot until it clicks securely into place. Close the battery compartment cover.
प्रतिमा: क्लोज-अप view of hands inserting the Lithium-Ion battery into the designated battery compartment of the lawnmower.
५.३ कटिंग उंची समायोजन
The LM C33 features a central cutting height adjustment lever. To adjust the cutting height:
- Ensure the mower is switched off and the battery is removed for safety.
- Locate the cutting height adjustment lever on the side of the mower deck.
- Pull the lever outwards and move it to the desired height setting. The mower offers multiple height positions to suit different lawn conditions.
- Release the lever to lock it into position. Ensure all four wheels are at the same height setting.
4. ऑपरेटिंग सूचना
4.1 Starting the Lawnmower
- बॅटरी पूर्णपणे चार्ज झाली आहे आणि योग्यरित्या घातली आहे याची खात्री करा.
- Press and hold the safety button (usually located on the handle).
- While holding the safety button, pull the bail arm lever towards the handle. The motor will start.
- Release the safety button once the motor is running. Keep the bail arm lever held to continue operation.
4.2 Stopping the Lawnmower
To stop the lawnmower, simply release the bail arm lever. The motor will immediately stop.
३.३ कापणी तंत्रे
For best results, follow these mowing tips:
- Mow when the grass is dry. Wet grass can clog the mower and lead to an uneven cut.
- Overlap each cutting pass slightly to ensure complete coverage.
- For very long grass, it is advisable to make two passes, setting the cutting height higher for the first pass and then lower for the second.
- Vary your mowing pattern each time to prevent matting and improve lawn health.

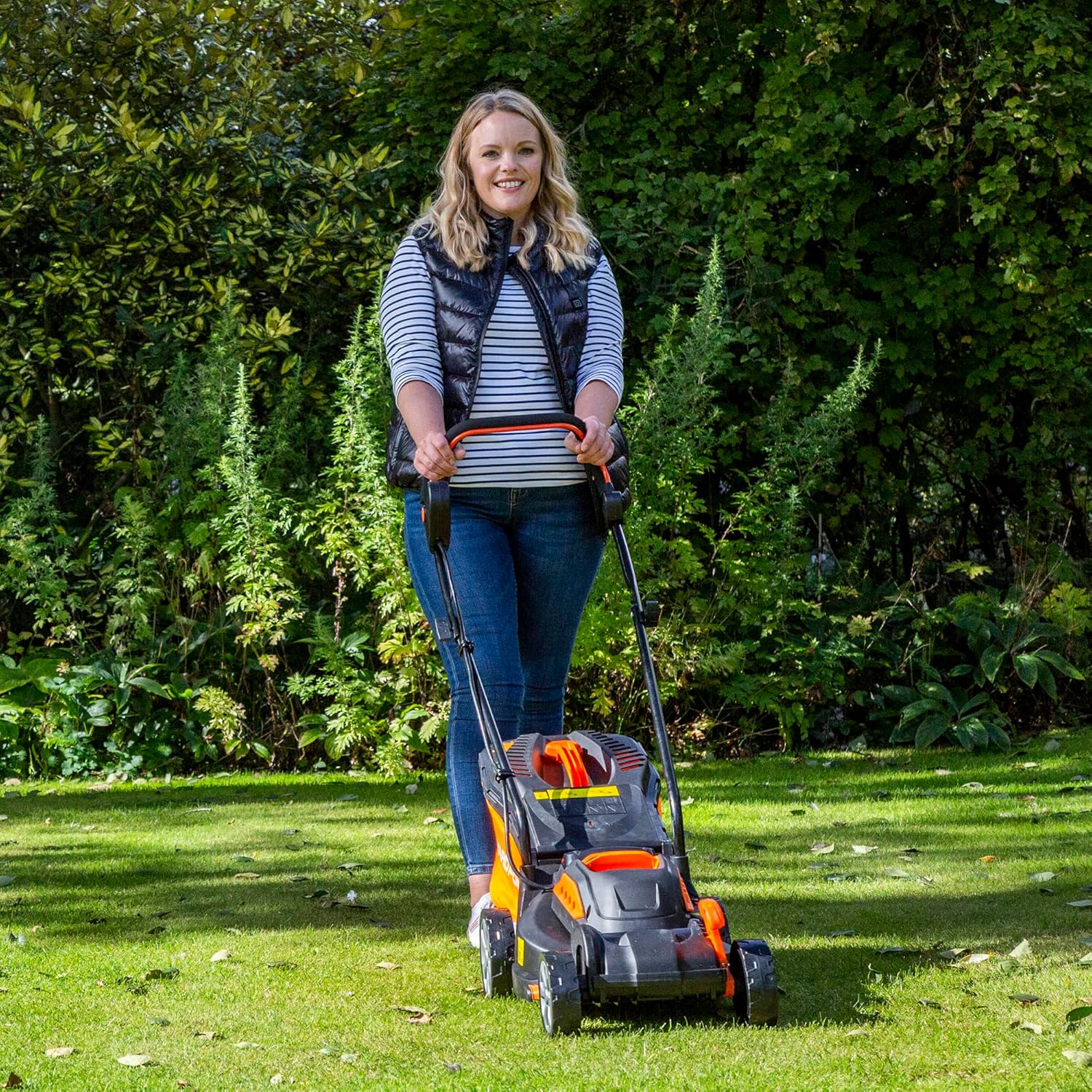

Image: A woman demonstrating the use of the Yard Force cordless lawnmower on a well-maintained lawn, showing the front view of the mower in operation.
प्रतिमा: एक बाजू view of a woman operating the Yard Force cordless lawnmower, illustrating the ergonomic handle design and maneuverability.
३.४ गवताची पेटी रिकामी करणे
Monitor the grass box fill level. When full, the mower's cutting efficiency may decrease. To empty:
- Stop the mower and remove the battery for safety.
- Lift the rear flap and unhook the grass box from the mower.
- Empty the grass clippings into a suitable compost bin or waste receptacle.
- Reattach the grass box securely before resuming operation.
5. देखभाल
Regular maintenance ensures optimal performance and extends the life of your lawnmower.
5.1 Cleaning the Lawnmower
- साफसफाई करण्यापूर्वी नेहमी बॅटरी काढून टाका.
- After each use, clean the underside of the mower deck to remove grass clippings and debris. A plastic scraper or stiff brush is recommended.
- जाहिरातीसह बाह्य पृष्ठभाग पुसून टाकाamp cloth. Do not use high-pressure water or abrasive cleaners.
- वायुवीजन स्लॉट अडथळ्यांपासून मुक्त आहेत याची खात्री करा.
४.२ ब्लेड केअर
The cutting blade should be inspected regularly for sharpness and damage. A dull or damaged blade can lead to poor cutting performance and strain the motor.
- If the blade is dull, it can be sharpened by a qualified service technician or replaced.
- If the blade is bent or cracked, it must be replaced immediately. Use only genuine Yard Force replacement blades.
- ब्लेड हाताळताना, नेहमी जड हातमोजे घाला.
५.८.१ स्टोरेज
- Before storing, ensure the mower is clean and dry.
- Remove the battery from the mower and store it in a cool, dry place, away from direct sunlight and extreme temperatures.
- The handle can be folded down for compact storage.
- Store the lawnmower in a dry, secure location, out of reach of children.
6. समस्या निवारण
This section addresses common issues you might encounter with your lawnmower.
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| मॉव्हर सुरू होत नाही | बॅटरी चार्ज झालेली नाही किंवा योग्यरित्या घातली नाही | बॅटरी पूर्णपणे चार्ज झाली आहे आणि सुरक्षितपणे घातली आहे याची खात्री करा. |
| Safety button/bail arm not engaged | Press safety button and pull bail arm simultaneously. | |
| ओव्हरलोड संरक्षण सक्रिय केले | Remove battery, clear any obstructions, wait a few minutes, then reinsert battery and restart. | |
| खराब कटिंग कामगिरी | कंटाळवाणा किंवा खराब झालेले ब्लेड | ब्लेड तीक्ष्ण किंवा पुनर्स्थित करा. |
| गवताच्या स्थितीसाठी कटिंगची उंची खूप कमी आहे | कटिंगची उंची वाढवा. | |
| Grass box full or clogged | Empty grass box and clear any blockages in the discharge chute. | |
| जास्त कंपन | खराब झालेले किंवा असंतुलित ब्लेड | Inspect blade for damage. Replace if necessary. |
| सैल घटक | Check all fasteners and tighten as needed. |
If the problem persists after attempting these solutions, please contact Yard Force customer support.
7. तपशील
| तपशील | मूल्य |
|---|---|
| मॉडेल क्रमांक | LM C33-UK |
| ब्रँड | यार्ड फोर्स |
| उत्पादन परिमाणे | 61 x 40 x 33.5 सेमी |
| आयटम वजन | 8.6 किलोग्रॅम |
| कटिंग रुंदी | 33 सेंटीमीटर |
| ऑपरेशन मोड | Manual (Push) |
| बॅटरी प्रकार | Lithium Ion (20V, 4.0Ah included) |
| भाषा | इंग्रजी |
| ASIN | B09QPS7CSC |
8. हमी आणि समर्थन
Your Yard Force LM C33 Lawnmower is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty period and coverage details. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or warranty inquiries, please contact Yard Force customer service. Contact details can typically be found on the product packaging or the official Yard Force webसाइट
Note: No official product videos from the seller were available for embedding at the time of manual creation.
