परिचय
This manual provides essential instructions for the safe and efficient operation, assembly, and maintenance of your Everdure by Heston Blumenthal Fusion 29-Inch Charcoal Grill. Please read all instructions carefully before using the grill to ensure proper function and safety.
Image: The Everdure Fusion 29-Inch Charcoal Grill, showcasing its sleek design and pedestal stand.
सुरक्षितता माहिती
Always prioritize safety when operating any charcoal grill. Failure to follow these safety guidelines may result in property damage, injury, or death.
- फक्त बाहेरचा वापर: This grill is designed for outdoor use in a well-ventilated area. Do not use indoors or in enclosed spaces.
- मंजुरी: Maintain a minimum distance of 3 feet (1 meter) from combustible materials (e.g., walls, fences, trees).
- स्थिर पृष्ठभाग: Always place the grill on a stable, level, non-combustible surface.
- मुले आणि पाळीव प्राणी: मुलांना आणि पाळीव प्राण्यांना नेहमी ग्रिलपासून दूर ठेवा, विशेषतः ऑपरेशन दरम्यान.
- गरम पृष्ठभाग: Grill surfaces become extremely hot during use. Use heat-resistant gloves and appropriate tools.
- Charcoal Handling: Use only lump charcoal or briquettes. Never use gasoline, kerosene, or alcohol to ignite charcoal.
- विद्युत सुरक्षा: Ensure the power cord is in good condition and connected to a grounded outlet. Keep the cord away from hot surfaces and water.
- अग्निशामक यंत्र: Have a fire extinguisher or a bucket of sand readily available in case of a grease fire.
- प्रस्ताव 65 चेतावणी: हे उत्पादन तुम्हाला कार्बन मोनॉक्साईडसह रसायनांच्या संपर्कात आणू शकते, जे कॅलिफोर्निया राज्याला जन्मजात दोष किंवा इतर पुनरुत्पादक हानीसाठी ओळखले जाते. अधिक माहितीसाठी येथे जा www.P65Warnings.ca.gov.
पॅकेज सामग्री
असेंब्ली सुरू करण्यापूर्वी सर्व घटक उपस्थित आहेत याची खात्री करा:
- Everdure Fusion Grill Unit
- Detachable Pedestal (if applicable)
- Hinged Chrome Grill Grate
- Weather Windshield
- Rotisserie Kit (Rotisserie Rod, 2 Cliplock Forks)
- Porcelain Enamel Charcoal Tray
- वापरकर्ता मॅन्युअल
Image: An exploded diagram illustrating the main components of the Everdure Fusion grill, including the Cliplock Forks, hinged grill rack, quick start ignition, removable charcoal tray, and detachable pedestal.
सेटअप आणि विधानसभा
Assembly is required for the Everdure Fusion Grill. Follow these steps carefully:
- अनपॅक करणे: पॅकेजिंगमधून सर्व घटक काळजीपूर्वक काढा. कोणतेही नुकसान झाले आहे का ते तपासा.
- Pedestal Assembly (Optional): If using the pedestal, attach it securely to the main grill unit according to the included hardware instructions. Ensure all connections are tight and stable. The pedestal is designed for easy attachment and detachment, offering versatility for various grilling environments.
- Charcoal Tray: Place the porcelain enamel charcoal tray into the firebox.
- ग्रिल शेगडी: Position the hinged chrome grill grate over the charcoal tray.
- Weather Windshield: Install the weather windshield as directed to protect your cooking area.
- वीज कनेक्शन: Extend the 59-inch retractable power cord and plug it into a grounded electrical outlet. Ensure the cord is not a tripping hazard and is away from heat sources.
Image: The Everdure Fusion grill shown with its removable pedestal, highlighting its adaptability for different setups.
ऑपरेटिंग सूचना
1. Fast Flame Ignition System
The Fast Flame Ignition System allows for quick charcoal ignition:
- Place your desired amount of lump charcoal or briquettes onto the charcoal tray.
- Ensure the grill grate is in place.
- Press the "Fast Flame Ignition" button (refer to image below for location). A heating element will activate, igniting the charcoal.
- The charcoal should be ready for grilling in approximately 10 minutes. The system will automatically turn off once the charcoal is ignited.
प्रतिमा: जवळून पाहिलेला फोटो view of the control panel, showing the Fast Flame Ignition and Automated Rotisserie System buttons.
2. Built-in Rotisserie System (Rotiscope Technology)
The patented Rotiscope Technology provides a convenient rotisserie function:
- Deploying Rotisserie Poles: Press and pop out the rotisserie support poles located on the top of the grill unit.
- Attaching Food: Secure your food (up to 30 lbs) onto the rotisserie rod using the Cliplock Forks. The jaw-like design ensures food remains firmly in place.
- Inserting Rod: Insert the rotisserie rod into the deployed support poles.
- उंची समायोजित करणे: The rotisserie offers 3 height settings. Adjust the rod to the desired height for optimal cooking.
- Activating Rotisserie: Press the "Automated Rotisserie System" button to begin rotation.
Image: A rotisserie support pole extended from the grill, ready to hold the rotisserie rod.

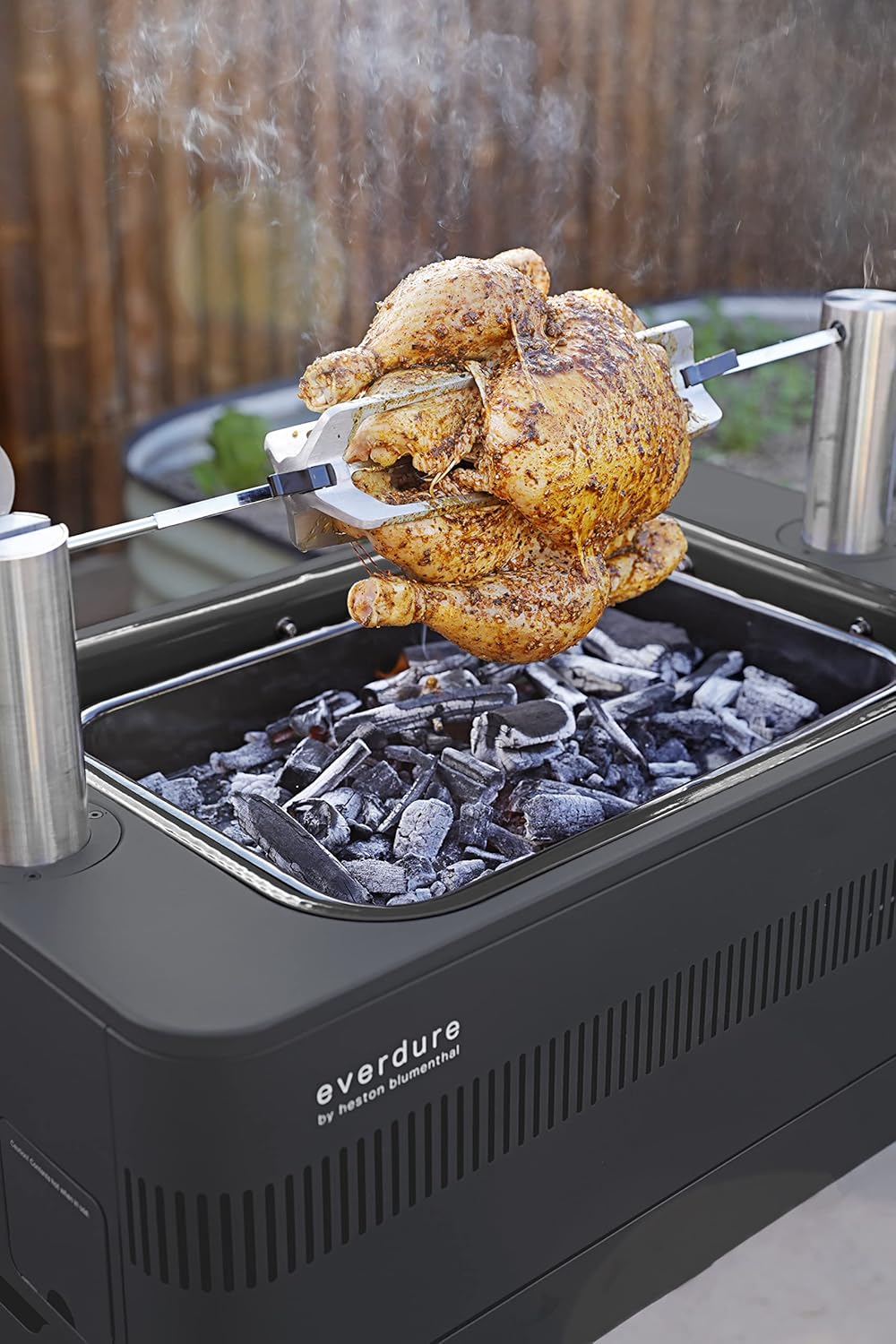

Image: A whole chicken rotating on the rotisserie system over hot charcoal, demonstrating the grill's rotisserie capability.
3. General Grilling
For direct grilling of items like burgers, steaks, and vegetables:
- After charcoal ignition, spread the hot charcoal evenly across the tray.
- Place food directly on the hinged chrome grill grate.
- The hinged design allows for easy access to add or redistribute charcoal during cooking.
Image: Fish fillets and asparagus cooking on the grill grate, illustrating standard grilling use.
देखभाल आणि स्वच्छता
Regular cleaning and maintenance will extend the life of your grill.
- थंड करा: साफ करण्यापूर्वी ग्रिल नेहमी पूर्णपणे थंड होऊ द्या.
- Charcoal Tray: The porcelain enamel charcoal tray is designed for easy removal and cleaning. Dispose of cooled ash properly.
- ग्रिल शेगडी: Clean the chrome grill grate with a grill brush after each use. For stubborn residue, soak in warm, soapy water.
- बाह्य: डी सह बाहेरील पृष्ठभाग पुसून टाकाamp कापड आणि सौम्य डिटर्जंट. अपघर्षक क्लिनर टाळा.
- Rotisserie Components: Clean the rotisserie rod and Cliplock Forks with warm, soapy water.
- स्टोरेज: The 59-inch retractable power cord allows for neat storage. If using the detachable pedestal, the grill can be stored separately for increased versatility. Store the grill in a dry, protected area when not in use.
Image: A close-up of the grill's side, showing the retractable power cord for convenient storage and use.
समस्यानिवारण
If you encounter issues with your Everdure Fusion Grill, refer to the following common problems and solutions:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Charcoal not igniting with Fast Flame System. | No power, faulty heating element, insufficient charcoal contact. | Check power connection. Ensure charcoal is in contact with the heating element. If problem persists, contact support. |
| रोटीसेरी फिरत नाही. | No power, rotisserie rod not properly seated, motor malfunction. | Verify power connection. Ensure rotisserie rod is correctly inserted into support poles. Check for obstructions. |
| Uneven charcoal burning. | Improper charcoal distribution, insufficient airflow. | Distribute charcoal evenly. Ensure vents are clear. Avoid overfilling the charcoal tray. |
| Difficulty cleaning charcoal tray. | Ash buildup, cooled residue. | Ensure grill is completely cool. Remove charcoal tray and dispose of ash. Soak tray in warm, soapy water if needed. |
तपशील
Detailed specifications for the Everdure Fusion 29-Inch Charcoal Grill:
- मॉडेलचे नाव: फ्यूजन
- उत्पादन परिमाणे: १६"उ x २६"प x ४७"उ
- आयटम वजन: 79.2 पाउंड
- साहित्य: मिश्र धातु स्टील
- समाप्त प्रकार: मॅट ब्लॅक
- इंधन प्रकार: कोळसा
- विशेष वैशिष्ट्ये: Adjustable height (rotisserie), Heat-Resistant Handle, Portable (with detachable pedestal)
- Rotisserie Capacity: Up to 30 lbs, 3 height settings
- पॉवर कॉर्ड: 59-inch retractable
- खंडtage: 120 व्होल्ट (AC)
- समाविष्ट घटक: Hinged Chrome Grill, Weather Windshield, 2 Cliplock Forks, FUSION Grill, Rotisserie Kit
- विधानसभा आवश्यक: होय

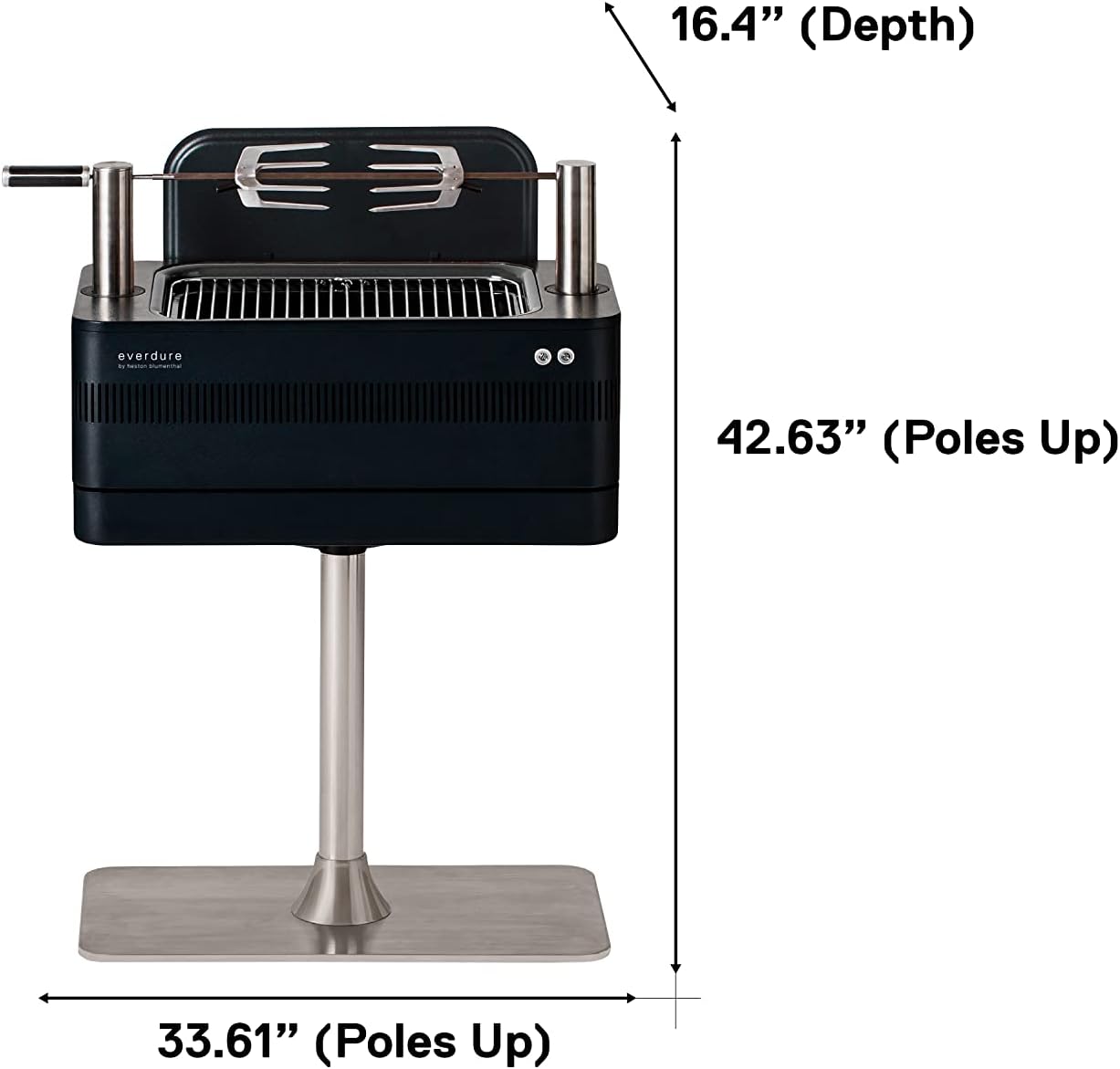

Image: A diagram illustrating the key dimensions of the Everdure Fusion grill, including depth, width, and height with rotisserie poles extended.
हमी माहिती
The Everdure Fusion Charcoal Grill is backed by a robust 10-year warranty. For specific terms and conditions, please refer to the warranty card included with your product or visit the official Everdure webसाइट
ग्राहक समर्थन
For further assistance, technical support, or warranty claims, please contact Everdure customer service through their official webसाइट किंवा तुमच्या उत्पादन पॅकेजिंगमध्ये दिलेली संपर्क माहिती.
