वुलू सोलर वायरलेस ड्राइव्हवे अलार्म सिस्टम वापरकर्ता मॅन्युअल

उत्पादन संपलेview

The Wuloo Solar Wireless Driveway Alarm System is designed to enhance home security by providing alerts for motion detection and doorbell presses. This system includes a multifunctional receiver, solar-powered motion sensors, and a wireless doorbell. It operates without Wi-Fi or an app, relying on reliable wireless technology for communication between components.

Figure 1: Main components of the Wuloo Solar Wireless Driveway Alarm System, including two solar-powered motion sensors, one wireless doorbell, and one indoor receiver unit.

सेटअप आणि स्थापना

Follow these steps to set up and install your Wuloo Solar Wireless Driveway Alarm System.

1. Charging the Sensors and Doorbell

The solar sensors and doorbell unit contain rechargeable batteries. Before initial use, ensure they are adequately charged. The solar panel on the sensors will charge them during daylight hours. For the doorbell, it is recommended to fully charge it via the provided cable before installation, as it may only have approximately 20% charge upon delivery.

Figure 2: A solar-powered motion sensor positioned to receive sunlight for battery charging.

2. Connecting the Receiver to Power

The receiver can be powered by connecting it to an AC power outlet using the provided adapter. Alternatively, it can operate with the installation of 3 AA batteries (not included) for backup or portable use. Ensure batteries are removed if the unit is plugged into AC power to prevent damage.

3. Pairing and Channel Setting

The system components are typically pre-paired. If re-pairing is necessary or if adding new units, refer to the detailed manual for specific pairing instructions. Each sensor and doorbell can be assigned a unique channel (0-8) to allow the receiver to play different chimes for each unit.

आकृती 3: तपशीलवार view of the sensor's internal components, including the battery and channel setting switch, and the receiver's control buttons and screen.

4. Sensor and Doorbell Placement

Install the wireless outdoor motion sensors and doorbell button in desired locations. Sensors should be placed where they can detect movement within a 30-foot detection zone, such as driveways, pathways, or entry points. The system is weatherproof and functions effectively in various conditions.

Figure 4: An illustration demonstrating the effective signal range of the system, with a sensor detecting motion and transmitting to the receiver inside a house.

आकृती 5: उदाamples of sensor and doorbell placement for home security, illustrating detection zones for visitors, vehicles, and potential intruders.

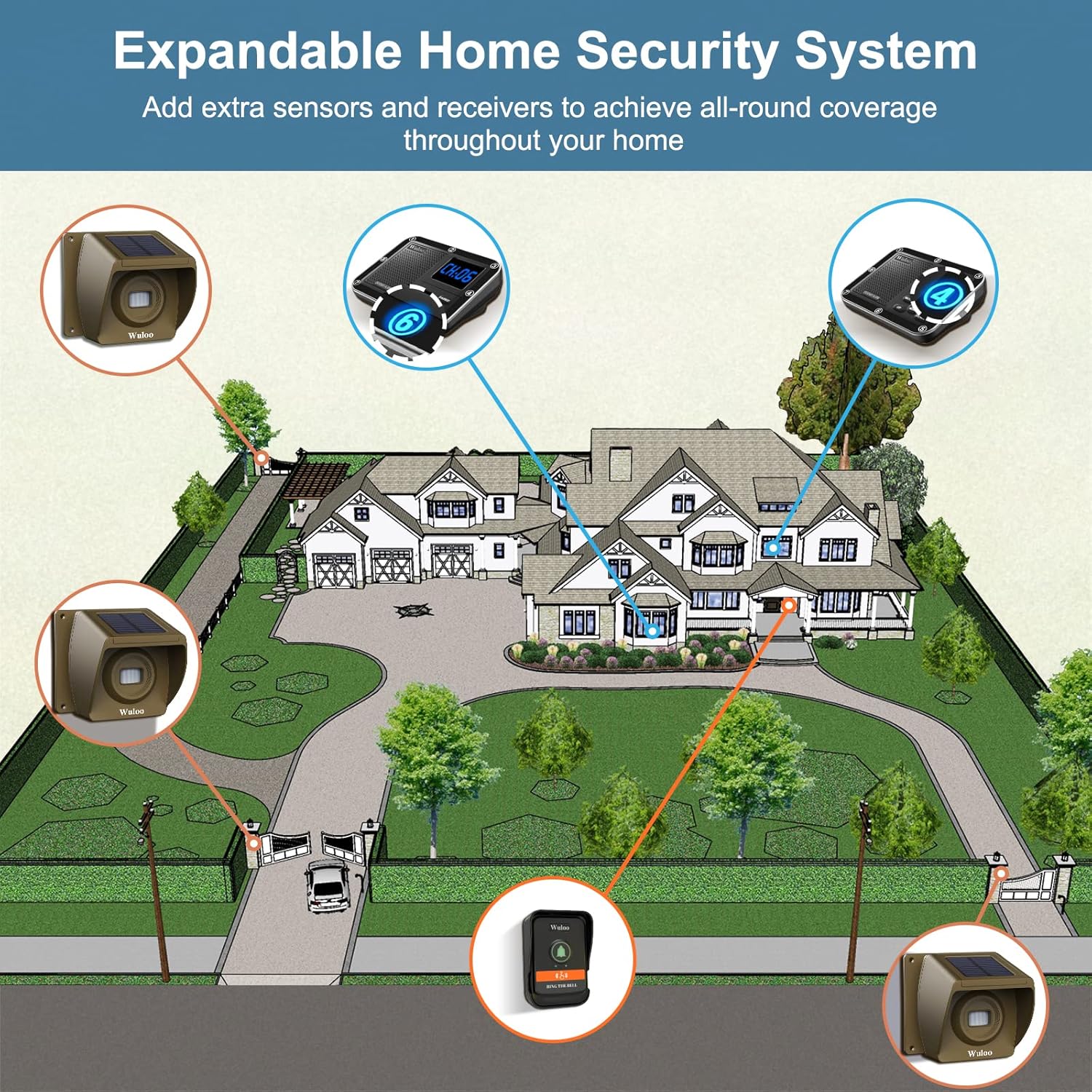

आकृती ६: एक ओव्हरहेड view demonstrating how additional sensors and receivers can be integrated to expand the system's coverage across a property.

Figure 7: A visual guide detailing the installation process, from connecting power to mounting sensors and the doorbell.

ऑपरेटिंग सूचना

प्राप्तकर्ता कार्ये

The multifunctional receiver offers several features:

• Chimes and Tones: Select from 36 available chimes and tones.
• आवाज नियंत्रण: Adjust the volume with 8 levels.
• म्यूट मोड: Silence the receiver by pressing the MUTE button. Press and hold to enter mute mode.
• घड्याळ आणि अलार्म: The receiver functions as a clock and can be set as an alarm.
• जोडणी: Use the PAIR button to set chimes for different channels or enter pairing mode.
• मेनू नेव्हिगेशन: Use UP/DOWN buttons to navigate menus and adjust settings. Press and hold MENU for 3 seconds to open/close the receiver.

आकृती 8: ओव्हरview of the receiver's display and control buttons, highlighting its various functions.

सेन्सर संवेदनशीलता समायोजित करणे

The motion sensors have 4 sensitivity levels: Hi, Mid 1, Mid 2, and Low. Higher sensitivity allows the sensor to detect smaller movements or objects at greater distances. Adjust the sensitivity based on your environment to minimize false alarms from small animals or distant objects.

• कमी: ०-२० फूट शोध श्रेणी.
• Mid 2: ०-२० फूट शोध श्रेणी.
• Mid 1: ०-२० फूट शोध श्रेणी.
• Hi (Highest Sensitivity): ०-२० फूट शोध श्रेणी.

Figure 9: Visual representation of the sensor's adjustable sensitivity levels and their effective detection distances for various objects.

देखभाल

Proper maintenance ensures the longevity and optimal performance of your Wuloo Driveway Alarm System.

• बॅटरी लाइफ: The solar sensors can operate for up to 24 months after being fully charged. The doorbell unit can work for 2-6 months after a full charge. Monitor the low power indicator on the doorbell (flash red) and ensure sensors receive adequate sunlight for continuous charging.
• हवामान प्रतिकार: The sensors and doorbell are designed to be weatherproof. However, regularly inspect them for any debris or obstructions that might affect their performance, especially after severe weather conditions.
• स्वच्छता: मऊ वापरा, डीamp cloth to clean the exterior of all components. Do not use harsh chemicals or abrasive cleaners.

Figure 10: A close-up of the weatherproof solar sensor, demonstrating its ability to withstand rain.

समस्यानिवारण

If you encounter issues with your Wuloo Driveway Alarm System, consider the following common solutions:

• No Alert from Sensor/Doorbell:
  • Ensure the sensor/doorbell battery is charged.
  • Verify the receiver is powered on and not in mute mode.
  • Check if the sensor/doorbell is properly paired with the receiver.
  • Confirm the sensor is placed within the effective detection range (up to 1800 feet from receiver).
  • Adjust sensor sensitivity if small objects are not being detected.
• खोटे अलार्म:
  • Lower the sensor sensitivity level.
  • Adjust the sensor's angle or placement to avoid detecting unwanted movement (e.g., swaying branches, small animals).
• Short Detection Range:
  • Ensure there are no significant obstructions (thick walls, large metal objects) between the sensor/doorbell and the receiver.
  • Relocate components to improve line of sight.
  • Check battery levels of all units.
• Receiver Not Responding:
  • Verify the power connection or check the AA batteries if used.
  • Try resetting the receiver by unplugging it for a few seconds.

For more detailed troubleshooting, please refer to the included Quick Start Guide and the comprehensive User Manual (PDF) provided with your product. You can also find the User Manual online via the provided link: Wuloo Driveway Alarm User Manual PDF.

तपशील

हमी आणि समर्थन

Wuloo provides a 2 वर्षाची वॉरंटी for quality issues with this product. Additionally, lifetime service is offered for any issues you may encounter. For support, please refer to the contact information provided in your product packaging or visit the official Wuloo store on Amazon: वुलू अमेझॉन स्टोअर.
