परिचय
This manual provides essential information for the safe and efficient operation of your Dimplex DCSTC Series Electric Wall Heater. Please read all instructions carefully before installation and use, and retain this manual for future reference. This unit is designed to provide supplemental heat for indoor spaces, featuring multi-watt and multi-volt capabilities for versatile heating performance.
महत्वाची सुरक्षितता माहिती
चेतावणी: आग, विजेचा धक्का किंवा दुखापत होण्याचा धोका कमी करण्यासाठी, खालील गोष्टी पाळा:
- हे हीटर स्थापित करण्यापूर्वी किंवा वापरण्यापूर्वी सर्व सूचना वाचा.
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater, and keep them away from the sides and rear.
- कोणत्याही हीटरचा वापर लहान मुलांनी किंवा त्यांच्या जवळ केला असता आणि जेव्हा हीटर चालू ठेवला जातो आणि त्याकडे दुर्लक्ष केले जाते तेव्हा अत्यंत सावधगिरी बाळगणे आवश्यक आहे.
- खराब झालेल्या कॉर्ड किंवा प्लगने किंवा हीटर खराब झाल्यानंतर, कोणत्याही प्रकारे टाकून किंवा खराब झाल्यानंतर कोणतेही हीटर चालवू नका. परीक्षा, विद्युत किंवा यांत्रिक समायोजन किंवा दुरुस्तीसाठी अधिकृत सेवा सुविधेकडे हीटर परत करा.
- घराबाहेर वापरू नका.
- हे हीटर बाथरूम, लॉन्ड्रीचे क्षेत्र आणि समान घरातील ठिकाणी वापरण्यासाठी नाही. तो बाथटब किंवा पाण्याच्या कंटेनरमध्ये कोसळू शकेल हेटर कधीही शोधू नका.
- कार्पेटिंग अंतर्गत दोरखंड चालवू नका. थ्रो रग्ज, रनर्स किंवा तत्सम आवरणांनी कॉर्ड झाकून ठेवू नका. ट्रॅफिक क्षेत्रापासून दूर आणि जिथे ती ट्रिप होणार नाही अशा ठिकाणी कॉर्डची व्यवस्था करा.
- हीटर डिस्कनेक्ट करण्यासाठी, नियंत्रणे बंद करा, नंतर आउटलेटमधून प्लग काढा.
- कोणत्याही वेंटिलेशन किंवा एक्झॉस्ट ओपनिंगमध्ये परदेशी वस्तू घालू नका किंवा प्रवेश करू देऊ नका कारण यामुळे विजेचा शॉक किंवा आग होऊ शकते किंवा हीटर खराब होऊ शकते.
- संभाव्य आग टाळण्यासाठी, कोणत्याही प्रकारे हवेचे सेवन किंवा एक्झॉस्ट रोखू नका. बेड सारख्या मऊ पृष्ठभागावर वापरू नका, जेथे उघडणे अवरोधित होऊ शकते.
- हीटरमध्ये आत गरम आणि आर्किंग किंवा स्पार्किंग भाग असतात. ज्या ठिकाणी गॅसोलीन, पेंट किंवा ज्वलनशील बाष्प किंवा द्रव वापरले किंवा साठवले जातात अशा ठिकाणी त्याचा वापर करू नका.
- This heater includes a high-temperature safety shut-off feature for enhanced safety. If the heater overheats, it will automatically shut off.
- हीटर नेहमी थेट वॉल आउटलेट/रेसेप्टॅकलमध्ये प्लग करा. एक्स्टेंशन कॉर्ड किंवा पुनर्स्थित करण्यायोग्य पॉवर टॅप (आउटलेट/पॉवर स्ट्रिप) सह कधीही वापरू नका.
पॅकेज सामग्री
Upon opening the package, please verify that all components are present and undamaged. The package should contain:
- One (1) Dimplex DCSTC Series Electric Wall Heater Complete Unit with Thermostat (White)

आकृती 1: समोर view of the Dimplex DCSTC Series Electric Wall Heater.
सेटअप आणि स्थापना
महत्त्वाचे: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Incorrect installation can lead to fire, electric shock, or injury.
- तयारी: Ensure power to the circuit where the heater will be installed is turned off at the main service panel.
- माउंटिंग स्थान: Choose a suitable wall location. The heater requires a minimum clearance from combustible materials (refer to safety information). Ensure there is adequate space for air circulation.
- युनिट माउंट करणे: This unit is designed for easy installation, connecting to the wall can with only two screws. Securely fasten the heater to the wall according to the provided mounting instructions.
- इलेक्ट्रिकल कनेक्शन: Connect the heater to the appropriate 240/208 Volt electrical supply. All wiring must comply with local electrical codes.
- अंतिम तपासणी: Once installed, ensure all connections are secure and the unit is properly mounted.

आकृती 2: मागील view of the heater, illustrating the mounting points for installation.

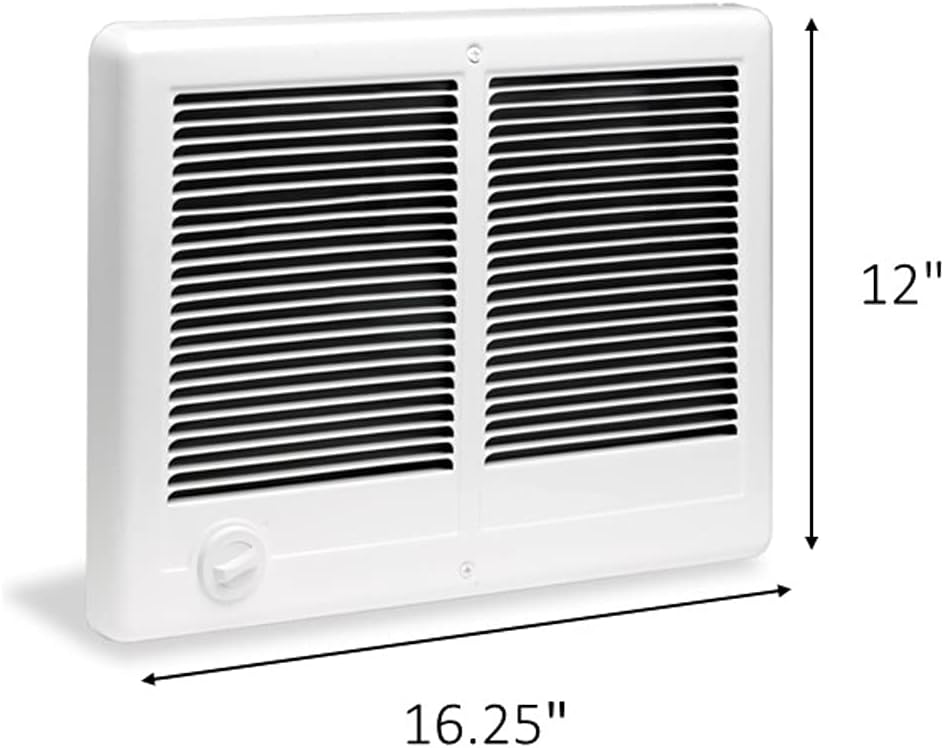

Figure 3: Product dimensions, showing approximate measurements of 12 inches by 16.25 inches.
ऑपरेटिंग सूचना
The Dimplex DCSTC Series Electric Wall Heater is equipped with an integrated thermostat for precise temperature control.
- पॉवर चालू: After proper installation, restore power to the circuit at the main service panel.
- तापमान समायोजित करणे: Locate the thermostat dial on the front of the unit. Rotate the dial clockwise to increase the desired temperature setting, and counter-clockwise to decrease it. The heater will cycle on and off to maintain the set temperature.
- वाटtage Selection (if applicable): This model offers multi-watt (3000/2250) and volt (240/208) capabilities. The specific wattage setting is typically configured during installation based on wiring and heating requirements. Consult your installer or the installation guide for details on how your unit is configured.
- सुरक्षितता बंद: The unit features a high-temperature safety shut-off. If the heater overheats for any reason, it will automatically turn off. If this occurs, turn off the heater, allow it to cool, and check for any obstructions to airflow before restarting.

आकृती 4: क्लोज-अप view of the integrated thermostat dial for temperature adjustment.

Figure 5: The wall heater seamlessly integrated into a living room environment.
देखभाल
नियमित देखभालीमुळे तुमच्या हीटरची कार्यक्षमता आणि दीर्घायुष्य सुनिश्चित होते. कोणतीही देखभाल करण्यापूर्वी नेहमी वीजपुरवठा खंडित करा.
- स्वच्छता: Periodically wipe the exterior surfaces of the heater with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the heater is completely dry before restoring power.
- वायुप्रवाह: Ensure that the air intake and exhaust vents are free from dust, lint, and other obstructions. Blocked vents can lead to overheating and reduced efficiency.
- तपासणी: Annually inspect the heater for any signs of damage to the casing or wiring. If any damage is observed, contact a qualified service technician.
समस्यानिवारण
If you experience issues with your Dimplex DCSTC Series Electric Wall Heater, refer to the following common problems and solutions:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| हीटर चालू होत नाही. | No power to the unit; thermostat set too low; safety shut-off activated. | Check circuit breaker. Increase thermostat setting. Allow unit to cool if safety shut-off was activated, then check for obstructions. |
| हीटर पुरेशी उष्णता निर्माण करत नाही. | Thermostat set too low; room size too large for heater capacity; drafts. | Increase thermostat setting. Ensure heater wattage is appropriate for room size. Seal drafts. |
| Heater cycles on and off too frequently. | Thermostat setting too close to ambient temperature; unit overheating. | Adjust thermostat setting. Check for blocked air vents. |
| Unusual noises or odors. | Dust accumulation; internal component issue. | Clean the unit. If persistent or severe, disconnect power and contact a qualified technician. |
जर या उपाययोजना करूनही समस्या कायम राहिली, तर कृपया ग्राहक समर्थन किंवा पात्र इलेक्ट्रिशियनशी संपर्क साधा.
तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| ब्रँड | डिंपलेक्स |
| मॉडेल क्रमांक | DCSTC402TW (Part: 47526) |
| खंडtage | 240/208 Volts (AC) |
| वाटtage | 3000/2250 वॅट्स |
| रंग | पांढरा |
| विशेष वैशिष्ट्य | ओव्हरहाट संरक्षण |
| माउंटिंग प्रकार | वॉल माउंट |
| उत्पादन परिमाणे | 6.5 x 12.6 x 17.7 इंच |
| आयटम वजन | 12.07 पाउंड |
| इंधन प्रकार | इलेक्ट्रिक |
| इनडोअर/आउटडोअर वापर | इनडोअर |
हमी आणि समर्थन
This Dimplex DCSTC Series Electric Wall Heater comes with a 2 वर्षांची मर्यादित वॉरंटी खरेदीच्या तारखेपासून. ही वॉरंटी सामान्य वापरात असलेल्या साहित्यातील दोष आणि कारागिरीला व्यापते.
For warranty claims, technical support, or further assistance, please contact Dimplex customer service. Ensure you have your model number (DCSTC402TW) and proof of purchase readily available.
You can find contact information for Dimplex support on their official webसाइटवर किंवा तुमच्या किरकोळ विक्रेत्याद्वारे.
