1. परिचय
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Symphony Duet i-S Personal Table Cooling Fan. Please read this manual thoroughly before using the appliance and retain it for future reference.
2. उत्पादन संपलेview आणि वैशिष्ट्ये
The Symphony Duet i-S is a compact and portable personal air cooler designed for individual cooling in small spaces. It features a 6-liter water tank, honeycomb cooling pads, and a powerful blower for effective air circulation.
- कव्हरेज क्षेत्र: Suitable for personal cooling up to 10 square meters.
- High-Efficiency Cooling: Equipped with a Dura pump, high water retention capacity honeycomb pads, and a cool flow dispenser for even water distribution.
- टाकी क्षमता: 6-liter water tank with a visible water level indicator.
- शक्तिशाली ब्लोअर: High-speed blower with 4.5m/15ft air speed and a 1300 RPM motor for instant cool air.
- कमी उर्जा वापर: Operates at approximately 55 watts and is inverter compatible.
- वापरण्यास सुलभ: Sleek design with an ergonomic touchpad for simple operation.
- Detachable Pedestal: Allows for convenient height adjustment to suit various settings.
- स्वयंचलित रोटेशन: Provides 180-degree horizontal oscillation for surround airflow.
Image 2.1: The Symphony Duet i-S Personal Table Cooling Fan, showcasing its sleek design and air circulation.
Image 2.2: The Symphony Duet i-S Personal Table Cooling Fan shown with its pedestal, designed to cool personal spaces.
Image 2.3: Comparison of the Symphony Duet i-S with and without its detachable pedestal, illustrating its versatile height options.
3. सुरक्षितता सूचना
- नेहमी खात्री करा की वीज पुरवठा व्हॉल्यूमशी जुळतो.tage उपकरणावर निर्दिष्ट केले आहे.
- खराब झालेल्या कॉर्ड किंवा प्लगने कूलर चालवू नका.
- उपकरण थेट सूर्यप्रकाश आणि उष्णता स्त्रोतांपासून दूर ठेवा.
- उपकरण पाण्यात किंवा इतर द्रवांमध्ये बुडवू नका.
- Ensure the water tank is filled with clean water only. Do not add any chemicals or fragrances.
- Unplug the cooler from the power outlet before cleaning, refilling, or performing any maintenance.
- मुले आणि पाळीव प्राण्यांच्या आवाक्याबाहेर ठेवा.
- For effective cooling, ensure proper ventilation in the room by keeping a door or window open.
4. सेटअप
Follow these steps to set up your Symphony Duet i-S Personal Table Cooling Fan:
- अनपॅक करणे: Carefully remove the cooler and all accessories from the packaging. Ensure all components listed in the package inclusion are present.
- Pedestal Assembly (Optional): If using the pedestal, securely attach the main cooler unit to the pedestal base. Refer to the diagram for correct alignment.
- प्लेसमेंट: Place the cooler on a stable, level surface. For optimal performance, position it near an open window or door to allow for cross-ventilation.
- पाण्याची टाकी भरा: Open the water inlet and fill the 6-liter water tank with clean water. Do not overfill; observe the water level indicator.
- वीज कनेक्शन: पॉवर कॉर्डला योग्य इलेक्ट्रिकल आउटलेटमध्ये प्लग करा.
Image 4.1: Diagram illustrating the main components of the Symphony Duet i-S, including the water tank and level indicator.
प्रतिमा १: View of the Symphony Duet i-S highlighting the detachable pedestal and dust pre-filters.
Image 4.3: Close-up of the water level indicator on the Symphony Duet i-S.
5. ऑपरेटिंग सूचना
The Symphony Duet i-S features an ergonomic touchpad for easy control.
- पॉवर चालू/बंद: Press the power button on the touchpad to turn the cooler on or off.
- पंख्याची गती: Select from 3 available fan speeds (Low, Medium, High) using the speed control button.
- कूलिंग फंक्शन: Activate the cooling function to engage the water pump and honeycomb pads for evaporative cooling.
- दोलन: Press the oscillation button to enable the 180-degree horizontal rotation for wider air distribution.
- पाण्याची पातळी: Monitor the water level indicator. Refill the tank when the water level is low to ensure continuous cooling.
Image 5.1: Close-up of the digital touchpad control panel on the Symphony Duet i-S.
Image 5.2: Illustration of the 180-degree surround air flow feature of the Symphony Duet i-S.
6. देखभाल
Regular maintenance ensures the longevity and optimal performance of your cooler.
- पाण्याची टाकी साफ करणे: Periodically drain and clean the water tank to prevent algae growth and mineral buildup. Use a soft cloth and mild detergent if necessary, then rinse thoroughly.
- Cleaning Honeycomb Pads: The honeycomb pads should be cleaned regularly. Remove them carefully and rinse under running water. Allow them to dry completely before reinserting.
- Cleaning Dust Pre-Filters: The dust pre-filters can be removed and cleaned with a soft brush or vacuum cleaner to maintain airflow efficiency.
- बाह्य स्वच्छता: Wipe the exterior of the cooler with a soft, damp कापड अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स वापरू नका.
- स्टोरेज: If storing the cooler for an extended period, ensure the water tank is empty and dry, and all components are clean. Store in a dry, dust-free place.
Image 6.1: Demonstrating the removal of the dust filter for cleaning.
7. समस्या निवारण
सामान्य समस्या आणि त्यांचे निराकरण यासाठी खालील तक्ता पहा:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Cooler does not turn on | No power supply; Power cord not plugged in; Faulty outlet | Check power connection; Test outlet with another appliance; Contact service center if issue persists |
| थंडीचा परिणाम नाही | Water tank empty; Pump not working; Honeycomb pads dry | Refill water tank; Check pump operation; Ensure pads are wet |
| कमकुवत वायु प्रवाह | Dust filters clogged; Low fan speed setting | Clean dust filters; Increase fan speed |
| असामान्य आवाज | Low water level; Obstruction in fan; Unit not level | Refill water tank; Check for obstructions; Place on a level surface |
8. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| ब्रँड | सिम्फनी |
| मॉडेलचे नाव | Duet i-S |
| माउंटिंग प्रकार | मुक्त स्थायी |
| रंग | राखाडी |
| वायु प्रवाह क्षमता | ७५० सीएमपीएच |
| नियंत्रण प्रकार | Button (Touchpad) |
| जलाशय क्षमता | 6 लिटर |
| मजला क्षेत्र कव्हरेज | Up to 10 square meters (538 sq ft) |
| आवाज पातळी | 65 dB |
| वेगांची संख्या | 3 |
| उत्पादनाचे परिमाण (D x W x H) | ६०D x ५३.५W x ८५H सेंटीमीटर |
| आयटम वजन | १ किलो १ ग्रॅम |
| खंडtage | 127 व्होल्ट |
| Ampवय | 0.59 Amps |
| समाविष्ट घटक | 1 Air Cooler, 1 Pedestal |

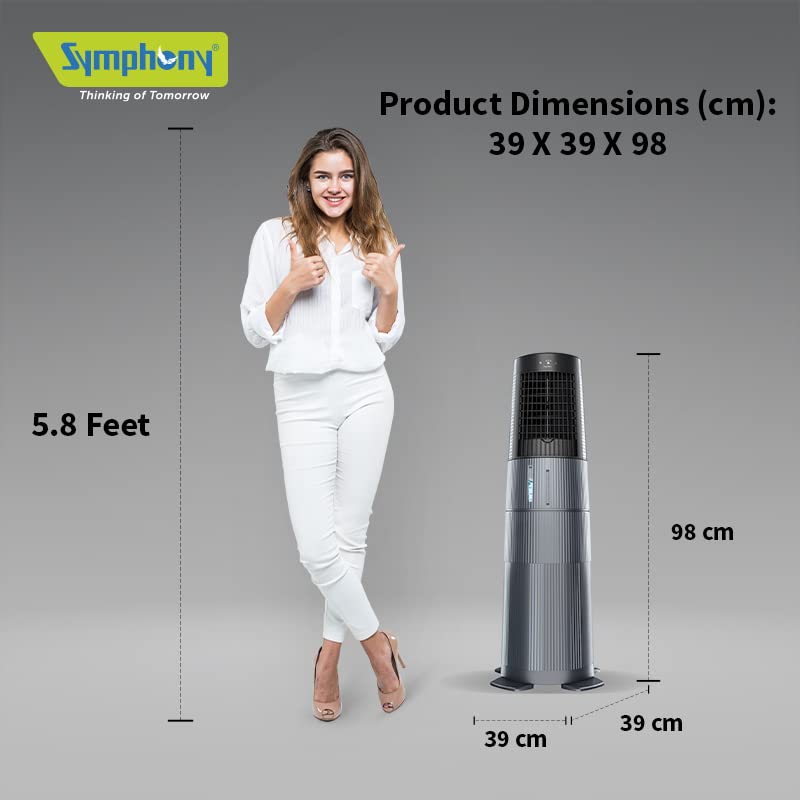

Image 8.1: Product dimensions of the Symphony Duet i-S.
9. हमी आणि समर्थन
The Symphony Duet i-S Personal Table Cooling Fan comes with a एक वर्षाची वॉरंटी from the date of purchase, covering manufacturing defects. For warranty claims or technical support, please contact Symphony customer service. Keep your purchase receipt as proof of purchase.
निर्माता: Symphony Limited, Symphony House, FP12-TP50 Bodakdev, Ahmedabad 380059
फोन: +४९ ७११ ४०० ४०९९०
