ELRO DB3000

ELRO DB3000 Wireless Doorbell Set

वापरकर्ता मॅन्युअल

1. परिचय

The ELRO DB3000 Wireless Doorbell Set ensures you are always aware when someone is at your door. This high-quality set includes a durable, waterproof doorbell push button and two portable indoor receivers with integrated speakers. This design allows you to hear the doorbell throughout your home or even in your garden, thanks to the battery-powered receivers.

ELRO DB3000 Wireless Doorbell Set with two receivers and a push button against a house background.

Image 1: ELRO DB3000 Wireless Doorbell Set components.

2. पॅकेज सामग्री

कृपया सर्व वस्तू पॅकेजमध्ये आहेत का ते तपासा:

Contents of the ELRO DB3000 package, showing one doorbell push button and two indoor receiver units.

Image 2: Package contents including doorbell button and two receivers.

3. उत्पादन संपलेview

प्रमुख वैशिष्ट्ये:

Diagram illustrating the wireless connection range of the doorbell, showing signal strength over distances up to 300 meters.

Image 3: Wireless connection range illustration.

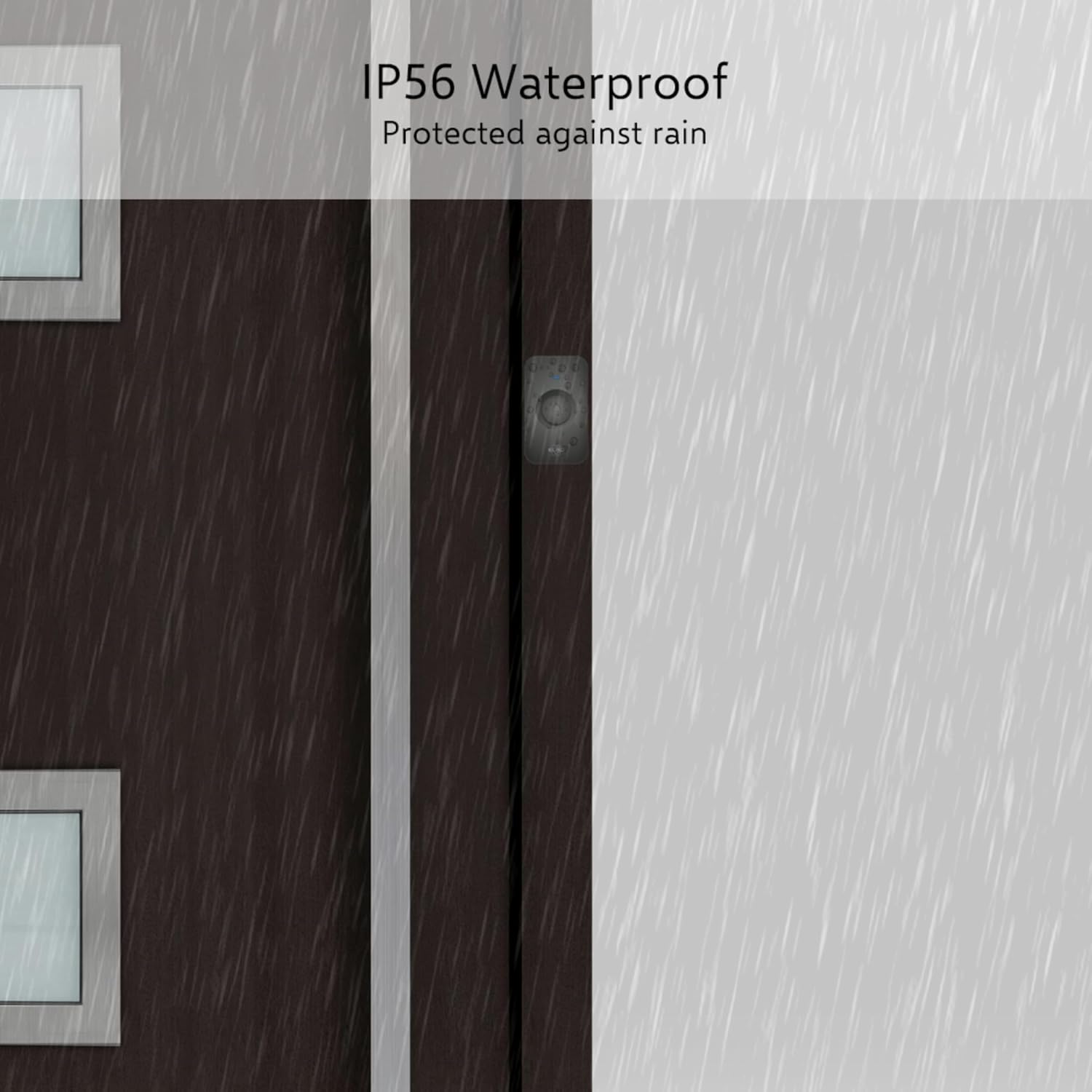

ELRO doorbell push button mounted on a door frame, with rain effects indicating its IP56 waterproof rating.

Image 4: Doorbell push button demonstrating IP56 waterproof feature.

A person working on a laptop in a garden, with one of the portable ELRO doorbell receivers placed nearby on the ground.

Image 5: Portable receiver in use in a garden setting.

4. सेटअप आणि स्थापना

The ELRO DB3000 doorbell set is pre-paired at the factory for immediate use. Installation is quick and straightforward.

4.1. बॅटरी इन्स्टॉलेशन

  1. प्राप्तकर्त्यांसाठी: Open the battery compartment on the back of each indoor receiver. Insert the provided AAA batteries, ensuring correct polarity (+/-).
  2. पुश बटणासाठी: Open the battery compartment on the back of the doorbell push button. Insert the provided 12V/23A battery, ensuring correct polarity (+/-).
Diagram showing battery compartments for the receiver (3x AAA batteries) and the push button (1x 12V/23A battery).

Image 6: Battery installation for receiver and push button.

4.2. Mounting the Push Button

The doorbell push button can be installed using either the included adhesive strips or screws.

  1. Using Adhesive Strips: Clean the desired mounting surface thoroughly. Remove the protective backing from the adhesive strips and firmly press the push button onto the surface.
  2. स्क्रू वापरणे: Mark the desired mounting location. Drill pilot holes if necessary. Secure the push button to the wall using the provided screws and wall plugs.
Diagram showing the dimensions of the doorbell push button (4cm x 7cm) and illustrations of mounting options using double-sided tape or screws.

Image 7: Doorbell push button dimensions and mounting options.

4.3. Placing the Receivers

Place the indoor receiver units in desired locations within your home. Ensure they are within the wireless range of the push button. Since they are battery-operated, they can be moved freely.

5. ऑपरेटिंग सूचना

5.1. आवाज समायोजित करणे

The volume of the receiver can be adjusted to 5 different levels, up to a maximum of 110 dB. Use the volume control buttons on the side of the receiver to increase or decrease the sound level.

Diagram showing the side of the receiver with volume control buttons and examples of volume settings: 0% for baby sleep, 50% for normal, and 100% for party.

Image 8: Volume control settings on the receiver.

5.2. Changing Melodies

The doorbell offers 64 different melodies. To change the melody, press the melody selection button on the side of the receiver. Cycle through the options until you find your preferred chime.

Table 1: Available Melodies
नाही. मेलडी नाही. मेलडी
1डिंग डोंग १33दो रे मी
2डिंग डोंग १34Chopin - Cat Waltz
3डिंग डोंग १35आम्ही तुम्हाला आनंददायी ख्रिसमसच्या शुभेच्छा देतो
4डिंग डोंग १36Beethoven - Ode to Joy
5डिंग डोंग १37Pachelbel - Canon
6Tingeling 138रॅगटाइम
7Tingeling 239The Beatles - Hey Jude
8फर एलिस40Barbara Streisand - Memory
9Childhood memories41Chopin - Spring Waltz
10Bach - Minuet42If You're Happy and You Know It
11कोकिळा वाल्ट्झ43द लिटिल मरमेड
12Strauss - Radetzky March44डोरेमॉन
13लंडन ब्रिज खाली पडत आहे45Strauss- The Blue Danube
14Chopin - Nocturne46एकाकी गोथर्ड
15वाढदिवसाच्या शुभेच्छा47चिनी नृत्य
16जिंगल बेल्स48Scott Joplin - The Entertainer
17प्रेम प्रणय49Glenn Miller-American Patrol
18Tchaikovsky - 1812 Overture50The Voice of Spring Waltz
19Mozart - Turkish March51दहा छोटे भारतीय
20Carlos Gardel - Por una Cabeza52The Matador
21Verdi - La Traviata53ट्विंकल ट्विंकल लिटल स्टार
22Celine Dion - My Heart Will Go On (Titanic)54Piano Fantasy
23Dance of the Little Swans55The Lady of the Camellias
24Russian Dance from Nutcracker Suite56Mozart - Symphony No40
25A tale of the sacred mountain57Dance of the Fireflies
26Dance of the Reed Flutes from Nutcracker Suite58Strauss - Annen Polka
27Chinese Dance from Nutcracker Suite59India Song 1
28The Mail Troika Rushing60India Song 2
29Chinese Song61Dingdong Dingdong
30Santa Claus is coming to town62वेस्टमिन्स्टर चाइम्स
31Brahms - Hungarian Dance No. 563Dingding Dong
32Woody Herman - The Golden Wedding64गजर
Image showing a list of 64 melodies available for the doorbell, categorized by themes.

Image 9: List of 64 available melodies.

5.3. एलईडी इंडिकेटर

The indoor receiver units are equipped with a bright blue flashing LED light. This light illuminates when the doorbell rings, providing a visual alert in addition to the audible chime.

Close-up of the ELRO doorbell receiver showing a bright blue flashing LED indicator in the center.

Image 10: Receiver with LED indicator.

6. देखभाल

7. समस्या निवारण

8. तपशील

वैशिष्ट्य तपशील
मॉडेल क्रमांकDB3000
वायरलेस श्रेणी300 मीटर पर्यंत (खुले क्षेत्र)
धून64
आवाज पातळी5 (up to 110 dB)
Waterproof Rating (Push Button)IP56
उर्जा स्त्रोत (पुश बटण)1x 12V/23A battery (included)
उर्जा स्त्रोत (रिसीव्हर)3x AAA बॅटरी (समाविष्ट)
Push Button Dimensionsअंदाजे १७ सेमी x ७.२ सेमी
प्राप्तकर्ता परिमाणेअंदाजे 8 सेमी x 8 सेमी x 3.5 सेमी
उत्पादकELRO युरोप
Diagram showing the dimensions of the receiver unit: 8 cm width, 8 cm height, and 3.5 cm depth.

Image 11: Receiver dimensions.

9. हमी आणि समर्थन

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official ELRO webसाइट. वॉरंटी दाव्यांसाठी तुमचा खरेदीचा पुरावा ठेवा.
