बॉश KGV33VWEAS मालिका 4 फ्रीस्टँडिंग फ्रिज-फ्रीझर वापरकर्ता मॅन्युअल

1. परिचय

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch KGV33VWEAS Series 4 freestanding fridge-freezer. Please read these instructions carefully before using the appliance and keep them for future reference.

The Bosch KGV33VWEAS is a combined refrigerator and freezer unit designed for household use, featuring advanced technologies such as Low Frost for easier defrosting, FreshSense for stable temperatures, and a VitaFresh drawer for optimal food preservation.

2. सुरक्षितता माहिती

उपकरणाला वैयक्तिक इजा किंवा नुकसान टाळण्यासाठी नेहमी खालील सुरक्षा खबरदारी पाळा.

• विद्युत सुरक्षा: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords or multiple socket adapters. Disconnect from power before cleaning or maintenance.
• स्थापना: Install the appliance according to the instructions, ensuring adequate ventilation. Do not block ventilation openings.
• ज्वलनशील साहित्य: Do not store explosive substances or products containing flammable propellants (e.g., aerosol cans) inside the appliance.
• मुले: Keep children away from packaging materials. Supervise children to ensure they do not play with the appliance.
• दुरुस्ती: केवळ पात्र कर्मचाऱ्यांनीच दुरुस्ती करावी. अयोग्य दुरुस्तीमुळे मोठे धोके उद्भवू शकतात.
• विल्हेवाट: Dispose of the appliance responsibly according to local regulations, as it contains refrigerants and insulation gases.

3. सेटअप आणि स्थापना

3.1 अनपॅक करणे

Carefully remove all packaging materials. Inspect the appliance for any transport damage. Report any damage immediately to your retailer.

3.2 प्लेसमेंट

Place the appliance on a firm, level surface. Ensure there is sufficient space around the appliance for proper ventilation, especially at the back and top. Avoid direct sunlight and proximity to heat sources like ovens or radiators. The appliance is designed for ambient temperatures between 10°C and 43°C.

प्रतिमा 1: समोर view of the Bosch KGV33VWEAS fridge-freezer. This image shows the appliance's overall design, with the refrigerator compartment at the top and the freezer compartment at the bottom.

Image 2: Technical drawing illustrating the dimensions of the Bosch KGV33VWEAS. This diagram provides measurements for height, width, and depth, including door open dimensions, crucial for proper installation planning.

3.3 इलेक्ट्रिकल कनेक्शन

प्लग इन करण्यापूर्वी, व्हॉल्यूमची खात्री कराtage and frequency match the ratings on the appliance's data plate. Connect the appliance to a properly installed and grounded wall socket. After positioning, wait at least 4 hours before plugging in to allow the refrigerant to settle.

3.4.१.१ आरंभिक प्रारंभ

Once plugged in, the appliance will begin to cool. Allow several hours for the internal temperature to stabilize before loading with food.

4. ऑपरेटिंग सूचना

4.1 तापमान नियंत्रण

The temperature of the refrigerator compartment can be adjusted using the electronic control panel located inside the appliance. The recommended setting for normal use is typically between 4°C and 6°C.

Image 3: Close-up of the electronic control panel. This panel allows users to adjust the refrigerator's temperature and activate special functions like 'Super' cooling.

4.2 Using the Compartments

प्रतिमा ४.२: आतील भाग view of the Bosch KGV33VWEAS with both fridge and freezer doors open. This image highlights the internal layout, including shelves, door bins, the VitaFresh drawer, and freezer drawers.

• रेफ्रिजरेटर कंपार्टमेंट: Store fresh foods, dairy products, and beverages. Utilize the adjustable glass shelves and door bins for organized storage. The bottle rack is ideal for horizontal storage of bottles.
• VitaFresh Drawer: This specialized drawer provides optimal conditions for fruits and vegetables. Adjust the humidity control to suit the contents, helping them stay fresh longer.
• फ्रीझर कंपार्टमेंट: Designed for long-term storage of frozen foods. The BigBox drawer offers extra space for larger items.

Image 5: Close-up of the refrigerator interior, showing the bottle rack for horizontal storage and the PowerVentilation system for even cooling.

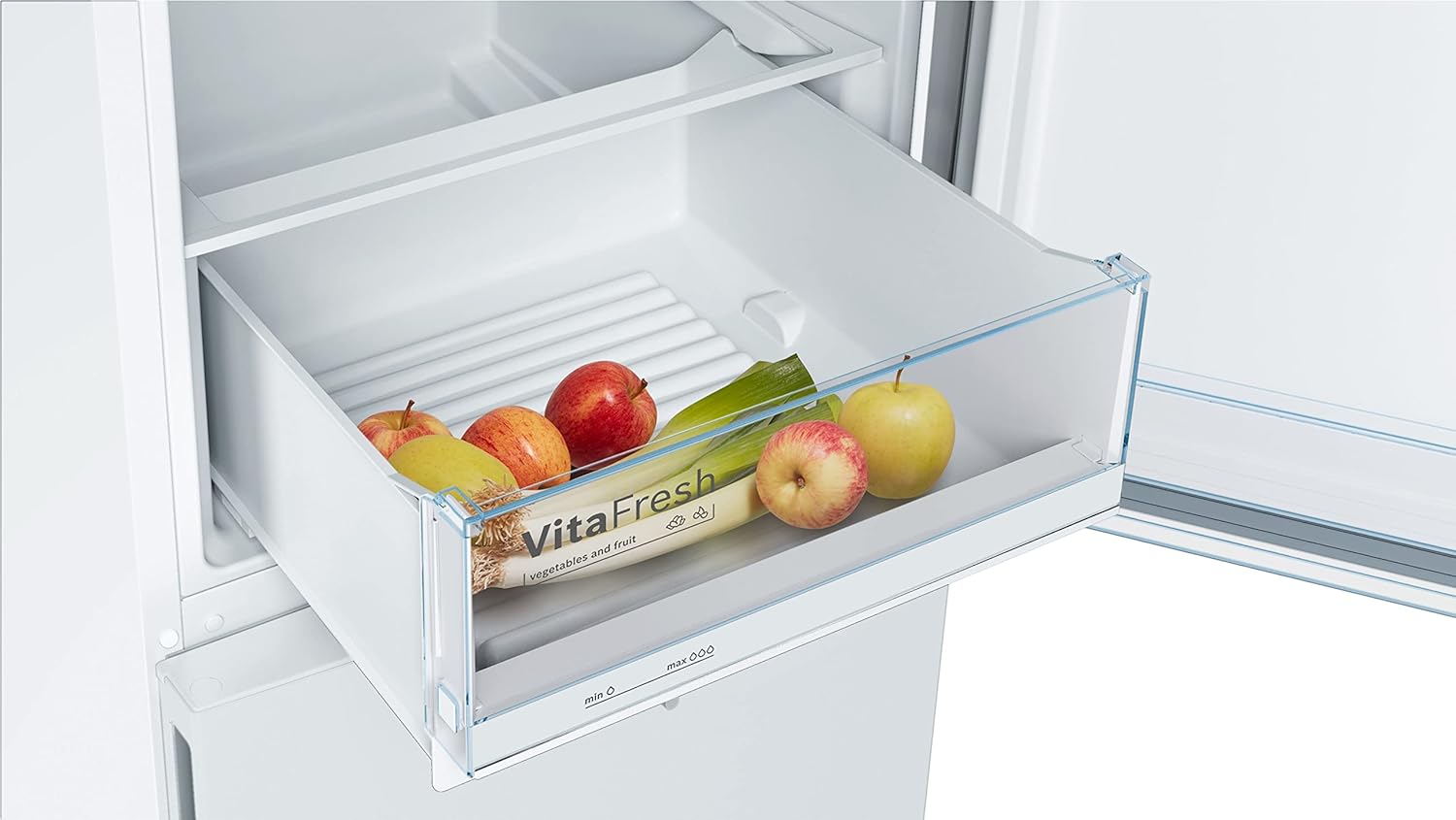

Image 6: Close-up of the VitaFresh drawer, containing fruits and vegetables, demonstrating its purpose for preserving freshness.

Image 7: Close-up of the freezer compartment, highlighting the spacious BigBox drawer, suitable for larger frozen items.

4.3 Super Freeze Function

Activate the Super Freeze function when adding a large quantity of fresh food to the freezer. This rapidly lowers the freezer temperature to quickly freeze new items, preserving their quality and preventing existing frozen food from thawing. Deactivate the function once the new food is frozen, typically after 24 hours.

5. प्रमुख वैशिष्ट्ये

• Low Frost Technology: Reduces ice build-up in the freezer, making defrosting less frequent and easier. This technology minimizes the formation of frost on food and interior surfaces.
• FreshSense: Intelligent sensors continuously monitor and control the internal and external temperatures. This ensures a constant temperature inside the refrigerator, regardless of external fluctuations, providing optimal storage conditions for food.
• VitaFresh Drawer: A dedicated compartment with precise temperature and humidity control. It creates an ideal environment for storing fruits and vegetables, keeping them fresh for longer periods.
• PowerVentilation: Ensures faster cooling of newly added food and maintains a more uniform temperature throughout the refrigerator compartment. This system circulates cold air efficiently.
• सुपर फ्रीझ: A function designed to rapidly lower the freezer temperature. This is particularly useful when adding a large amount of fresh food, ensuring quick freezing and protecting already frozen items.

6. देखभाल आणि स्वच्छता

नियमित देखभालीमुळे इष्टतम कामगिरी सुनिश्चित होते आणि तुमच्या उपकरणाचे आयुष्य वाढते.

6.1 डीफ्रॉस्टिंग

The refrigerator compartment defrosts automatically. The freezer compartment features Low Frost technology, significantly reducing ice formation. When a layer of ice approximately 5mm thick has formed, manually defrost the freezer. To defrost, switch off the appliance, remove all food, and allow the ice to melt naturally. Collect melted water and dry the interior thoroughly before restarting.

6.2 अंतर्गत स्वच्छता

Clean the interior regularly with a soft cloth and a mild, non-abrasive cleaning solution. Avoid harsh chemicals or abrasive pads. Remove shelves and drawers for thorough cleaning. Ensure all parts are dry before returning them to the appliance.

6.3 बाह्य साफ करणे

मऊ सह बाह्य पृष्ठभाग पुसणे, डीamp cloth. For stubborn marks, use a mild detergent. Do not use abrasive cleaners or solvents. Regularly clean the condenser coils at the back of the appliance (if accessible) to maintain energy efficiency.

५.३ दरवाजाचे सील

Check the door seals regularly for cleanliness and integrity. Clean them with warm water and a mild detergent. Damaged or dirty seals can lead to poor cooling performance and increased energy consumption.

7. समस्या निवारण

Before contacting customer service, check the following common issues and solutions:

8. तांत्रिक तपशील

Image 8: The EU Energy Label for the Bosch KGV33VWEAS, indicating its energy efficiency class (E), annual energy consumption (228 kWh/annum), and noise level (39 dB).

9. हमी आणि समर्थन

9.1 हमी माहिती

This Bosch appliance comes with a manufacturer's warranty of 24 months from the date of purchase. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects and material faults under normal use conditions.

9.2 ग्राहक समर्थन

For technical assistance, spare parts, or to register your product, please visit the official Bosch website or contact your local Bosch service center. You can find more information and support resources, including the energy label details, at the following link:

Bosch Home Energy Label Information
