1. परिचय
This manual provides detailed instructions for the installation, operation, and maintenance of your Sonew DC12V/24V Electric Bolt Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety. This electric bolt lock is designed for various door types, including wood, metal, and fire doors, offering secure access control.
2. सुरक्षितता माहिती
- विद्युत सुरक्षा: Ensure power is disconnected before performing any wiring or installation procedures. Incorrect wiring can cause damage to the device or pose an electrical hazard.
- खंडtagई सुसंगतता: This lock operates on DC12V or DC24V. Verify your power supply matches the lock's requirements.
- व्यावसायिक स्थापना: For optimal safety and performance, professional installation is recommended.
- पर्यावरणीय परिस्थिती: Avoid exposing the lock to extreme temperatures, humidity, or corrosive environments.
- अधिकृत कर्मचारी: Only authorized personnel should attempt to service or repair the lock.
3. उत्पादन संपलेview
3.1 वैशिष्ट्ये
- टिकाऊ बांधकाम: Lock body constructed from aluminum alloy, designed for stability and resistance to impact.
- Anti-Dismantling Design: Utilizes hexagonal screws for secure installation, preventing unauthorized removal without specific tools.
- Adjustable Delay Function: Features a selectable delay for unlocking (0, 3, or 6 seconds), which can extend the bolt's lifespan.
- दुहेरी खंडtagई सुसंगतता: Supports both DC12V and DC24V power inputs.
- Fail-Secure Operation: The lock is designed to lock when power is applied and unlock when power is removed (power-on lock, power-off unlock).
- कमी उर्जा वापर: Efficient design minimizes power usage.
- बहुमुखी अनुप्रयोग: Suitable for wooden, metal, fire, and glass doors in various settings such as homes, offices, and commercial spaces.
3.2 घटक
The Sonew Electric Bolt Lock package includes the following components:
- Electric Bolt Lock Body
- Accessory Body (Strike Plate)
- माउंटिंग स्क्रू पॅक
- सूचना पुस्तिका (हा दस्तऐवज)
प्रतिमा: ओव्हरview of the Sonew Electric Bolt Lock and its accessory body, typically used as a strike plate. The lock features a serial number label and voltagई/वर्तमान तपशील.
Image: The Sonew Electric Bolt Lock units shown with the included mounting screws. This illustrates the complete set of hardware provided for installation.
4. तपशील
| तपशील | मूल्य |
|---|---|
| ब्रँड | सोनव |
| मॉडेल क्रमांक | 390f00fc-d57d-4ffe-8618-af9135f6106a |
| साहित्य | ॲल्युमिनियम मिश्र धातु |
| संचालन खंडtage | DC12V/24V ±0.5 |
| चालू | 150mA |
| विलंब समायोजन | 0, 3, 6 सेकंद |
| लॉक प्रकार | Power-on lock, Power-off unlock (Fail-Secure) |
| वायरिंग | 4-wire cable connection |
| आयटम वजन | ३.७४ पौंड (अंदाजे १.७ किलो) |
| पॅकेजचे परिमाण | ६ x ५ x ३ इंच (अंदाजे १५.२ x १२.७ x ७.६ सेमी) |
| शिफारस केलेले वापर | Homes, Offices, Commercial Buildings, Storage Units |

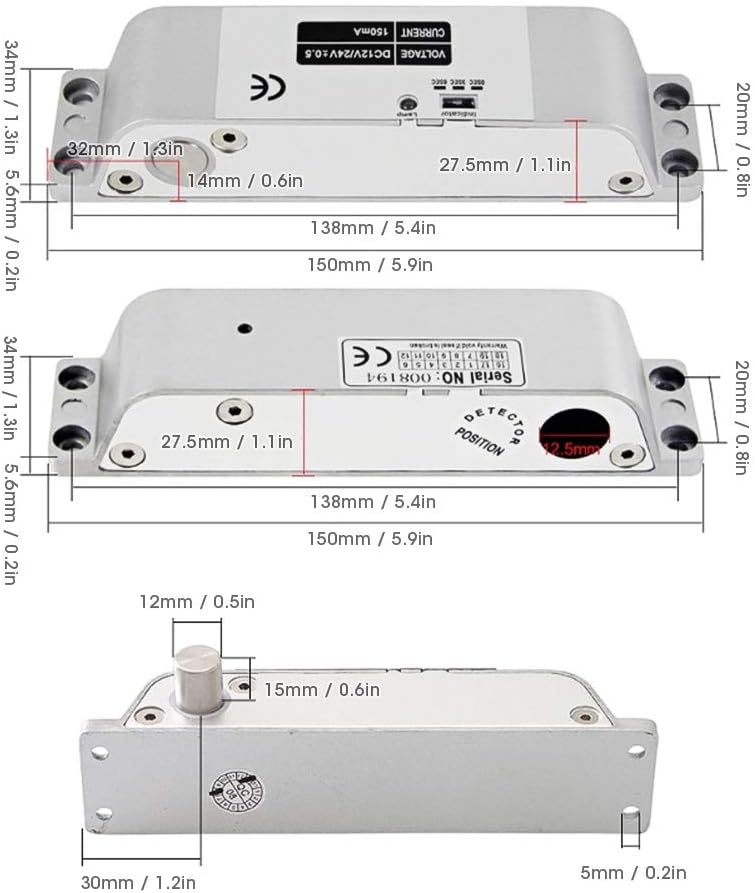

Image: Detailed dimensions of the Sonew Electric Bolt Lock, showing length, width, height, and bolt protrusion measurements in both millimeters and inches.
5. स्थापना
Proper installation is crucial for the security and functionality of the electric bolt lock. Follow these steps carefully.
- Prepare the Door and Frame:
- Identify the desired mounting location on the door frame and the corresponding position on the door.
- Ensure sufficient space for the lock body and strike plate. Refer to the dimension diagram in Section 4.
- Mount the Lock Body:
- Drill pilot holes for the lock body on the door frame.
- Secure the electric bolt lock body using the provided hexagonal mounting screws. Ensure it is firmly attached and aligned correctly.
Image: The electric bolt lock installed on a door frame, showing the wiring connection and the alignment with the door.
- Mount the Accessory Body (Strike Plate):
- Align the accessory body (strike plate) with the bolt on the lock body when the door is closed.
- Mark and drill pilot holes on the door for the strike plate.
- प्रदान केलेले स्क्रू वापरून स्ट्राइक प्लेट सुरक्षित करा.
Image: The electric bolt lock and its corresponding strike plate installed on a door, demonstrating how the two components align for secure locking.
- वायरिंग कनेक्शन:
- The lock uses a 4-wire cable connection. Refer to the wiring diagram (if provided separately or on the device label) for specific connections.
- Connect the wires to your access control system or power supply (DC12V/24V).
- शॉर्ट सर्किट टाळण्यासाठी सर्व कनेक्शन सुरक्षित आणि इन्सुलेटेड असल्याची खात्री करा.
प्रतिमा: क्लोज-अप view of the electric bolt lock showing the 4-wire cable connection point, indicating where power and control signals are connected.
- चाचणी कार्यक्षमता:
- After installation and wiring, apply power and test the lock's operation.
- Verify that the bolt extends when power is applied and retracts when power is removed.
- Check for smooth operation and proper alignment.
प्रतिमा: एक माजीample of the electric bolt lock installed on a glass door, demonstrating its application in various door types.
6. ऑपरेटिंग सूचना
The Sonew Electric Bolt Lock operates as a fail-secure device, meaning it locks when power is supplied and unlocks when power is removed.
- लॉकिंग: When power (DC12V/24V) is supplied to the lock, the bolt will extend, securing the door.
- अनलॉक करणे: When the power supply to the lock is interrupted (e.g., via an access control system, button, or power failure), the bolt will retract, allowing the door to open.
- विलंब समायोजन: The lock features a delay setting for unlocking. This can be adjusted to 0, 3, or 6 seconds using the switch located on the lock body. Adjusting this delay can help prevent rapid cycling and extend the life of the bolt mechanism.
Image: A close-up of the electric bolt lock showing the indicator light and the switch for adjusting the delay time (0, 3, or 6 seconds) for unlocking.
7. देखभाल
Regular maintenance ensures the longevity and reliable operation of your electric bolt lock.
- स्वच्छता: Periodically wipe the lock body with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- तपासणी: Regularly inspect the lock for any signs of wear, damage, or loose connections.
- संरेखन: Ensure the lock bolt and strike plate remain properly aligned. Misalignment can cause excessive wear or prevent proper locking.
- स्नेहन: Do not lubricate the internal mechanisms unless specifically instructed by the manufacturer.
8. समस्या निवारण
If you encounter issues with your electric bolt lock, refer to the following common problems and solutions.
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Lock does not engage (bolt does not extend) | No power supply; Incorrect wiring; Faulty power supply; Lock malfunction. | वीज कनेक्शन आणि व्हॉल्यूम तपासाtage; Verify wiring against diagram; Test power supply; Contact support if lock is faulty. |
| Lock does not disengage (bolt does not retract) | Constant power supply; Incorrect wiring; Mechanical obstruction; Lock malfunction. | Ensure power is cut off for unlocking; Verify wiring; Check for obstructions in the bolt path; Contact support. |
| Bolt operates sluggishly or with difficulty | Misalignment between lock and strike plate; Dirt or debris in mechanism; Low voltage. | Adjust alignment; Clean the bolt and strike plate area; Verify correct voltagई पुरवठा. |
| इंडिकेटर लाइट काम करत नाही | No power; Faulty indicator light. | Check power supply; The lock may still function even if the light is faulty. |
9. हमी आणि समर्थन
This Sonew Electric Bolt Lock is designed for durability and reliable performance. For specific warranty information, please refer to the documentation provided at the time of purchase or contact Sonew customer support.
If you require technical assistance or have questions not covered in this manual, please visit the official Sonew website or contact their customer service department. When contacting support, please have your product model number (390f00fc-d57d-4ffe-8618-af9135f6106a) and purchase details available.
Sonew Official Store: Visit the Sonew Store on Amazon
