Monitor Audio Bronze W10 6G Series Subwoofer Instruction Manual

1. परिचय

खरेदी केल्याबद्दल धन्यवाद.asing the Monitor Audio Bronze W10 6G Series Subwoofer. This manual provides essential information for the safe and optimal operation of your new subwoofer. Please read these instructions thoroughly before installation and use, and retain them for future reference.

2. सुरक्षितता माहिती

विजेचा धक्का, आग किंवा युनिटचे नुकसान टाळण्यासाठी नेहमी खालील सुरक्षा खबरदारी पाळा:

• युनिटला पाऊस किंवा ओलावा उघड करू नका.
• क उघडू नका.asing. सर्व सेवा पात्र कर्मचाऱ्यांकडे सोपवा.
• योग्य वायुवीजन सुनिश्चित करा. वायुवीजन उघडण्या बंद करू नका.
• Disconnect the power cord from the wall outlet if the unit will be unused for a long period.
• Use only the power cord supplied or specified by the manufacturer.
• युनिट उष्णतेच्या स्त्रोतांजवळ किंवा थेट सूर्यप्रकाशात ठेवणे टाळा.

3. पॅकेज सामग्री

सर्व वस्तू पॅकेजिंगमध्ये आहेत याची खात्री करा:

• Monitor Audio Bronze W10 6G Series Subwoofer
• पॉवर कॉर्ड
• वापरकर्ता मॅन्युअल (हा दस्तऐवज)

4. उत्पादन संपलेview

4.1 प्रमुख वैशिष्ट्ये

• Long-throw 10" driver featuring 'dished' C-CAM cone for powerful bass.
• 10" flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit for enhanced low-frequency extension.
• वर्ग डी amplifier with high current Switch Mode Power Supply (SMPSU) for efficient power delivery.
• Amplifier Output: 220 Watts RMS.
• Power Consumption: Maximum 300 W, Standby <0.5 W (ErP compliance).

4.2 Subwoofer Components

आकृती 4.2.1: समोर View of the Monitor Audio Bronze W10 Subwoofer. This image displays the front of the subwoofer with its protective grille, showcasing the compact and elegant design.

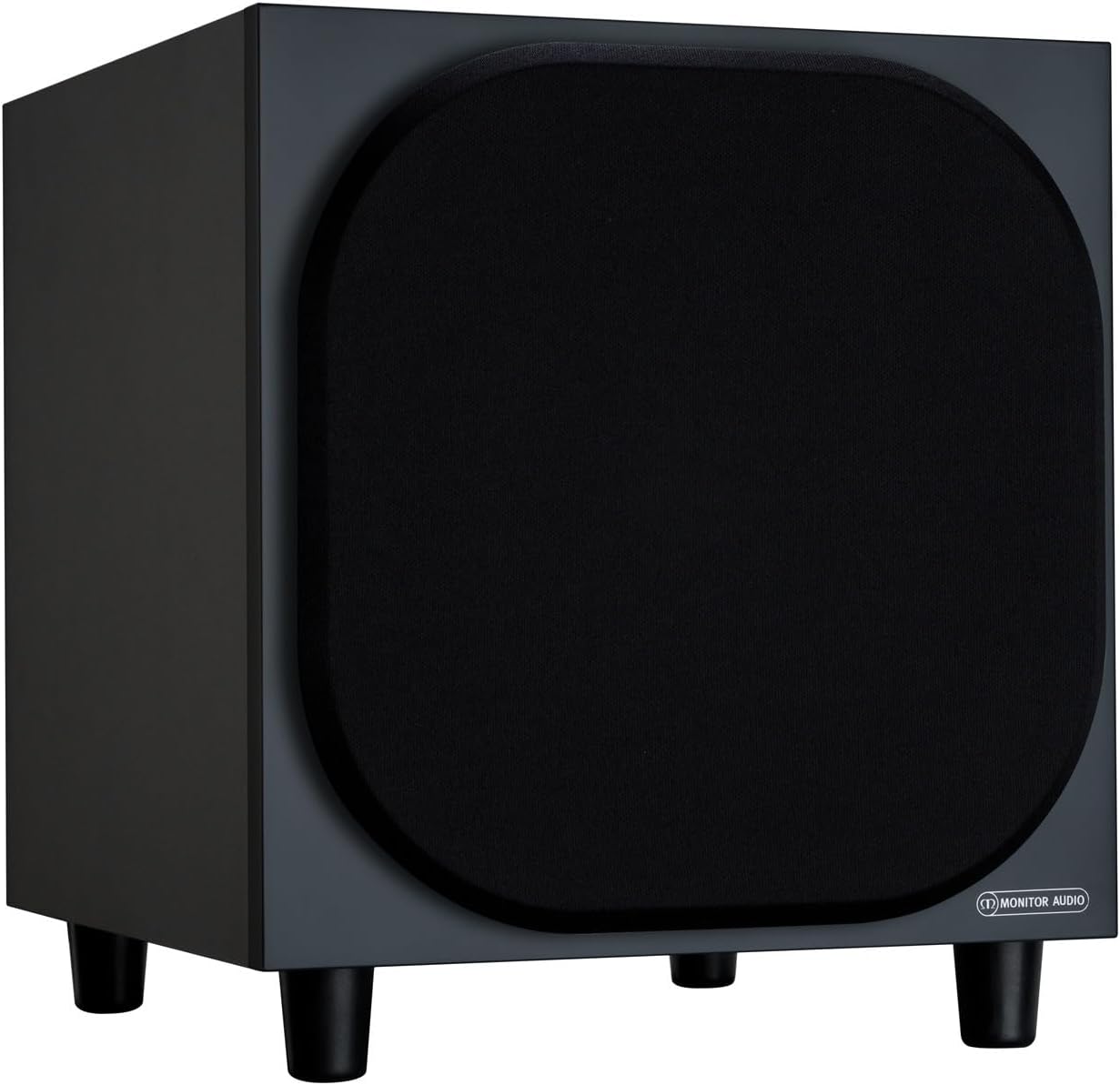

आकृती १: कोन असलेला View of the Monitor Audio Bronze W10 Subwoofer. This image provides an angled perspective, highlighting the overall form factor and the four sturdy feet.

Figure 4.2.3: Rear Panel of the Monitor Audio Bronze W10 Subwoofer. This image details the rear panel, showing all input/output connections, control knobs for frequency, volume, and phase, and the power switch.

5. सेटअप

5.1 प्लेसमेंट

Optimal placement of the subwoofer is crucial for sound quality. Experiment with different positions in your listening room. Generally, placing the subwoofer in a corner can enhance bass output, while placing it along a wall can provide a more balanced response. Avoid placing it directly against a wall if possible, as this can lead to boomy bass.

5.2 कनेक्शन

1. ऑडिओ इनपुट: सबवूफरला तुमच्या AV रिसीव्हरशी कनेक्ट करा किंवा amplifier's LFE (Low-Frequency Effects) or Subwoofer output using an RCA cable. The Bronze W10 features both LFE and stereo RCA inputs.
2. वीज कनेक्शन: Ensure the subwoofer's power switch is in the 'Off' position. Connect the supplied power cord to the subwoofer's AC inlet and then to a suitable wall outlet. The unit supports AC 110-120V or 220-240V, selectable via a switch on the rear panel.
3. 12V Trigger (Optional): If your AV receiver or amplifier has a 12V trigger output, connect it to the subwoofer's 12V Trigger input. This allows the subwoofer to power on/off automatically with your main system.

५.१ प्रारंभिक पॉवर-अप

After making all connections, switch the subwoofer's power to 'On'. The power indicator light should illuminate. If using the 12V trigger, ensure your main system is powered on.

6. ऑपरेटिंग सूचना

6.1 नियंत्रणे

The rear panel of the Bronze W10 features several controls for fine-tuning its performance:

• खंड: Adjusts the overall output level of the subwoofer. Start with a low setting and gradually increase until it blends seamlessly with your main speakers.
• Frequency (Crossover): Sets the upper frequency limit for the subwoofer. This should typically be set to match the low-frequency extension of your main speakers. Common settings range from 80Hz to 120Hz.
• टप्पा: Allows you to adjust the phase of the subwoofer's output relative to your main speakers (0° or 180°). This helps ensure that the subwoofer's sound waves are in sync with the main speakers, preventing cancellation or reinforcement at the crossover point. Experiment with both settings to find the one that produces the most coherent bass.
• मोड: Selects the power mode (On, Auto, 12V Trigger). 'Auto' mode will put the subwoofer into standby when no audio signal is detected and power it on when a signal is present.
• बास मोड: (Refer to Figure 4.2.3) This switch allows selection between different bass characteristics, such as 'Music' or 'Movie' modes, or a 'Bass Boost' setting, to optimize performance for various content.

6.2 Wireless Connectivity (Bluetooth)

The Bronze W10 features Bluetooth connectivity for wireless control or audio input (check specific model features for audio input capability). Refer to your source device's manual for pairing instructions. The Bluetooth range is approximately 10 meters.

7. देखभाल

7.1 स्वच्छता

To clean the subwoofer, use a soft, dry, lint-free cloth. Do not use abrasive cleaners, waxes, or solvents, as these can damage the finish. For stubborn marks, a slightly damp कापड वापरता येते, त्यानंतर कोरडे कापड वापरता येते.

7.2 काळजी

• Avoid exposing the subwoofer to extreme temperatures or humidity.
• युनिटच्या वरती जड वस्तू ठेवू नका.
• Ensure adequate airflow around the unit to prevent overheating.

8. समस्या निवारण

9. तपशील

10. वॉरंटी माहिती

Monitor Audio products are designed and manufactured to the highest quality standards. This product is covered by a Limited Warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Monitor Audio webसाइट. कृपया वॉरंटी दाव्यांसाठी तुमचा खरेदीचा पुरावा जपून ठेवा.

11. समर्थन

For further assistance, technical support, or service inquiries, please contact your authorized Monitor Audio dealer or visit the official Monitor Audio webसाइट:

Webसाइट: www.monitoraudio.com

Address: Monitor Audio Ltd, 24 Brook Road, Rayleigh, Essex, SS6 7XJ, United Kingdom
