परिचय
This manual provides comprehensive instructions for the operation and maintenance of your Olympus Pearlcorder Microcassette Recorder S711. Please read this manual thoroughly before using the device to ensure proper function and longevity.
The Olympus Pearlcorder S711 is designed for portable audio recording, featuring a voice-activated system and various playback controls.
पॅकेज सामग्री
- Olympus Pearlcorder Microcassette Recorder S711
- 60-minute Microcassette
- 2 AA बॅटरीज
सेटअप
1. बॅटरी इन्स्टॉलेशन
- रेकॉर्डरच्या मागील बाजूस बॅटरी कंपार्टमेंट कव्हर शोधा.
- बाणाने दर्शविलेल्या दिशेने कव्हर उघडा सरकवा.
- Insert two AA batteries, ensuring the correct polarity (+/-) as marked inside the compartment.
- बॅटरी कंपार्टमेंट कव्हर सुरक्षितपणे बंद करा.
२. मायक्रोकॅसेट घालणे
- Press the Eject button to open the cassette compartment.
- Insert a microcassette with the tape side facing forward and the open edge facing the recorder's head.
- कॅसेटचा डबा जागी येईपर्यंत हळूवारपणे बंद करा.

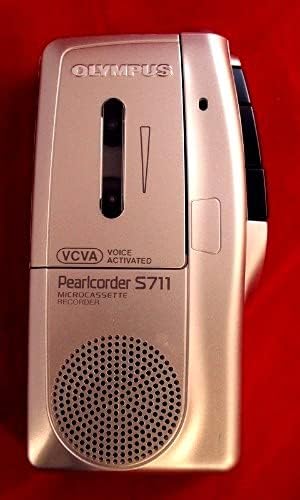

प्रतिमा: समोर view of the Olympus Pearlcorder S711 Microcassette Recorder, showing the speaker grille, "Pearlcorder S711" branding, and "VCVA Voice Activated" indicator.
ऑपरेटिंग सूचना
रेकॉर्डिंग
- मानक रेकॉर्डिंग: दाबा रेकॉर्ड करा button. The recording indicator will illuminate. Speak clearly into the built-in microphone. To stop recording, press the थांबा बटण
- Voice Control Actuator (VCVA): To enable hands-free recording, slide the VCVA switch to the ON position. The recorder will automatically start recording when sound is detected and pause when silence occurs. Adjust the microphone sensitivity selector as needed for optimal voice activation.
- Microphone Sensitivity Selector: Use this switch to adjust the microphone's sensitivity. A higher sensitivity setting is suitable for recording distant sounds or quiet voices, while a lower setting is better for close-range recording or noisy environments.
प्लेबॅक
- मूलभूत प्लेबॅक: दाबा खेळा button. Adjust the volume control to your desired level. To stop playback, press the थांबा बटण
- जलद खेळ: प्लेबॅक दरम्यान, दाबा आणि धरून ठेवा FAST PLAY button to increase playback speed. Release to return to normal speed.
- क्यू/पुन्हाview: प्लेबॅक दरम्यान, दाबा आणि धरून ठेवा CUE button to fast-forward through the tape with audible sound. Press and hold the REVIEW button to rewind through the tape with audible sound.
- क्विक रेview: This feature allows you to quickly jump back a few seconds during playback. Consult the device's specific button layout for this function.
इतर कार्ये
- Dual Tape Speeds: The recorder supports two tape speeds. Select the desired speed using the टेप स्पीड switch. A slower speed allows for longer recording time on a single microcassette, while a faster speed offers better audio fidelity.
- Tape Counter: The tape counter displays the tape position. Use it to locate specific sections of your recordings. Reset the counter to zero by pressing the रीसेट करा बटण
- मायक्रोफोन जॅक: Connect an external microphone (not included) to the MIC jack for enhanced recording quality or specific recording situations.
- हेडफोन जॅक: Connect headphones (not included) to the कान or हेडफोन प्लेबॅक दरम्यान खाजगी ऐकण्यासाठी जॅक.
देखभाल
- युनिट साफ करणे: Wipe the exterior of the recorder with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- डोके साफ करणे: वेळोवेळी रेकॉर्डिंग/प्लेबॅक हेड आणि पिंच रोलर कापसाच्या बोळ्याने हलकेच स्वच्छ करा.ampened with isopropyl alcohol. Ensure the unit is powered off and batteries are removed before cleaning.
- बॅटरी काळजी: जर युनिट जास्त काळ वापरणार नसेल तर गळती रोखण्यासाठी बॅटरी काढून टाका.
- Cassette Storage: Store microcassettes away from direct sunlight, high temperatures, and strong magnetic fields to preserve recording quality.
समस्यानिवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| शक्ती नाही | मृत किंवा चुकीच्या पद्धतीने घातलेल्या बॅटरी. | Replace batteries or re-insert them with correct polarity. |
| Poor recording quality | Microphone sensitivity too low/high; dirty recording head; faulty microcassette. | Adjust microphone sensitivity; clean recording head; try a new microcassette. |
| Tape does not move | कॅसेट योग्यरित्या घातली नाही; टेप अडकला आहे. | Re-insert cassette; gently check for tape jams. Do not force. |
| VCVA not activating | VCVA switch off; microphone sensitivity too low. | Ensure VCVA switch is ON; increase microphone sensitivity. |
तपशील
- ब्रँड: ऑलिंपस
- मॉडेल: Pearlcorder S711
- उत्पादन परिमाणे: 9.5 x 3.5 x 2 इंच
- आयटम वजन: 9.6 औंस
- डिजिटल रेकॉर्डिंग वेळ: 60 minutes (with included microcassette)
- हेडफोन जॅक: 3.5 मिलीमीटर
- मायक्रोफोन फॉर्म फॅक्टर: अंगभूत
- Microphone Operation Mode: मोनो
- उर्जा स्त्रोत: 2 AA बॅटरीज
हमी आणि समर्थन
वॉरंटी माहिती आणि तांत्रिक समर्थनासाठी, कृपया अधिकृत ऑलिंपस पहा. webसाइटवर जा किंवा त्यांच्या ग्राहक सेवा विभागाशी संपर्क साधा. वॉरंटी दाव्यांसाठी खरेदीचा पुरावा म्हणून तुमची खरेदी पावती ठेवा.
