परिचय
This manual provides essential instructions for the safe and effective use of your Firecore 5-Line Laser Level, model FIR411R. Please read this manual thoroughly before operating the device and keep it for future reference.
The Firecore FIR411R is a high-precision laser level designed for various construction and DIY tasks, featuring high-brightness red laser lines, a durable body, and multiple operating modes.
उत्पादन वैशिष्ट्ये
- High-brightness LD red laser for clear visibility.
- Durable, shock-resistant body with rubber covering for enhanced protection.
- Bidirectional 360° fine-tuning screws for precise adjustments.
- Ultra-large capacity lithium polymer battery for extended operation.
- Capable of projecting horizontal lines, vertical lines, cross lines, and right angles efficiently.
- IP54 dustproof and waterproof rating.
- Laser Safety Standard: Class 2, Output: Less than 1mW.
सेटअप
- अनपॅक करणे: Carefully remove the laser level and all accessories from the carrying case. Verify that all components listed in the package contents are present and undamaged.
- बॅटरी बसवणे/चार्ज करणे: The device uses a lithium polymer battery. Ensure the battery is fully charged before first use. Connect the provided charger to the device and a power outlet. The charging indicator will show the charging status.
- प्लेसमेंट: Place the laser level on a stable, level surface or mount it on a tripod. The device features adjustable feet for minor leveling adjustments.

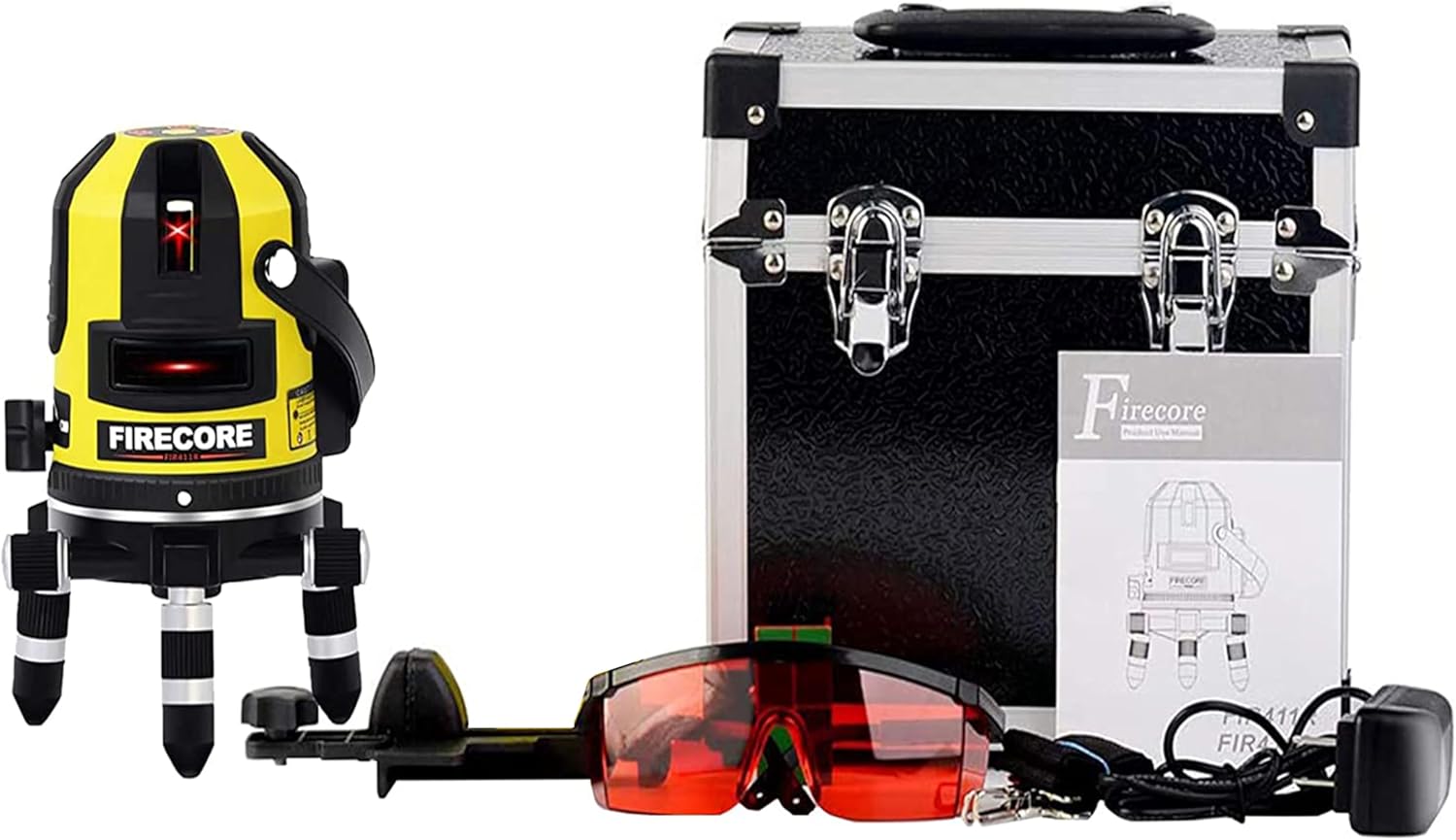

Image: Firecore FIR411R Laser Level, carrying case, laser glasses, and charger.
ऑपरेटिंग सूचना
नियंत्रण पॅनेल संपलेview
Image: Diagram illustrating the control panel, power switch, 360-degree fine-tuning knobs, and height adjustment ring.
ऑपरेटिंग मोड्स
The Firecore FIR411R features three operating modes:
- Automatic Correction Mode:
Turn the power switch to the 'ON' position. The device will automatically self-level within 3 degrees of the horizontal plane. If the device is tilted more than 3 degrees, the laser lines will flash as a warning, indicating that the device is outside its self-leveling range. This mode is ideal for standard leveling tasks. - Manual Mode (Tilt Function):
To activate manual mode, ensure the power switch is in the 'LOCK' position. Then, press the 'V' (Vertical) or 'H' (Horizontal) button to project laser lines. In this mode, the tilt function is enabled, allowing you to project diagonal lines for tasks such as stair handrail installation or piping work. The self-leveling feature is deactivated in manual mode. - आउटडोअर मोड:
For outdoor use or in bright conditions where laser lines may be difficult to see, activate the 'OUTDOOR' mode. This mode increases the laser's visibility range when used with an optional laser receiver (ASIN: B07FXZRG8V, sold separately).
समायोजन
- 360° Fine-Tuning: Use the 360° fine-tuning knobs located at the base of the unit to make precise rotational adjustments for accurate alignment of the laser lines.
- उंची समायोजन: The adjustable feet allow for minor height adjustments to ensure the device is level.
Image: The laser level demonstrating its 360-degree rotation capability for precise alignment.
देखभाल
- स्वच्छता: Keep the laser level clean. Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or solvents.
- लेन्स काळजी: Gently clean the laser output windows with a soft, lint-free cloth. Avoid touching the lenses with bare hands.
- स्टोरेज: When not in use, store the laser level in its protective carrying case in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the power switch is in the 'LOCK' position during storage and transport to protect the pendulum.
- बॅटरी काळजी: For optimal battery life, charge the battery regularly, even if the device is not in frequent use. Avoid fully discharging the battery for extended periods.
समस्यानिवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| लेसर रेषा मंद आहेत किंवा दिसत नाहीत. | Low battery; too bright environment; laser output window is dirty. | Charge the battery; use Outdoor Mode with a receiver in bright conditions; clean the laser output window. |
| Laser lines are flashing. | Device is tilted beyond its self-leveling range (more than 3°). | Place the device on a more level surface or adjust the feet until the flashing stops. |
| डिव्हाइस चालू होत नाही. | Battery is completely discharged; power switch is in 'LOCK' position. | Charge the battery; ensure the power switch is in the 'ON' position. |
| चुकीचे मोजमाप. | Device is not properly calibrated; unstable surface. | Ensure the device is on a stable surface. If accuracy issues persist, contact customer support for calibration. |
तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| ब्रँड | फायरकोर |
| मॉडेल | FIR411R |
| लेसर रंग | लाल |
| लेझर लाईन्स | 5-Line (Horizontal, Vertical, Cross, Right Angle) |
| सेल्फ-लेव्हलिंग रेंज | ±3° |
| लेझर सुरक्षा वर्ग | वर्ग ८.८ |
| लेसर आउटपुट | 1mW पेक्षा कमी |
| Dustproof/Waterproof Rating | IP54 |
| बॅटरी प्रकार | लिथियम पॉलिमर |
| ऑपरेशन मोड | Automatic, Manual (Tilt), Outdoor |
| आयटम वजन | 2.7 किलोग्रॅम |
| परिमाण (पॅकेज) | 27.5 x 26 x 22 सेमी |
| साहित्य | रबर |
हमी आणि समर्थन
हमी माहिती
- 30-Day Refund/Exchange: Eligible for refund or exchange within 30 days from the date of delivery.
- 1-Year Free Repair: The product is covered by a one-year free repair warranty, including free shipping for repairs.
- Post-Warranty Repairs: After the one-year warranty period, repairs are available at a reasonable cost.
- बहिष्कार: In cases of customer negligence (e.g., dropping the device), only the cost of replacement parts will be charged. Repairs may not be possible for issues related to product lifespan, such as deterioration due to aging materials or severe damage from use.
- वॉरंटी कार्ड: Your name must be entered on the warranty card for the warranty to be valid.
ग्राहक समर्थन
Our company operates a maintenance center in Tokyo, ensuring prompt and reliable service for accuracy adjustments, parts repair, and replacement. We aim for a response within 24 hours for all inquiries.
संपर्क पद्धती:
- Click the "Contact seller" button on the product page.
- Email us directly at: firecoretools@gmail.com
