1. परिचय
This user manual provides comprehensive instructions for the assembly, operation, and maintenance of your Ergosolid Falco-22 Adjustable Roller Stand. Designed for LED LCD TVs ranging from 19 to 37 inches (48-94 cm diagonal) and supporting a maximum load of 20 kg, this stand offers mobility and adjustable viewing angles for various environments. Please read this manual thoroughly before installation and use to ensure safe and proper functionality.
Figure 1.1: Ergosolid Falco-22 Adjustable Roller Stand with a mounted television.
2. सुरक्षितता माहिती
चेतावणी: Please read and understand all instructions completely before attempting to install or use this product. Failure to do so may result in property damage, serious injury, or death. If you have any doubts, contact a professional installer.
- This product contains small items that could be a choking hazard. Keep these items away from young children.
- The assembly element or mounting support surface must be capable of supporting five times the weight of the product and the combined load. The structure must be reinforced.
- Safety gear and proper tools must be used during installation. A minimum of two people are required for this installation.
- Never exceed the maximum load capacity of 20 kg for the product. Exceeding this limit may result in property damage or serious injury.
- हे उत्पादन केवळ घरातील वापरासाठी आहे.
- Ensure all screws are securely tightened to prevent loosening.
- Do not use this product for any purpose not expressly specified by the manufacturer.
- When installing a flat panel display, ensure no damage occurs to electrical wiring or power supply.
- Ensure installation and routing of monitor cables on the monitor bracket metal comply with all electrical regulations.
- The monitor, mount, and data cables must be secured to prevent twisting and damage.
- The manufacturer disclaims any liability for modifications, improper installation, or force majeure.
- The manufacturer will not be liable for any damages arising from use for any purpose not expressly specified.
टीप: Before assembly, verify that all components are present in the kit. If any parts are missing, contact your local distributor for replacements.
देखभाल: Regularly check all joint parts every two months to ensure screws remain tightened.
Figure 2.1: Original safety and warning sheet included with the product.
3. पॅकेज सामग्री
Before beginning assembly, please ensure all parts listed below are present and undamaged. If any components are missing or damaged, do not proceed with assembly and contact customer support.
- Main Column (Vertical Support Pole)
- Base (Foot Support with Legs)
- Wheels with Brakes (4 units)
- VESA Mounting Bracket (for TV attachment)
- समायोज्य शेल्फ
- Assortment of Screws, Washers, and Spacers (for VESA mounting and assembly)
- असेंब्ली सूचना (ही मॅन्युअल)
Figure 3.1: The Falco-22 stand components assembled, showing the main column, base, wheels, VESA mount, and shelf.
4. विधानसभा सूचना
Follow these steps carefully to assemble your Falco-22 Adjustable Roller Stand. It is recommended to have a second person assist with assembly, especially when handling the TV.
- Attach the Base to the Main Column: Securely fasten the base (foot support) to the bottom of the main vertical column using the provided screws and tools.
- चाके बसवा: Insert and tighten the four wheels into the designated slots on the base. Ensure the wheels with brakes are positioned where they can be easily accessed.
- Attach the VESA Mounting Bracket: Connect the VESA mounting bracket to the top section of the main column. This bracket will hold your television.
- समायोज्य शेल्फ स्थापित करा: Position the adjustable shelf at your desired height on the main column and secure it using the provided fasteners. The shelf can be adjusted vertically later if needed.
- Mount Your Television: Carefully attach your LED LCD TV to the VESA mounting bracket. Select the appropriate screws and spacers from the assortment provided to match your TV's VESA pattern (75x75, 100x100, 200x100, 200x200). Ensure the TV is centered and securely fastened.
- केबल व्यवस्थापनः Utilize the cable management opening in the main column to route and conceal your TV's power and data cables for a tidy setup.

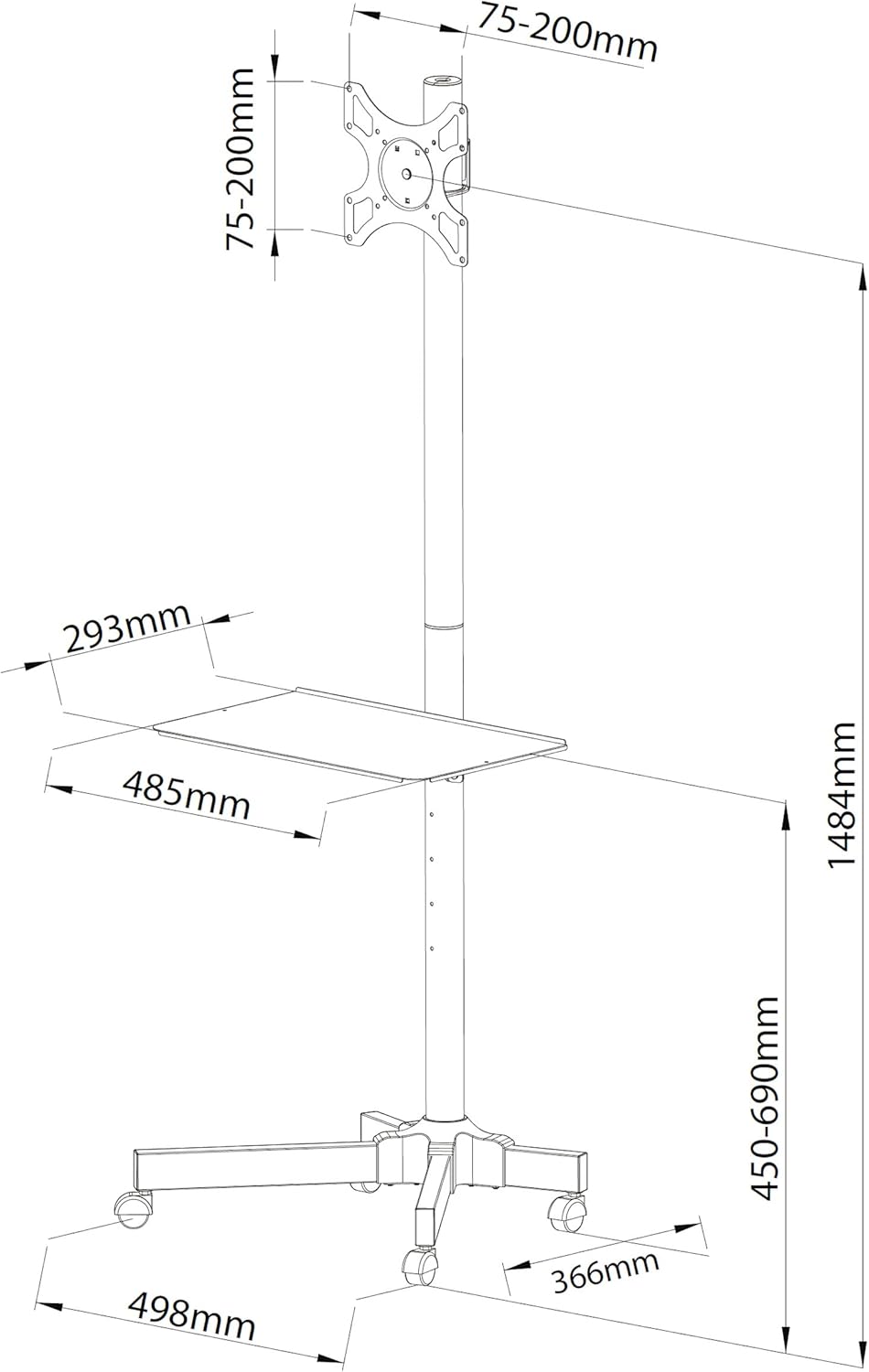

Figure 4.1: Dimensional diagram illustrating key measurements and component placement for assembly.
Figure 4.2: Diagram detailing VESA mounting patterns, 360° pivot, and adjustable height ranges for the TV and shelf.
5. ऑपरेटिंग सूचना
The Falco-22 stand is designed for ease of use and flexibility.
- स्टँड हलवणे: To move the stand, release the brakes on all four wheels. Gently push the stand to your desired location. Once in position, engage the wheel brakes to secure the stand.
- Adjusting TV Height: The TV mounting bracket can be adjusted vertically along the main column. Loosen the securing mechanism, slide the TV to the desired height, and re-tighten the mechanism. Refer to Figure 4.2 for height ranges.
- Adjusting TV Tilt: The TV can be tilted vertically by up to -12 degrees (downwards). Loosen the tilt adjustment knobs on the VESA bracket, set the desired angle, and re-tighten.
- टीव्ही फिरवणे: The TV can be swiveled 360 degrees around the main column. Gently rotate the TV to achieve your preferred viewकोन.
- शेल्फची उंची समायोजित करणे: The accessory shelf can also be adjusted vertically along the main column. Loosen its securing mechanism, slide to the desired height (min. 360mm, max. 700mm), and re-tighten.
Figure 5.1: Detail of a wheel with an engaged brake, ensuring stability when the stand is stationary.
6. देखभाल
Regular maintenance ensures the longevity and safe operation of your Falco-22 stand.
- Screw Tightness Check: Every two months, inspect all screws and bolts on the stand. Re-tighten any that have become loose to maintain stability and prevent accidents.
- स्वच्छता: सॉफ्टने स्टँड पुसून टाका, damp कापड. फिनिशिंग खराब करू शकणारे अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स वापरणे टाळा.
- चाक तपासणी: Periodically check the wheels for any debris or damage that might impede their movement or the effectiveness of the brakes. Clean as necessary.
7. समस्या निवारण
If you encounter any issues with your Falco-22 stand, refer to the following common problems and solutions:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| स्टँड अस्थिर किंवा डळमळीत आहे. | Loose screws; uneven floor; TV too heavy or off-center. | Ensure all assembly screws are tightened. Move stand to a level surface. Verify TV weight is within limits (max 20kg) and properly centered on the VESA mount. |
| Wheels do not roll smoothly or brakes don't hold. | Debris in wheels; brakes engaged; damaged wheels. | Clean any debris from wheels. Ensure brakes are disengaged when moving. If wheels are damaged, contact support for replacements. |
| TV does not fit the VESA mount. | चुकीचा VESA पॅटर्न; टीव्हीचा आकार रेंजच्या बाहेर आहे. | Verify your TV's VESA pattern is compatible (75x75, 100x100, 200x100, 200x200). Ensure your TV is between 19-37 inches. |
| असेंब्ली दरम्यान भाग गहाळ आहेत. | पॅकेजिंगमध्ये त्रुटी. | Do not proceed with assembly. Contact your local distributor or Ergosolid customer support for replacement parts. |
8. तपशील
| मॉडेल | Falco-22 |
| सुसंगत टीव्ही आकार | 19 - 37 inches (48 - 94 cm diagonal) |
| कमाल लोड क्षमता | 20 किलो (44 पौंड) |
| VESA सुसंगतता | 75x75mm, 100x100mm, 200x100mm, 200x200mm |
| साहित्य | पोलाद |
| रंग | काळा |
| Foot Height (Overall) | 1600 मिमी (अंदाजे 63 इंच) |
| अनुलंब तिरपा | -12 degrees (downwards) |
| कुंडले | 360 अंश |
| बेस परिमाणे (L x W) | ४३३ मिमी x १३२ मिमी (अंदाजे १७.०५ x ५.२० इंच) |
| Adjustable Shelf Height Range | Min. 360mm to Max. 700mm (from floor) |
| आयटम वजन | ३.७४ पौंड (अंदाजे १.७ किलो) |
9. हमी आणि समर्थन
For information regarding the product warranty, please refer to the warranty card included in your product packaging or visit the official Ergosolid website. For technical support, missing parts, or any other inquiries, please contact your local distributor or Ergosolid customer service through the contact information provided with your purchase documentation.
