महत्वाची सुरक्षितता माहिती
Please read all instructions carefully before operating the Creworks Ultrasonic Cleaner. Failure to follow these safety guidelines may result in electric shock, fire, or serious injury.
- युनिट वेगळे करू नका. सर्व सर्व्हिसिंग पात्र कर्मचाऱ्यांना द्या.
- Do not use the unit unattended. Always supervise operation.
- Always use sufficient fluid in the tank. Do not operate the unit dry.
- टाकी भरण्यापूर्वी किंवा काढून टाकण्यापूर्वी युनिट अनप्लग करा.
- Keep the unit away from water and moisture. Do not immerse the main unit in water.
- वीजपुरवठा युनिटच्या गरजांनुसार आहे याची खात्री करा.
- ओल्या हातांनी पॉवर प्लगला स्पर्श करू नका.
- मुलांच्या आवाक्याबाहेर ठेवा.
- Avoid using flammable, explosive, or corrosive cleaning solutions.
- Do not place items directly on the bottom of the tank; always use the provided basket.

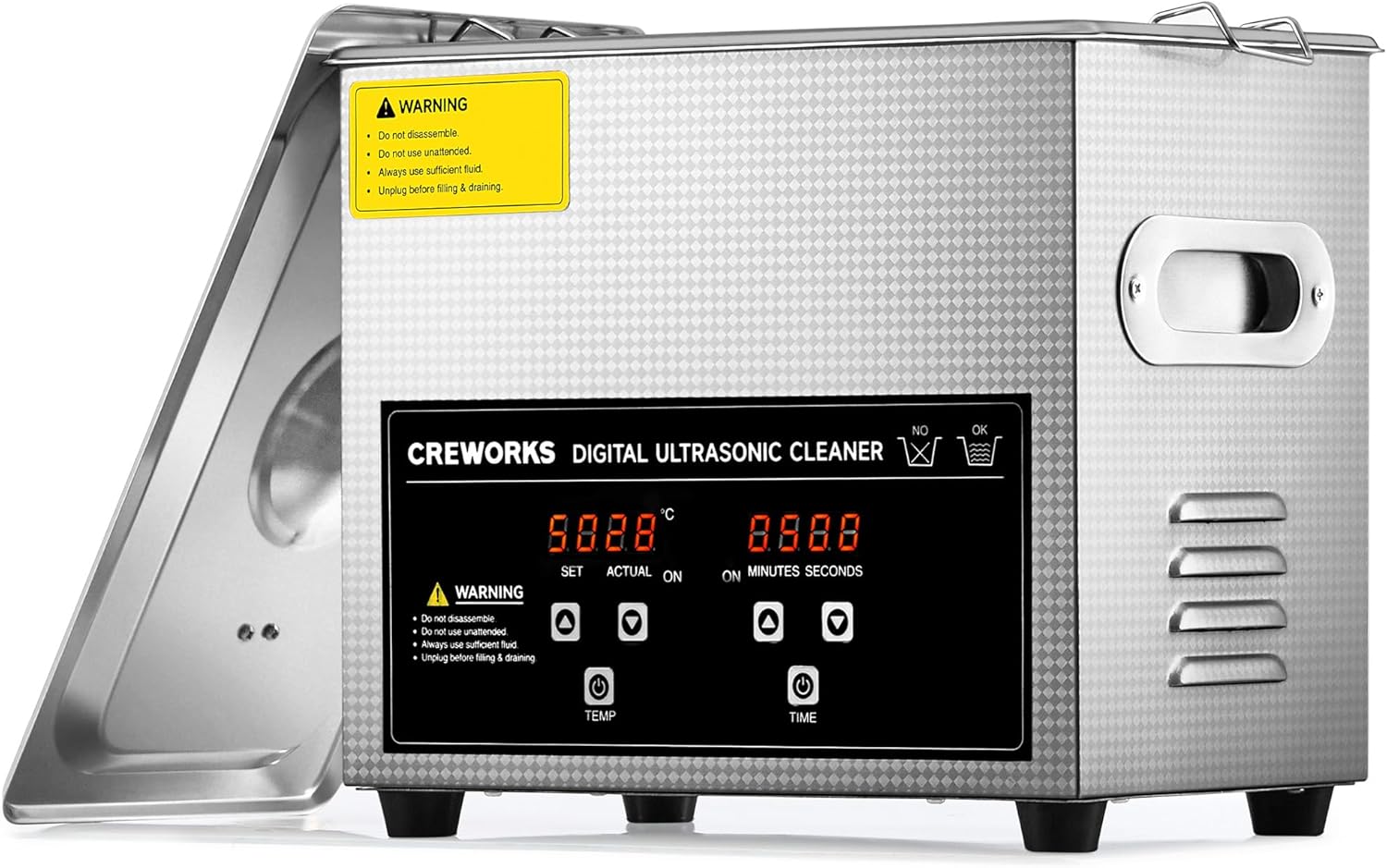

आकृती 1: समोर view of the Creworks Ultrasonic Cleaner, highlighting the warning labels on the unit.
उत्पादन संपलेview
The Creworks 3L Ultrasonic Cleaner is designed for efficient and thorough cleaning of various items using ultrasonic cavitation technology. It features a durable stainless steel tank, digital controls for temperature and time, and a built-in heater.
प्रमुख वैशिष्ट्ये:
- शक्तिशाली साफ करणे: 120W ultrasonic power and 100W heater for effective cleaning.
- डिजिटल नियंत्रण पॅनेल: Intuitive interface for setting cleaning time (up to 30 minutes) and temperature (20-80°C).
- बहुमुखी अनुप्रयोग: Suitable for jewelry, glasses, makeup sponges, retainers, and more.
- टिकाऊ बांधकाम: Built with food-grade 304 stainless steel tank and basket for long-lasting use.
- सोयीस्कर डिझाइन: Inset handles for easy transport and a built-in drain valve for simple cleanup.
आकृती 2: The ultrasonic cleaner offers a solution to common cleaning challenges like harmful chemicals, endless scrubbing, scratched surfaces, tight corners, and time-consuming tasks.
आकृती 3: Illustration of the powerful 40 kHz ultrasonic cavitation process: liquid molecules form, expand, and burst, effectively removing stains.
सेटअप आणि स्थापना
- अनपॅक करणे: Carefully remove the ultrasonic cleaner from its packaging. Inspect the unit for any signs of damage during transit. Retain the packaging for future storage or transport.
- प्लेसमेंट: Place the unit on a stable, flat, and dry surface. Ensure there is adequate ventilation around the unit and that it is not near any heat sources or flammable materials.
- वीज कनेक्शन: Ensure the power switch is in the "OFF" position. Plug the power cord into a grounded electrical outlet that matches the voltage requirements specified on the unit's label.
- टाकी भरणे:
- युनिट अनप्लग असल्याची खात्री करा.
- Fill the stainless steel tank with an appropriate cleaning solution. The solution level should be between the "MIN" and "MAX" fill lines. Do not overfill or underfill.
- For general cleaning, tap water is often sufficient. For enhanced cleaning, a small amount of non-foaming, non-corrosive ultrasonic cleaning solution can be added.
- Inserting the Basket: Place the cleaning basket into the tank. Items to be cleaned should be placed inside this basket to prevent direct contact with the tank bottom and to facilitate easy removal.
ऑपरेटिंग सूचना
Follow these steps to operate your Creworks Ultrasonic Cleaner:
- पॉवर चालू: Plug in the unit and press the power button. The digital display will illuminate.
- तापमान सेट करा (पर्यायी):
- दाबा TEMP बटण
- वापरा UP आणि खाली arrows to set the desired temperature between 20°C and 80°C (68°F and 176°F).
- The heater will begin warming the solution. The "ACTUAL" temperature will be displayed.
- साफसफाईची वेळ सेट करा:
- दाबा TIME बटण
- वापरा UP आणि खाली arrows to set the desired cleaning duration, from 1 to 30 minutes.
- साफसफाई सुरू करा: Once temperature and time are set, the unit will automatically begin the ultrasonic cleaning process. The timer will count down.
- सायकलचा शेवट: The unit will automatically stop when the set time has elapsed. A beep may sound to indicate completion.
- आयटम काढा: Unplug the unit. Carefully remove the cleaning basket from the tank. Rinse the cleaned items under clean water and dry them thoroughly.
- वीज बंद: Press the power button to turn off the unit, then unplug it from the wall socket.
आकृती 4: The intuitive control panel allows for easy adjustment of temperature and time settings for optimal cleaning.
आकृती 5: Examples of the visible cleaning effect on various items after using the ultrasonic cleaner.
आकृती 6: The compact and versatile design allows for thorough cleaning of intricate surfaces and tight corners on a wide range of items.
देखभाल आणि काळजी
योग्य देखभाल तुमच्या अल्ट्रासोनिक क्लिनरचे दीर्घायुष्य आणि इष्टतम कामगिरी सुनिश्चित करते.
- टाकी काढून टाकणे: After each use, or when the cleaning solution becomes visibly dirty, unplug the unit and drain the tank using the built-in drain valve.
- टाकी साफ करणे: स्टेनलेस स्टीलची टाकी स्वच्छ पाण्याने स्वच्छ धुवा. युनिटच्या आतील आणि बाहेरील बाजू मऊ, डamp कापड. अपघर्षक क्लीनर वापरू नका किंवा मुख्य युनिट पाण्यात बुडवू नका.
- स्टोरेज: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the tank is completely dry before storage.
- उपाय बदलणे: Regularly replace the cleaning solution to maintain cleaning effectiveness and prevent residue buildup.
आकृती 7: The tank is constructed from food-grade 304 stainless steel, ensuring durability, corrosion resistance, and a thickness of 0.04 inches for long-lasting use.
समस्यानिवारण
If you encounter issues with your Creworks Ultrasonic Cleaner, refer to the following common problems and solutions:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| युनिट चालू होत नाही. | No power supply; loose connection; power button not pressed. | Check power cord connection. Ensure outlet is functional. Press power button firmly. |
| अल्ट्रासोनिक ध्वनी/क्रिया नाही. | Insufficient water level; unit not started; faulty transducer. | Ensure water level is between MIN/MAX. Verify timer is set and unit is running. If problem persists, contact support. |
| खराब साफसफाईचे परिणाम. | Incorrect cleaning solution; insufficient cleaning time/temperature; heavily soiled items. | Use appropriate cleaning solution. Increase cleaning time or temperature. Pre-rinse heavily soiled items. |
| युनिट गोंगाट करणारा आहे. | Normal operation sound; items touching tank bottom. | A slight buzzing sound is normal during ultrasonic operation. Ensure items are in the basket and not touching the tank bottom. |
If the problem persists after trying these solutions, please contact Creworks customer support.
तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | आमच्याकडे आता स्टॉकमध्ये DUC-1003-00 चे 100 तुकडे उपलब्ध आहेत. |
| टाकीची मात्रा | 3 लिटर (0.8 गॅलन) |
| प्रचंड कंपनसंख्या असलेल्या (ध्वनिलहरी) शक्ती | 120W |
| हीटिंग पॉवर | 100W |
| प्रचंड कंपनसंख्या असलेल्या (ध्वनिलहरी) वारंवारता | 40 kHz |
| तापमान श्रेणी | 20-80°C (68-176°F) |
| टाइमर श्रेणी | 1-30 मिनिटे |
| टाकी साहित्य | फूड-ग्रेड ३०४ स्टेनलेस स्टील |
| उत्पादनाची परिमाणे (L x W x H) | ९.४ x ५.६ x २.५९ सेमी (३.७ x २.२१ x १.०२ इंच) |
| आयटम वजन | 3.36 किलो |

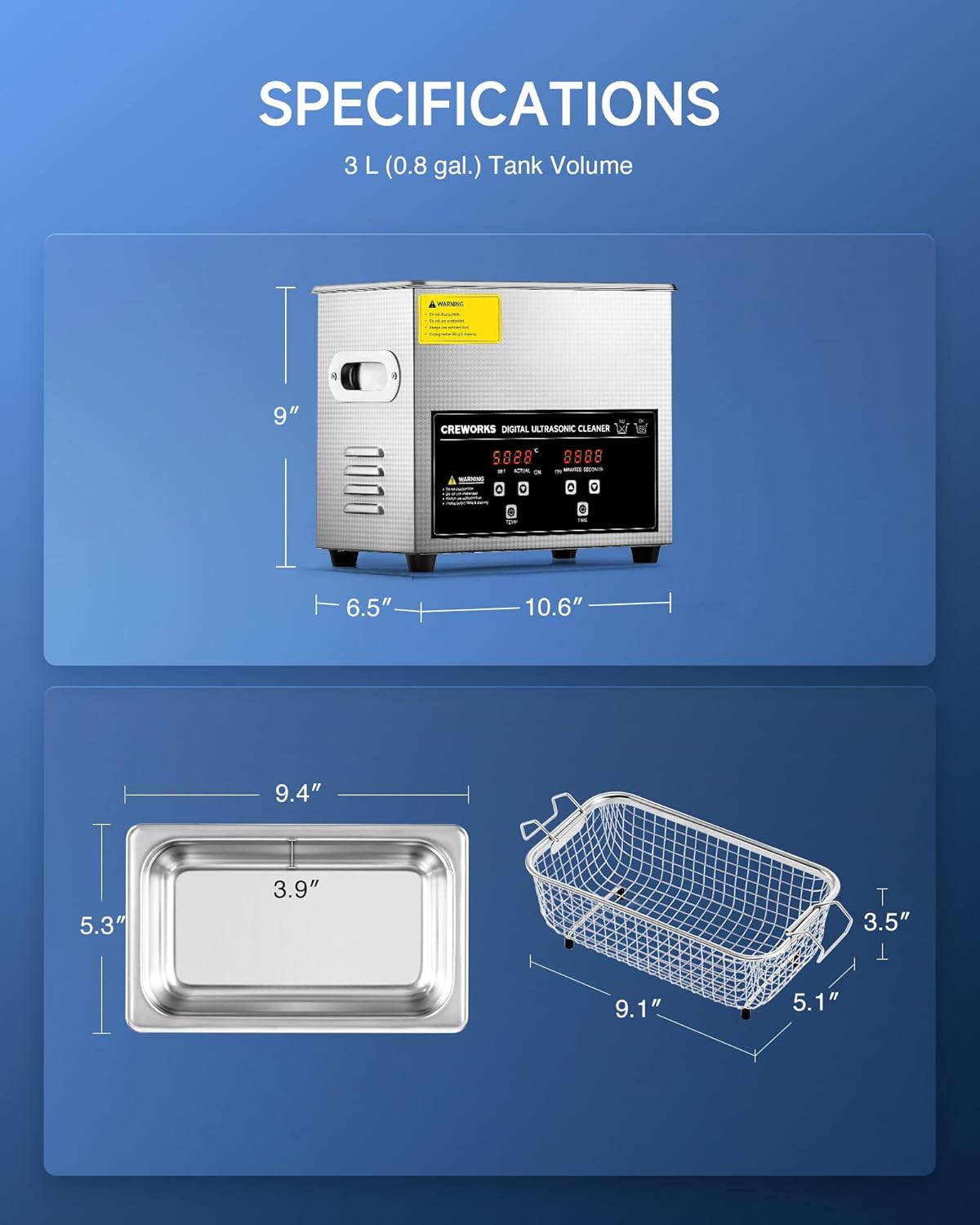

आकृती 8: Detailed dimensions of the Creworks Ultrasonic Cleaner and its 3L tank and basket.
आकृती 9: Feature comparison highlighting the superior specifications of the Creworks cleaner.
हमी आणि समर्थन
For warranty information, technical support, or service inquiries, please contact Creworks customer service. Keep your purchase receipt as proof of purchase.
संपर्क माहिती: Refer to the contact details provided with your product packaging or visit the official Creworks webसाइट
ऑनलाइन संसाधने: For additional resources, FAQs, and product updates, please visit www.creworks.com (टीप: हे एक प्लेसहोल्डर आहे. URL, कृपया योग्य उत्पादन दस्तऐवजीकरण पहा webसाइट)
