1. परिचय आणि ओव्हरview
The DSC HS2LCD PowerSeries Neo Full Message LCD Keypad is an essential component of your DSC PowerSeries Neo security alarm system. This hardwired keypad provides a clear, full-message liquid crystal display (LCD) for easy system status viewing, event logging, and user interaction. It allows for arming and disarming the system, bypassing zones, and performing various user functions.
This keypad is designed for compatibility with DSC PowerSeries Neo control panels, including models HS2016, HS2032, HS2064, and HS21218. For detailed system programming and advanced features, refer to the installer manual for your specific PowerSeries Neo control panel.
2. सुरक्षितता माहिती
- व्यावसायिक स्थापना शिफारस: Installation of this keypad and integration with a security system should be performed by a qualified security professional. Improper installation can lead to system malfunction or compromise security.
- विद्युत सुरक्षा: Ensure all power to the alarm control panel is disconnected before performing any wiring or installation procedures. Work with low voltagफक्त e वायरिंग.
- पर्यावरणीय परिस्थिती: Install the keypad in a dry indoor location, away from direct sunlight, extreme temperatures, and high humidity.
- नुकसान: Do not attempt to open or service the keypad yourself. Refer all servicing to qualified personnel.
3. पॅकेज सामग्री
तुमच्या पॅकेजमध्ये खालील आयटम असल्याचे सत्यापित करा:
- DSC HS2LCD PowerSeries Neo Full Message LCD Keypad
- Installation Guide / Quick Start Guide (may be included with the main control panel)
Figure 1: DSC HS2LCD Keypad as received, with protective film.
This image shows the DSC HS2LCD keypad, still partially in its original packaging. The keypad is white with a green protective film covering the LCD screen area. The DSC logo is visible on the packaging and faintly on the keypad itself.
4. सेटअप आणि स्थापना
The HS2LCD keypad is designed for professional hardwired installation. The following steps provide a general overview; always refer to the detailed installation instructions provided with your DSC PowerSeries Neo control panel for specific wiring diagrams and mounting procedures.
4.1. कीपॅड माउंट करणे
- Select a suitable indoor location, typically near an entry/exit point, that is easily accessible and visible.
- Carefully open the keypad housing to access the mounting holes.
- Secure the keypad to the wall using appropriate screws and anchors (not included), ensuring it is level and firmly attached.
4.2. वायरिंग कनेक्शन
The HS2LCD keypad connects to the PowerSeries Neo control panel via a 4-wire Keybus connection. Ensure power to the control panel is OFF before making any connections.
- Connect the Red terminal on the keypad to the Red (Aux+) terminal on the control panel.
- Connect the Black terminal on the keypad to the Black (Aux-) terminal on the control panel.
- Connect the Yellow terminal on the keypad to the Yellow (Keybus Data) terminal on the control panel.
- Connect the Green terminal on the keypad to the Green (Keybus Data) terminal on the control panel.
टीप: Proper polarity and secure connections are crucial for reliable operation. Consult your control panel's installation manual for specific terminal locations and wiring best practices.
५. प्रारंभिक पॉवर-अप
Once all wiring is complete and verified, restore power to the control panel. The keypad should power on and display initial system messages. The installer will then configure the keypad's address and integrate it into the system.
5. ऑपरेटिंग सूचना
5.1. Keypad Layout and Display

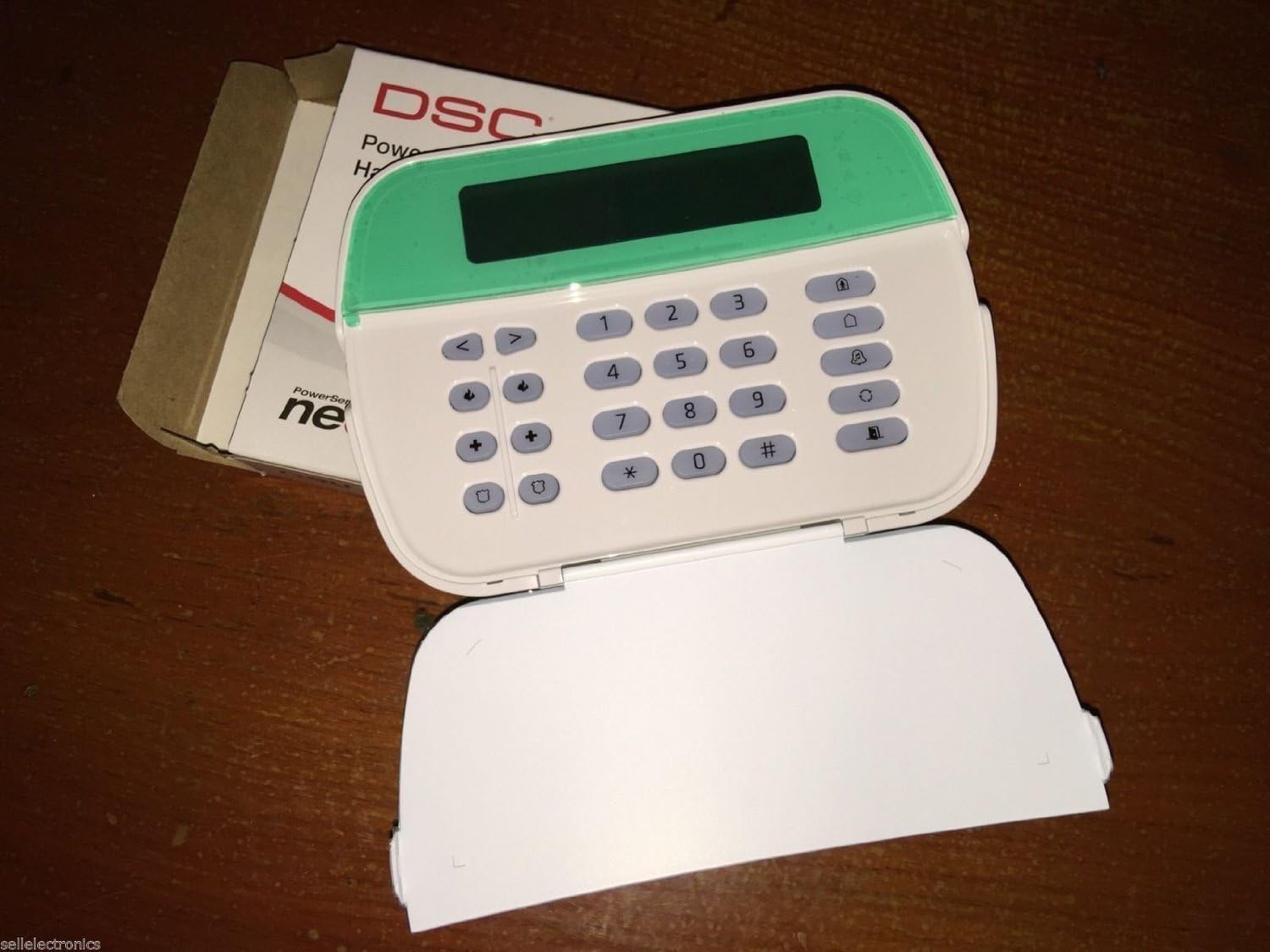

Figure 2: DSC HS2LCD Keypad with cover open.
This image displays the DSC HS2LCD keypad with its front cover flipped down, exposing the full alphanumeric keypad. The LCD screen is visible at the top, above the numbered keys (0-9), asterisk (*), and pound (#) keys, along with various function buttons.
The HS2LCD features a full-message LCD display that provides clear text prompts and system status. Below the display, you will find a standard numeric keypad (0-9, *, #) and dedicated function buttons for common operations.
5.2. Basic System Operations
All operations require a valid 4-digit or 6-digit user code.
- Arming Away: To arm the system when all occupants are leaving, enter your वापरकर्ता कोड. The system will provide an exit delay.
- Arming Stay: To arm the system while occupants remain inside (bypassing interior zones), press the मुक्काम button, then enter your वापरकर्ता कोड.
- नि:शस्त्र करणे: To disarm the system, enter your वापरकर्ता कोड. This will silence any alarms and restore the system to a disarmed state.
- बायपासिंग झोन: To temporarily remove a zone from the system's protection (e.g., a window left open), press the बायपास button, enter your वापरकर्ता कोड, then enter the 2-digit zone number(s) to bypass. Press # बाहेर पडण्यासाठी
- Viewing System Status: The LCD will display system status messages (e.g., "System Ready to Arm", "Not Ready", "Alarm Memory"). Use the arrow keys to scroll through messages if available.
- पॅनिक अलार्म: Dedicated panic buttons (often labeled F, A, P or with symbols) can be pressed and held for 2 seconds to activate immediate alarms (Fire, Auxiliary, Panic). Consult your installer for specific button assignments.
5.3. Changing User Codes
To change a user code (if enabled by your installer):
- दाबा [*] [5].
- आपले प्रविष्ट करा मास्टर वापरकर्ता कोड.
- Enter the 2-digit वापरकर्ता क्रमांक (e.g., 01 for User 1).
- प्रविष्ट करा नवीन वापरकर्ता कोड (4 or 6 digits).
- दाबा # प्रोग्रामिंगमधून बाहेर पडण्यासाठी.
टीप: Not all user codes have permission to change other codes. Consult your installer for user code management. For advanced programming, refer to the DSC PowerSeries Neo Installer Manual.
6. देखभाल
- स्वच्छता: To clean the keypad, gently wipe the surface with a soft, dry cloth. For stubborn marks, slightly dampen the cloth with water. Do not use abrasive cleaners, solvents, or spray liquids directly onto the keypad.
- नियमित तपासणी: Periodically check the keypad for any physical damage or loose connections. Ensure the display is clear and all buttons respond correctly.
- सिस्टम चाचणी: Follow your security provider's recommendations for regular system testing to ensure all components, including the keypad, are functioning correctly.
7. समस्या निवारण
If you experience issues with your HS2LCD keypad, consider the following common problems and solutions. For complex issues or system-wide faults, contact your professional security installer.
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Keypad display is blank or unresponsive. | No power to the keypad or control panel; loose wiring connection. | Check power to the control panel. Verify all 4 Keybus wires are securely connected at both the keypad and the control panel. Contact installer if issue persists. |
| Keypad beeps continuously or displays an error message. | System trouble condition (e.g., low battery, communication error, zone fault). | दाबा [*] करण्यासाठी बटण view trouble conditions on the LCD. Address the specific trouble (e.g., close open doors/windows). If it's a system fault, contact your installer. |
| बटणे प्रतिसाद देत नाहीत. | Keypad frozen; physical damage. | Try disarming the system if it's armed. If unresponsive, a power cycle of the main control panel (by an installer) may be required. If physically damaged, replacement may be necessary. |
| System does not arm. | Zones are open; system not ready. | Check the keypad display for "Not Ready" messages. Close all protected doors and windows. Bypass any zones you wish to leave open. |
महत्त्वाचे: The DSC HS2LCD keypad is a component of a larger security system. Many issues may originate from the main control panel or other connected devices. Always consult your security system's comprehensive manual or contact your professional installer for advanced diagnostics and repairs.
8. तपशील
| ब्रँड | DSC |
| मॉडेल क्रमांक | HS2LCD (Part Number), 4331024609 (Item Model Number) |
| UPC | 702188341806 |
| रंग | पांढरा |
| उर्जा स्त्रोत | Corded Electric (via control panel) |
| सुसंगत नियंत्रण पॅनेल | HS2016, HS2032, HS2064, HS21218 (DSC PowerSeries Neo) |
| कनेक्टिव्हिटी तंत्रज्ञान | Wired (Keybus) |
| स्थापना प्रकार | Professional Hard-wired |
| नियंत्रण पद्धत | स्पर्श करा (बटणे) |
| आयटमचे परिमाण (L x W x H) | 9.8 x 7.3 x 2.2 इंच (24.9 x 18.5 x 5.6 सेमी) |
| आयटम वजन | 1.1 पौंड (0.5 किलो) |
9. हमी आणि समर्थन
Warranty information for the DSC HS2LCD keypad is typically provided by the manufacturer, DSC, and may be included with your main PowerSeries Neo control panel or available on the official DSC website. Warranty terms and conditions can vary.
For technical support, service, or warranty claims, please contact your professional security system installer or the authorized DSC distributor from whom the product was purchased. They are best equipped to provide assistance specific to your installed system.
You can also visit the official DSC website for product documentation, FAQs, and contact information for customer support.
