परिचय
Thank you for choosing the Monitor Audio Apex AW-12 Subwoofer. This compact, high-performance subwoofer is designed to deliver powerful and precise bass, enhancing your home audio experience. Featuring a 12-inch C-CAM driver, a 500-watt Class D amplifier, and a high-efficiency switched-mode power supply, the Apex AW-12 integrates seamlessly into any compatible A/V system. This manual provides essential information for safe installation, optimal operation, and proper maintenance of your subwoofer.
सुरक्षितता माहिती
Please read all safety instructions before operating the subwoofer. Keep this manual for future reference.
- उर्जा स्त्रोत: Connect the subwoofer only to an AC power source as indicated on the unit.
- वायुवीजन: युनिटभोवती पुरेसे वायुवीजन सुनिश्चित करा. वायुवीजन उघडण्या बंद करू नका.
- पाणी आणि ओलावा: युनिटला पाऊस, ओलावा किंवा जास्त आर्द्रतेच्या संपर्कात आणू नका.
- उष्णता: रेडिएटर्स, हीट रजिस्टर, स्टोव्ह किंवा उष्णता निर्माण करणाऱ्या इतर उपकरणांसारख्या उष्णता स्त्रोतांपासून युनिट दूर ठेवा.
- सर्व्हिसिंग: या उत्पादनाची स्वतः सेवा करण्याचा प्रयत्न करू नका. पात्र सेवा कर्मचाऱ्यांना सर्व सेवांचा संदर्भ द्या.
- स्वच्छता: Disconnect from power before cleaning. Use a soft, dry cloth.
उत्पादन संपलेview

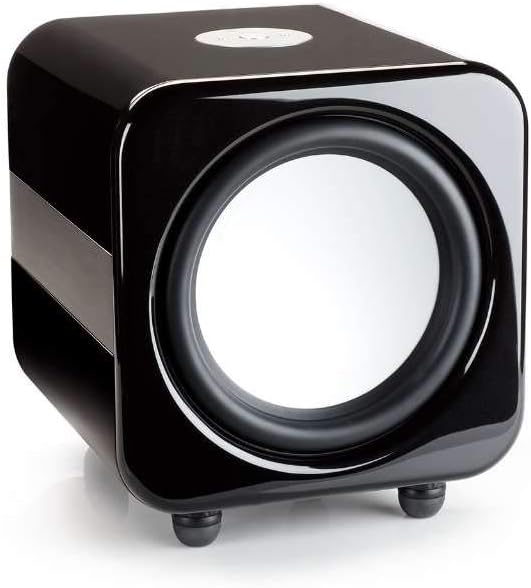

The Monitor Audio Apex AW-12 Subwoofer is designed for robust audio performance and aesthetic integration.
सेटअप
1. प्लेसमेंट
The Apex AW-12 is designed as a floor-standing subwoofer. For optimal performance, place the subwoofer on a solid, level surface. Experiment with different positions in your room to find the best bass response, typically in a corner or along a wall.
2. जोडण्या
Ensure all audio equipment is turned off before making connections.
- ऑडिओ इनपुट: Connect the subwoofer to your A/V receiver or processor's subwoofer output (LFE) using a high-quality RCA cable.
- 12V ट्रिगर इनपुट: If your A/V receiver or processor has a 12V trigger output, connect it to the subwoofer's 12V trigger input. This allows for automatic power activation/deactivation with your main system.
- वीज कनेक्शन: Once all audio connections are made, connect the supplied AC power cord to the subwoofer's power inlet and then to a suitable wall outlet.
कार्यरत आहे
पॉवरिंग चालू/बंद
If using the 12V trigger input, the subwoofer will power on automatically when your connected A/V receiver or processor is turned on. Otherwise, locate the power switch on the subwoofer and set it to the 'ON' position.
Volume and EQ Controls
The Apex AW-12 features top-mounted controls for volume and EQ settings. Adjust the volume to blend seamlessly with your main speakers. The EQ settings allow you to fine-tune the bass response to suit your room acoustics and personal preference. Refer to your A/V receiver's manual for initial setup and calibration of subwoofer levels.
देखभाल
To ensure the longevity and optimal performance of your Monitor Audio Apex AW-12 Subwoofer, follow these maintenance guidelines:
- स्वच्छता: Regularly wipe the cabinet with a soft, dry, lint-free cloth. Avoid using abrasive cleaners, waxes, or solvents, as these can damage the finish.
- धूळ: Use a soft brush or a vacuum cleaner with a brush attachment to gently remove dust from the driver and ventilation areas.
- पर्यावरण: Keep the subwoofer in a stable environment, away from direct sunlight, extreme temperatures, and high humidity.
- तपासणी: सर्व केबल कनेक्शन सुरक्षित आहेत याची खात्री करण्यासाठी वेळोवेळी तपासा.
समस्यानिवारण
If you experience issues with your Apex AW-12 Subwoofer, consult the following table for common problems and solutions.
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| सबवूफरमधून आवाज नाही | Power not connected or turned on Audio cable loose or faulty Receiver/processor settings incorrect | Check power cord and power switch Ensure audio cable is securely connected at both ends; try a different cable Verify subwoofer output is enabled and volume is up on your receiver/processor |
| Distorted or weak bass | Subwoofer volume too high/low Incorrect EQ settings खराब प्लेसमेंट | Adjust subwoofer volume on the unit and/or receiver Experiment with EQ settings Try repositioning the subwoofer in the room |
| Subwoofer does not turn on with receiver (12V trigger) | 12V trigger cable loose or faulty Receiver's 12V trigger output not active | Check 12V trigger cable connection Consult your receiver's manual to ensure 12V trigger output is enabled |
If the problem persists after trying these solutions, please contact Monitor Audio customer support.
तपशील
Key technical specifications for the Monitor Audio Apex AW-12 Subwoofer:
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल | Apex AW-12-BK |
| स्पीकरचा प्रकार | सबवूफर |
| सबवूफर व्यास | 12 इंच (30.48 सेमी) |
| Ampजिवंत प्रकार | वर्ग डी |
| वाटtage / Max Output Power | 500 वॅट्स |
| उर्जा स्त्रोत | AC |
| साहित्य | धातूचा |
| रंग | धातूचा काळा |
| परिमाण (D x W x H) | 49.5 सेमी x 47.5 सेमी x 47.2 सेमी (19.5 इंच x 18.7 x 18.6 इंच) |
| माउंटिंग प्रकार | मजला उभे |
हमी माहिती
Monitor Audio products are manufactured to the highest quality standards. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Monitor Audio webसाइट. वॉरंटी दाव्यांसाठी तुमचा खरेदीचा पुरावा ठेवा.
ग्राहक समर्थन
If you require further assistance or have questions not covered in this manual, please contact Monitor Audio customer support or your authorized dealer. Contact information can typically be found on the official Monitor Audio webसाइटवर किंवा तुमच्या उत्पादन पॅकेजिंगवर.
