लिनियर MCS412001 मल्टी-कोड 2-चॅनेल व्हिझर ट्रान्समीटर सूचना पुस्तिका

1. उत्पादन संपलेview

The Linear MCS412001 Multi-Code 2-Channel Visor Transmitter is designed for use with automatic door and gate operator applications. This portable transmitter features raised dimples on its buttons for easy identification, including for vision-impaired users. It operates on a 9-volt battery and includes a visor clip for convenient mounting.

The transmitter utilizes a multi-code format with two 10-position coding switches, offering 1,024 possible codes per channel. This allows for independent coding to activate different devices, such as a common gate and a private door. The transmitter will only activate receivers that are set with the identical code.

समोर view of the Linear MCS412001 Multi-Code 2-Channel Visor Transmitter.

प्रमुख वैशिष्ट्ये:

• Easy access to battery and coding switches.
• 1,024 possible codes per channel for enhanced security.
• Powered by a standard 9-Volt battery (included).
• Includes a durable visor clip for vehicle mounting.
• Compatible with 300 MHz multi-code receivers, including models 109950 and 302850.

2. Setup and Coding Instructions

Before placing your transmitter into service, it is essential to set your codes to ensure security and prevent interference with neighboring systems. The model 4120 transmitter features two 10-position coding switches. Avoid using several common coding schemes (e.g., ALL ON, ALL OFF, 2, 4, 6, 8, 10 ON; 1, 3, 5, 7, 9 ON) as these positions are frequently used or similar to other manufacturers' test positions.

अंतर्गत view of the coding switches (Figure 1).

Setting the Code Switches:

1. Open the transmitter case to access the coding switches.
2. For a single receiver: Set the ten position switch on the transmitter to match your receiver's code.
3. For two single channel receivers: Set the ten position switch on Side A of the transmitter to match your first receiver (#1). Set the ten position switch on Side B of the transmitter to match your second receiver (#2).
4. For a MULTI-CODE™ 3021 or 3028 two-channel receiver: Set the receiver and transmitter (Side A and B) code switch positions 1-9 to match. The 10th position on your transmitter code switches is used for channel selection. Channel 1 on the receiver is selected by moving the 10th position of the transmitter side A to the OFF (open) position. Channel 2 is selected by moving the 10th position of the transmitter side B to the ON (closed) position.
5. Once the codes have been set, check the operation and replace the lower cover.

ट्रान्समीटर इन्स्टॉलेशन:

The transmitter is a self-contained unit, including the battery, and can be operated while mounted in your vehicle. It is supplied with a clip for attaching to the sun visor. If desired, slide the clip into the recess provided on the back of the transmitter until it snaps into place.

मागे view with visor clip attached.

3. ऑपरेटिंग सूचना

The Linear MCS412001 transmitter features two distinct buttons for operation:

• द डावे बटण controls Signal One.
• द उजवे बटण controls Signal Two.

Press the desired button firmly to activate the corresponding channel. The red indicator light on the transmitter will illuminate during transmission.

4. Battery Information and Maintenance

The Linear MCS412001 transmitter is powered by one 9-volt alkaline battery, which is included with the unit. The average battery life is approximately 17,520 hours under normal usage conditions.

बॅटरी बदलणे:

1. To replace the battery, carefully open the transmitter case.
2. Remove the old 9-volt battery.
3. Insert a new 9-volt alkaline battery, ensuring correct polarity.
4. Close the transmitter case securely.

Regularly check the transmitter's operation. If the indicator light dims or the range decreases, it may be time to replace the battery.

5. समस्या निवारण

If your Linear MCS412001 transmitter is not functioning as expected, consider the following troubleshooting steps:

• बॅटरी तपासा: Ensure the 9-volt battery is properly installed and has sufficient charge. A weak battery can result in reduced range or intermittent operation. Replace the battery if necessary.
• Verify Code Settings: Confirm that the 10-position coding switches inside the transmitter are set to exactly match the code switches on your receiver(s). Any discrepancy will prevent activation. Refer to Section 2 for detailed coding instructions.
• प्राप्तकर्ता सुसंगतता: Ensure your receiver is compatible with 300 MHz multi-code transmitters. This transmitter is compatible with multi-code receivers and models 109950 and 302850.
• Obstructions/Interference: Large metal objects, walls, or other electronic devices can interfere with the signal. Try operating the transmitter from a different location or closer to the receiver.
• निर्देशक प्रकाश: Observe the test/operate indicator light. If it does not illuminate when a button is pressed, the battery may be dead or there could be an internal issue.

जर या पायऱ्यांमुळे समस्या सुटली नाही, तर कृपया ग्राहक समर्थनाशी संपर्क साधा.

6. तपशील

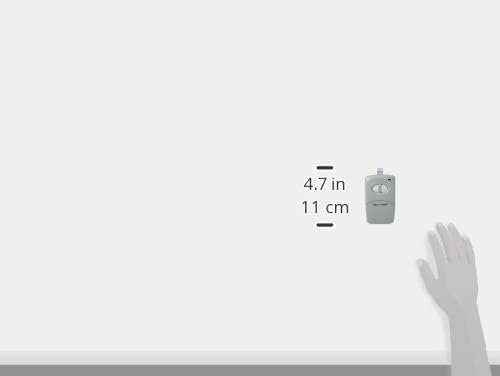

Product dimensions illustration.

7. वॉरंटी माहिती

All MULTI-CODE door related products carry an eighteen (18) month warranty against defects in workmanship or material. This warranty begins at the date of manufacture, for eighteen months. Linear LLC warrants our product only to our authorized dealers and distributors, and not to the end customer. If you have any questions about our warranty, please ask your dealer to determine the nature and scope of this warranty. Linear LLC does not assume, and is not responsible for, any real or consequential damages from claims against the performance of our product, nor is it liable for any costs related to loss of life, property, or revenue. Further, Linear LLC is in no way responsible for installation of our product, and will assume no costs to reinstallation or removal. Linear LLC Warranty is in lieu of all other warranties, expressed, or implied.

६. संपर्क आणि समर्थन

For further assistance, technical support, or warranty claims, please contact your authorized Linear dealer or distributor. You may also visit the official Linear webअतिरिक्त संसाधने आणि संपर्क माहितीसाठी साइट.
