Akuvox SP-R50P IP Phone User Manual

1. परिचय

This manual provides detailed instructions for the setup, operation, and maintenance of your Akuvox SP-R50P IP Phone. The SP-R50P is a high-definition voice IP phone designed for clear communication and efficient call management.

मुख्य वैशिष्ट्यांचा समावेश आहे:

• HD Voice capability for superior audio quality.
• 2.6" 132x64 Graphical LCD with backlight for clear display.
• 31 Keys, including 4 soft keys and 10 programmable keys, for versatile control.
• Multiple connectivity options: 1 RJ9 Handset jack, 1 RJ9 Headset Jack, 2 RJ45 10/100m Ethernet Jacks.
• Power over Ethernet (PoE) support (IEEE 802.3af) for simplified installation.
• Support for 1 SIP account, call waiting, call forward, call transfer, call on hold, mute, auto-answer, redial, DND, local 3-way conference, volume adjustment, selectable ringtones, speed dial, hotline, and more.

2. बॉक्स सामग्री

Carefully unpack your Akuvox SP-R50P IP Phone and verify that all items listed below are present and in good condition. If any items are missing or damaged, please contact your reseller immediately.

• Akuvox SP-R50P Base Unit
• हँडसेट
• Handset Connector Cable
• फोन स्टँड
• जलद सुरुवात मार्गदर्शक (संपूर्ण तपशीलांसाठी या मॅन्युअलचा संदर्भ घ्या)

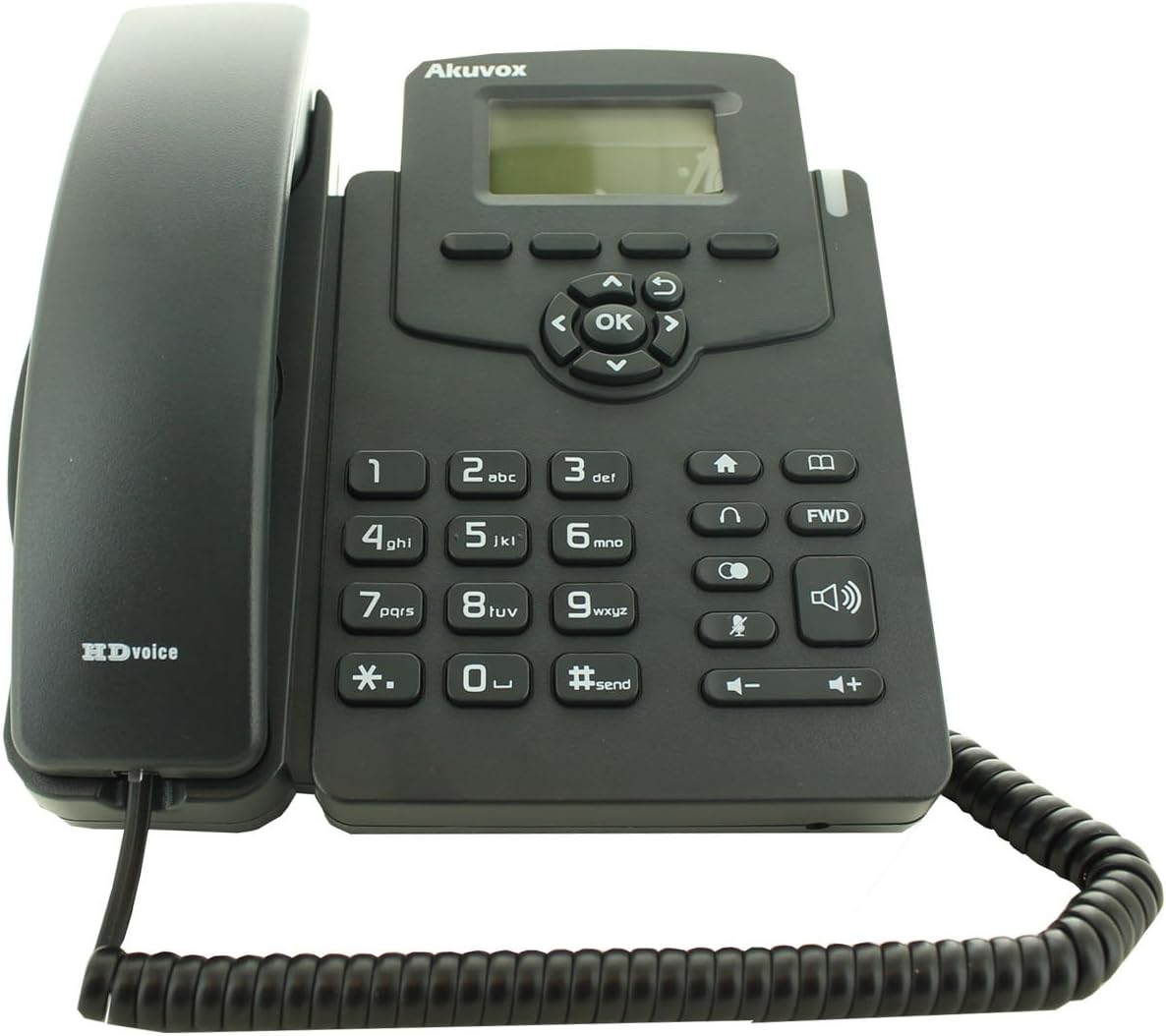

Figure 2.1: Akuvox SP-R50P IP Phone components. The image displays the main phone unit, the handset resting on its cradle, and the coiled handset cable. The phone features a display screen, navigation keys, a numeric keypad, and function buttons.

3. सेटअप

Follow these steps to set up your Akuvox SP-R50P IP Phone for first-time use.

1. Attach the Phone Stand: Align the tabs on the phone stand with the slots on the back of the phone base unit. Slide the stand into place until it clicks securely.
2. हँडसेट कनेक्ट करा: Plug one end of the coiled handset cable into the handset jack on the side of the phone base unit and the other end into the handset.
3. Connect to Network and Power:
   • PoE (पॉवर ओव्हर इथरनेट) वापरणे: If your network switch supports PoE, connect an Ethernet cable from the LAN port on the back of the phone to a PoE-enabled port on your network switch. The phone will power on automatically.
   • Using a Power Adapter (Optional, not included): If PoE is not available, connect a compatible 5V DC power adapter (not included) to the power jack on the back of the phone, then plug the adapter into a power outlet. Connect an Ethernet cable from the LAN port on the back of the phone to your network router or switch.
4. सुरुवातीचे बूट-अप: The phone will power on and begin its boot-up sequence. The LCD screen will display the Akuvox logo and then proceed to load the operating system. This may take a few moments.
5. नेटवर्क कॉन्फिगरेशन: Once booted, the phone will attempt to obtain an IP address via DHCP. If your network requires static IP configuration or specific SIP server settings, these can be configured via the phone's web interface or directly on the phone's menu (refer to Section 4.2 for menu navigation).

4. ऑपरेटिंग सूचना

This section details the basic and advanced functions of your Akuvox SP-R50P IP Phone.

३.१ मूलभूत कॉल फंक्शन्स

• कॉल करणे:
  1. हँडसेट निवडा किंवा दाबा वक्ता बटण
  2. कीपॅड वापरून इच्छित फोन नंबर डायल करा.
  3. दाबा #send button or wait a few seconds for the call to connect automatically.
• कॉलला उत्तर देणे: फोन वाजल्यावर, हँडसेट उचला किंवा दाबा वक्ता बटण
• कॉल समाप्त करणे: हँडसेट हँग करा किंवा दाबा वक्ता पुन्हा बटण.
• पुन्हा डायल करा: दाबा पुन्हा डायल करा button (often represented by a curved arrow or a dedicated key) to redial the last dialed number.
• निःशब्द: कॉल चालू असताना, दाबा नि:शब्द करा button (microphone icon) to mute your microphone. Press it again to unmute.
• आवाज समायोजन: वापरा खंड +/- buttons during a call to adjust the handset, headset, or speaker volume. When idle, use them to adjust the ringer volume.

4.2 Advanced Call Features

• कॉल होल्ड: सक्रिय कॉल दरम्यान, दाबा धरा button (often represented by a pause icon or two vertical lines). The call will be placed on hold. Press the धरा button again or the flashing line key to resume the call.
• कॉल ट्रान्सफर:
  1. अंध हस्तांतरण: सक्रिय कॉल दरम्यान, दाबा हस्तांतरण soft key or button. Dial the number to transfer to, then press the हस्तांतरण पुन्हा मऊ की.
  2. उपस्थित हस्तांतरण: सक्रिय कॉल दरम्यान, दाबा हस्तांतरण soft key or button. Dial the number to transfer to and wait for the party to answer. Announce the call, then press the हस्तांतरण हस्तांतरण पूर्ण करण्यासाठी पुन्हा सॉफ्ट की.
• ३-वे कॉन्फरन्स:
  1. सक्रिय कॉल दरम्यान, दाबा कॉन्फ soft key or button. The first call will be placed on hold.
  2. Dial the number of the third party and wait for them to answer.
  3. दाबा कॉन्फ soft key again to join all three parties in a conference call.
• व्यत्यय आणू नका (DND): दाबा DND button (often represented by a crossed-out bell or similar icon) to activate or deactivate Do Not Disturb mode. When active, incoming calls will be redirected or sent to voicemail without ringing your phone.
• Call Forward: Access the phone's menu (usually via a मेनू or सेटिंग्ज soft key) to configure call forwarding options (Always, Busy, No Answer).
• फोनबुक: The phone supports a local phonebook of up to 500 groups. Access it via the फोनबुक soft key or menu option. You can add, edit, and delete contacts.
• प्रोग्राम करण्यायोग्य की: The 10 programmable keys can be configured for various functions such as speed dial, busy lamp field (BLF), or line keys. Refer to your system administrator or the phone's web interface for configuration details.

4.3 LCD Display and Navigation

The 2.6" graphical LCD displays call information, menu options, and status indicators. Use the navigation cluster (Up, Down, Left, Right arrows, and OK button) to navigate through menus and select options. The soft keys below the display change their function based on the current context.

5. देखभाल

Proper care and maintenance will ensure the longevity of your Akuvox SP-R50P IP Phone.

• स्वच्छता: फोनची पृष्ठभाग स्वच्छ करण्यासाठी मऊ, कोरडे कापड वापरा. ​​हट्टी खुणा असल्यास, किंचित डीampen the cloth with water. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the phone's finish and internal components.
• पर्यावरण: Keep the phone away from direct sunlight, excessive heat sources, and moisture. Ensure it is placed on a stable, flat surface to prevent accidental falls.
• केबल्स: Periodically check all connected cables (handset, Ethernet) for any signs of wear or damage. Replace damaged cables immediately.
• वायुवीजन: Ensure the ventilation slots on the phone are not blocked to prevent overheating.

6. समस्या निवारण

If you encounter issues with your Akuvox SP-R50P IP Phone, refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact your system administrator or Akuvox technical support.

7. तपशील

Detailed technical specifications for the Akuvox SP-R50P IP Phone.

8. हमी आणि समर्थन

For warranty information, please refer to the warranty card included with your product or contact your point of purchase. Akuvox provides technical support for its products. For further assistance, please visit the official Akuvox webसाइट किंवा त्यांच्या ग्राहक सेवा विभागाशी संपर्क साधा.

वॉरंटी दाव्यांसाठी खरेदीचा पुरावा म्हणून तुमची खरेदी पावती ठेवण्याची शिफारस केली जाते.
