1. परिचय
Thank you for choosing the VITEK VT-3602BW-I Multi-Kitchen Processor. This versatile appliance is designed to simplify various kitchen tasks, including meat grinding, vegetable processing (shredding, slicing, grating), juicing, and pureeing. With its powerful 2000W motor and multiple attachments, it offers efficiency and convenience for preparing a wide range of dishes. Please read this manual carefully before use to ensure safe and optimal operation.
प्रतिमा 1: समोर view of the VITEK VT-3602BW-I Multi-Kitchen Processor.
2. महत्त्वाच्या सुरक्षितता सूचना
आग, विजेचा धक्का किंवा दुखापत होण्याचा धोका कमी करण्यासाठी, नेहमी या मूलभूत सुरक्षा खबरदारींचे पालन करा:
- उपकरण ऑपरेट करण्यापूर्वी सर्व सूचना वाचा.
- मोटर युनिट पाण्यात किंवा इतर द्रवांमध्ये बुडवू नका.
- वापरात नसताना, भाग एकत्र करण्यापूर्वी किंवा वेगळे करण्यापूर्वी आणि साफसफाई करण्यापूर्वी उपकरण नेहमी पॉवर आउटलेटमधून अनप्लग करा.
- Keep hands and utensils away from moving parts during operation to prevent injury.
- Ensure all attachments are securely locked in place before operating.
- Do not use accessories or attachments not recommended or sold by the manufacturer.
- हे उपकरण फक्त घरगुती वापरासाठी आहे. घराबाहेर वापरू नका.
- उपकरण वापरात असताना मुलांचे बारकाईने निरीक्षण करा.
- खराब झालेल्या कॉर्ड किंवा प्लगने किंवा उपकरण खराब झाल्यानंतर किंवा कोणत्याही प्रकारे खराब झाल्यानंतर उपकरण चालवू नका.
- Avoid contact with sharp blades. Handle with care.
3. भाग आणि घटक
Familiarize yourself with the various parts of your VITEK Multi-Kitchen Processor:
प्रतिमा २: तपशीलवार view सर्व घटकांचे.
- पुशर: Used to guide food into the feeding tube.
- Loading Tray: Holds food items before processing.
- Grinder Head Lock Button: Secures the grinder head to the motor unit.
- ग्राइंडर हेड: Main housing for meat mincing components.
- Screw (Auger): Feeds food through the attachments.
- नियंत्रण पॅनेल: Includes ON/OFF and Reverse (REV) buttons.
- मोटर युनिट: उपकरणाचे मुख्य पॉवर युनिट.
- पॉवर कॉर्ड स्टोरेज: Integrated compartment for the power cord.
- Vegetable Processing Attachment Housing: Holds the interchangeable drums.
- Shredding Drum: For fine shredding of vegetables.
- Slicing Drum: For uniform slicing of vegetables.
- Grating Drum: For grating various food items.
- Juicer/Puree Attachment Screw: Part of the slow juicer mechanism.
- Juicer/Puree Attachment Filter: लगद्यापासून रस वेगळे करते.
- Juicer/Puree Attachment Housing: Main body for juicing/pureeing.
- Meat Mincer Discs: Includes fine, medium, and coarse grinding discs.
- कटिंग ब्लेड: Stainless steel blade for mincing meat.
- Sausage Attachment: For making homemade sausages.
- Kebab Attachment: For shaping kebabs.
- Disc Cleaning Tool: Special device for cleaning grinding discs.

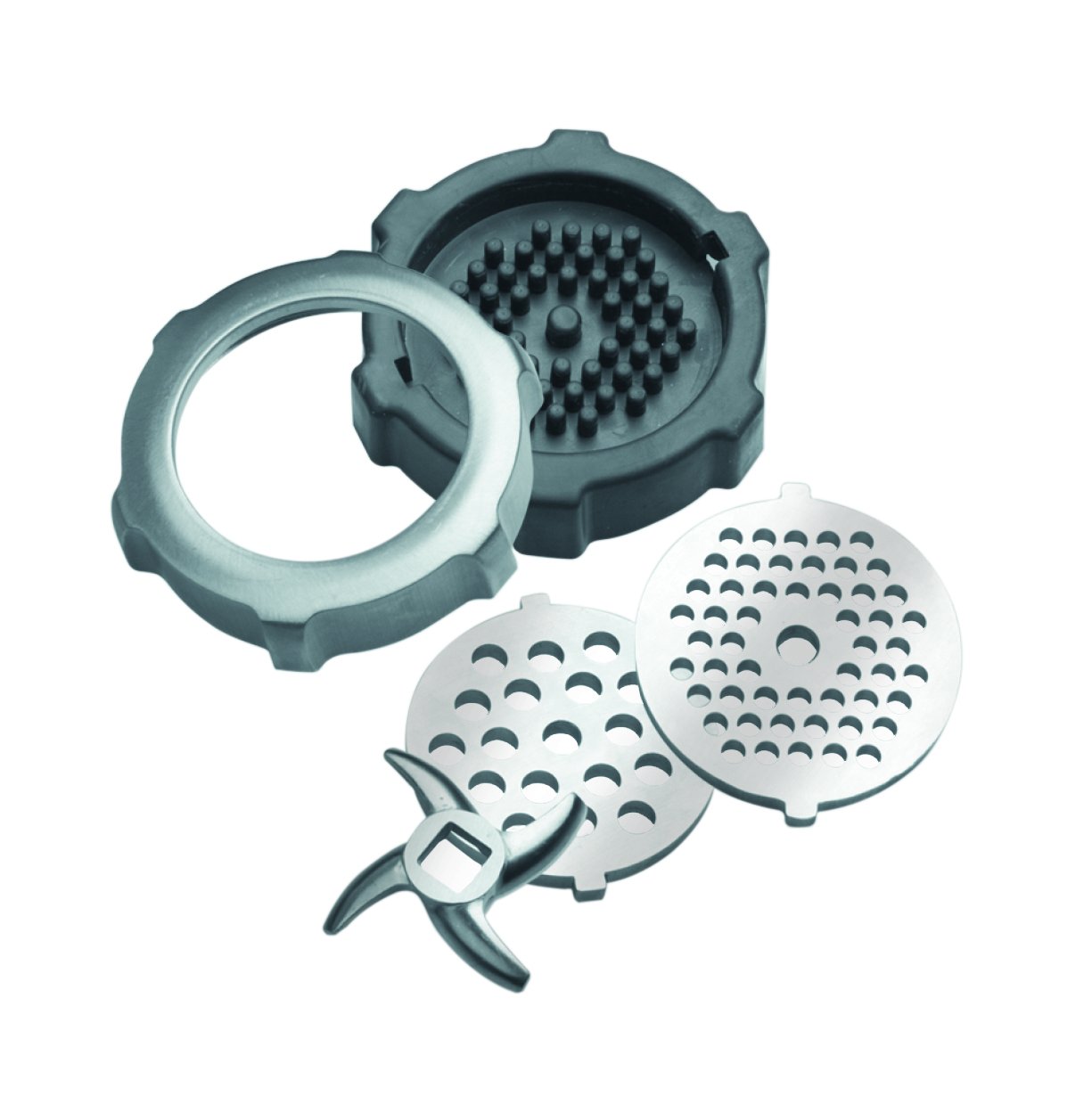

Image 3: Meat Mincer Discs and Blade.

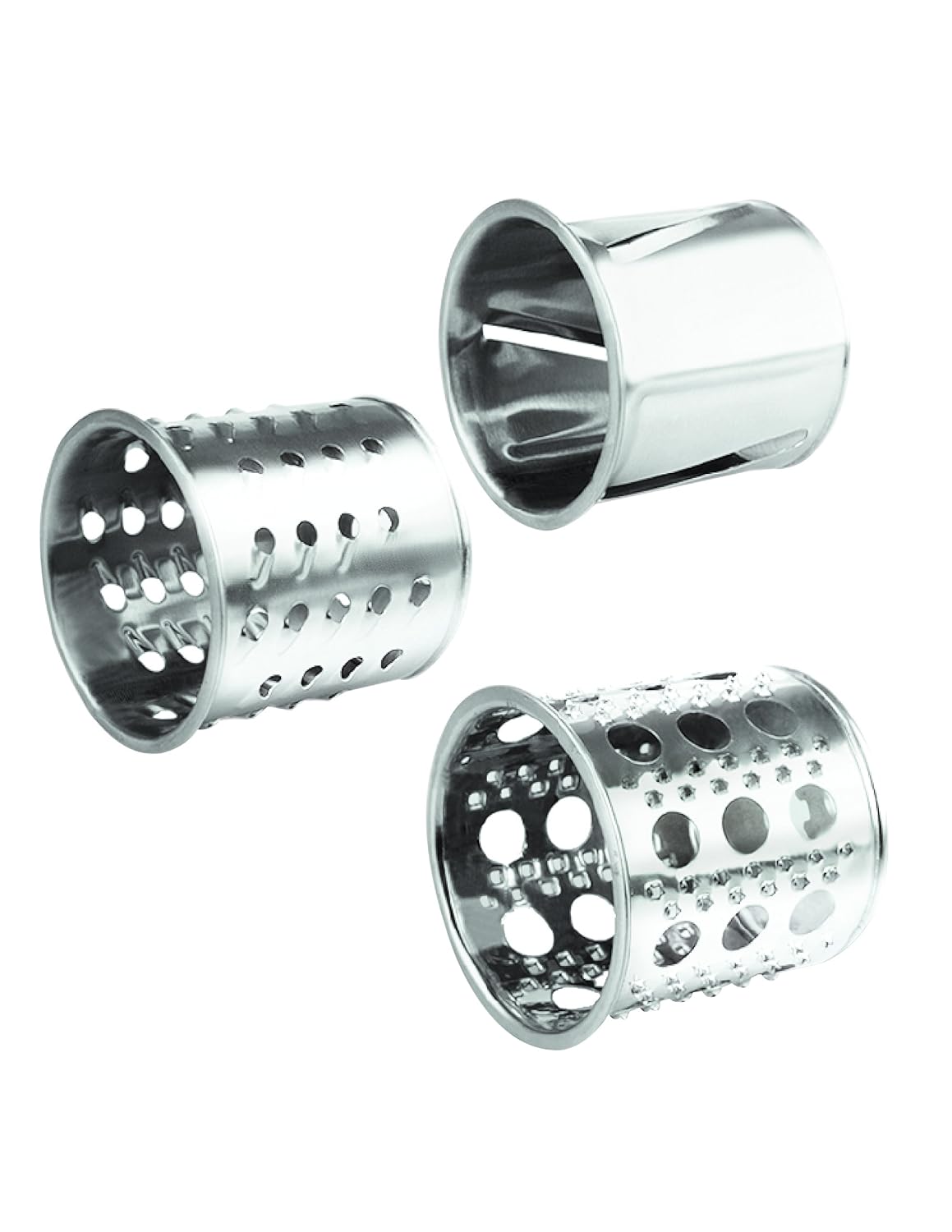

Image 4: Vegetable Processing Drums.
Image 5: Juicer/Puree Attachment.
Image 6: Sausage and Kebab Attachments.
4. असेंब्ली आणि सेटअप
Before first use, wash all removable parts in warm soapy water, rinse thoroughly, and dry. Ensure the motor unit is unplugged.
4.1 General Assembly
- मोटर युनिट एका स्थिर, सपाट पृष्ठभागावर ठेवा.
- Insert the desired attachment (e.g., grinder head, vegetable processing housing, or juicer attachment) into the opening on the front of the motor unit.
- Press the Grinder Head Lock Button (3) and rotate the attachment clockwise until it locks securely into place. Release the button.
- Place the loading tray (2) onto the top of the assembled attachment.
4.2 Specific Attachment Assembly
4.2.1 Meat Mincer Assembly
- Insert the screw (auger) (5) into the grinder head (4).
- Place the cutting blade (17) onto the end of the screw, ensuring the sharp edges face outwards.
- Select the desired mincing disc (16) (fine, medium, or coarse) and place it over the cutting blade.
- Screw the locking ring onto the grinder head until it is tight.
4.2.2 Vegetable Processing Attachment Assembly
- Insert the desired drum (shredding, slicing, or grating) (10, 11, or 12) into the vegetable processing attachment housing (9).
- Ensure the drum is seated correctly.
4.2.3 Juicer/Puree Attachment Assembly
- Assemble the juicer/puree attachment screw (13) and filter (14) into the juicer/puree attachment housing (15).
- Attach the assembled unit to the motor unit as described in 4.1.
5. ऑपरेटिंग सूचना
Ensure the appliance is correctly assembled for the task you wish to perform.
Image 7: Control Panel.
5.1 सामान्य ऑपरेशन
- पॉवर कॉर्डला योग्य इलेक्ट्रिकल आउटलेटमध्ये प्लग करा.
- Press the ON/OFF button on the control panel to start the appliance.
- If food gets stuck, press the REV (Reverse) button to clear the blockage. Release the button to stop the reverse function.
5.2 Meat Grinding
- Prepare meat by cutting it into small pieces that fit into the loading tray. Remove bones, gristle, and excessive fat.
- Assemble the meat mincer attachment (as per 4.2.1).
- Place a bowl under the outlet to collect the minced meat.
- उपकरण चालू करा.
- Feed the meat pieces into the loading tray and gently push them down with the pusher (1). Do not force the meat.
5.3 Vegetable Processing (Shredding, Slicing, Grating)
- Prepare vegetables by washing and cutting them into appropriate sizes.
- Assemble the vegetable processing attachment with the desired drum (as per 4.2.2).
- Place a bowl under the outlet to collect the processed vegetables.
- उपकरण चालू करा.
- Feed the vegetables into the loading tray and gently push them down with the pusher (1).
5.4 Juicing and Pureeing
- Prepare fruits or vegetables by washing and cutting them into small pieces.
- Assemble the juicer/puree attachment (as per 4.2.3).
- Place a container under the juice outlet and another for pulp.
- उपकरण चालू करा.
- Feed the prepared items into the loading tray and gently push them down with the pusher (1).
- The juicer allows for adjustment of pulp level. Rotate the end cap of the juicer attachment to control the thickness of the juice/puree.
5.5 Sausage and Kebab Making
- Prepare your meat mixture for sausages or kebabs.
- Assemble the meat mincer attachment, but instead of a mincing disc, attach the sausage (18) or kebab (19) attachment.
- For sausages, carefully slide the sausage casing onto the nozzle.
- Turn on the appliance and feed the meat mixture into the loading tray, guiding it through the attachment to fill the casing or form kebabs.
6. देखभाल आणि स्वच्छता
Regular cleaning ensures the longevity and hygienic operation of your appliance.
6.1 Disassembly and Cleaning
- साफ करण्यापूर्वी उपकरण नेहमी अनप्लग करा.
- Press the Grinder Head Lock Button and rotate the attachment counter-clockwise to remove it from the motor unit.
- Disassemble all parts of the attachment.
- Wash all removable parts (grinder head, screw, blade, discs, drums, juicer parts, trays, pushers, sausage/kebab attachments) in warm soapy water. Rinse thoroughly and dry immediately.
- The motor unit can be wiped clean with a damp कापड मोटर युनिट पाण्यात कधीही बुडवू नका.
6.2 Disc Cleaning Technology
The VITEK Multi-Kitchen Processor features a special disc cleaning technology. Use the provided disc cleaning tool (20) to easily remove any remaining food particles from the grinding discs after use. This ensures thorough cleaning and prevents residue buildup.
५.८.१ स्टोरेज
The appliance features a space-saving design with special compartments in the body casing to store accessories. After cleaning and drying, store all attachments neatly within the motor unit. The power cord also has a dedicated storage compartment. Store the appliance in a dry, safe place.
प्रतिमा ४.२: बाजू view illustrating integrated accessory storage.
7. समस्या निवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| उपकरण सुरू होत नाही. | प्लग इन केलेले नाही; पॉवर ओयूtage; जोडणी योग्यरित्या एकत्र केलेली नाही. | Check power connection; ensure attachment is securely locked. |
| ऑपरेशन दरम्यान मोटर थांबते. | Overload (too much food or hard food); motor overheating. | Press the REV button to clear blockages. If motor overheats, turn off and let cool for 30 minutes. Reduce food quantity or cut into smaller pieces. |
| Food is not processed efficiently. | Incorrect attachment assembly; dull blade/disc; food pieces too large. | Check assembly of blade and disc. Ensure food is cut to appropriate size. |
8. तपशील
- ब्रँड: विटेक
- मॉडेल क्रमांक: VT-3602BW-I
- शक्ती: 2000W
- रंग: पांढरा आणि काळा
- आयटम वजन: १ किलो १ ग्रॅम
- शिफारस केलेले उपयोग: Meat Grinding, Vegetable Processing, Juicing, Pureeing
- समाविष्ट घटक: Meat Grinder, Various Accessories, User Manual
- साहित्य: High-quality food-grade materials, 100% rust-free parts in direct contact with food.
9. हमी आणि समर्थन
This VITEK Multi-Kitchen Processor comes with a 2 वर्षाची वॉरंटी. For any service, support, or warranty claims, please contact SPG India Private Limited customer care at 18002660495. Keep your purchase receipt as proof of purchase for warranty validation.
