परिचय
This manual provides essential information for the DeVilbiss OEM Replacement Timing Belt, model CAC-1342. This component is designed for specific air compressor models to ensure proper operation and longevity. It is crucial to read and understand this manual before attempting installation or maintenance.
सुरक्षितता माहिती
चेतावणी:
- Always disconnect the air compressor from its power source before performing any maintenance or installation.
- योग्य वैयक्तिक संरक्षक उपकरणे (पीपीई) घाला, जसे की सुरक्षा चष्मा आणि हातमोजे.
- Refer to your specific air compressor's owner's manual for detailed safety procedures and instructions.
- Improper installation can lead to equipment damage or personal injury. If unsure, seek assistance from a qualified technician.
उत्पादन संपलेview
The DeVilbiss CAC-1342 is an Original Equipment Manufacturer (OEM) replacement timing belt. It is supplied as a 2-pack and is designed to maintain the precise timing and power transmission within compatible air compressor systems.

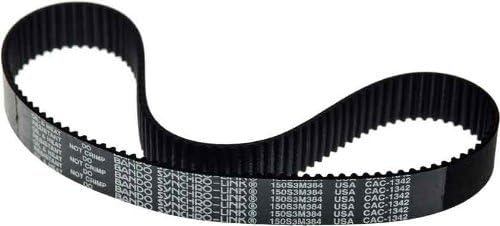

Image: DeVilbiss CAC-1342 Timing Belt. This image displays the black rubber timing belt with visible teeth on the inner surface, designed for precise synchronization in air compressor mechanisms. The belt is coiled to show its length and flexibility.
सुसंगतता
The CAC-1342 timing belt is compatible with a range of air compressor models from DeVilbiss, Craftsman, Porter Cable, and Makita. Always verify the part number in your compressor's owner's manual before purchasing आणि स्थापित करणे.
सुसंगत मॉडेल:
- Craftsman: 919152340, 919165040, 919150340, 919152040, 919162080, 919150390, 919162120, 919150360, 919150331, 919150311, 919152042, 919152020, 919162121, 919152041, 919165041 Compressors
- Porter Cable: CF1400 Compressor
- DeVilbiss: IRSFAC28 Type 0, HFAC153 (Type 0, 1, 2, 3), EXFAC200 Type 0, 102D (1, 2, 3), DFA153, DFAC153 Type 0, FAC23 Type 0, PAFAC153 (Type 0, 1, 2, 3), EXFAC125 (Type 2, 3), RA102D (Type 1) A, RAFA125 (Type 2, 3, 4) A Compressors
- मकिता: MAC500 Compressor
स्थापना मार्गदर्शक तत्त्वे
The following are general guidelines for timing belt replacement. Always consult your specific air compressor's owner's manual for detailed, model-specific installation instructions and diagrams.
- तयारी:
- Ensure the air compressor is disconnected from all power sources.
- Allow the compressor to cool down if it has been recently operated.
- Gather necessary tools (e.g., wrenches, screwdrivers, belt tension gauge if specified).
- बेल्टमध्ये प्रवेश करा:
- Remove any protective covers or guards that enclose the timing belt and pulleys.
- Carefully observe the current routing and tension of the old belt.
- जुना पट्टा काढा:
- Loosen any tensioning mechanisms or motor mounts as required by your compressor's manual to relieve tension on the old belt.
- Carefully remove the old timing belt from the pulleys.
- नवीन बेल्ट बसवा:
- Place the new DeVilbiss CAC-1342 timing belt onto the pulleys, ensuring correct alignment with the grooves.
- Apply the specified tension to the new belt according to your compressor's manual. Incorrect tension can lead to premature wear or operational issues.
- Tighten all tensioning mechanisms and motor mounts securely.
- अंतिम तपासणी:
- Manually rotate the compressor flywheel a few full revolutions to ensure the belt is seated correctly and moves freely without binding.
- Reinstall all protective covers and guards.
- Reconnect power and test the compressor's operation, listening for unusual noises or vibrations.
देखभाल
Regular inspection and maintenance of the timing belt are essential for the efficient and safe operation of your air compressor.
- व्हिज्युअल तपासणी: Periodically inspect the timing belt for signs of wear, cracking, fraying, or missing teeth.
- टेन्शन तपासणी: Verify that the belt tension remains within the manufacturer's specifications. A loose belt can slip, while an overly tight belt can cause excessive wear on bearings and the belt itself.
- स्वच्छता: Keep the belt and pulleys free from oil, grease, and debris, which can degrade the belt material and reduce its lifespan.
- बदली वेळापत्रक: Replace the timing belt according to the air compressor manufacturer's recommended service intervals, or sooner if signs of significant wear are observed.
Troubleshooting Common Belt Issues
| लक्षण | संभाव्य कारण | उपाय |
|---|---|---|
| Squealing or chirping noise | Loose belt, worn belt, misaligned pulleys | Check and adjust belt tension. Inspect belt for wear and replace if necessary. Verify pulley alignment. |
| बेल्ट घसरणे | Insufficient tension, oil/grease on belt, worn belt | Adjust tension. Clean belt and pulleys. Replace worn belt. |
| जास्त कंपन | Improper tension, damaged belt, misaligned pulleys | Check and adjust tension. Inspect belt for damage and replace. Verify pulley alignment. |
| Premature belt wear | Over-tensioning, under-tensioning, pulley misalignment, contamination | Ensure correct tension. Align pulleys. Keep belt and pulleys clean. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician or refer to your compressor's specific service manual.
तपशील
- भाग क्रमांक: सीएसी -1342
- प्रकार: OEM Replacement Timing Belt
- प्रमाण: 2 belts per pack
- परिमाण (अंदाजे): ३.५ x ०.७ x ३.५ इंच (पॅकेजिंग)
- वजन (अंदाजे): ४.६ औंस (एकूण पॅकेज)
- निर्माता: Stanley Black&Decker (for DeVilbiss)
हमी आणि समर्थन
As an OEM replacement part, the DeVilbiss CAC-1342 timing belt is typically covered by the manufacturer's standard warranty for replacement parts. For specific warranty details, claims, or technical support, please contact DeVilbiss or Stanley Black&Decker customer service directly. Always retain your proof of purchase.
For further assistance with your air compressor, refer to the original compressor's owner's manual or contact the compressor manufacturer's support.
