Symphony DIET12i Mobile Portable Evaporative Air Cooler Cleaner and Humidifier - 12L

परिचय

The Symphony DIET12i is a mobile portable evaporative air cooler designed to provide effective personal cooling. It functions as an air cooler, cleaner, and humidifier, featuring a 12-liter water tank capacity. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DIET12i air cooler.

महत्वाची सुरक्षितता माहिती

• Always ensure the cooler is placed on a stable, level surface.
• Do not operate the cooler with a damaged power cord or plug.
• Unplug the cooler from the power outlet before filling water, cleaning, or performing any maintenance.
• कूलर चालवताना मुलांना आणि पाळीव प्राण्यांना कूलरपासून दूर ठेवा.
• Ensure proper cross-ventilation in the room for effective cooling and to prevent humidity buildup.
• कूलर किंवा त्याचे विद्युत घटक पाण्यात बुडवू नका.

सेटअप मार्गदर्शक

1. अनपॅकिंग आणि तपासणी

Carefully remove the Symphony DIET12i air cooler from its packaging. Inspect the unit for any signs of damage during transit. Ensure all included components are present: 1 air cooler, 1 remote, and 4 castor wheels.

2. Attaching Castor Wheels

Attach the four castor wheels to the designated slots at the bottom of the cooler. Ensure they are securely fastened to allow for easy mobility.

प्रतिमा: बाजू view of the Symphony DIET12i air cooler, showing the attached castor wheels at the base.

3. पाण्याची टाकी भरणे

Locate the water inlet on the cooler. Fill the 12-liter water tank with clean water. For enhanced cooling, ice cubes can be added to the ice chamber. Do not overfill the tank beyond the maximum level indicator.

Image: Close-up of the rear of the Symphony DIET12i, showing the "ICE. WATER" and "OVERFLOW" markings, indicating the water filling and drainage points.

4. Placement for Optimal Performance

For the most effective cooling, position the cooler in an area with good cross-ventilation. It is recommended to keep doors and windows open to allow for air circulation. The cooler is ideal for room sizes up to 100 sq ft within a maximum temperature range of 38 degrees Celsius.

ऑपरेटिंग सूचना

1. पॉवर चालू/बंद

Plug the cooler into a standard 110-volt power outlet. Press the 'POWER' button on the control panel or remote control to turn the unit on or off.

प्रतिमा: वर view of the Symphony DIET12i control panel, displaying buttons for Power, Fan, Cool, Swing, and Timer functions.

2. रिमोट कंट्रोल वापरणे

The DIET12i comes with a full-function remote control for convenient operation. The remote allows you to control power, fan speed, cooling mode, swing function, and set the timer.

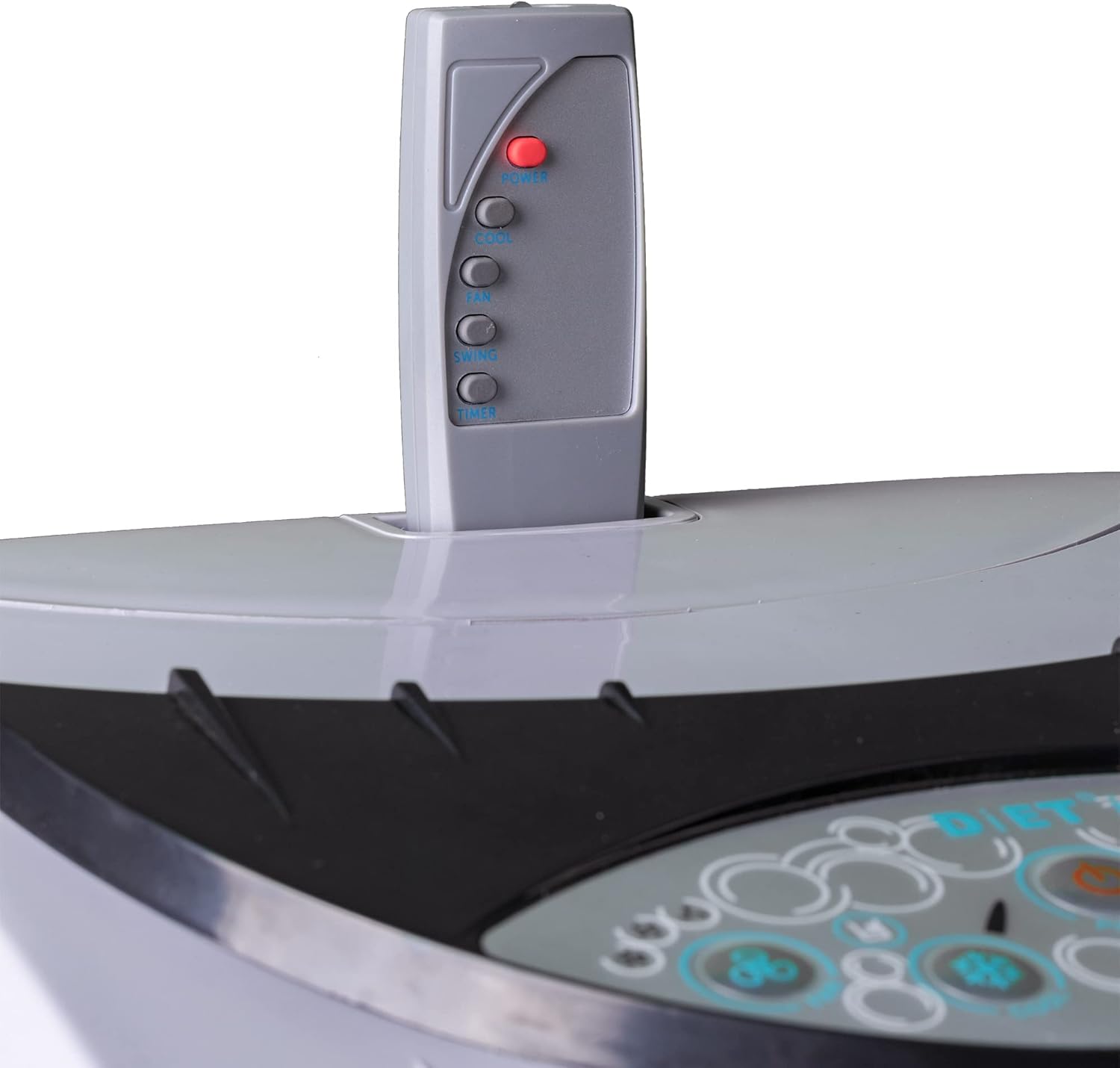

Image: The remote control for the Symphony DIET12i, showing buttons for Power, Fan, Cool, Swing, and Timer.

५.२. फंक्शन मोड्स

• कूल मोड: Activates the water pump to moisten the cooling pads, providing evaporative cooling. For optimal cooling, wait approximately 5 minutes after starting the cooler in Cool mode before switching on the fan.
• फॅन मोड: Operates the fan without engaging the water pump, circulating air like a standard fan.
• स्विंग फंक्शन: Activates the oscillating louvers for wider air distribution.
• टाइमर: Set the cooler to operate for a specific duration (e.g., 1 hour, 2 hours, 4 hours) using the timer function.

4. Cool Flow Dispenser

The integrated cool flow dispenser ensures even distribution of water over the cooling pads for consistent and efficient cooling performance.

देखभाल

Regular maintenance ensures the longevity and efficient operation of your Symphony DIET12i air cooler.

1. पाण्याची टाकी काढून टाकणे

To drain the water tank, locate the drain plug at the bottom of the unit. Place a suitable container beneath the plug and remove it to allow water to flow out. Tilt the unit slightly if necessary to ensure complete drainage, especially before storing the cooler for extended periods.

2. Cleaning the Water Tank and Cooling Pads

Over time, mineral deposits and algae may accumulate in the water tank and on the cooling pads. It is important to clean these components regularly to prevent odors and maintain cooling efficiency. While the water storage area may not be easily accessible for scrubbing, regular draining and rinsing with clean water can help. For persistent odors, consider using a mild disinfectant solution specifically designed for air coolers, following the product's instructions.

3. बाह्य स्वच्छता

Wipe the exterior surfaces of the cooler with a soft, damp कापड अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स वापरू नका.

4. स्टोरेज

Before storing the cooler, especially during off-season, ensure the water tank is completely drained and dry. Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.

समस्यानिवारण

तपशील

हमी आणि समर्थन

वॉरंटी नोंदणी

For warranty registration of your Symphony DIET12i air cooler, please refer to the instructions provided with your product packaging. Some models may offer warranty registration via SMS facility if online options are not available for specific models.

ग्राहक समर्थन

For any queries, technical assistance, or service requests, please contact Symphony Limited customer support. Refer to the contact information provided on the product packaging or the official Symphony webसर्वात अद्ययावत समर्थन तपशीलांसाठी साइट.
